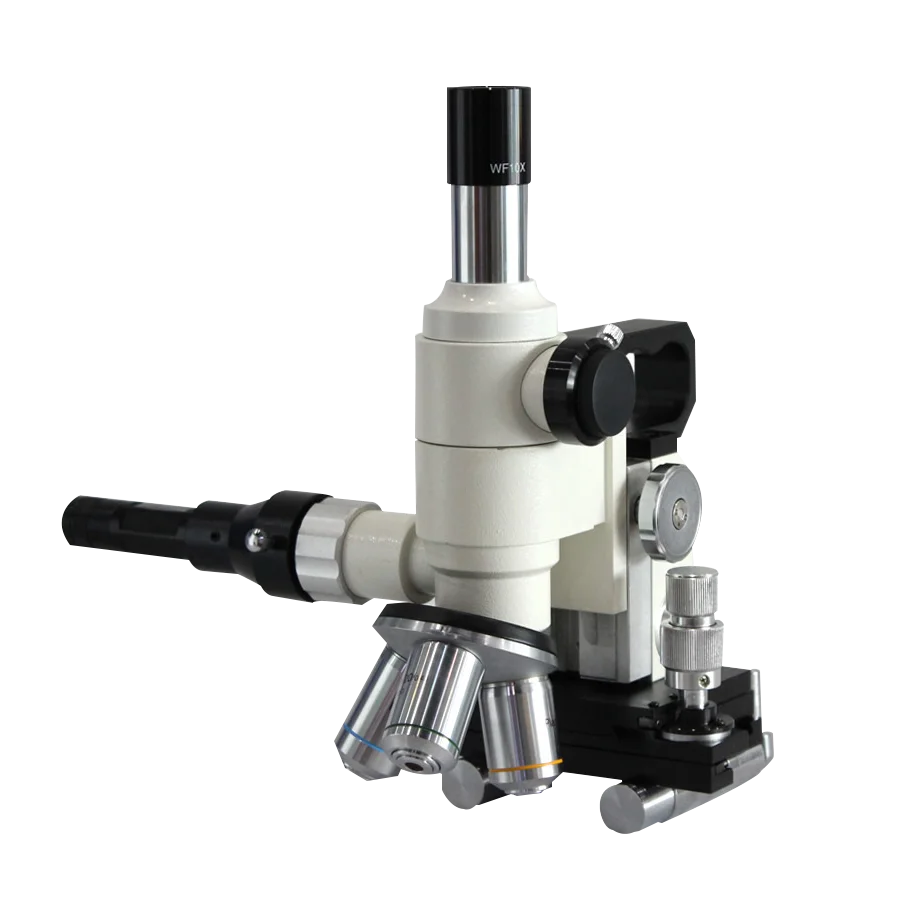

BJX 2000 Portable Metallographic Metallurgical Microscope with Horizontal Photographic Output
- Category: Optical Instruments >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (62394348122):
Product Overview
Description
 | Compact and Portable Triple Nosepiece LED Illuminator (Battery) Magnetic Base Dedicated Camera Interface |
Product Description
BJX-2000 Field Sites Portable Metallurgical Microscope extensively used for metallorgraphic examination and failure analysis of large workpiece. Grind sampling/ observe directly on the workpiece without cutting and sampling. Improve metal inspection effeciency and products quality control. No damage to the workpiece , especially the finished products. Available to match CCD camera, WIFI, Electronic eyepiece, metallurgical software which are convenient to collect, save and input images for analysis and research.
Features
---Triple nosepiece for convenient use without changing objectives
---LED illuminator (battery), without additional charge required
---Equipped with magnetic base which could be fixed on the sample directly
---Equipped with dedicated camera interface, simultaneous camera and eyepiece ues
---Extensively used for Metallurgical Labs, especially field sites
Specification
Specification for BJX-2000 | |
|---|---|
Plan Eyepiece | WF10X(Φ18mm) |
Plan Achromatic Objective | 10X,20X,40X/0.65(Metallurgical Objective) |
Total Mag. | 100X-400X |
Nosepiece | Triple |
Video Adapter | Horizontal Photographic Output |
Focus Range | Coarse movement: 30mm Fine movement: 1mm |
Magnetic Base | 10mm X,Y axis, on-off magnetic foot, Suction force:25N/cm2, with switch supply |
Mechanical Tube | 160mm |
Illuminators | LED, powered by external dry battery |
Weight(Instrument) | Net: 4kg, Gross: 6.5kg |
Suitcase Size | Aluminium alloy suitcase: 33X25X20cm |
Accessory
Optional Accessories(Please buy the following products if you need) | |
|---|---|
Plan Eyepiece | WF16X,WF20X |
Plan Metallographic Objective | 5X,50X,60X,80X,100X |
Microscope Camera | USB HD5-12MP Camera, Wifi camera can operate live observation on phone and Ipad directly. Equipped with hot spots for 5 people to observe simultaneously. |
Metallographic Analysis Software | GB analysis software with 438 latest standard, in line with American standard and other functions, such as: automatic rating and report. |
Product Details

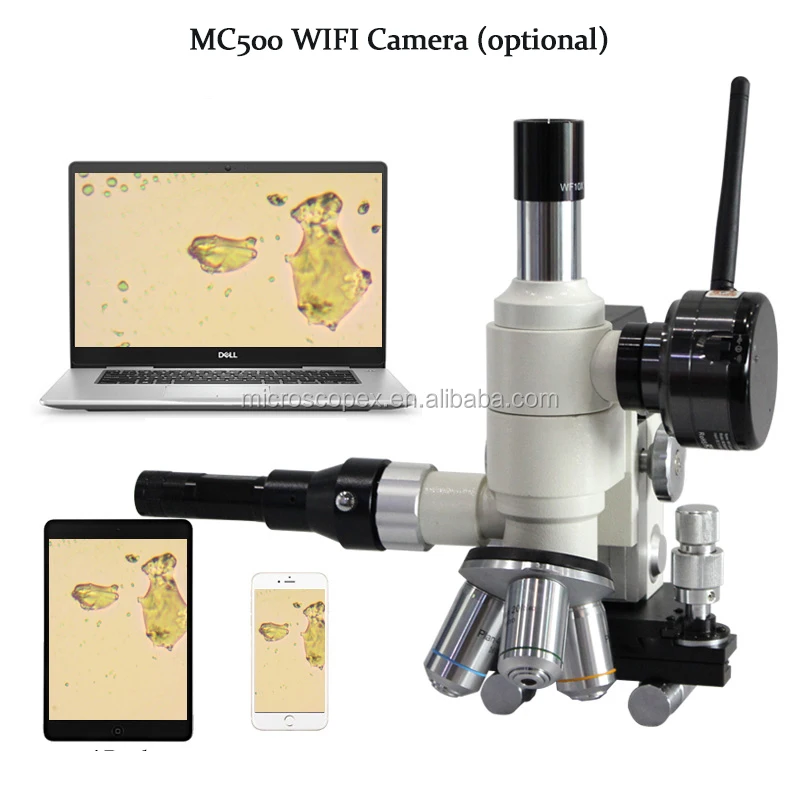

 | Set 1 BJX-2000 + Wifi Camera |

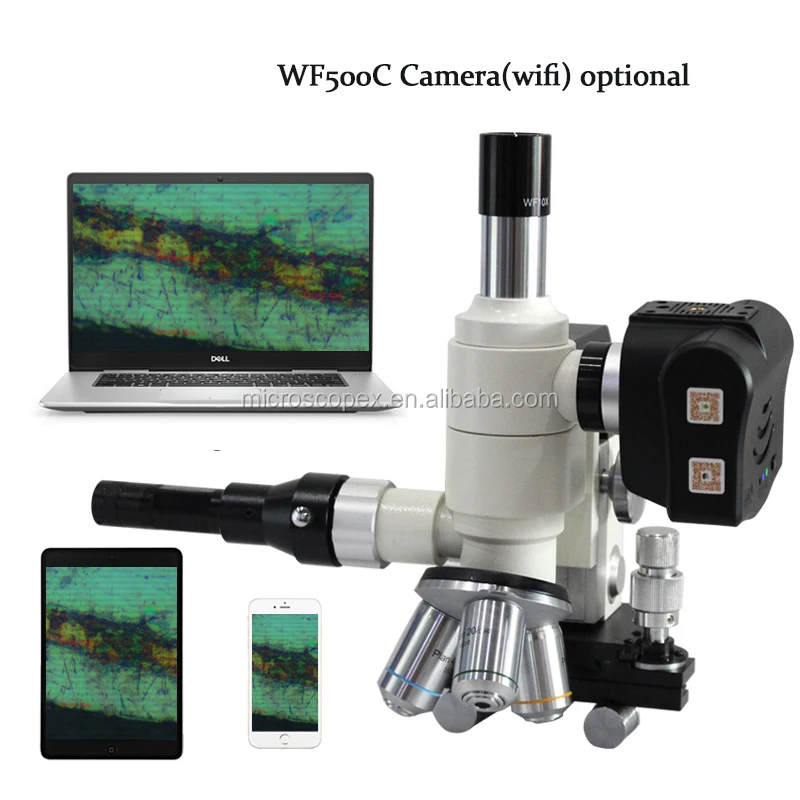

 | Set 2 BJX-2000 + Wifi Camera |

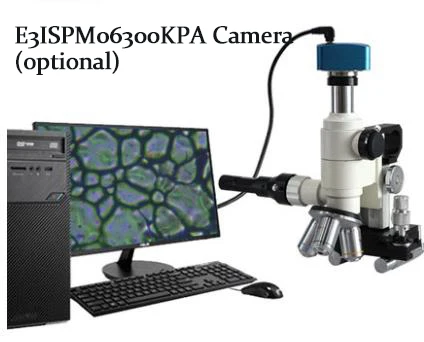

 | Set 3 BJX-2000 + E3ISPM Camera |
Packing List
Packing List for BJX-2000 | |
|---|---|
A | Main Body |
B | Eyepiece 10X |
C | Objective (10X,20X,40X) |
D | Magnetic Base |
E | Power Cord |
F | Suitcase |
H | Warranty Card |
I | Certificate |
J | Operation Manual |
