Product Overview
Description
1 ton 1.2 ton stacker truck battery charger electric stacker
Features
-economical choice, better price, high performance
- Aside operating to protect user
-Anti-burst hydraulic oil tube
-Multi limit switch, improving the safety
-DC motor, internal charger
Multi-function operating handling
Easily to control the stacker to forward, revert and lift, with anticollision button at the top

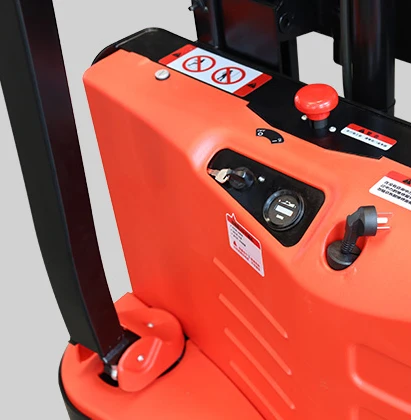

Emergency stop device
Press down it to stop the equipment if any emergency happens
Steering system
Machanical steering

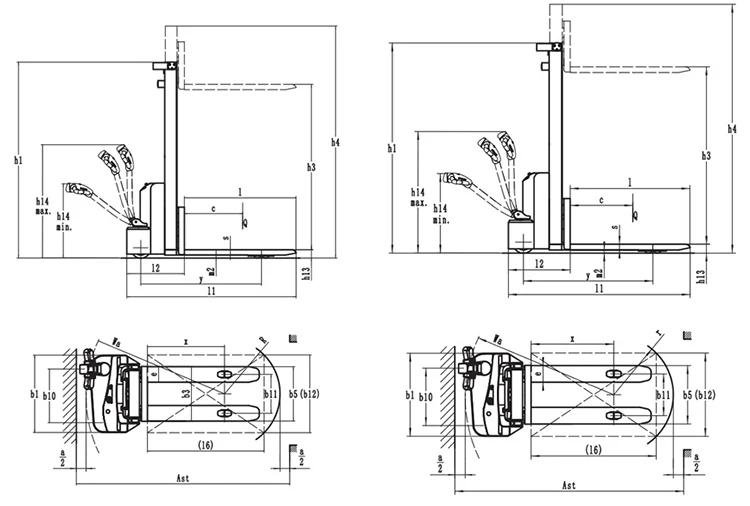

1.1 | Brand | EP | EP | |
1.2 | Model No. | ES12-12ES | ES10-10ES | |
1.3 | Power Type | Powered | Powered | |
1.4 | Operate Type | Walkie | Walkie | |

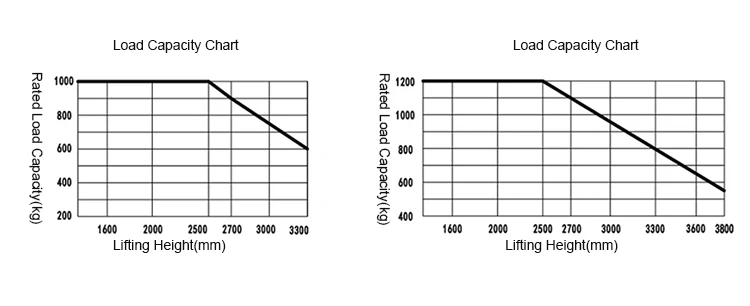

1.5 | Load Capacity | Q (kg) | 1200 | 1000 |
1.6 | Load Center | c (mm) | 600 | 600 |
1.8 | Load Length | x (mm) | 795 | 795 |
1.9 | Wheelbase | y (mm) | 1240 | 1240 |
2.1 | Weight(with battery) | kg | 661 | 540 |
3.1 | Tyre Type | PU/PU | PU/PU | |
3.2 | Drive Wheel Size | Ø210×70 | Ø210×70 | |
3.3 | Load Wheel Size | Ø80×60 | Ø80×60 | |
3.4 | Balance Wheel Size | Ø130×55 | Ø130×55 | |
4.2 | Mast Lowered Height | h1 (mm) | 2052 | 2022 |
4.4 | Lifting Height | h3 (mm) | 2930 | 2930 |
4.5 | Mast Extended Height | h4 (mm) | 3487 | 3487 |
4.9 | Handle Height | h14 (mm) | 860/1200 | 860/1200 |
4.15 | Fork Lowered Height | h13(mm) | 88 | 88 |
4.19 | Overall Height | l1 (mm) | 1740 | 1740 |
4.20. | Length to Fork | l2 (mm) | 590 | 590 |
4.21 | Overall Width | b1/ b2 (mm) | 800 | 800 |
4.22 | Fork Size | s/ e/ l (mm) | 60/170/1150 | 55/160/1150 |
4.24 | Outer Width | b3 (mm) | 680 | 600 |
4.25 | Fork Outer Width | b5 (mm) | 570 | 560 |
4.34.1 | Aisle Width for 1000x1200mm pallet | Ast (mm) | 2225 | 2225 |
4.34.2 | Aisle Width for 800x1200mm pallet | Ast (mm) | 2150 | 2150 |
4.35 | Turning Radius | Wa (mm) | 1408 | 1408 |
5.1 | Travel Speed | km/ h | 4/4.5 | 4/4.5 |
5.2 | Lifting Speed | m/ s | 0.12/0.22 | 0.12/0.22 |
5.3 | Lower Speed | m/ s | 0.12/0.11 | 0.12/0.11 |
5.8 | Gradeability | % | 3/10 | 3/10 |
5.10. | Brake Type | Electric | Electric | |
6.1 | Drive Motor Power S2 60min | kW | 0.65 | 0.65 |
6.2 | Lift Motor Power S3 15% | kW | 2.2 | 2.2 |
6.4 | Battery Voltage/ Storage | V/ Ah | 2*12V/105Ah | 2*12V/105Ah |
8.1 | Controller Type | DC | DC | |
10.5 | Steering System Type | Mechanical | Mechanical | |
10.7 | Noise Level | dB (A) | 74 | 74 |
8.1 | Controller Type | AC | AC | |
10.5 | Steering System Type | EPS | EPS | |
10.7 | Noise Level | dB (A) | 74 | 74 |
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
