rotating color dj 19x15w bee eye 4in1 Rgbw Led Zoom Moving Head Light with touch screen

Product Overview

Description

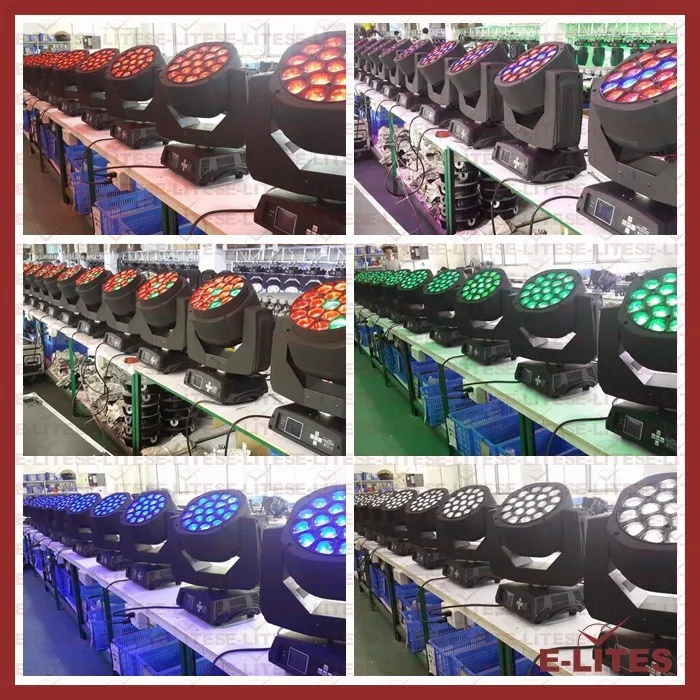

E-Lites Wash moving head light 19x15W rgbw 4in1 led zoom wash led moving head for stage lighting dj disco party wedding

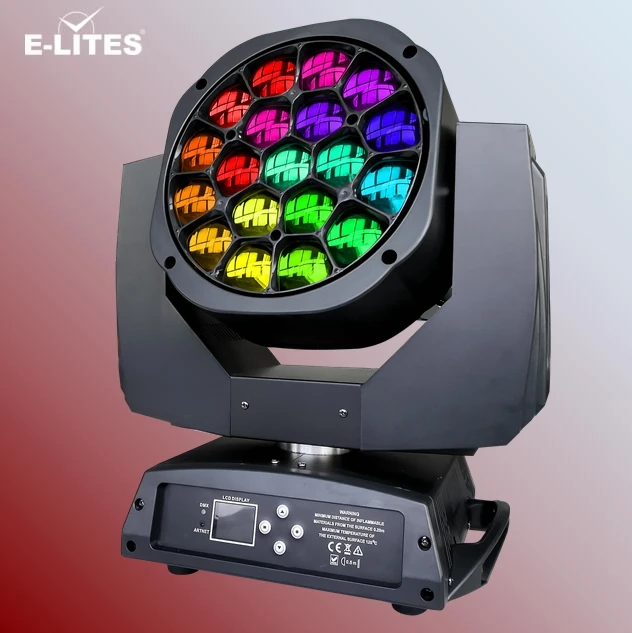

19*15W SHARP EYE LED Moving Head ZOOM

ELMH-19*15W-Zoom



The SHARP EYE 19*15W is an evolutionary product based on traditional zoom&wash moving head light, it combines supersaturated wash, breathtaking beam and amazing zoom function. This is a breakthrough in the series of led wash moving head light.

SHARP EYE 19*15W use Osram 15W RGBW LEDs, its excellent brightness in both single color and mixing effect. The 4-60° zoom angle makes the high performance wash function more variable. So it can adjust the range of wash output according to different venues.

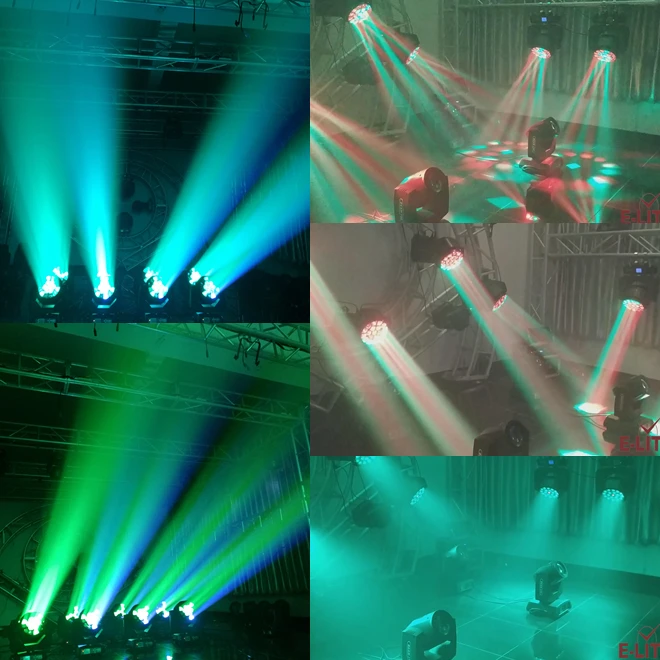

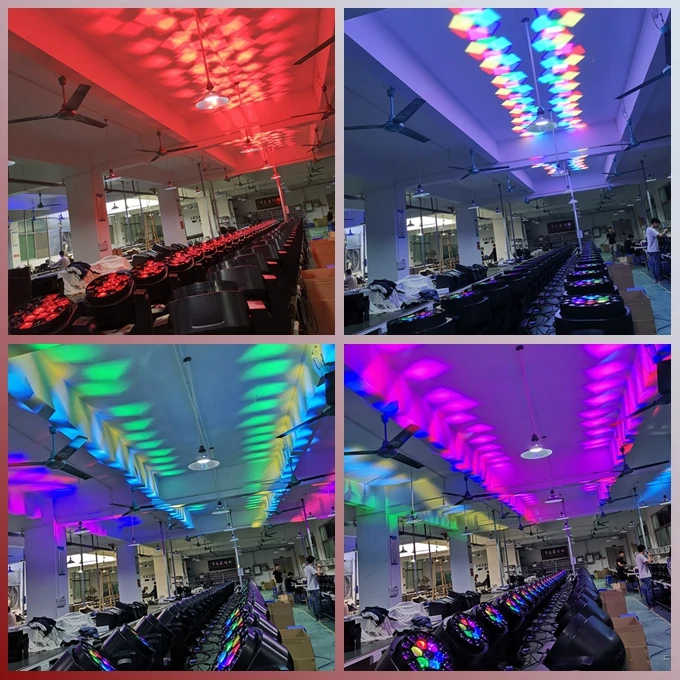

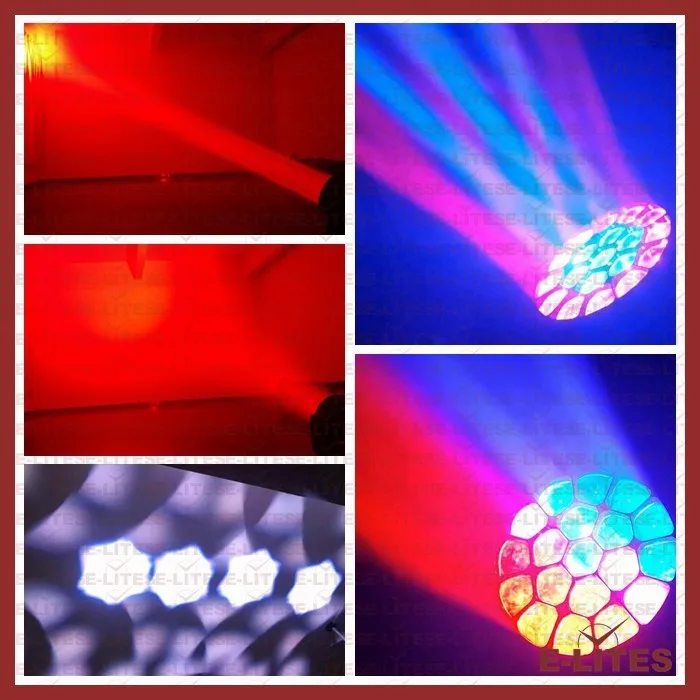

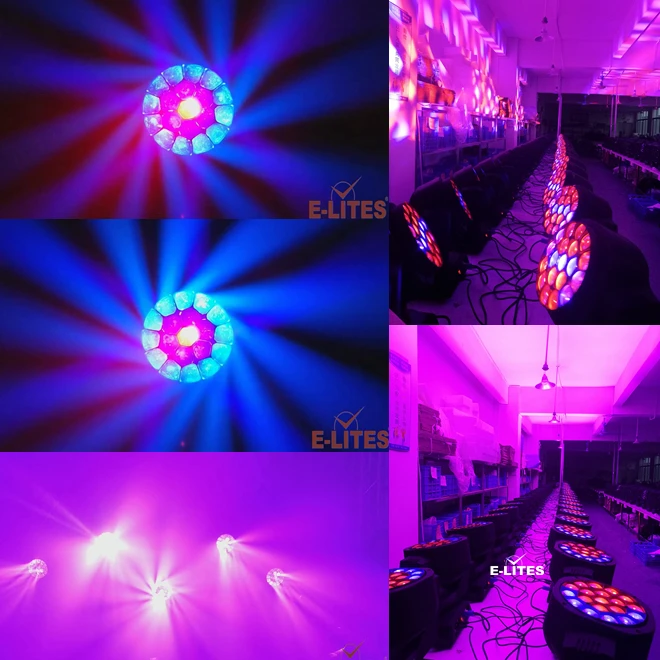

On the basis of zoom effect, SHARP EYE 19*15W also adds a lens rotation function. When the beam is zoomed to the minimum, the lens rotation function is turned on at the same time, which is the super dazzling kaleidoscope effects. Whether it is a big stage or a small club, it is a fresh attempt.

Key points:

• OSRAM Ostar 19*15W RGBW 4in1 LEDs


• Zoom angle: 4-60°


• Individual LED control


• Vortex”and “kaleidoscope” effects


• Front lens can rotated infinity


• Variable built-in dynamic effects

Specification:

LIGHT SOURCE

LED:19pcs 15W RGBW 4in1 LEDs
LED brand: Osram Ostar

LED Average Life: 50,000 h

Color temperature:2500K-8000K



POWER

Power Supply: AC110-240V 50/60 Hz

Power Consumption: 480W

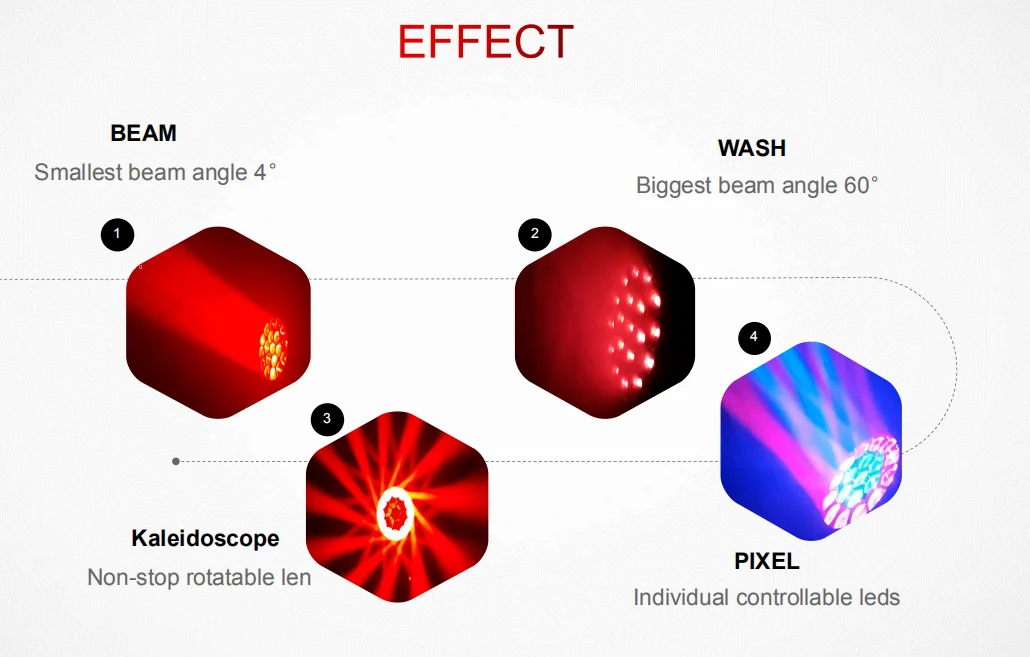

EFFECT

Individual LED control

Wash/Beam/Graphic/Effects function

Bi-directional Rotating Front Lens

With“vortex”and “kaleidoscope” effects

Variable built-in dynamic effects

4 Liner dimming curves

Strobe: 1-25 hz, random and pulse flash

0-100% linear electronic dimmer

OPTICAL SYSTEM

Beam Angle: 4°-60° Electronic Zoom Range

CONTROL

Control Mode: DMX512/master-slave/sound/auto

DMX Mode:21/35/78/96/92CHs

Pan/Tilt: 540/270°

Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit

DATA

Power: PowerCon connection in & out

DMX: 3pin or 5pin in & out

HANGING SYSTEM:

With fast-lock omega clamps (1/4 turn) on the base

WEIGHT & DIMENSION

Weight: 15.5kgs

Dimention: 425*305*550mm

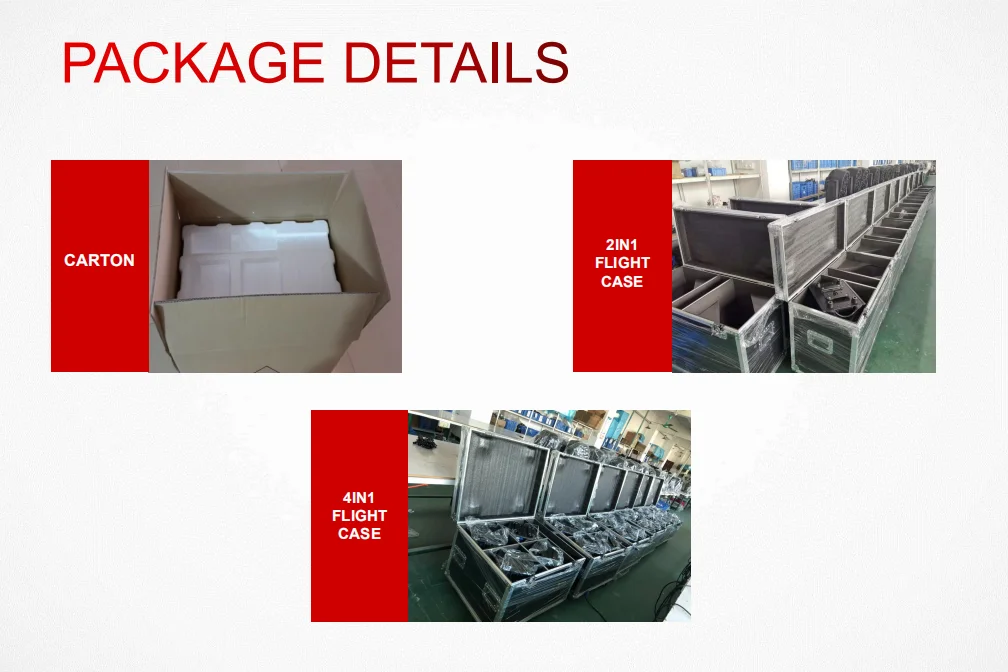

ACCESSORIES

Carton of 1pcs SHARP EYE 19*15W:

Gross Weight:24kgs

Flight case of 2pcs SHARP EYE 19*15W:

Gross Weight:60kgs

Power Cable

Signal Cable

PowerCon Jump cable

Safety Cable

Hanging Clamp

Hanging Omega
