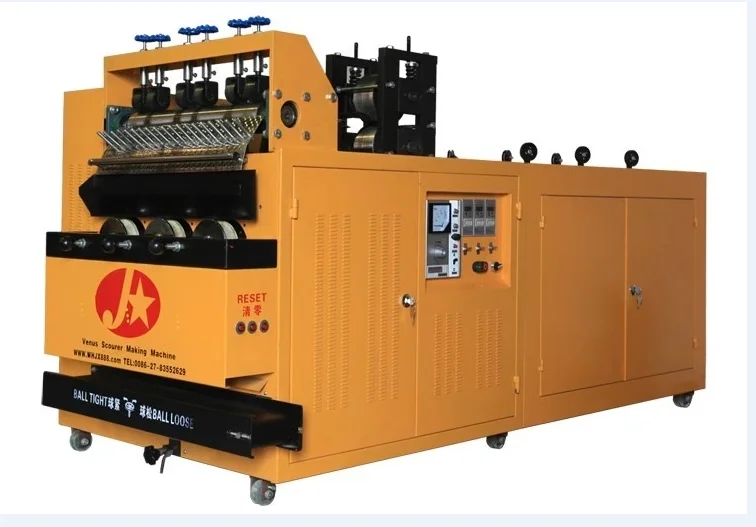

scourer making machine/stainless steel scrubber making machine/sponge cutting machine stainless steel scrubber making machine

Product Overview

Description

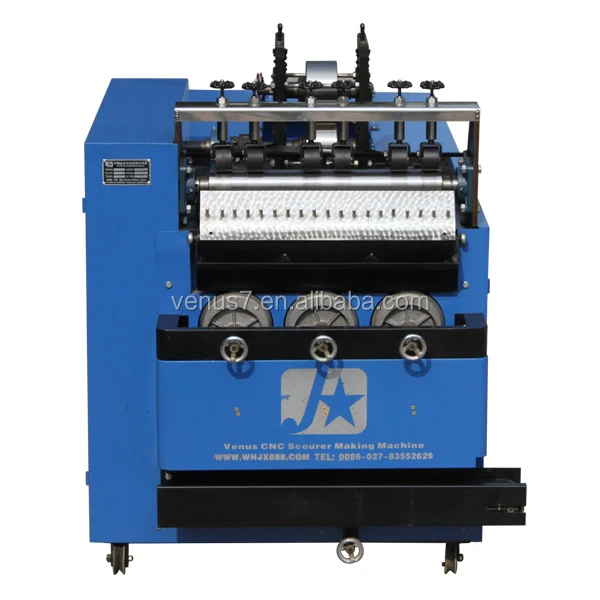

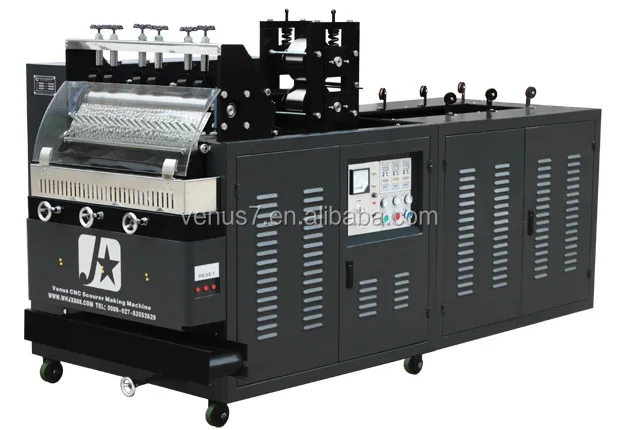

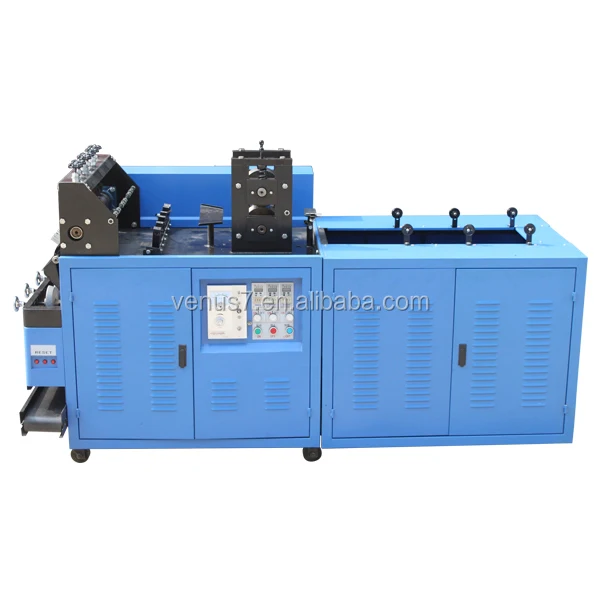

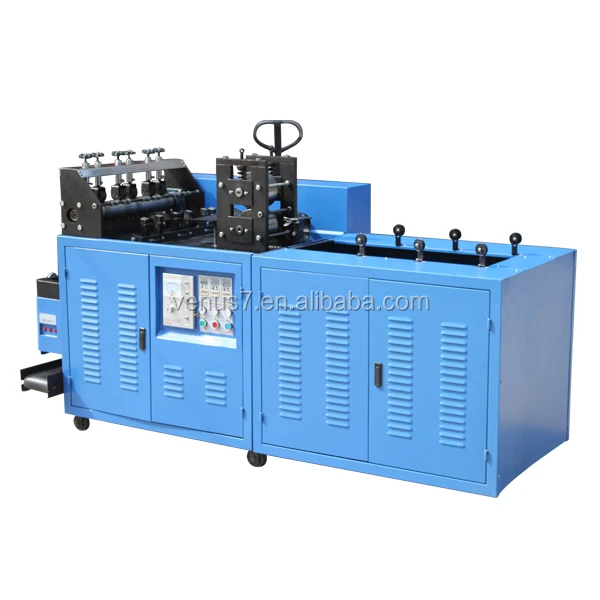

han Venus A6 CNC High-yield Full Automatic Scourer Machine



Basic Data:

1.Model: JX-A6

2.Color: Blue/Yellow/Grey

3.Voltage:380V and 220V(380V,3 phase,4lines,is the first choice.)

4.Power(kw)2.2KW

5.Setting wire: 6 wires and 3 scourers come out

6.Net weight: 560kgs

7.Gross weight: 600KG

8.Installed Machine Size: 220(L)cm×105(W)cm×125(H)

9.Export wooden case size and weight: 140(L)cm×110(W)cm×140(H)cm, 40kgs

10.Materials feeding: Diameter:0.13mm Stainless Steel Wire Galvanized Steel Wire











 Advantages of JX-A6 Over Other Suppliers:

1.With full-automatic operation system digital control counter

2.available for the common scourer as the picture on left side

3.highest output in this field can be as many as 12 KG/Hour

4.high accuracy for the weight of scourer from 6g-60g adjustable

5.Size, weight ,lose or tight can be customized and set through the digital controller

6.Patent technology-

Automatic stop device which can save raw material and human cost so that one experinced worker can take care of 6 JX-A6 machines

7.no water for cooling to keep the work shop clean

8.Motor accelerating: from 0-1600r/m in 2 seconds,stable and constant without broking wires



Order terms &Service of JX-A6:

1.We have been in this field for 20 years;we can supply scourer making machine,package,raw material, grinder,export service,technology treatment,marketing treatment and after -sale service.

2.Minimum Order Quantity:ONE SET

3.payment term:30 % deposit and arrange the 70% balance after receiving the BL scanning

4.Delivery time:15 working time after paid or deposit



















Introduction to





Introduction To Enquipment Performanc

The CNC Full-automatic high -yield "Venus" scourer making machine JX-A6

Six-wires three scourers making machine,is operated by single operator in the processing of wire material feeding,forging, planing,strenching,and Computerized Numerical controlling scourer ball seperation,etc.It has strong stability and fine compatibility.

The feeds of materials suit for iron wire,galvanized wire,stainless steel wire,brass wire,etc.which can make your diffrent scourer scrubbers at one time on one JX-A6machine.



In the aspect of intellectualized-designing,the size of the seperated scourer ball adopts full-automatic management of Computerized Numerical which thoroughly eliminates the primitive way of counting by time and reminding  the operator of seperating scourer balls by light glittering,the weight accuracy of each scourer ball is controlled in 0 error.The scourer balls seperate automatically after formed.Appearance of the scourer ball can be ajusted discresionarily according to the different comsumption levels.

"Venus"JX-

A6 scourer scrubber making machine is collocated with the electrodeless governer of  3kw (the common machine collocated with governer within the 1.5 kw is unable to finish high-speed operation of multiwire into single scourer ball .If the machine collocated with governer of 2.2kw is unable to finish the six wire by single person operation,it will be power-waste).

Whiling 'Venus'JX-A6 scourer making machine is under the working condition of six wires single scourer ball or six wires three scourer balls,the speed of governor running from o/s up to 1600/s circles in 2 seconds!This is the best way to examine whether the scourer making machine will  break and jam the wires,the output level,and whether its design is reasonable,too.The performance and output of this equipment is leading in the field of the same machinery type.It's much more competitive than any metallic scourer making machines!
