Share on (62394478391):


Price:$65,560.00

Quantity:


Product Overview

Description



HZS75 skip type high performance ready mix stationary electrical advanced automatic concrete batching plant in Pakistan






We are a professional manufacturer of mixing station equipment, full specifications, multiple models
WE HAVE A LARGE NUMBER OF STOCK,OEM ACCEPT.




Specification


Skip /Lifting Type Concrete Batching Plant as follows:



NO.

Name of parameter
Model

HZS25
HZS35
HZS50
HZS75
1
Theoretical productivity
25M3/h
35 M3/h
50 M3/h
75 M3/h
2
Model of mixer
JS500
JS750
JS1000
JS1500
3
Mixing motor power
18.5Kw
30Kw
2x18.5Kw
2x30Kw
4
Cycle period
60s
60s
60s
60s
5
Volume of mixer
500L
750L
1000L
1500L
6
Unloading height
1.6m
3.8m
4.0m
4.0m
7
Measuring range and precision of aggregate
（1000~2000）±2％kg
（1000~3000）±2％kg
（1000~4000）±  2％kg
（1000~4000）±2％kg
8
Measuring range and precision of cement
（100~300）±1％kg
（150~500）±1％kg
（200~600）±1％kg
（200~800）±1％kg
9
Measuring range and precision of coal ash


（100~300）±1％kg
（100~400）±1％kg
10
Measuring range and precision of water
（100~200）±1％kg
（100~300）±1％kg
（100~450）±1％kg
（100~600）±1％kg
11
Measuring range and precision of admixture
（0~20）±1％kg
（0~20）±1％kg
（10~50）±1％kg
（10~50）±1％kg





Belt Conveyor Type
Concrete Batching Plant
(HZS60/HZS90/HZS120/HZS180 )

Detailed Info, Please CLICK HERE to check.






Concrete batching plant is is a fully automatic concrete mixing equipment consisting of 5 major systems such as mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities.A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.




A Complete Concrete Batching Plant
Except mixing system, storageing system, weighing system, conveying system and control system, the full concrete batching plant also includes main steel frame (including ladder, guardrail, walking board, support legs, cable tray etc. ), mixer dust catcher, discharging hopper, air circuits system(including air compresser, gas-tank, air filter, oil-water separator etc. )








Features of concrete batching plant:
1.It adopts combined structure and unitized module, which is short, quick and very convenient for installation and demolition
2.Increase the unloading angle of the aggregate bin to solve the problem of unloading difficulties caused by rain
3.It is convenient and quick to use the cylinder discharge or electric push rod to discharge.
4.The overall steel structure of the mixing station is made of high-quality steel, which has high overall structural strength and strong stability.
5.The mixing machine adopts the twin-shaft forced mixing main machine, which has strong mixing performance, uniform mixing and high productivity.
6.Excellent pneumatic components, electrical components, etc.; to ensure the reliability of the equipment, accurate metering performance.
7.Each maintenance and repair site is provided with a walking platform or a check ladder, and has sufficient operation space. Easy maintenance and repair
8.Environmental protection and energy saving, using pulse dust removal, recycling waste-water for reuse




Application:

HZS series concrete mixing station is suitable for industrial, civil construction, roads, railways, bridges, electric power, water conservancy, port terminals, airports and other projects.It can be used as a mixing equipment for commercial concrete production.

COMBINED VARIOUS FORMS DIFFERENT SPECIFICATIONS CONCRETE MIXING PLANT ACCORDING TO THE NEED OF DIFFERENT USERS.

We are here for you within 24 hours, any required, please CLICK HERE to get timely reply.








Company Profie


Shandong Zeyu Heavy Industry Science and Technology Co., Ltd. (For short: ZEYUZHONGGONG)-is located in the hospitable Shandong, the beautiful spring city, Jinan. At the same time, there are East China Shanghai Sales and Service Company, South China Guizhou Sales and Service Company, Northeast Heihe Sales and Service Company, etc. (still under construction).We are founded in 2007, the company is a team of passionate men who have been engaged in mixing machinery for more than ten years. The company has more than 100 employees, 30% of which are technical talents. The company's headquarters we have obtained more than ten utility model patents. We have passed the "ISO9001, ISO14001, OHSAS18001, EU, CE certification.The company currently has more than 60 varieties products in five major categories. The main products: concrete mixing plant, stabilized soil mixing plant, PC component production line, dry mortar mixing plant and wet mixing mortar mixing plant. It is Widely used in high-speed railway, highway, airport, bridge, port, hydropower and other infrastructure construction and commercial concrete industry. At the same time, our products have been sold to Southeast Asia, Central Asia, South Asia, the Middle East, Africa and Russia, Mongolia and other countries and regions, and enjoy a good reputation overseas.








FAQ


Q: What kind of products do you have?
1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.

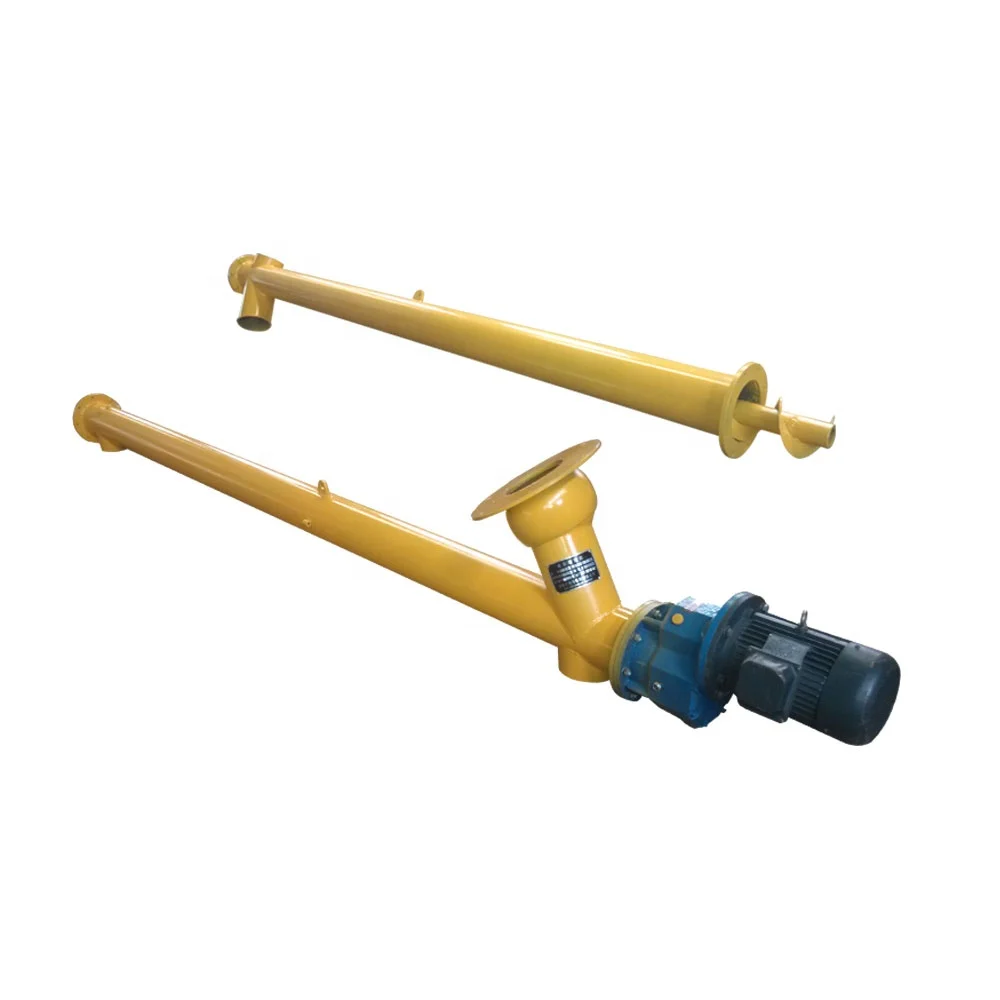

5. Spare parts including screw conveyor and bolted cement silo.
Q: Are you trading company or manufacturer?
A: We are factory. We can design and manufacturer products with our patent.
Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
Q: What’s your after-sale service?
A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
Q:What’s your delivery time?
A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q. How long do you warranty your concrete batching plant?
A:We shall guarantee that the commodity for 1 year, excluding the wearing parts, and we will offer our customers the wearing parts all the time with favorable price.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will feedback you immediately. Also on-site technician service available as request.
Q.How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.
Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
