Одна катушка widing машина для трубы 63 110 мм

Product Overview

Description

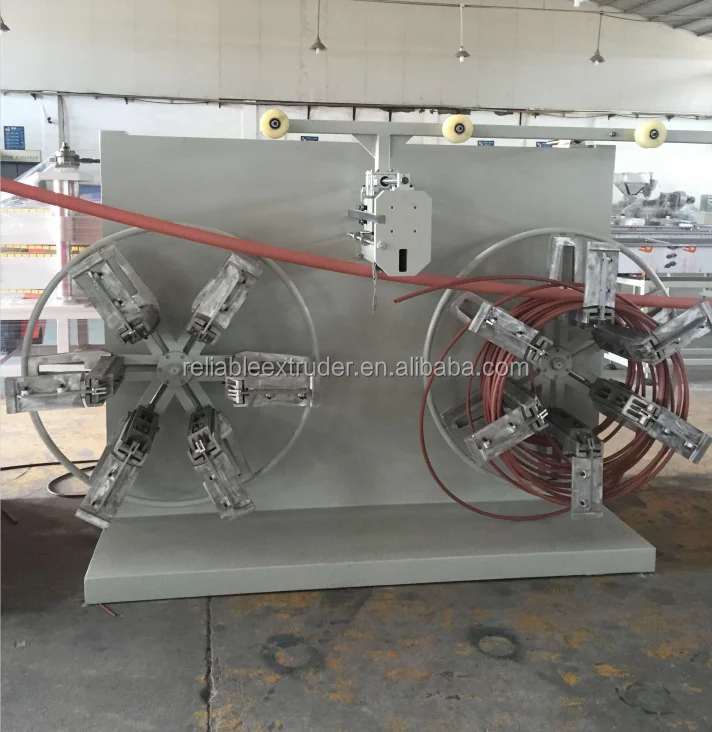

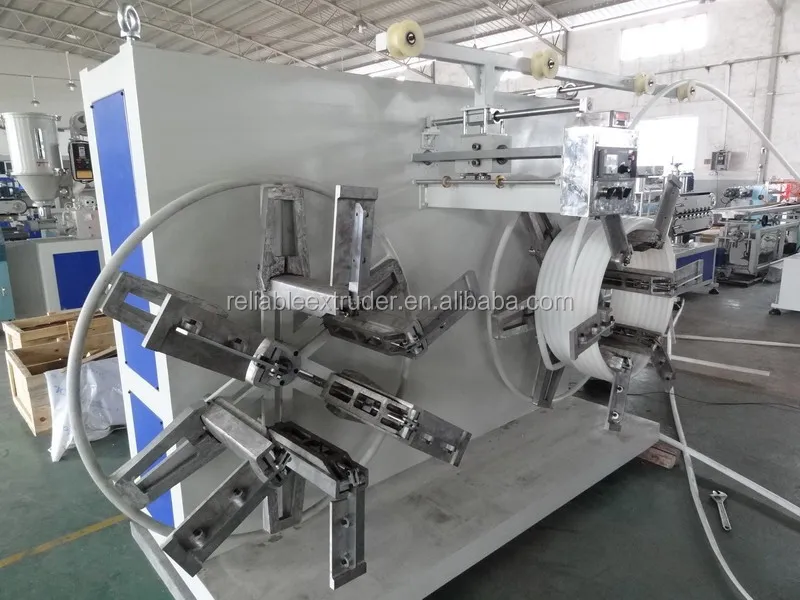

          PE PIPE SINGLE WINDING MACHINE





1) It is mainly used for winding plastic pipes, alumium pipes, corrugated pipes, and other some pipes or soft profiles. This  double disk winder is highly automatic, and usually work with whole production line.

2) The plate is controlled by air cylinder ; winding adopt torque motor; with special equipment to arrange the pipe, this automatic winding machine can wind pipe well, and work much stable.

3) There are mainly model of these plastic pipe winders: 16-40mm single/double plate pipe winding machine, 16-63mm single/double plate pipe winding machine, 63-110mm single plate pipe winding machine.

4) We can customized for you according to your requirement



Model	Pipe diameter	Outside diameter of coil	Coil width	Winding speed	Inner diameter of coil	Moment motor
RLB-32 double stations	16-32	800-1280	200-370	1-20m/min	480-800mm	10N.M
RLB-63 double stations	32-63	1400-2000	360-560	1-20m/min	600-1200mm	25N.M
RLB-110 single station	63-110		700	0.5-5m/min	2500-3500mm	40N.M
