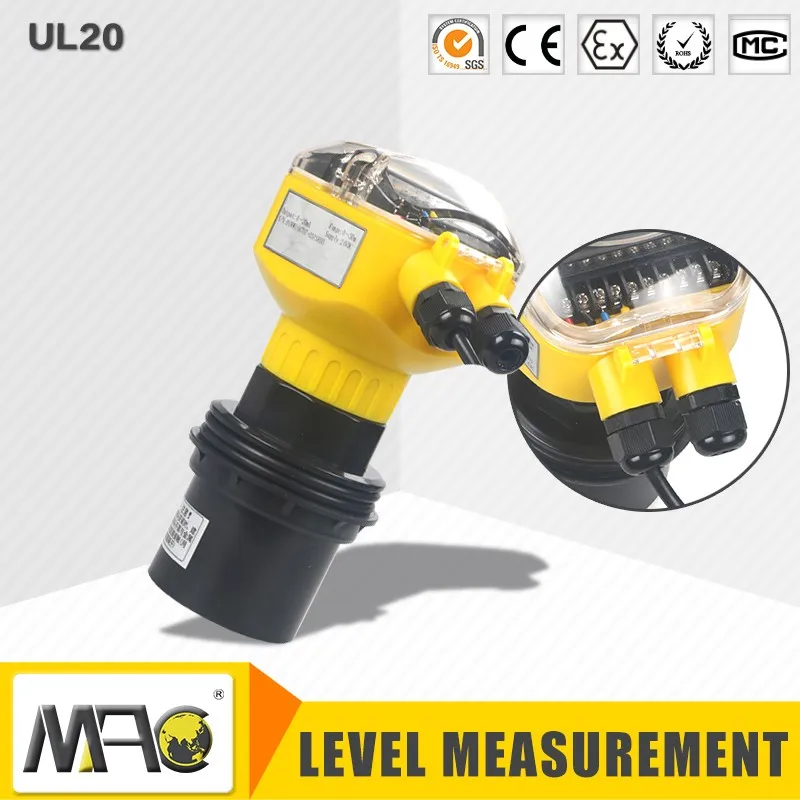

Цифровой ультразвуковой измеритель уровня топлива и воды Macsensor с ЖК дисплеем
- Category: >>>
- Supplier: Hunan Mac Sensor Co. Ltd.
Share on (62394607931):
Product Overview
Description
Macsensor Lcd Digital Fuel Water Tank Ultrasonic Level Meter
Product Description
MACSENSOR explore proof ultrasonic level sensors have beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, overvoltage, over current protection circuit functions. Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability. MAC’s explore proof Ultrasonic Level Sensor is a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance ease of use easy to read and so on.
Features:
1) High Precision: Our Company has patented sonic technology to explosion-proof intelligent ultrasonic level sensor accuracy from 0.25% to 0.5%F.S optional, which is anti-kinds of interference waves.
2) Reliability:Ultrasonic Level Meter can replace imported instruments. We start from the power circuit design, the isolation module on the use of high-quality, critical components of high stability and reliability of procurement selection device.
3)Safety, Aesthetics, High degree of protection: We are using the die casting aluminum alloy waterproof, explosion-proof enclosure. Protection class IP65 to IP68. Explosion-proof grade: Ex(ia)ⅡCT6, combustible explosive gas can be carried out all the liquid level measurement (except for hydrogen, acetylene, carbon disulfide outside), it is more than proof level of security entirely diesel, kerosene, gasoline and other commonly used oil requirements.
4)Low failure rate, easy to install, easy to maintain: Ultrasonic Level sensor is a non-contact instrument, not in direct contact with the liquid, low failure rate. At the same time, when install the devices, you don’t need to clear it, which will not affect the normal production run. Instruments offers a variety of installation, the user can through the manual calibration of the instrument.
5)Various means of protection: All input and output lines are a mine, over current, over voltage protection function.
Functions | Integrative Type | Segregated Type |
Level Range: | Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M, 30M, 50M. | 5M, 10M, 15M, 20M,30M, 50M, 70M. |
Accuracy: | 0.25%-0.5%F.S | 0.25%-0.5%F.S |
Blind Zone: | 0.2-0.6m | 0.2-0.6m |
Working Pressure: | 2 Bar (Explore Proof Type is 5 Bar) | 2 Bar (Explore Proof Type is 5 Bar) |
Resolution: | 3mm or 0.1%F.S (Max of them) | 3mm or 0.1%F.S (Max of them) |
Display: | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. | English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
Analog Output: | 4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires) | 4~20mA/750Ω load resistance 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires) |
Relay /Alarm Output: | AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) | AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
Power Supply: | 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) | 220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
Environment Temperature: | Meter: -20~+60℃ Sensor: -20~+80℃ | Meter: -20~+60℃ Sensor: -20~+80℃ |
Communication: | RS485 Communications (optional) | RS485 Communications (optional) |
Explore Proof: | Ex(ia)ⅡCT6 | Ex(ia)ⅡCT6 |
Water Proof: | Economic Type: IP65 Standard Type: IP66 | Meter: IP65 Sensor: IP68 |
Cable of Sensor: | Null | Standard: 10 Meters, Max to 200 Meters |
Sensor Installation: | By level range and model code | By level range and model code |
Store Request: | Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. | Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Ultrasonic Level Meter Main technical characteristics:
1, non-contact measurement, environmental protection, safety, convenience.
2, split design, elegant appearance, convenient installation.
3, can be carried out in different environments from accurate line calibration, starting and ending point range, the output module, window lock value Junke keyboard settings, enable the conditions for a variety of Fuza work environment to meet the user to install on-site requirements.
4, with a wide range of temperature compensation and the original ERD interference identification system that allows measurement of high precision and stability.
5, with the value / difference measurement mode selection, ranging can also be measured position.
6, optional host computer or PC software, networking, a host can be 2 to 128 extensions on the network inspection (optional)
7, can be directly measured liquid in the weight of Level value (weight value) can be on-site and multi-output mode LED display Remote.
8, a full-scale spill prompts, and full-scale start and end any number of translation functions.
9, with "echo identification" function and "the slope of the" digital filtering, for different operating conditions.
10, with 4mA, 20mA digital fine-tuning features that make on-site installation and maintenance is very convenient and fast! With 1 to 15 transmit power selection, can be adjusted according to site conditions;
11, with 10 seconds / second ~ 100 times / sec test cycle set to fit for the measurement of fast and slow moving target capture.

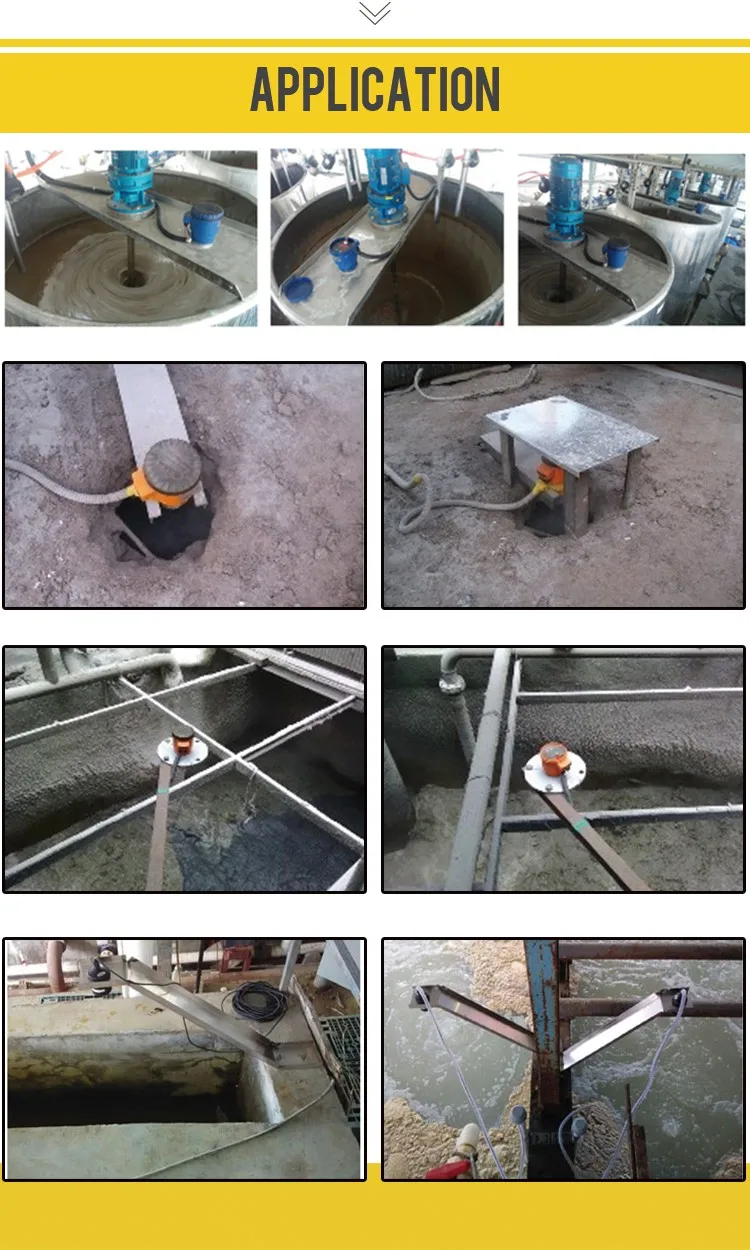

Application attentions:
1) Measuring range and Requirements of blind zone.
2) Media type to be measured (Liquid or solid, such as: Water, sewage, mud, gasoline, diesel oil, toluene, sulfur dioxide, ore, coal, cement, soybeans, wheat, corn, flour etc.)
If it is liquid: Is there liquid steam, mist, foam, wave, stirring, floating objects;
If it is solid: Is there a dust, granular or powder media is.
3) The minimum ~ maximum temperature and pressure of media.
4) Corrosion of media. If it is placed inside the jar, the jar needs to know the material, and if there is corrosion of the lining.
5) The need for anti-corrosion, explosion-proof, to split or an integrated one.
6) Working environment: exposure to the pond, cover the pond, lying tank, vertical tank, tank, pot is through atmospheric pressure and so on.
