aluminum multi-profile double mitre cutting saw /PVC profile cutting machine/window door making machine
Product Description

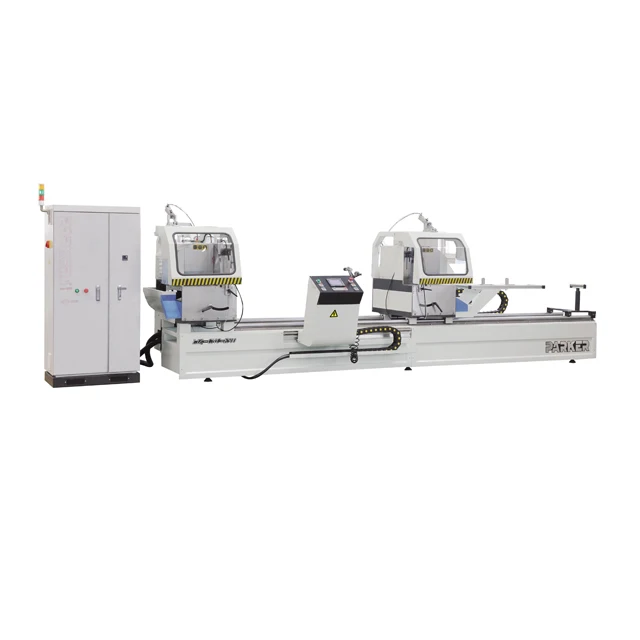

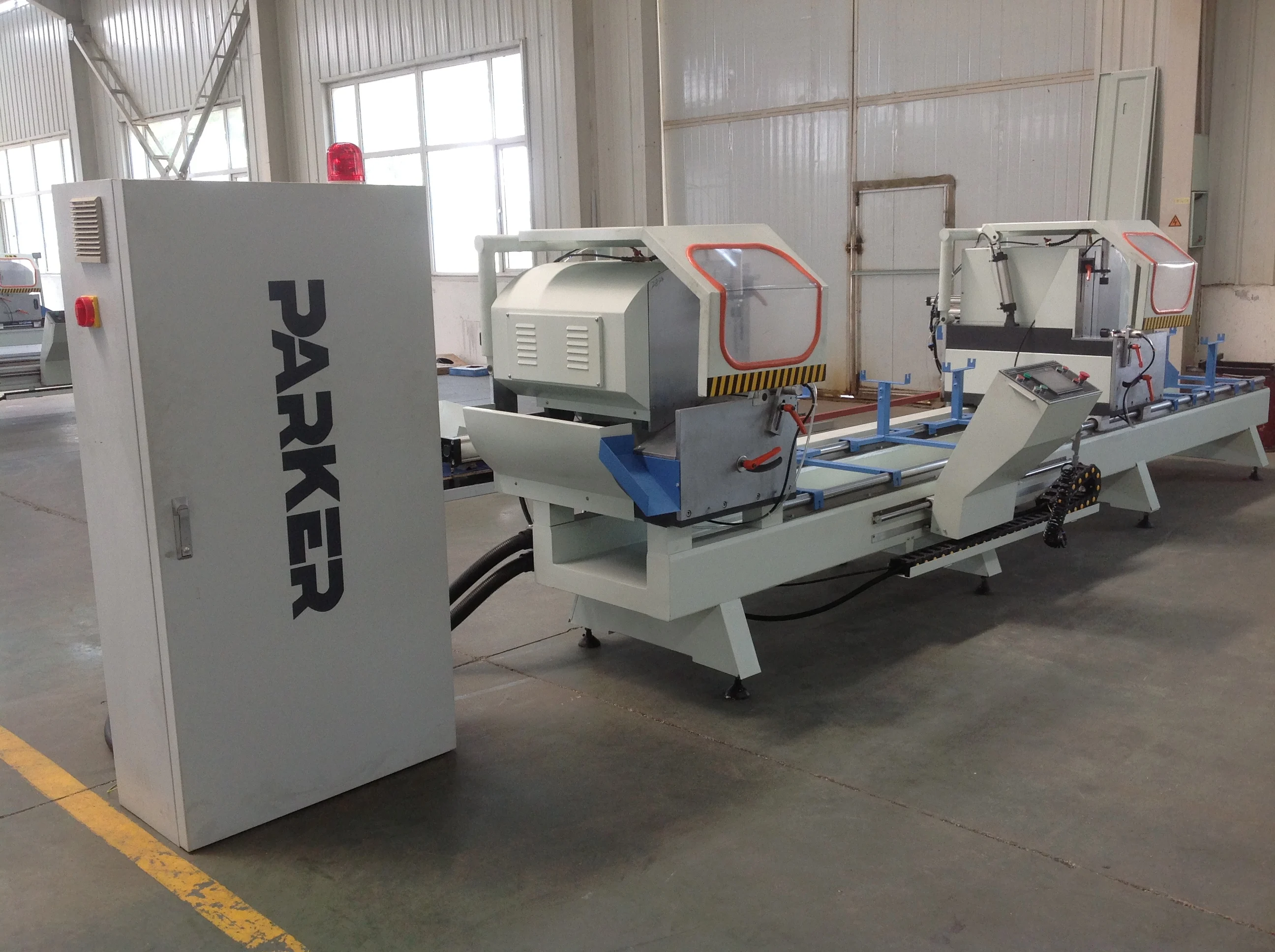

LJZ2S-500X4200 Aluminum profile double head cutting saw machine:
Model: LJZ2S -500×4200
aluminium double head cutting machine Feature:
- LJZ2S-500X4200 is used for cutting of alu-alloy and wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world.
- The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving. The automatically opening and closing protecting cover makes the operation safe and easy.
- The moving heads adopt imported linear bearing motion pair, and they features high precision. The moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.

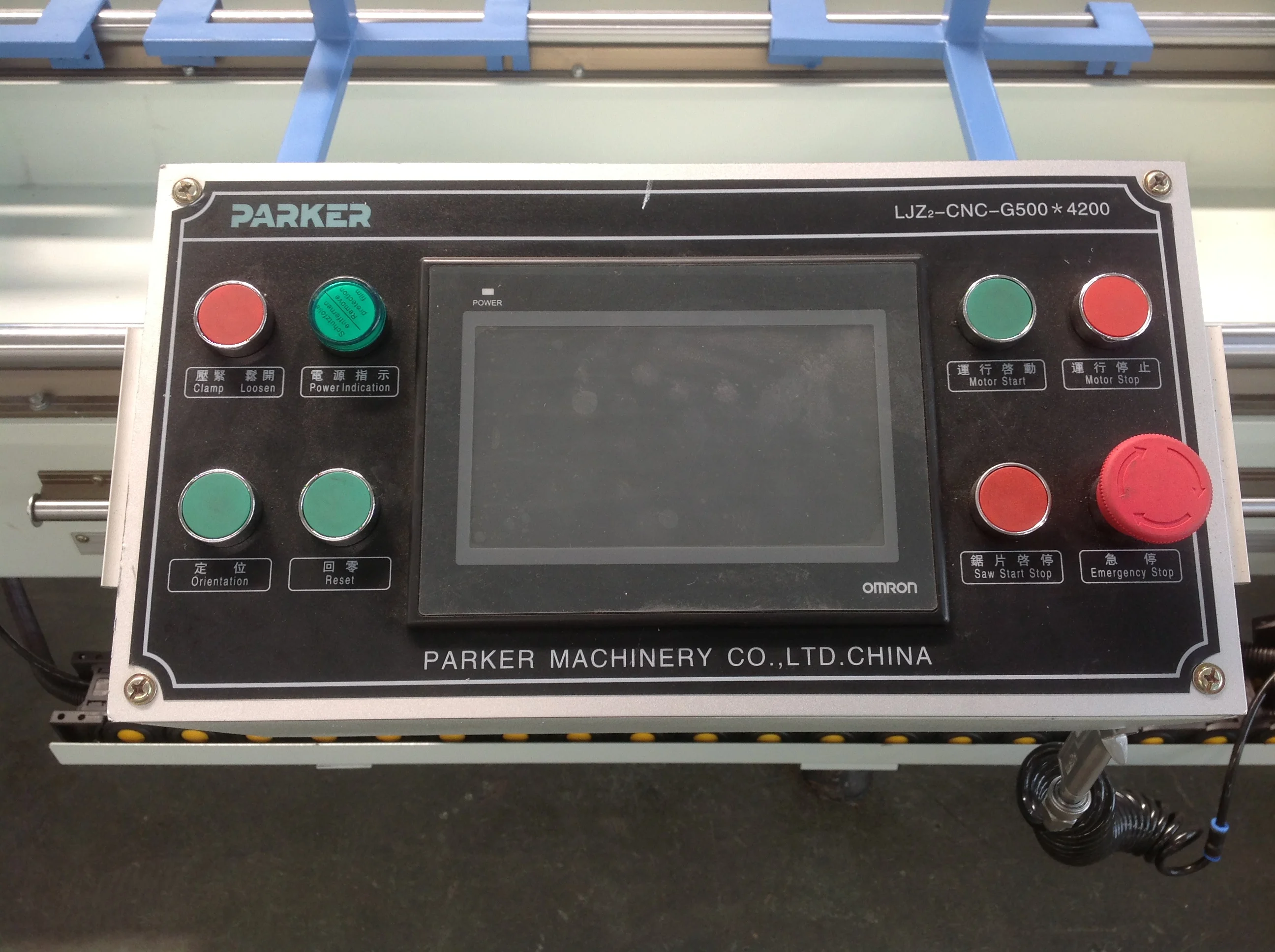

- If CNC system is put in, it can make the cutting much more precise (precision 0.01mm), and the operating more visualized.
aluminium double head cutting machine Parameter:
| 380V 50HZ |
| 4.4KW |
| 0.5-0.8MPa |
| 200L/min |
| 500x30x4.4 z=120(standard size) |
| 0-2m/min |
| Max4000mm Min200mm |
| Max.135mm |
| Max.300mm |
| 45° 90° |
| +-0.2mm |
| +-4" |
| +-0.1mm |
| Ra12.5um |
| 5500mmX1750mmX1990mm |

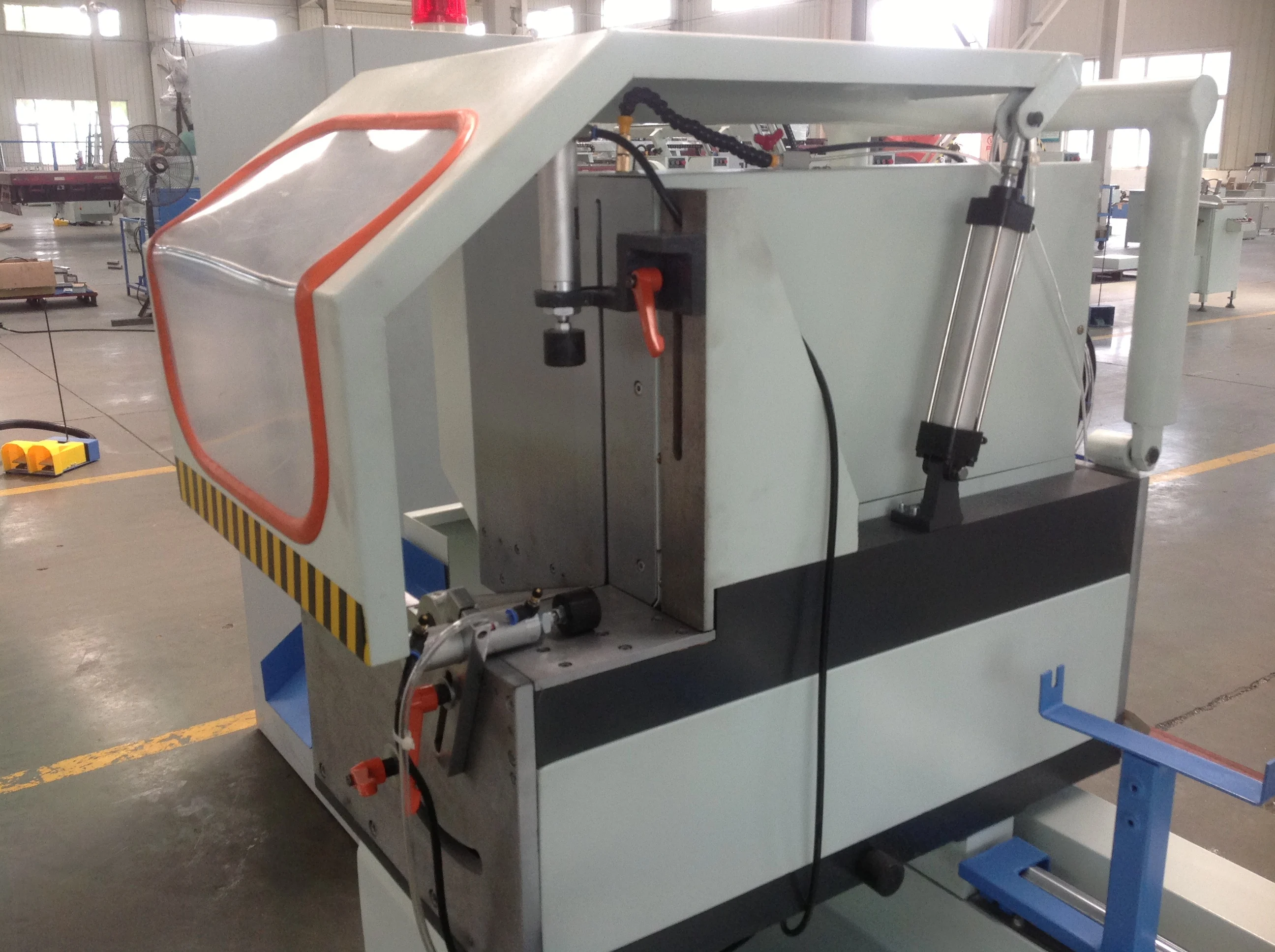

Details Images Show
Other Machine Choose

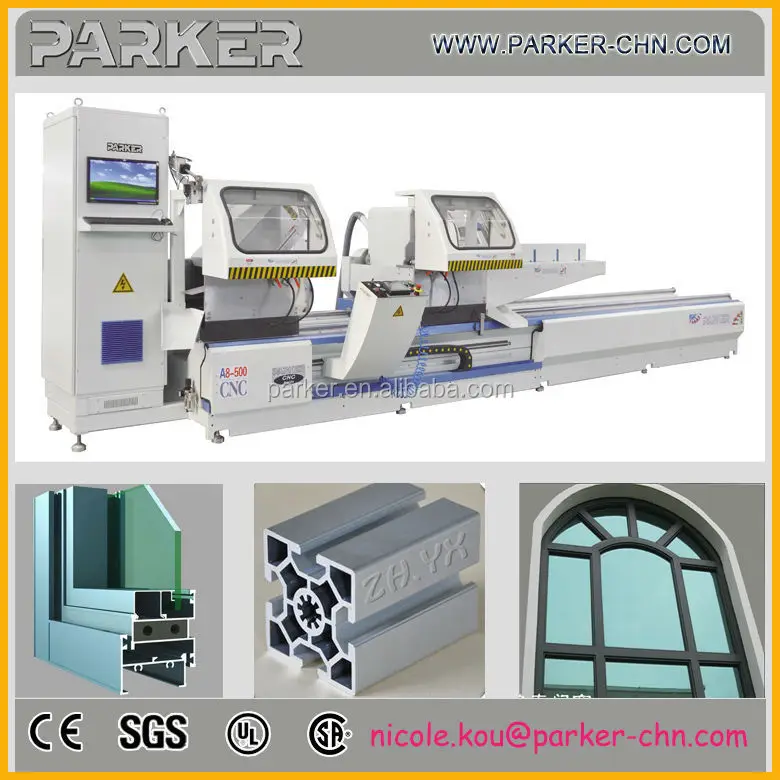

1) Aluminium Profile Double Head Cutting Machine : Model A8-500
aluminium double head cutting machine Technical Data:
| Voltage | 380V 50 Hz |
| Power | 6.8 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 (Standard Size) |
| Cutter Moving Speed | 0 to 2 m/min |
| Cutting Length of CNC Cutting Saw | Max. 5000mm Min. 480 at 90° Max. 5000mm Min. (Double Height of Profile) at 45° |
| Cutting Width | 120 mm |
| Cutting Height | 230 mm |
| Cutting Angle | 45° to 157.5° |
| Repeat Locating Length Error | ± 0.2 mm |
| Surface Plainness | ± 4´ |
| Overall Dimension | 6800 mm × 1500 mm × 2040 mm |
2)Aluminium Window Door Mullion Cutting Machine:LDX-250
aluminium double head cutting machine Technical Data:
| Type | LDX-250 Automatic Aluminum Profile End Milling Machine |
| Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Motor Power | 6.6 kW |
| Rotary Speed | 2840 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling Cutter | 250 mm |
| Motor Adjusted Travel | 0 to 80 mm |
| Overall Dimension | 2300 mm × 1060 mm × 1670 mm |
| Weight of Aluminum Profile Milling Machine | 842 kg |
3) Aluminium Window Door Corner Key Cutting Machine : Model LJMJ-500B:
Technical Data:
| Model | LJMJ-CNC-500B CNC Connector Key Cutting Saw |
| Voltage | 380V 50 Hz |
| Power | 2.2 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 200 L/min |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 |
| Feeding Speed | 0 to 3 m/min |
| Rotary Speed | 2800 rpm |
| Cutting Length | Max. 600 mm Min. 3 mm |
| Cutting Width | 140 mm |
| Cutting Height | 140 mm |
| Surface Plainness | ± 0.1 mm |
| Surface Harshness | Ra12.5 µ m |
| Overall Dimension | 1700 × 1700 × 1400 (mm) |
4) Aluminium Window Door Corner Single Head Crimping Machine : Model LJJ-120 and LJJZ4-CNC-1800X3500:
Technical Data
| Model | LJJZ4-CNC-1800×3000 |
| Type | CNC Four Head Corner Crimper |
| Power Supply | 380V 50 Hz |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Oil Tank Capacity | 60 L |
| Air Consumption | 0.45 L/min |
| Corner-Assemble | 0 to 50 mm |
| Max. Dimension | 1800 mm × 3000 mm |
| Min. Dimension of Window | 510 mm × 510 mm |
| Dimension of Profile | 100 mm |
| Overall Dimension | 5000 mm × 2000 mm × 2600 mm |
| Weight of CNC 4-Head Corner Crimping Machine | 3000 kg |

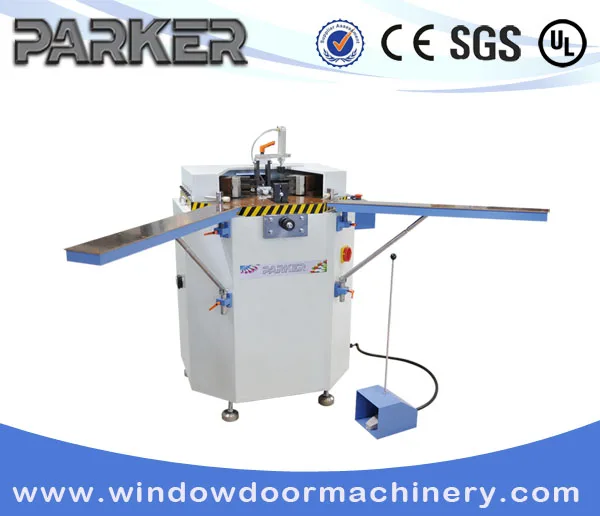

Aluminum window machine: Aluminum window frame single head cutting saw machine:LJJ-120
Technical Data
| Model | LJJ-120 Hydraulic Corner Crimping Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Input Power | 1.5 kW |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 2 L/min |
| Oil Tank Capacity | 20 L |
| Width of Profile | 120 mm |
| Overall Dimension | 1000 mm × 1200 mm × 1200 mm |
| Weight of Single Head Crimping Machine | 360 kg |

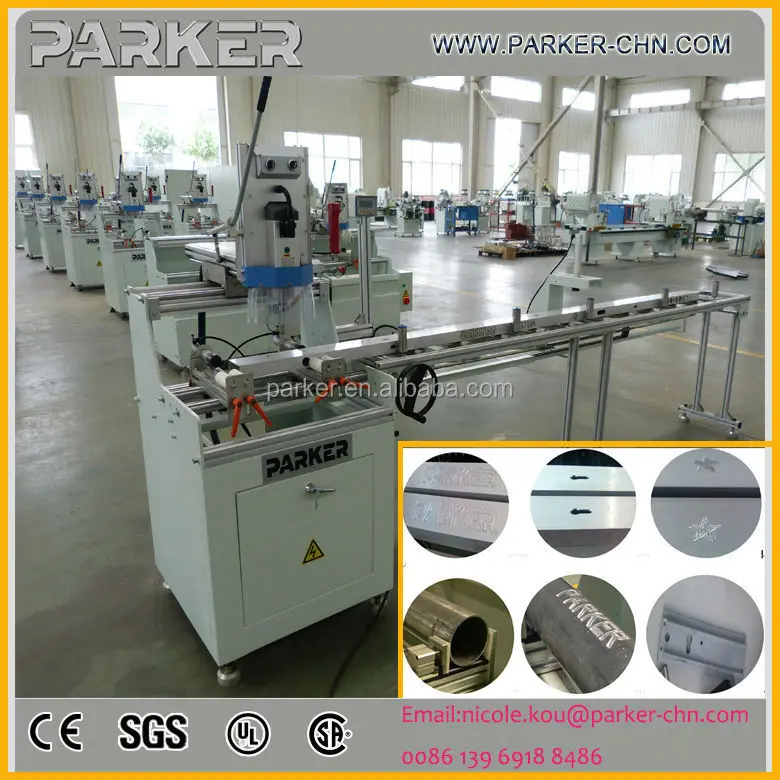

5) Aluminium Window Door Single Axis Copy Router Machine : ACH130
Technical Data:
| Model | ACH-130 High Speed Aluminum Curtain Wall Single Axis Copy Router |
| Voltage | 380V 50 Hz |
| Motor Power | 3.0 kW |
| Air Pressure | 0.5-0.8 MPa |
| Diameter of Milling Cutter | 8 mm |
| Air Consumption | 10 L/min |
| Processing Profile Section | 200 mm (W) × 150 mm (H) |
| Copying Dimension | 370 mm × 125 mm |
| Overall Dimension | 720 mm × 1070 mm × 1760 mm |
| Weight of High Speed Copy Router | 225 kg |

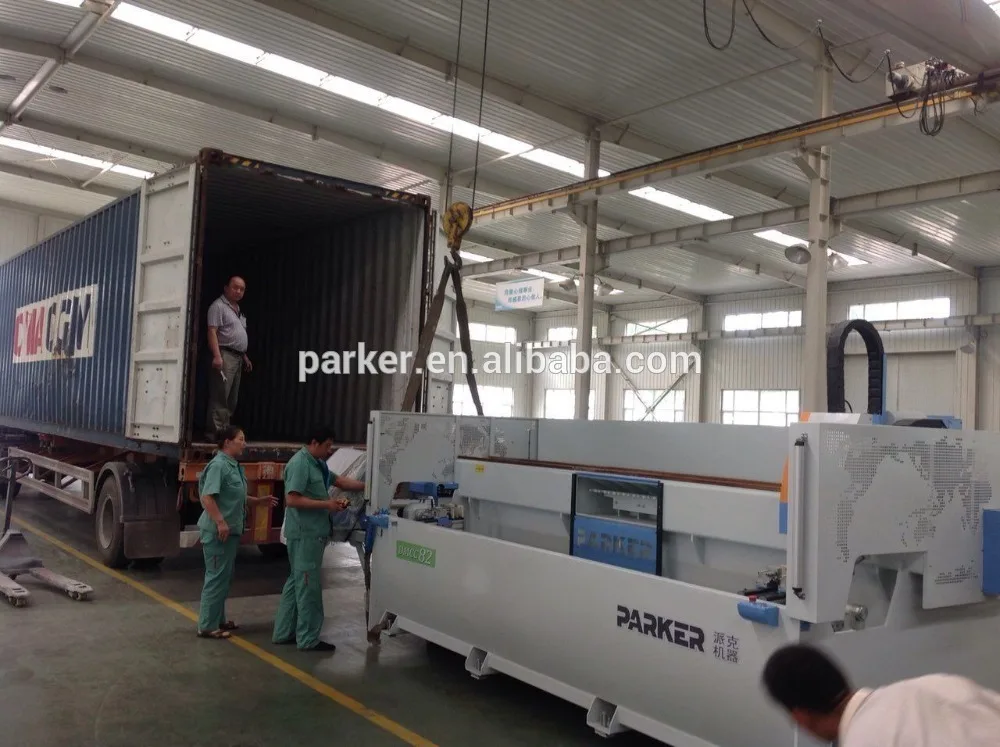

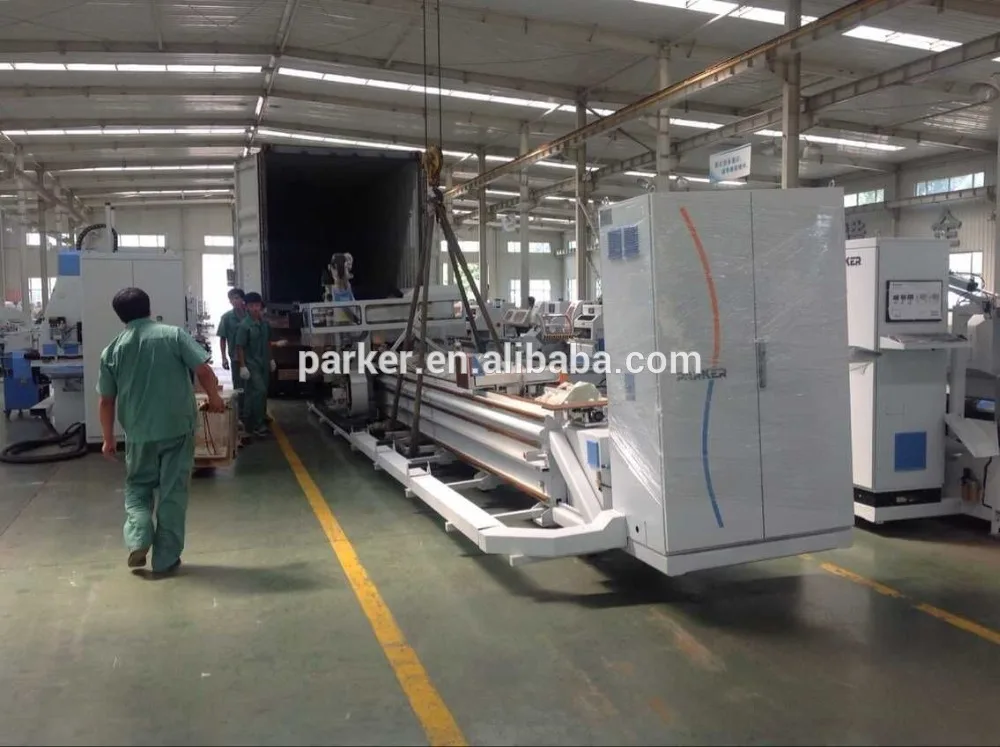

Packaging & Shipping
