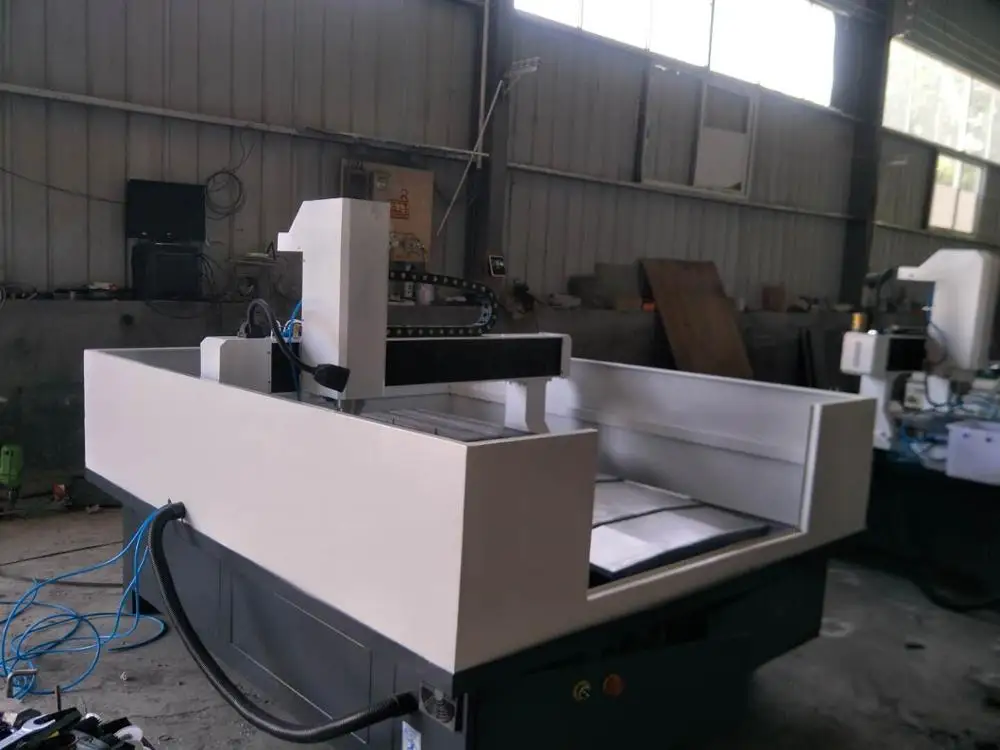

X8090 CNC milling machine MACH3 controller 24000 rpm
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (62394780596):
Product Overview
Description
Feature:

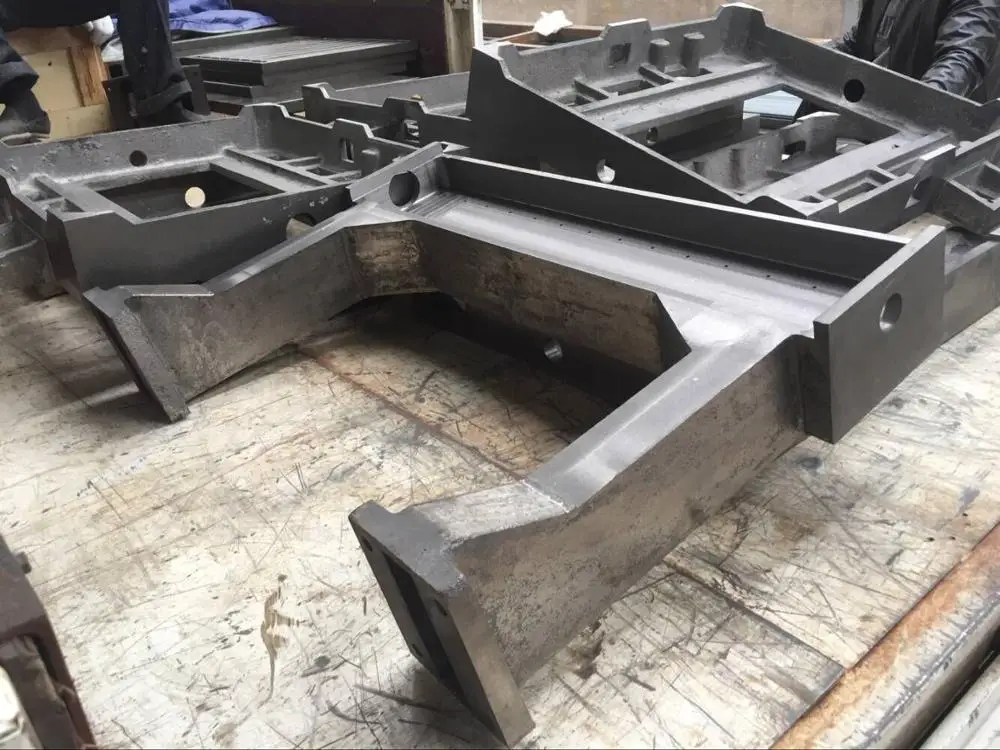

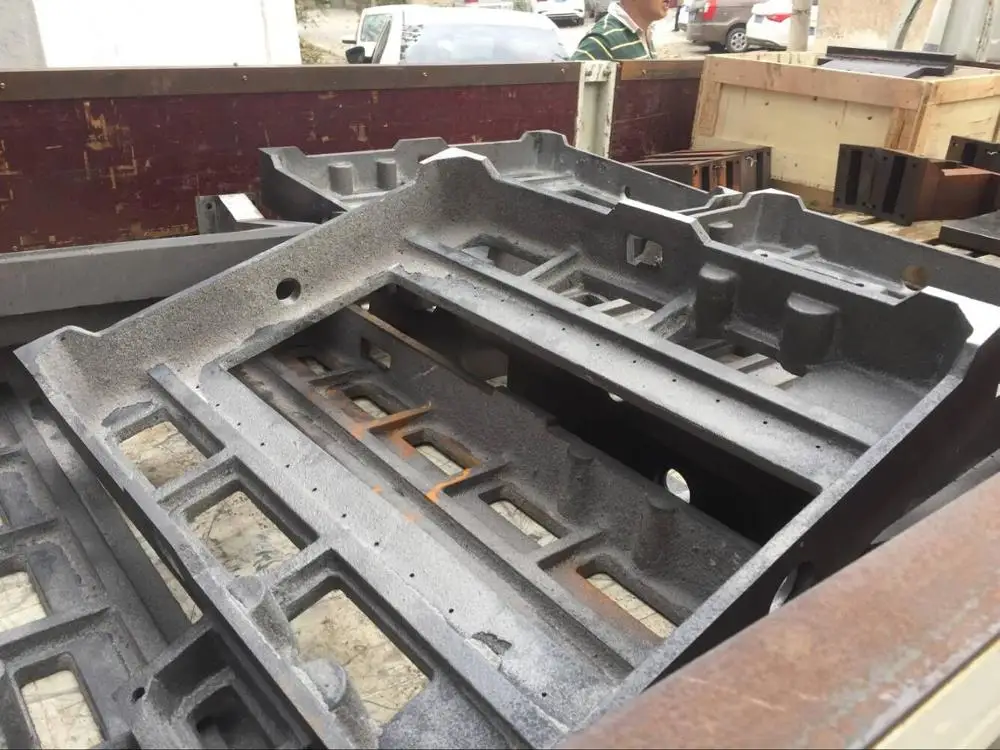

1 whole machine cast by iron, very strong.
2 imported Hiwin square rails and TBI ball screw for 3 axis.
3 working area 800*900*200, Z axis zone can according your need make it.

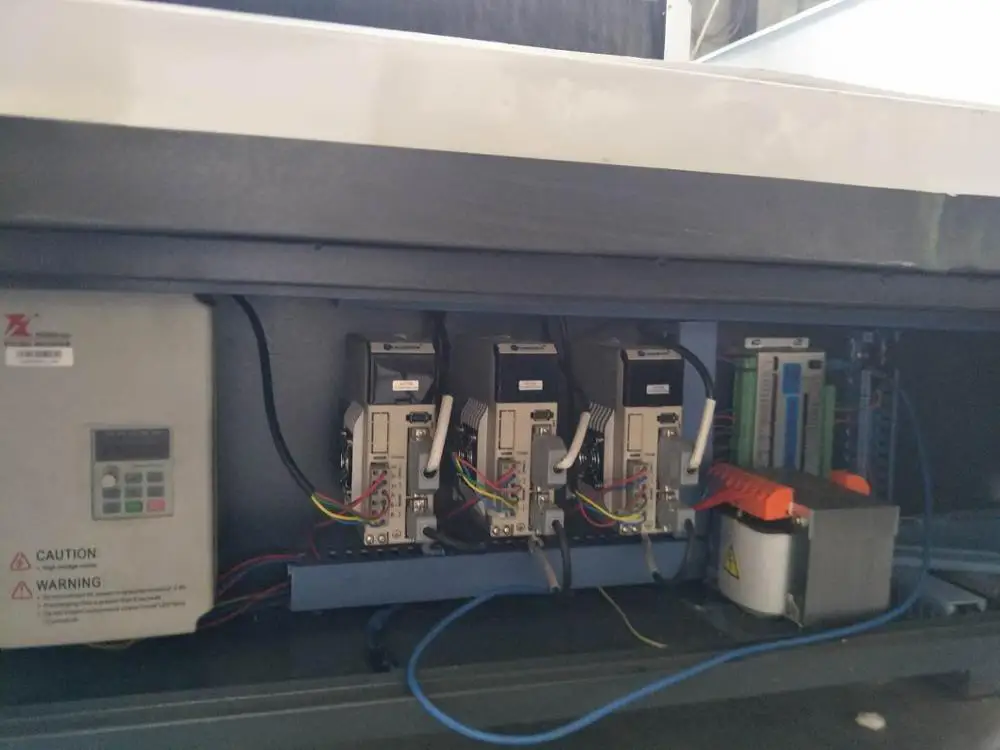

4 Leadshine driver and stepper motor, servo motor for option.
5 Mach3 control system.
6 machine with lubrication system, spindle cover, Japan OMRON limit switch and Schneider electrical components
Parameter:
Description | Parameter |
X,Y,Z Working Area | 800x900x200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | cast by iron |
X, Y,Z Structure | Hiwin Rail Linear Guide and ball screw |
Max. Power Consumption | (Without Spindle) 1.0Kw |
Max. Rapid Travel Rate | 16000mm/min |
Max. Working Speed | 10000mm/min |
Spindle Power | 3.0KW water cooling spindle |
Spindle Speed | 0-24000RPM |
Leadshine servo motor | |
Working Voltage | AC380V/50HZ |
Command Language | G Code |
Operating System | Mach3 PC Software |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
X,Y Resolution | <0.01mm |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Inverter | Delta/Fuling |
Electrical components | Schneider |
Limit switch | OMRON |
Driver | Leadshine
|
