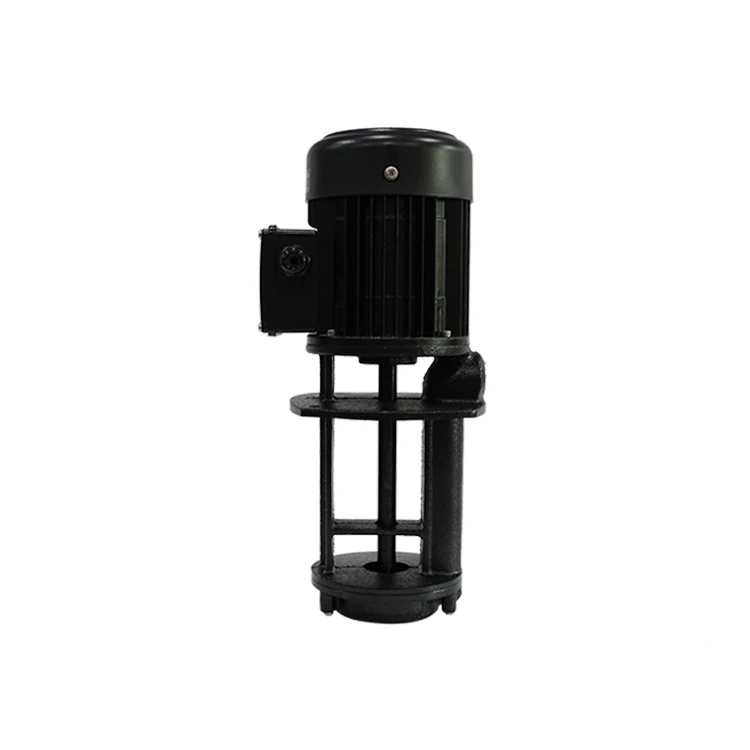

380V automatic three phase cnc router spindle water pump

380V automatic three phase cnc router spindle water pump

Application

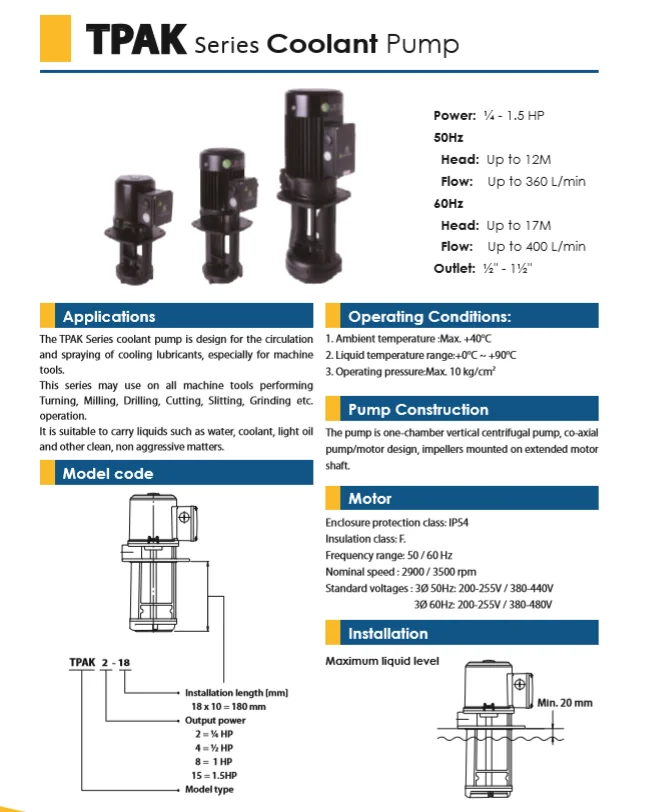

The TPAK Series coolant pump is design for the circulation and spraying of cooling lubricants, especially for machine tools. This series may use on all machine tools performing Turning, Milling, Drilling, Cutting, Slitting, Grinding etc. operation. It is suitable to carry liquids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

1. Ambient temperature :Max. +40°C

2. Liquid temperature range:+0°C ~ +90°C

3. Operating pressure:Max. 10 kg/cm²

Pump Construction

The pump is one-chamber vertical centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft.

Motor

Enclosure protection class: IP54 Insulation class: F. Frequency range: 50 / 60 Hz Nominal speed 2900 / 3500 rpm Standard voltages : 3Ø 50Hz: 200-255V / 380-440V 3Ø                                                                                                      60Hz: 200-255V / 380-480V

1. Q: Can I know more about your products?

2. A: Pls view our website: www.mslace.en.alibaba.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: 15~30 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
