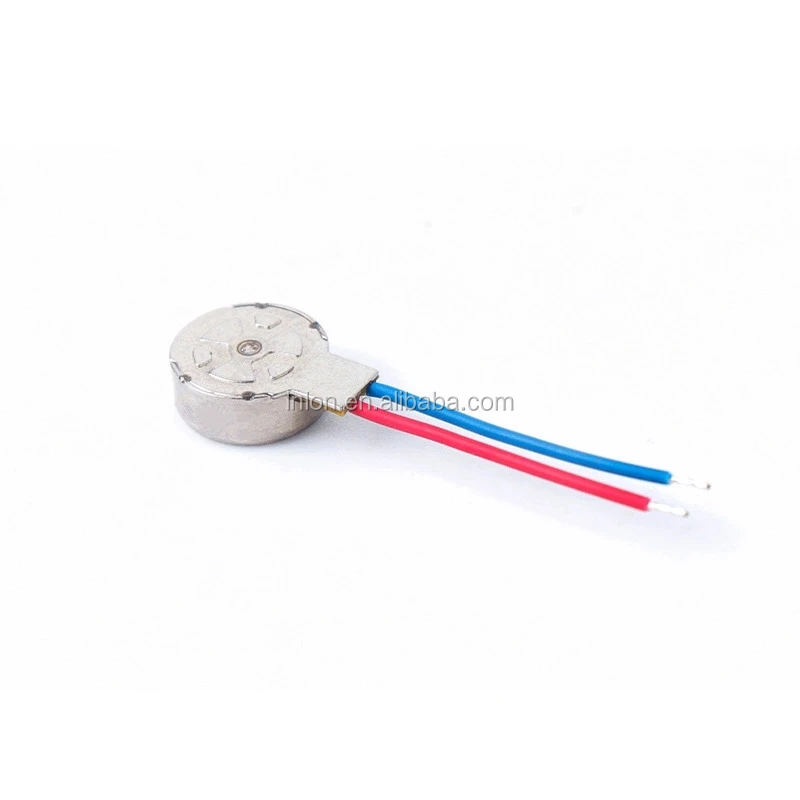

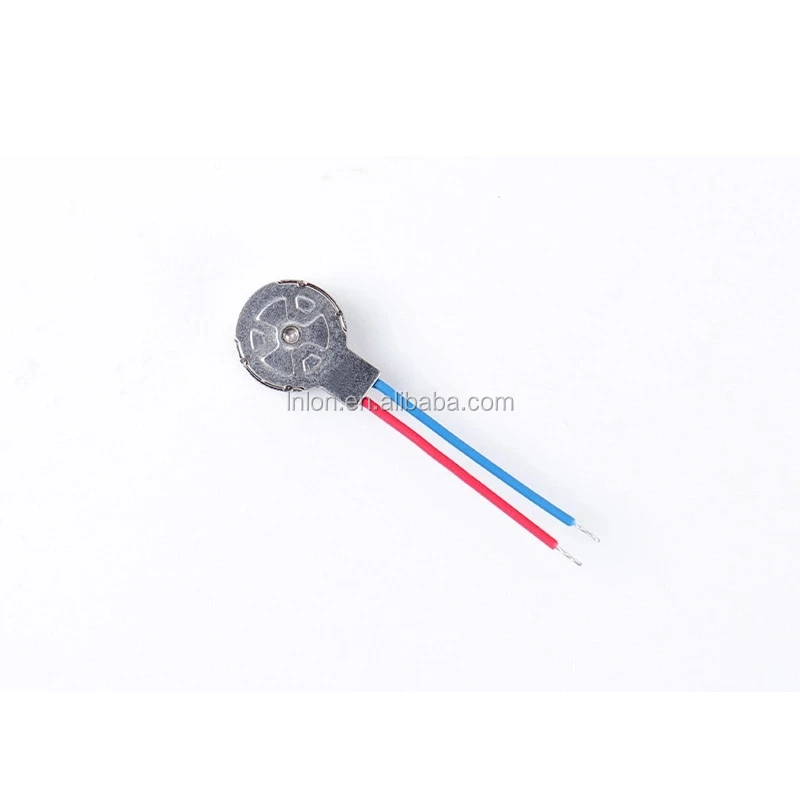

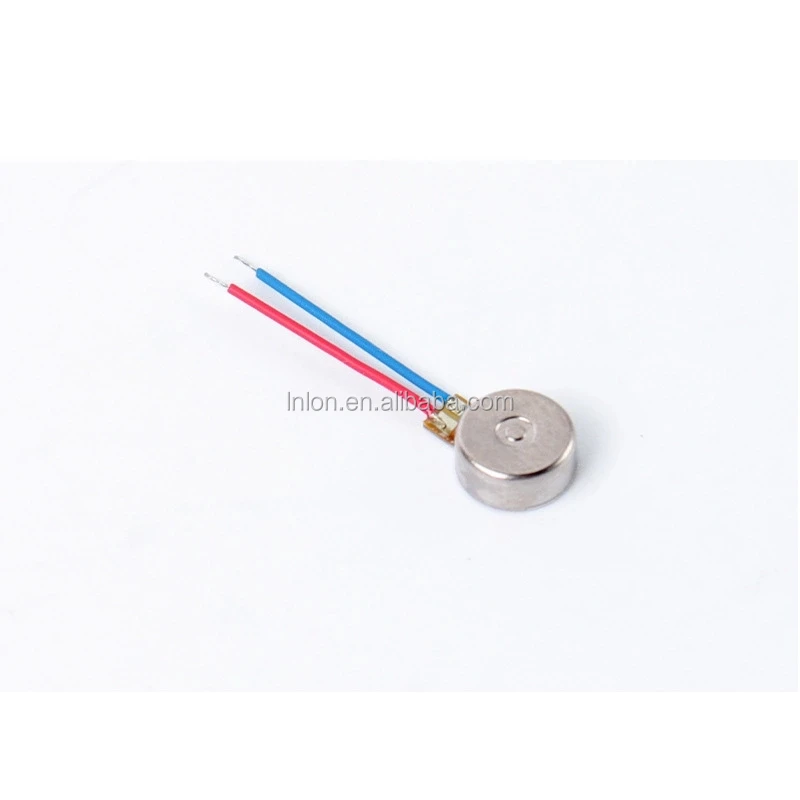

low power long life 6mm flat mini BLDC vibration motor for bracelet and for wearable device
- Category: >>>
- Supplier: Chongqing Linglong Electronic Co. Ltd.
Share on (62394952813):
Product Overview
Description
low-power long life 6mm flat mini BLDC vibration motor for bracelet and for wearable device
Product Description |
| model | B0625L-066678999-1301 |
| size | Φ6*2.5mm |
| rated voltage | 3V DC |
| starting voltage | 2.5V DC Max |
| operating voltage | 2.7~3.7V DC |
| speed | 13000±3000 rpm |
| current | 80mA Max |
| vibration force | 0.45G min@60g jig |
| life | 3.0V,2S on, 1S off,100000 cycles |

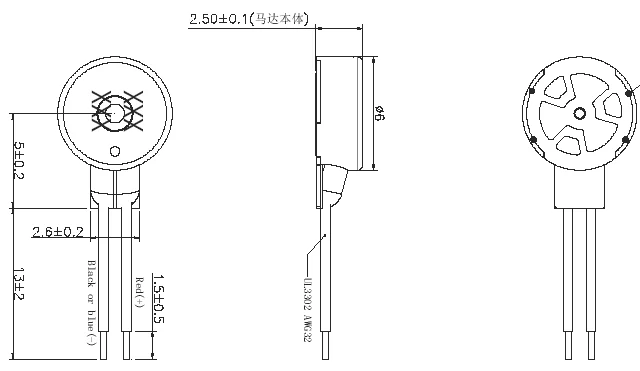

Outline drawing:
Reliability condition |
1.life:3v dc, 2s on, 1s off, 100000 cycles;
2.low temperature storage test: -40±2℃,96H;
3.high temperature storage test: 80±2℃,96H;
4.humidity exposure: temperature: 60±2℃,humidity:90~95%RH,exposure time:96H.
5.vibration: full swing:1.5mm(p-p), 10 to 55Hz, 20min(10~55~10Hz), x/y/z direction, 2H.
Product Features |
super small size
much longer long life than brush type
low current and outpower
Application |
About US |
Leading manufacturer for mini vibration motor in China
Incorporated in 2003
1500 workers, 35000 square meters
Above 0.2 billion annual output
Major Clients: Huawei, OPPO, vivo, Lenovo, MOTO...
Main Products:DC coin motor, DC SMD motor, AC linear motor, and DC stepper motor
Packing&Delivery |
Packing by carton, 40000pcs/Carton,6kg/Carton;
Shipping by Fedex, UPS, SF or as your request.
FAQ |
Q: Do you provide free samples?
A: Yes, we can provide specification and free samples.
Q: Do you have MOQ?
A:Yes, the MOQ is 1000pcs after sample approval, small quantity also acceptable for trial-produce.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: What is your terms for delivery and payment?
A: EXW, FOB, CFR, CPT for delivery; Visa, Mastercard, e-Checking, T/T for payment.
Q: Customization is available?
A: Yes, if you have great demands, we accept customization, details negotiable.
Any need or question, please contact us.
