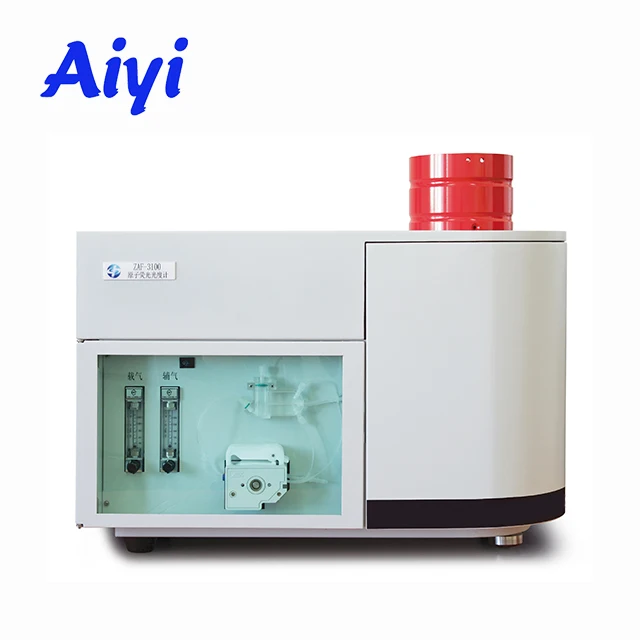

ZAF 3100 Three Channel Industrial Atomic Fluorescence Spectrophotometer

Integrated reaction module, reaction system and gas-liquid separator integration, small dead volume, high degree of integration,

simple maintenance

High precision ten roller four channel peristaltic pump sampling and waste discharge system, constant pressure hydrogenation

chamber, less hydride loss, stable reaction;It can upgrade the two-mode sampling of continuous injection and intermittent

injection, taking into account two application scenarios of test accuracy and sample loss

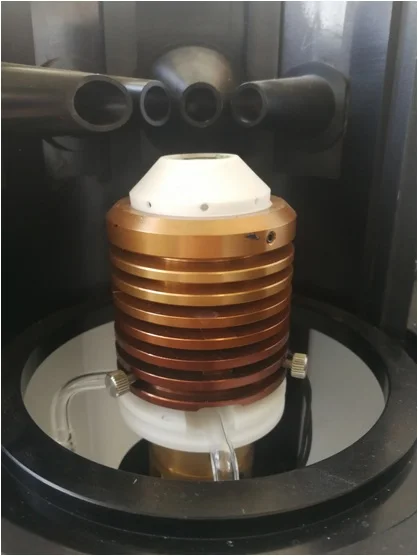

Double layer quartz atomization furnace core, small liquid phase interference, stable flame, high atomization efficiency, small

memory effect, suitable for long-term use

Corrosion resistant heater wire, good acid resistance, long service life

High performance cyclone two-stage gas-liquid separator, high efficiency to remove liquid phase, reduce fluorescence quenching, no

need to add liquid, easy to use

Fully shielded short focal length 3 lamp position, 3 channel colorless astigmatism design, high efficiency of fluorescence

collection

Multichip combination stray light elimination system can avoid stray light entering the detector and reduce the light path

background

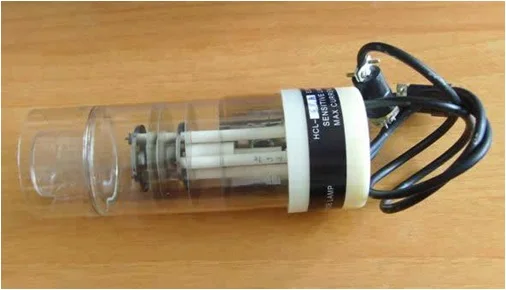

Pulse debugging constant-current driven self-identifying high performance hollow cathode lamp power supply, stable output energy,

high luminance, plug and play

Solar blind photomultiplier with high sensitivity, high signal-to-noise ratio and stable performance

High performance interchannel interference elimination system, interchannel interference ≤ 0.5%

16-bit high precision data acquisition circuit, shielded very low bias current preamplifier circuit, low signal bottom noise, high

data acquisition accuracy

Real-time automatic background correction to avoid the drift of light source affecting the test accuracy

Self-diagnosis circuit system, key electrical signals can be read back, real-time monitoring circuit working status

The instrument control communication adopts high-speed USB 2.0 interface, which can be upgraded to WiFi, 2.4g and other wireless

communication modes to support network test requirements

Start the protection function, which can automatically diagnose the gas path status, and cut off the gas source of the instrument

when the machine is shut down

Can be seamlessly upgraded to As, Hg form tester

The control software

Support Windows 7, 8, 8.1, 10 x86/x64 mainstream operating systems

Use wizard operation interface, easy to start, easy to operate

Support "permission - role - user" level 3 permission control, provide audit tracking function support, meet the requirements of

standardized test process

Support standard curve method

It has two working modes, offline and online

Support data, report printing and export

Support for multiple concentration units
