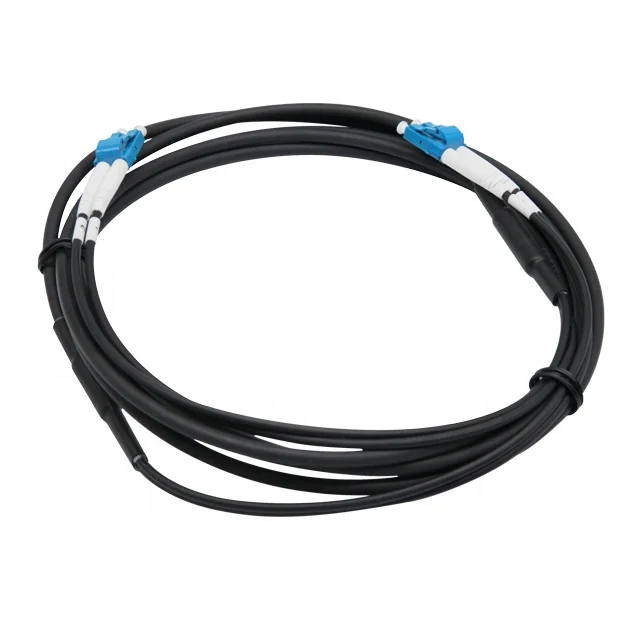

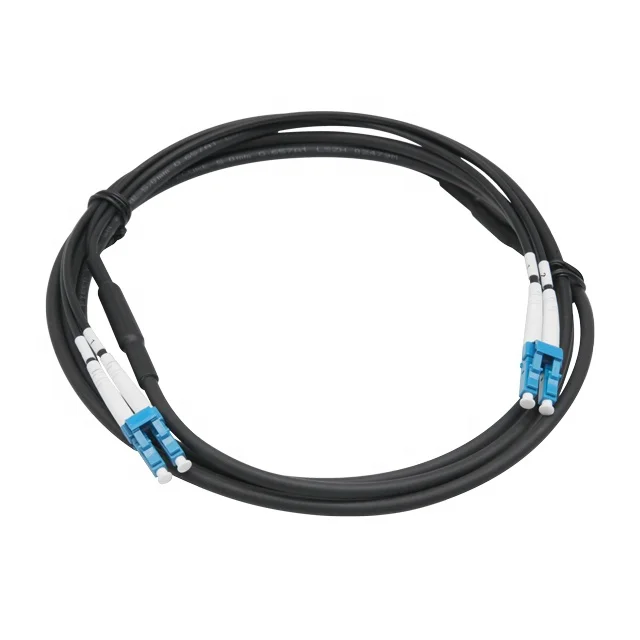

outdoor 12 core 6 core 24 core shielded fiber optic steel armored cable with connector for FTTH
- Category: >>>
- Supplier: Dongguan Qingying Industry Co. Ltd.
Share on (62394993778):
Product Overview
Description
SM Armored Cable Duplex NSN DLC IP68 Waterproof Connectors Military Tactical Fiber Optical Armour Patch Cord For Broadcast
Products Description
Features
CPRI LC Outdoor Cable Assemblies FTTA CPRI Cable is the ideal design for outdoor fiber cable applications. Such a product can meet the FTTA(Fiber to the Antenna) program requirements for outdoor environment conditions.
Especially in the 3G, 4G, Base station (BBU to RRU). CPRI fiber patch cables are rapidly becoming the standard connector interface.
LC/LC FTTA outdoor fiber patch cord CPRI available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for quick and iterative distributing & retrieving under harsh environments.
CPRI LC/LC FTTA cable is armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load, and wide operating temperature range. Its applications include quick deployment, military, mining, oil field, TV broadcasting, and communication emergency repair. Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core. Easy Operation, reliable and cost-effective.
● The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;

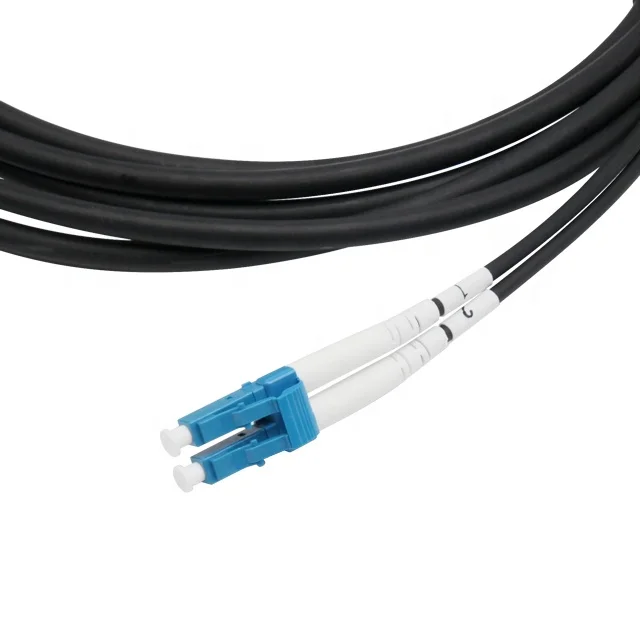

● Standard Duplex LC connector, well connected with standard LC adaptor
● Available Single-mode and Multimode
● IP67 protection, salt-mist proof, humidity-proof, dust proof
● Low insertion/return loss, steady optical transmitting.
● Light weight, waterproof, dustproof, moisture-proof, Metal hard housing.
● 500cycles Mechanical life

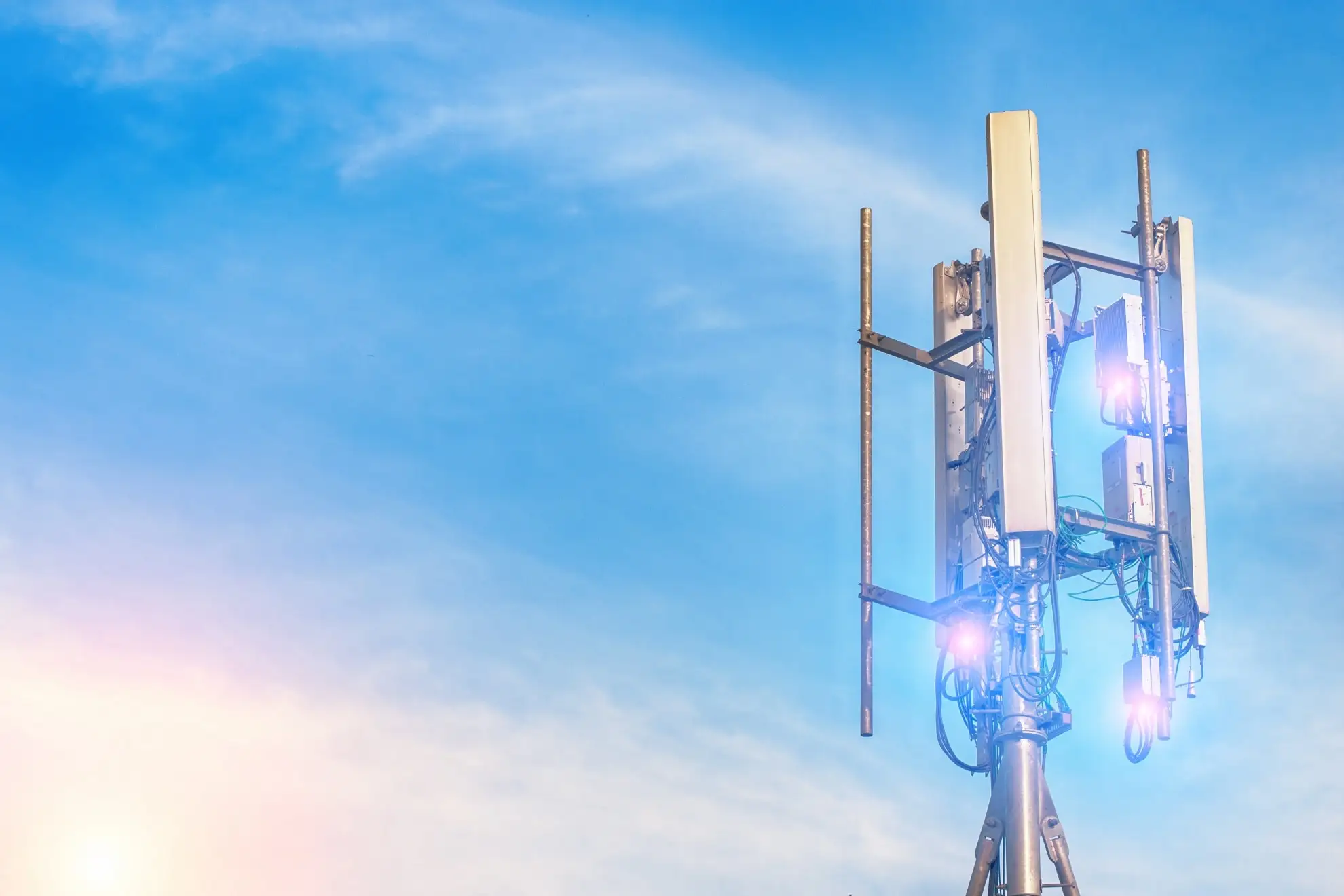

Applications
Specifications
2×Unit Cable(2.0mm)+2×Stuffing Cable+Jacket OD=7.0mm
Type 1 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 7.0 ± 0.2 | ||||||
Weight | kg/km | 47 | ||||||
Tensile Strength | Short term | N | 900 | |||||
Long term | N | 450 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||
Type 2 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 7.0 ± 0.2 | ||||||
Weight | kg/km | 77 | ||||||
Tensile Strength | Short term | N | 2000 | |||||
Long term | N | 1000 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||
2.0MM unit cable*2+ Polyester Tape+ Corrugated Steel Tape Armoured + HDPE/LDPE jacket OD=8.5mm
Type 3 | ||||||||
Item Name | Unit | Parameter | ||||||
Fiber Count | --- | 2 | ||||||
Outside Diameter | mm | 8.5 ± 0.2 | ||||||
Weight | kg/km | 77 | ||||||
Tensile Strength | Short term | N | 350 | |||||
Long term | N | 300 | ||||||
General Attenuation | Singlemode | 1310nm | dB/km | ≤0.4 | ||||
1550nm | dB/km | ≤3.0 | ||||||
Multimode | 850nm | dB/km | ≤0.3 | |||||
1300nm | dB/km | ≤1.0 | ||||||
Minimal Bending Radius | D | 20 | ||||||
Storage Temperature | ℃ | -20～+70 | ||||||

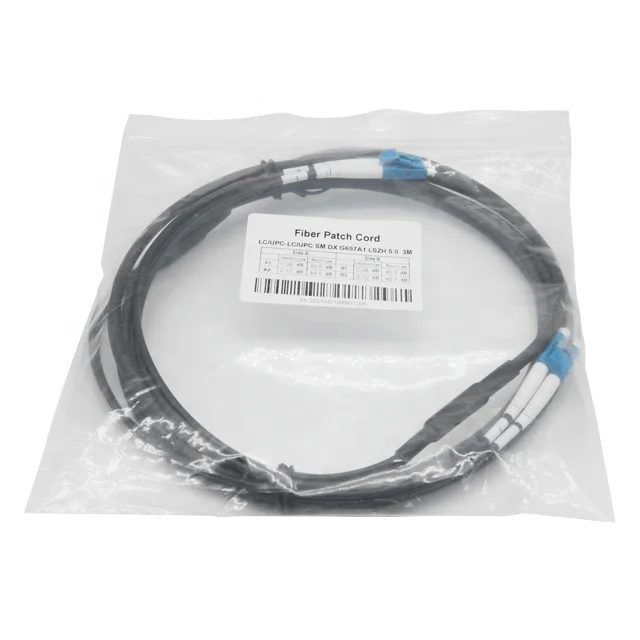

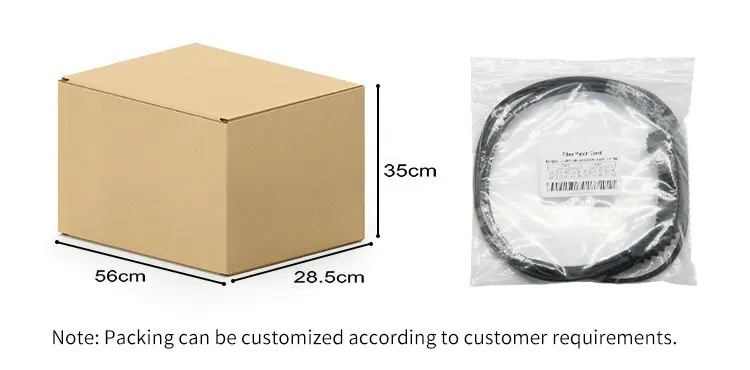

Packing
