114ZY 134JB Floor Scrubber 24V DC Spur Gear Motor
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (62395023151):
Product Overview
Description
Product Description
Sweeper DC Spur Gear Motor, Floor cleaning machine DC Gear Motor, Floor scrubber DC Gear Motor

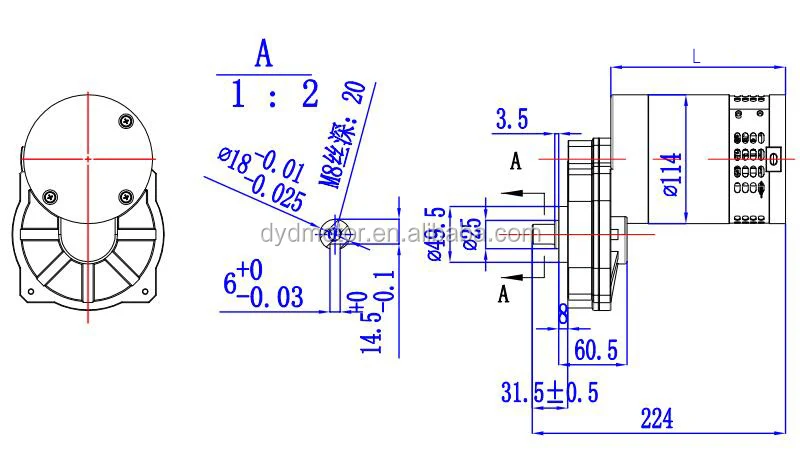

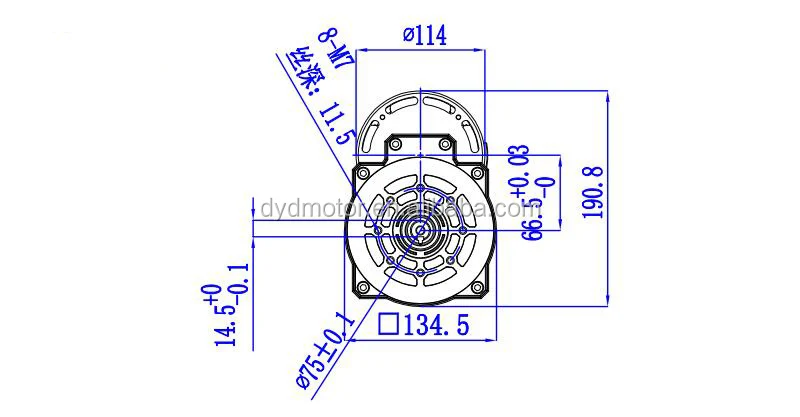

DC PARALLEL SHAFT GEARED MOTOR 114ZY-134JB SPECS AND FEATURE:
DC PARALLEL SHAFT GEARED MOTOR 114ZY-134JB SPECS AND FEATURE:
Motor Size 114mm OD
Power 200W ~ 1000W ( L=154mm ~ 230mm )
Voltage 24V DC ( or 12V, 36V )
Rated Speed 100 ~ 400RPM
Gear Ratio 10/1
Duty Cycle: Continuous
DC Parallel Shaft Gear Motors Characteristics | ||||||||
Gearbox size | 25 ~ 180MM | |||||||
Gear ratio | 5 : 1 ~ 3000 : 1 | |||||||
Motor type | Brushed DC Motors, Brushless DC Motors, Stepper Motor | |||||||
Motor diameter | 20 ~ 170mm | |||||||
Nominal voltage | 6V ~ 400V DC | |||||||
Nominal speed | 2 ~ 700rpm | |||||||
Rated torque | Up to 250N.m | |||||||
Nominal power | Up to 1KW | |||||||
IP rating | Up to IP66 | |||||||
Option | Magnetic/optical encoder, power-on/power-off brake, connector | |||||||
Related Products
Certifications
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
