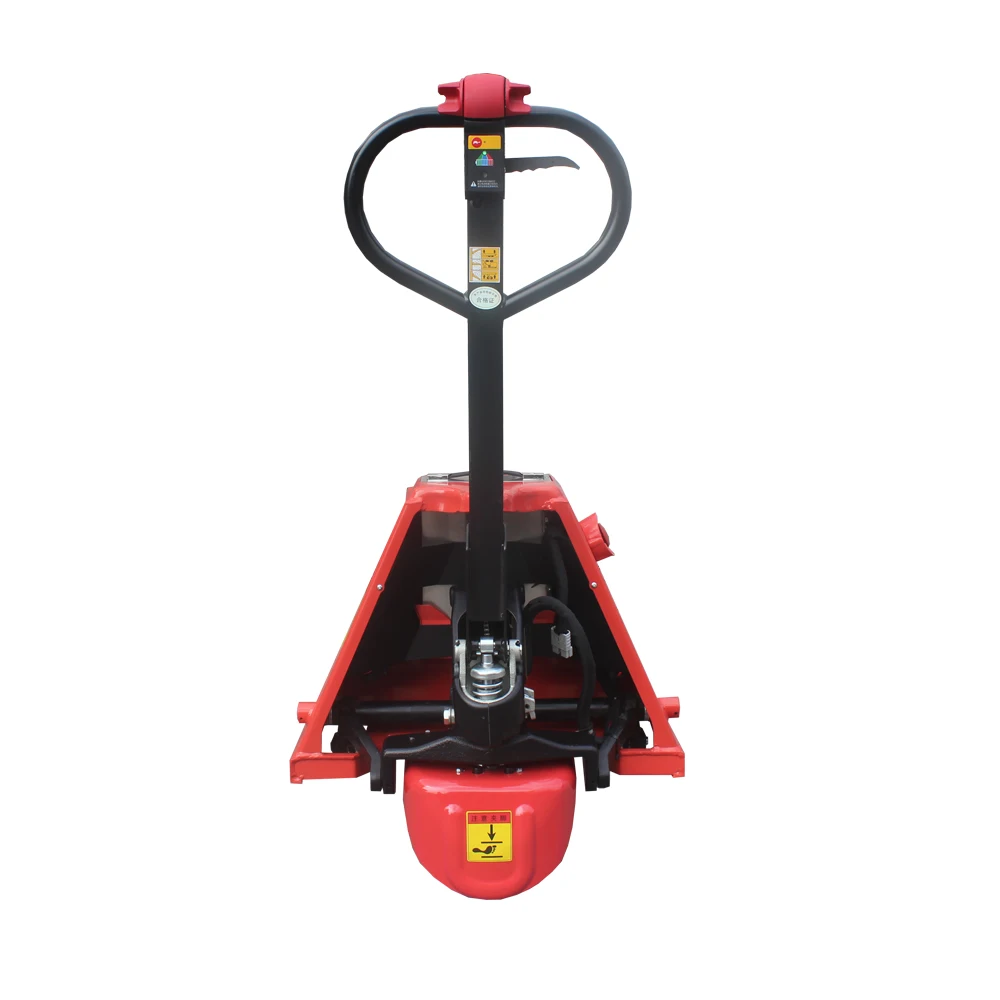

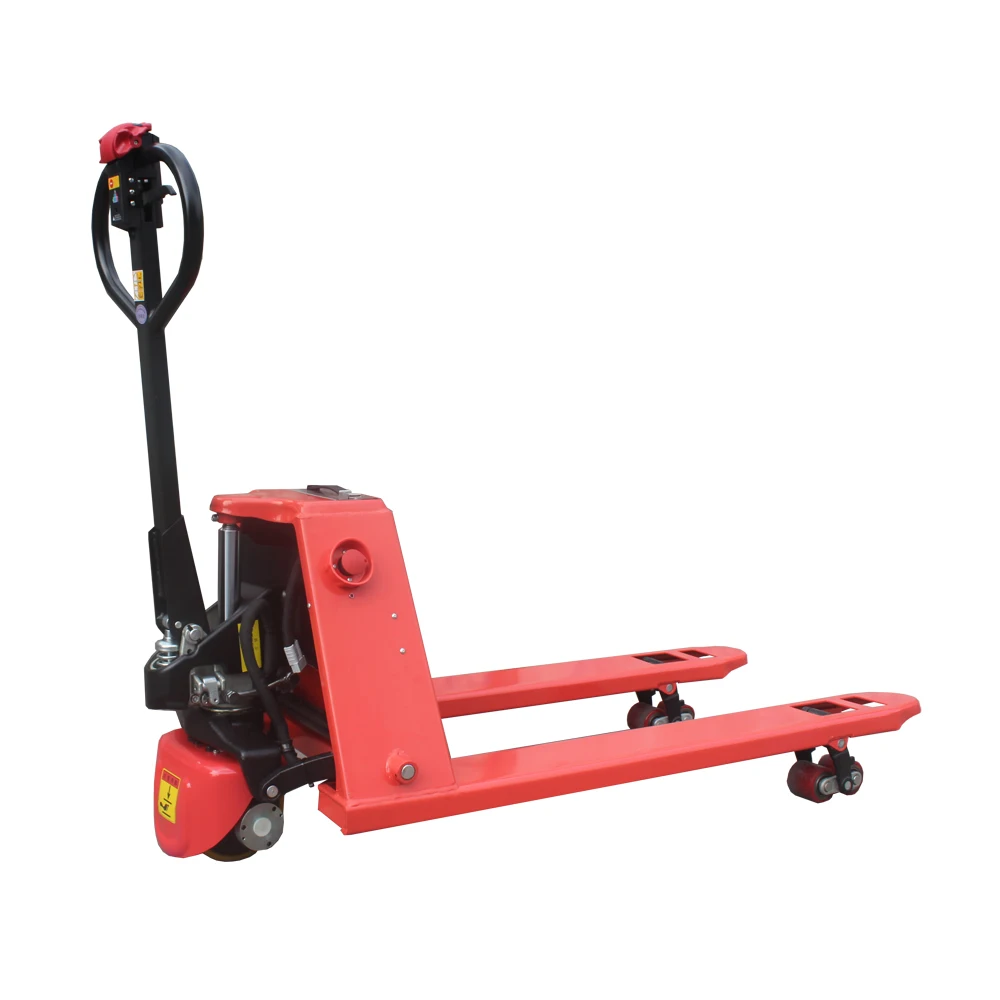

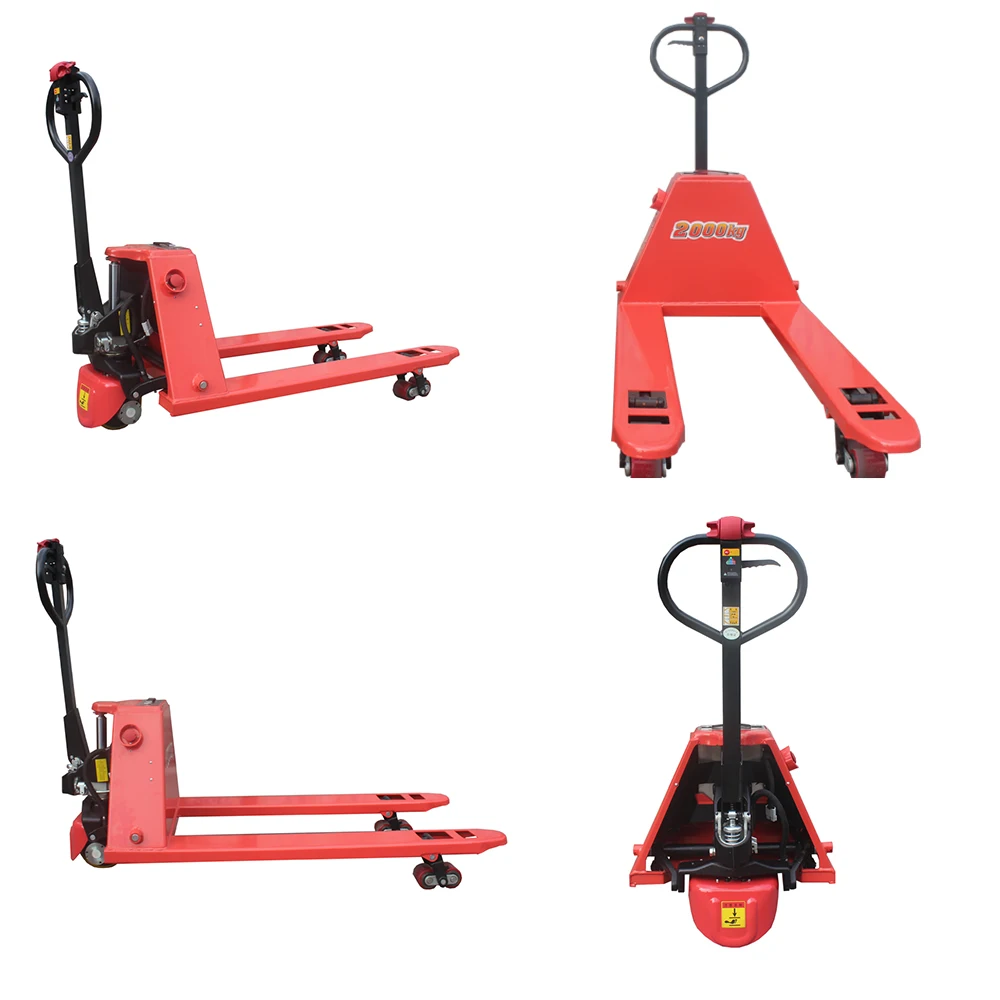

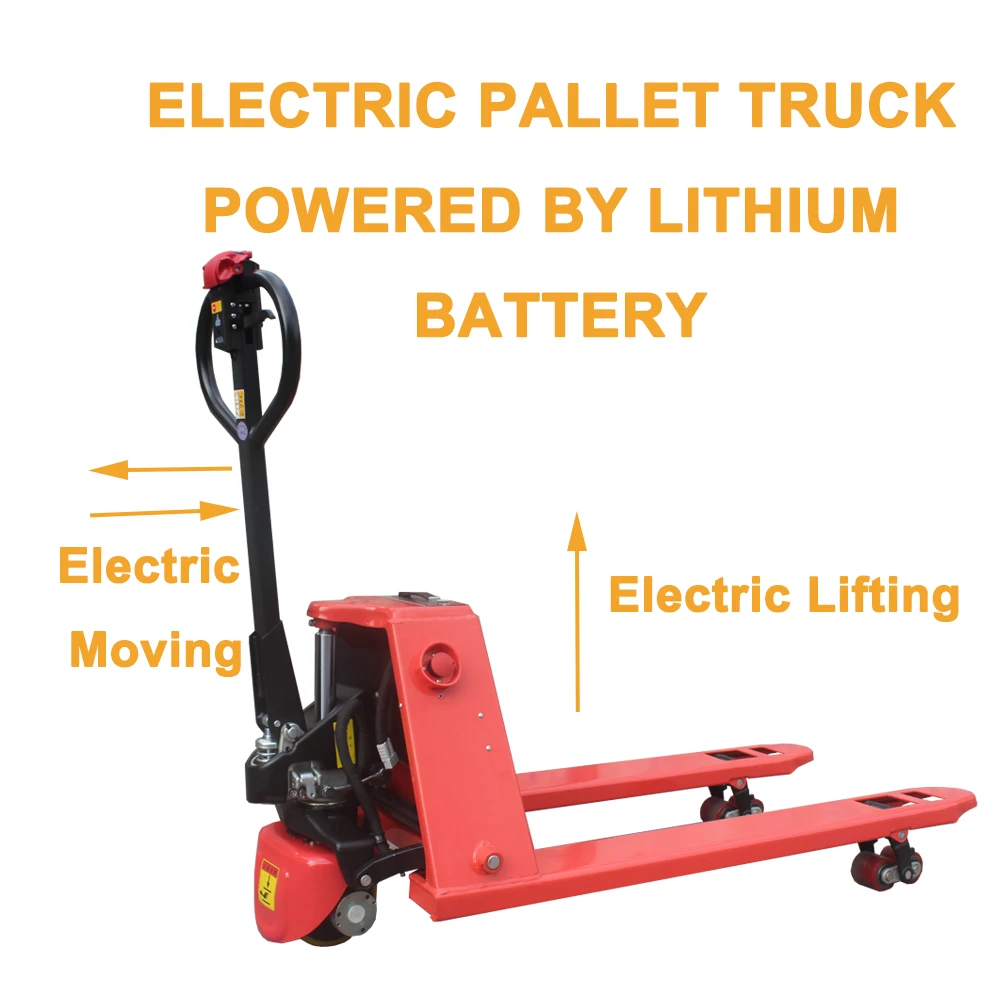

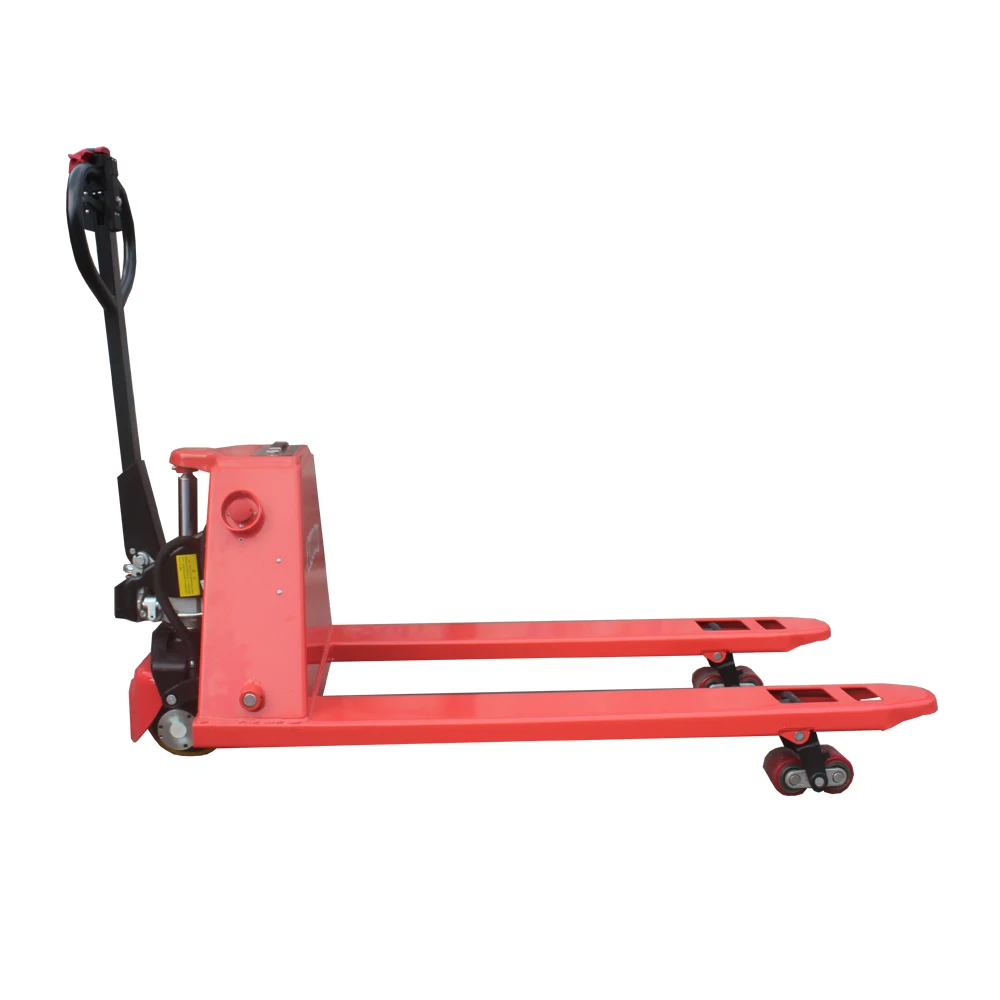

Product Overall View

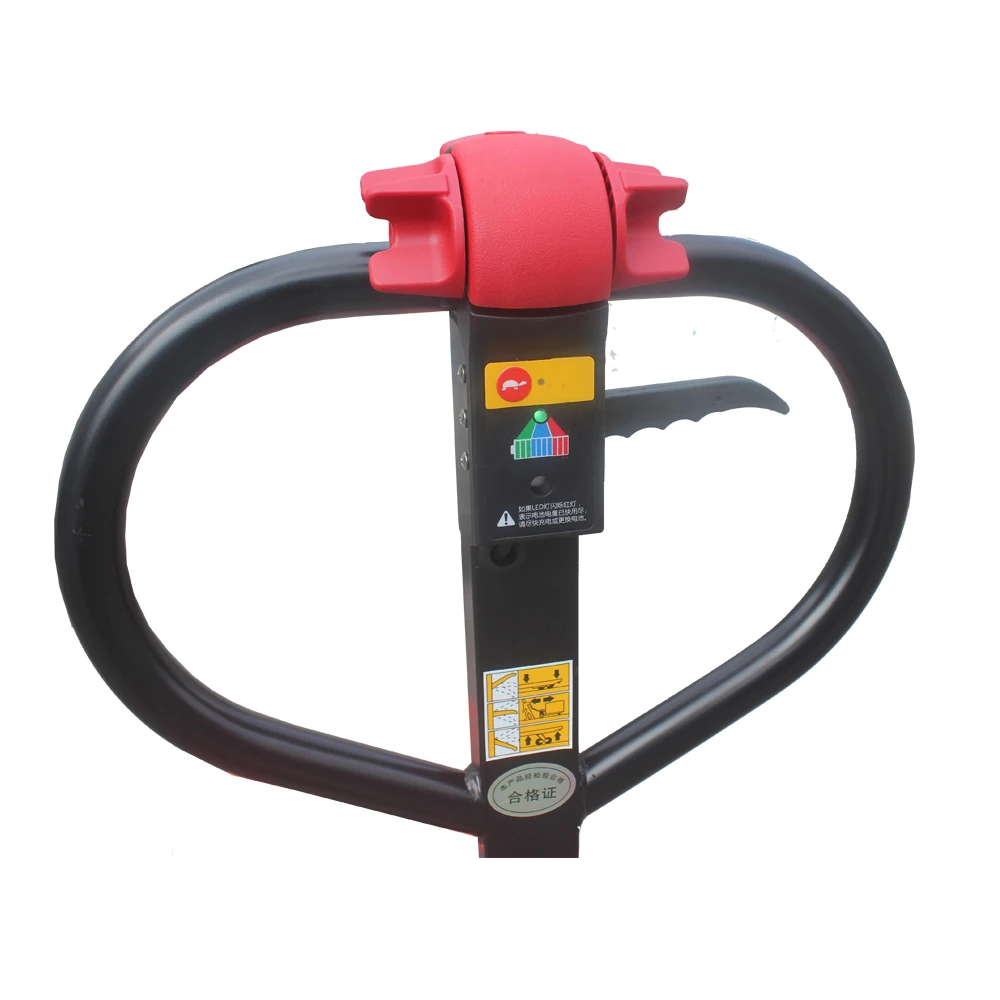

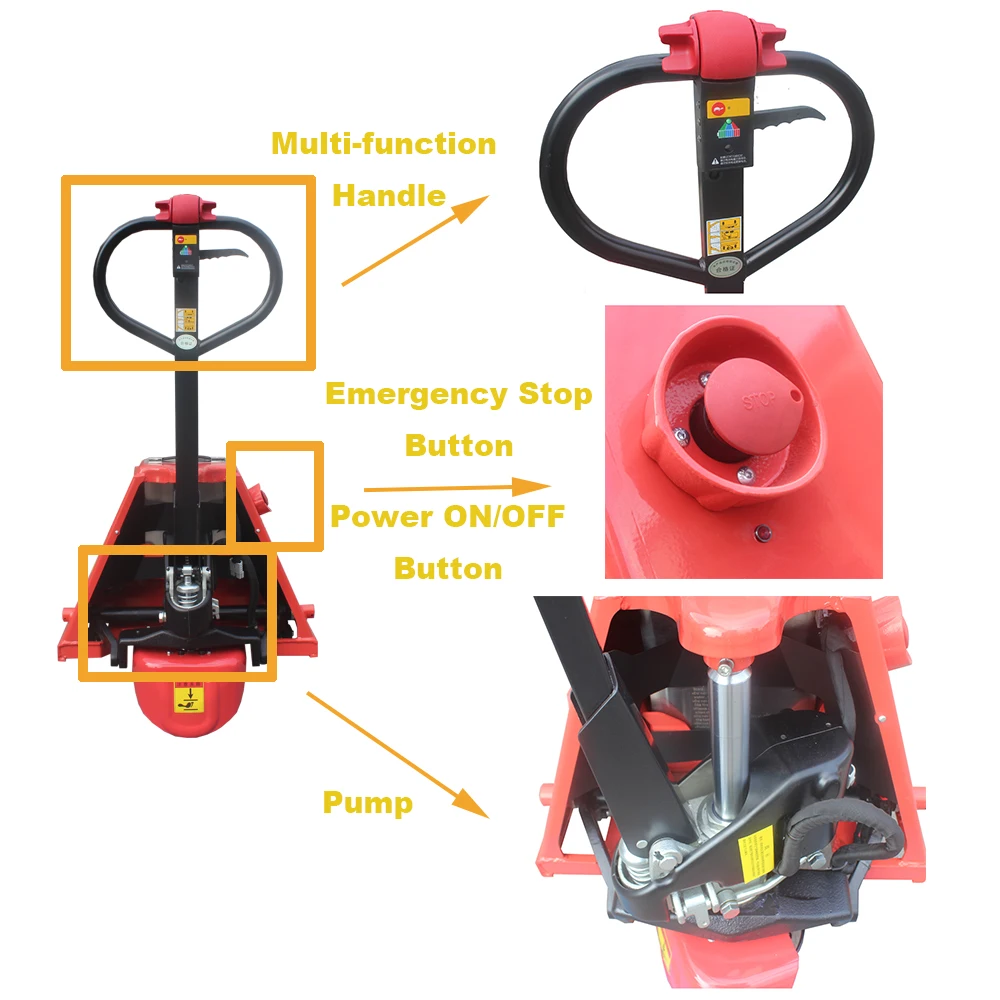

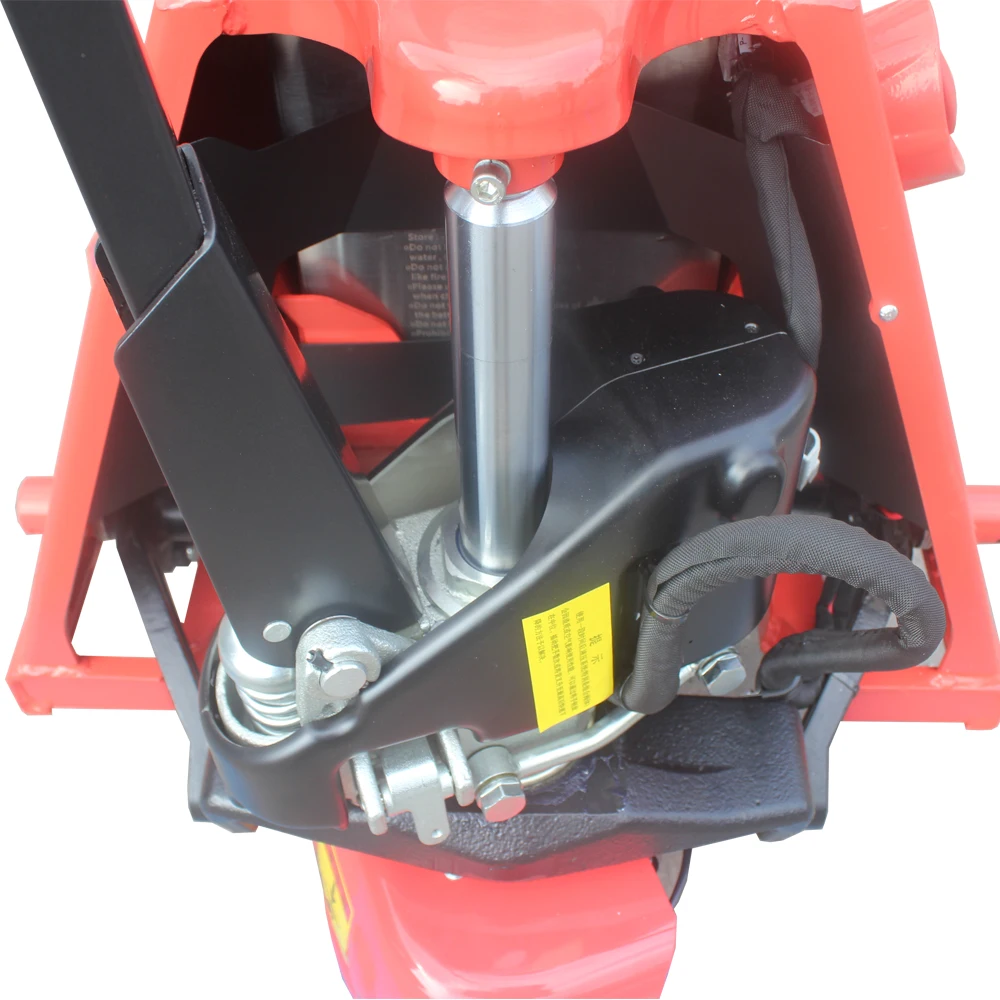

Detailed Parts of The Truck

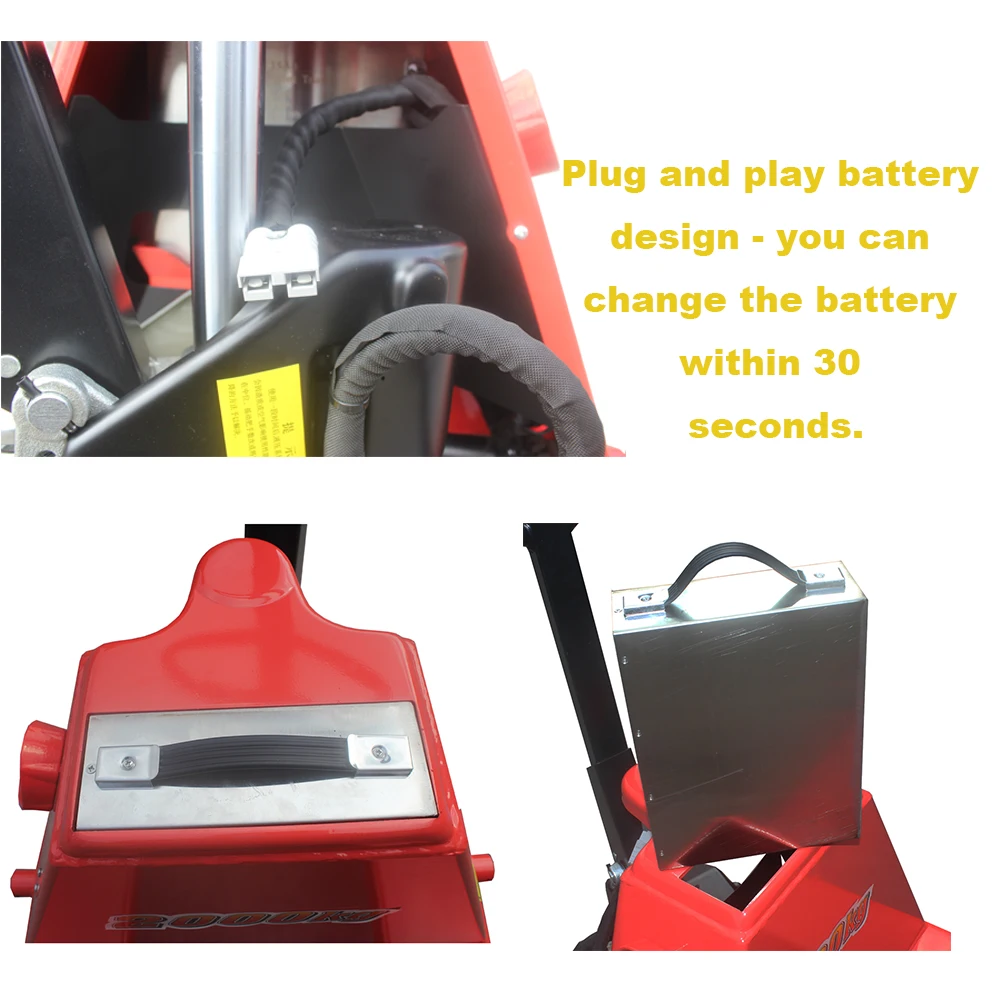

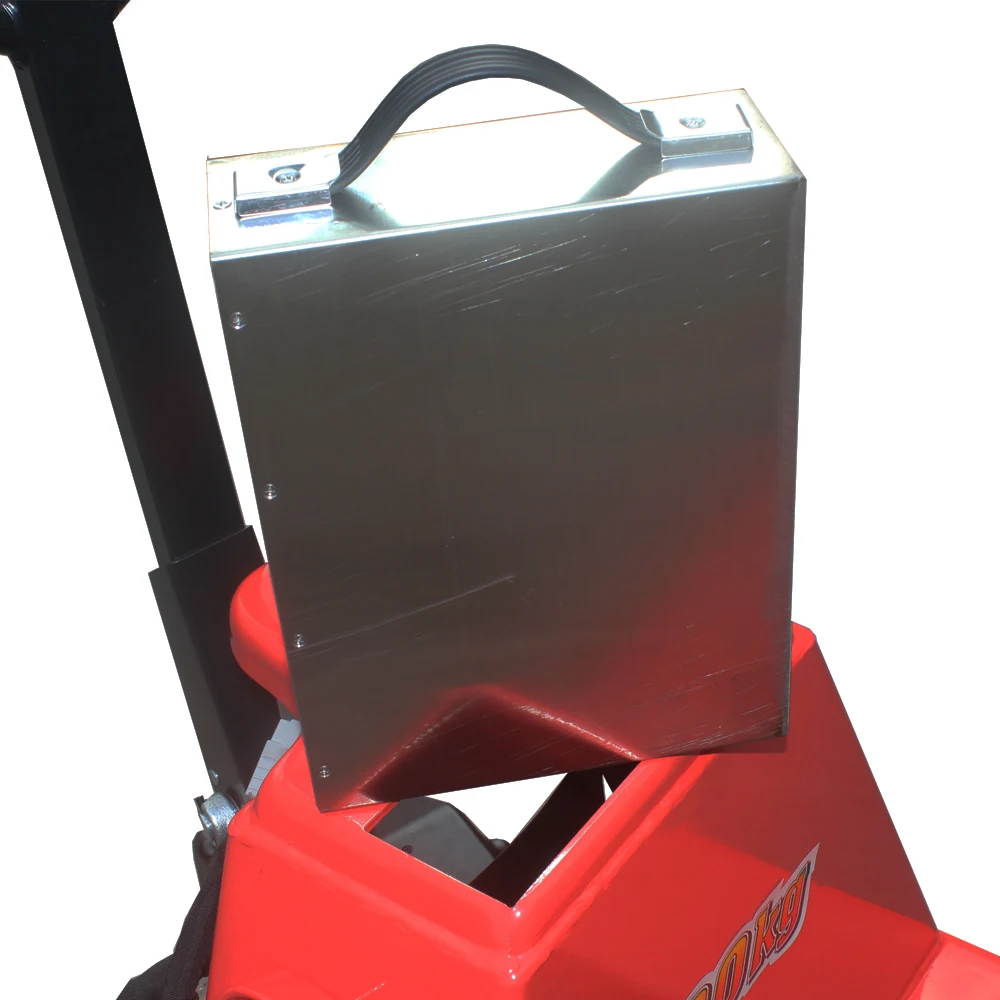

Easy Changing Battery Design

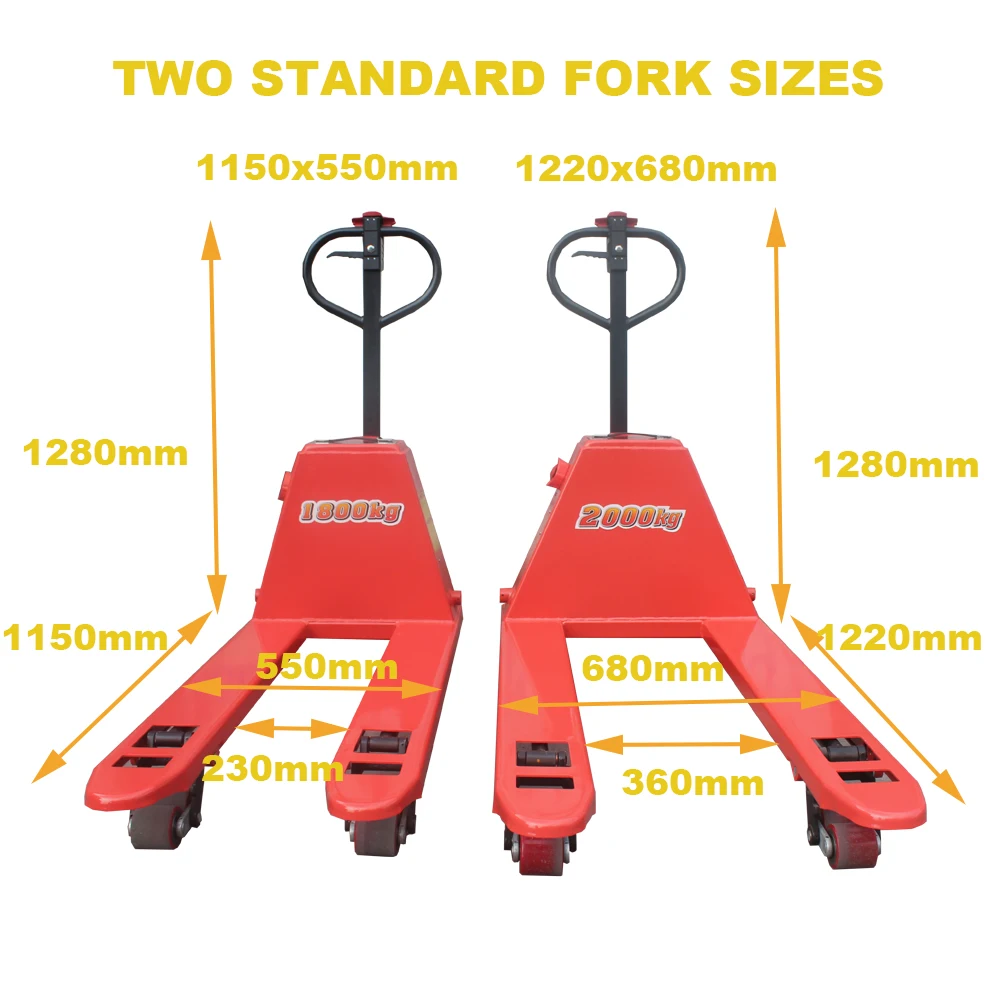

Two Standard Sizes

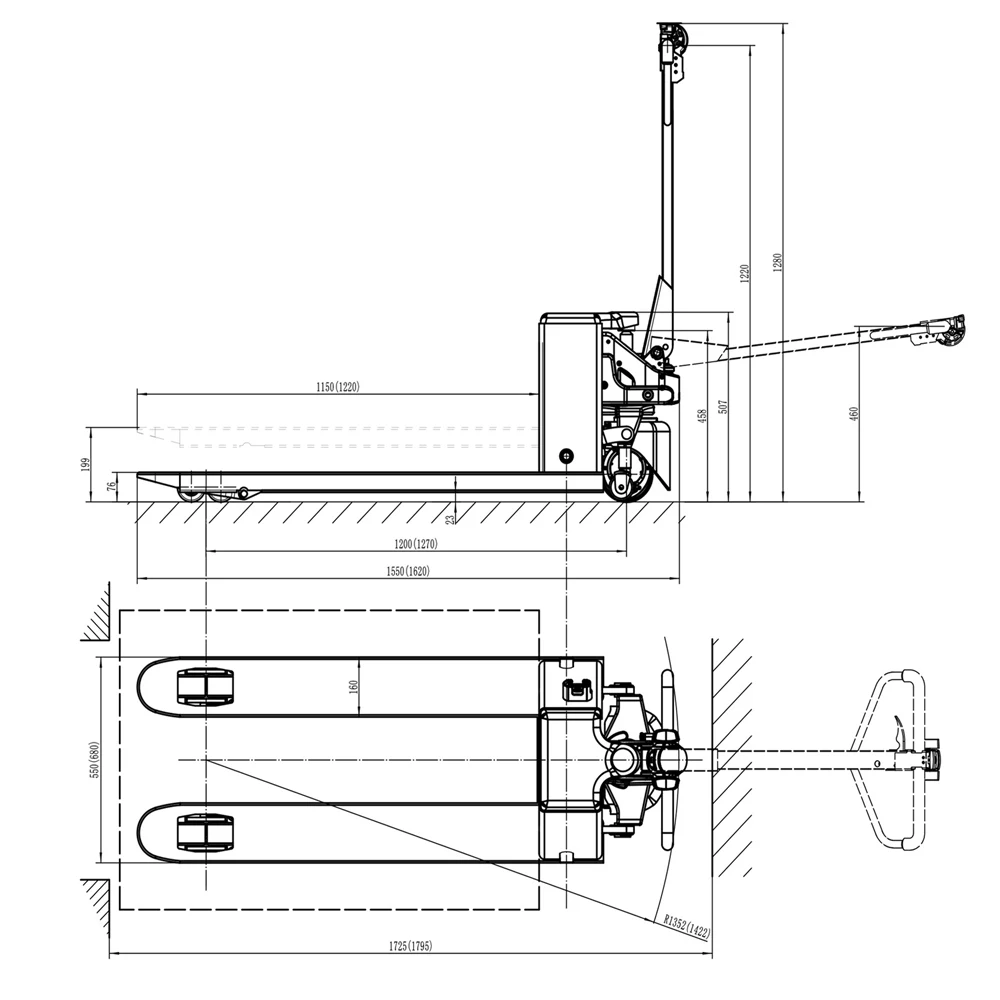

Drawing of the Truck

Detailed Specifications
| Item | Unit | HD15 | HD18 | HD20 |
| Capacity | kg | 1500 | 1800 | 2000 |
| Lowest height | mm | 76 | 76 | 76 |
| Steering wheel size | mm | 210 | 210 | 210 |
| Loading wheel size | mm | 74*93/74*70 | 74*93/74*70 | 74*93/74*70 |
| Max. lifting height | mm | 200 | 200 | 200 |
| Total height | mm | 1280 | 1280 | 1280 |
| Total length | mm | 1550/1620 | 1550/1620 | 1550/1620 |
| Total width | mm | 550/680 | 550/680 | 550/680 |
| Ground clearance | mm | 23 | 23 | 23 |
| Single fork width | mm | 160 | 160 | 160 |
| Min. turning radius | mm | 1352/1422 | 1352/1422 | 1352/1422 |
| Max. speed | km/h | 4 | 4 | 4 |
| Driving motor | kw | 0.75 | 0.75 | 0.75 |
| Lifting motor | kw | 0.5 | 0.5 | 0.5 |
| Controller | Curtis | Curtis | Curtis | |
| Battery | V/Ah | 48/15 | 48/15 | 48/15 |
| Weight | kg | 125/145 | 125/145 | 125/145 |
