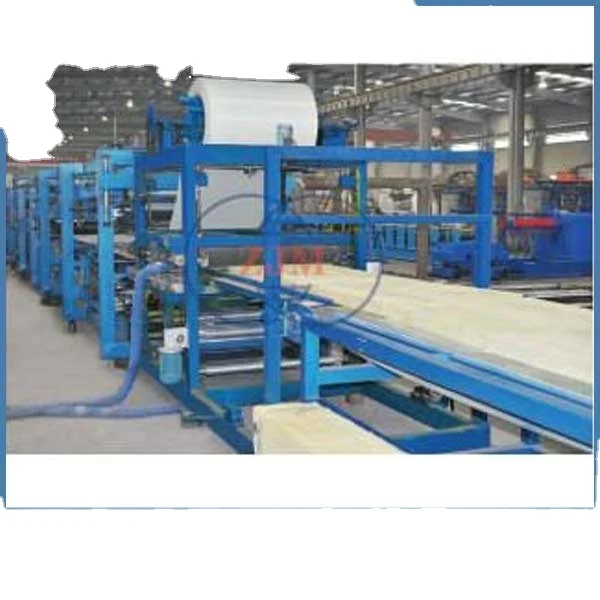

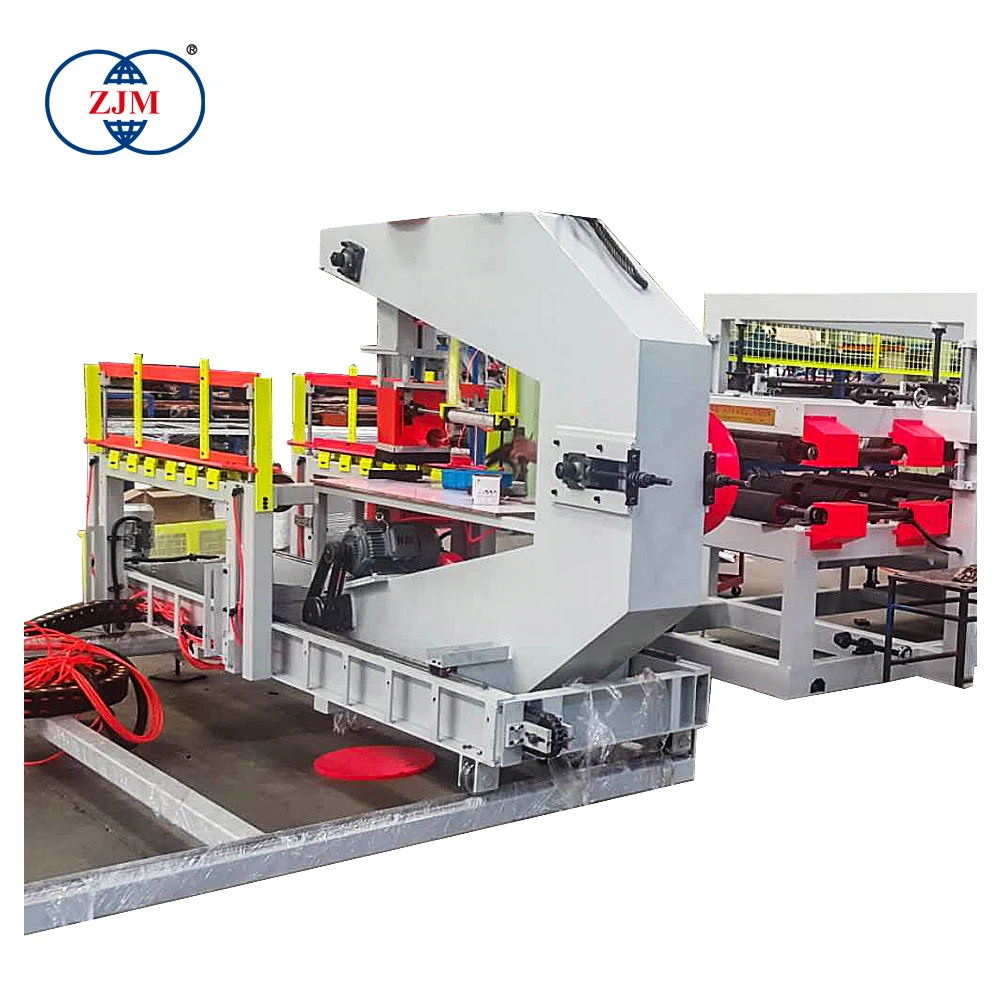

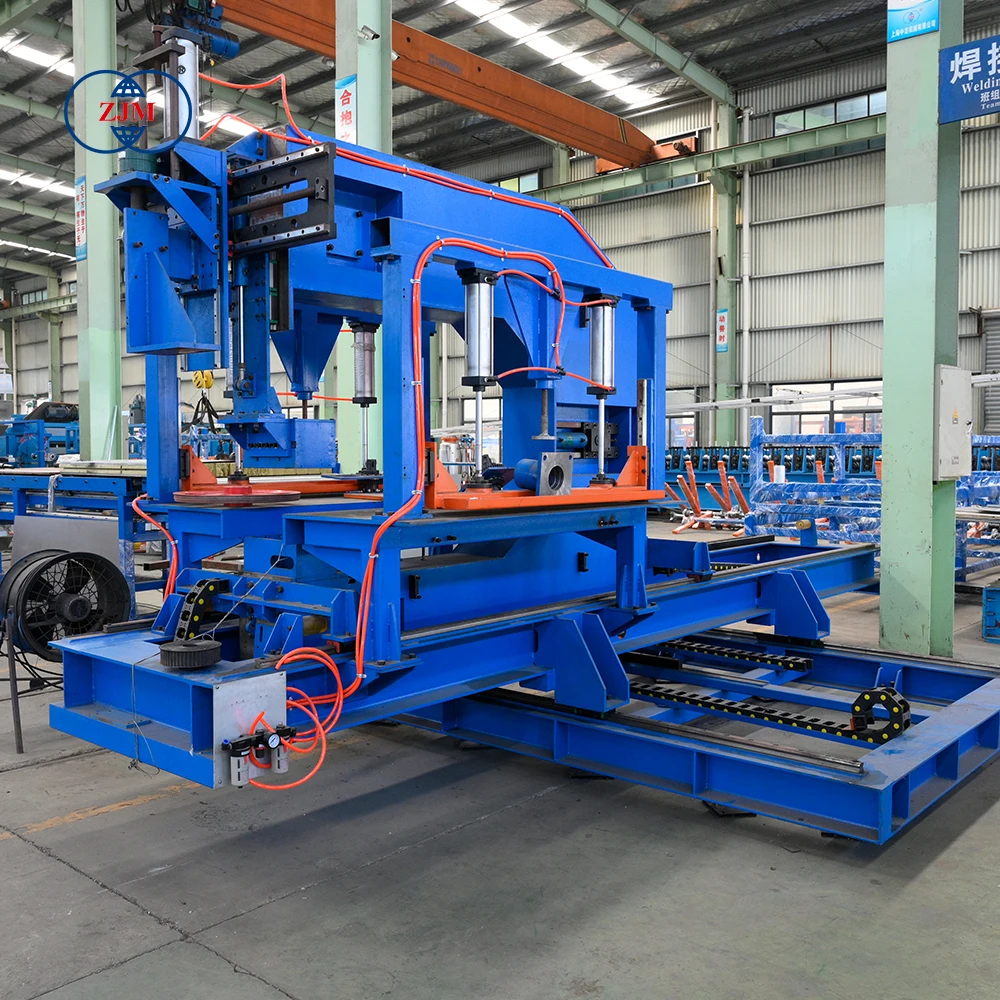

EPS sandwich panel production line
- Category: Building Boards >>>
- Supplier: Shanghai Zhongji Machinery Manufacturing Co. Ltd.
Share on (62395198294):
Product Overview
Description
ITEMS | TYPE/UNIT | SP-PU-C |
Production Line Speed | m/min | 5~7 |
Total Power of Production Line | kw | 31 |
Total Length of Production Line | m | 42 |
Net Weight of Production Line | ton | 30 |
Thickness of Finished Panel | mm | 50-250 |
Color Steel Sandwich Panel Specifications | mm | Width: 1000 ~ 1200 Thickness: 0.2~ 0.8 |

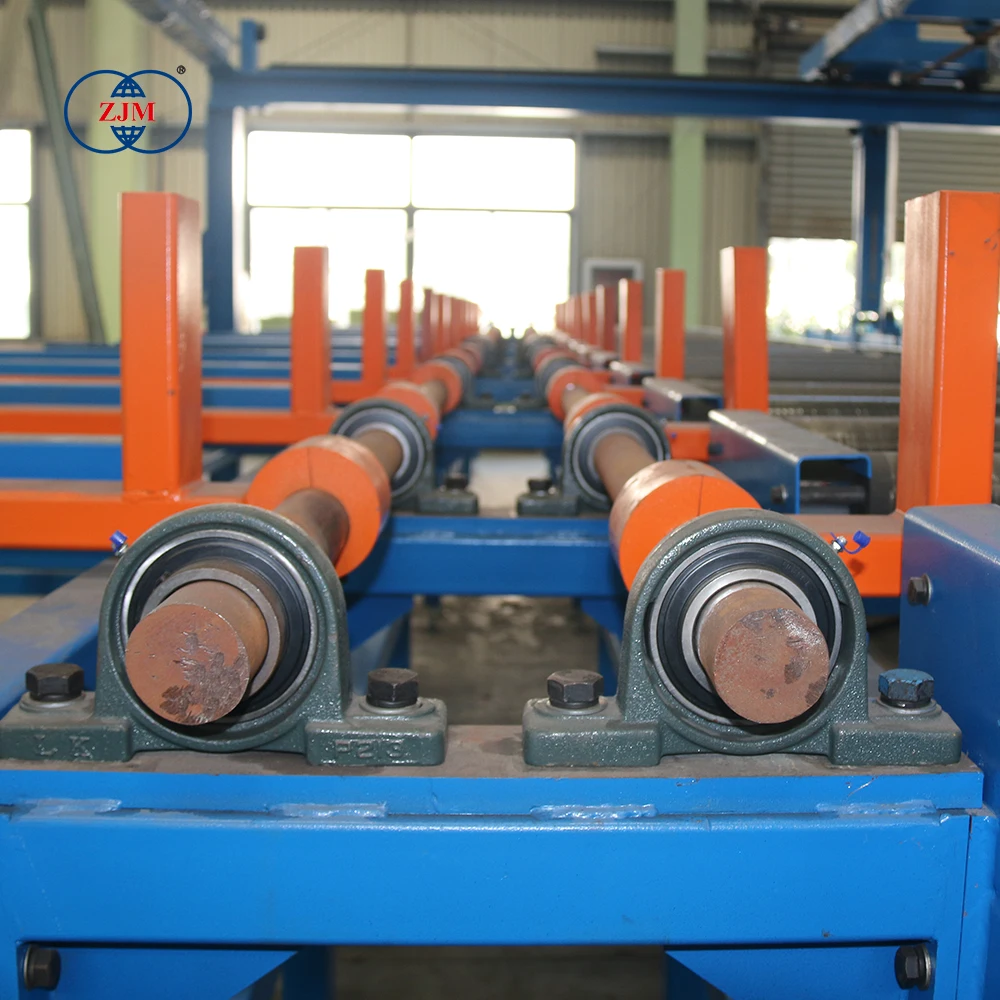

1. The transmission of the sandwich panel laminator uses worm-worm gear transmission system, ensuring that lamination speed is stable and lamination is uniform.
2. The sandwich panel laminator uses the frequency regulator to automatically cut according to the pre-set sandwich panel length.
3. The sandwich panel laminator uses rubber-coated roller type laminator to protect the color paint on the colored steel as well as complete during the pressurizing of the sandwich panel.
4. The sandwich panel laminator has a high quality and thick wall rectangular steel welding method, which can get rid of the rust, polishing, smoothing and aging treament.
3. The sandwich panel laminator uses rubber-coated roller type laminator to protect the color paint on the colored steel as well as complete during the pressurizing of the sandwich panel.
4. The sandwich panel laminator has a high quality and thick wall rectangular steel welding method, which can get rid of the rust, polishing, smoothing and aging treament.
