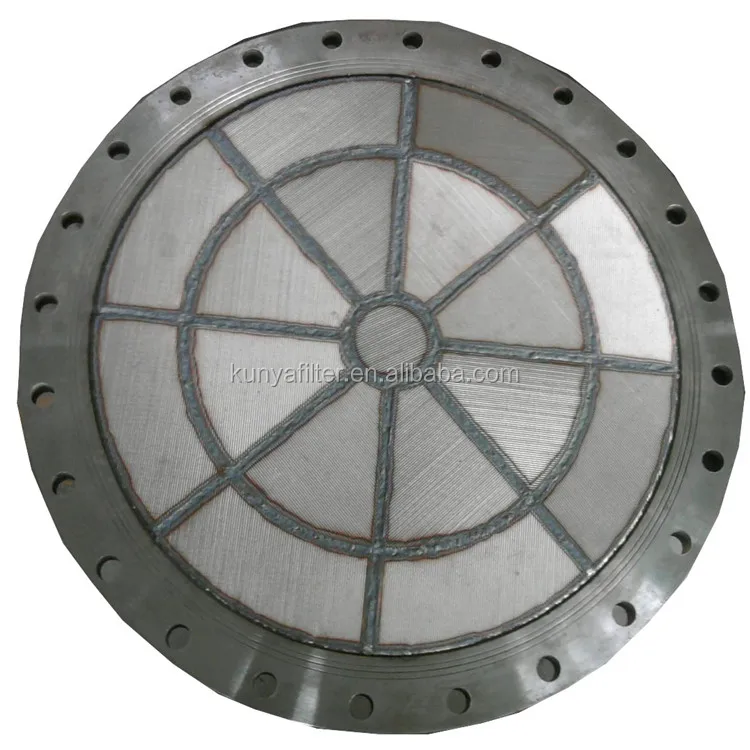

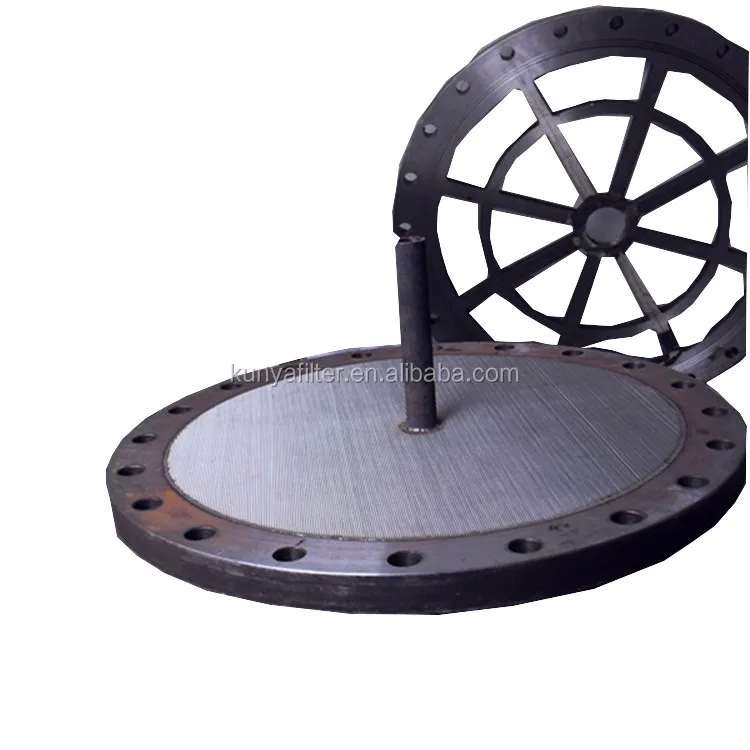

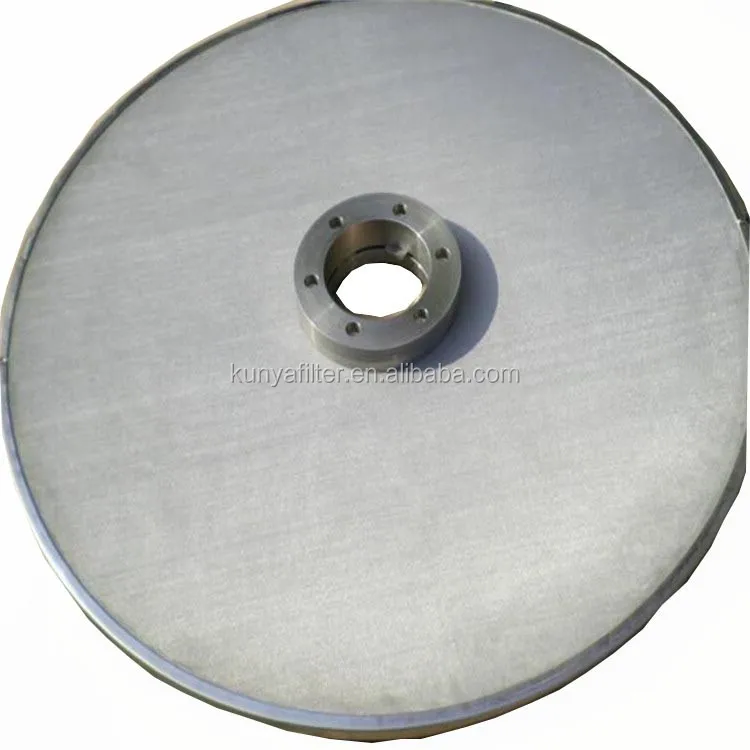

metal sintered plate filter for high temperature coal industry

Product Overview

Description

Details:
1.Filter rainting:1μm-200μm
2.Materials: SUS 304,316,316L
3.Size:500*1000mm,600*1000mm customized
4.Thickness:2.0-5.3mm
Product Description:
This type of Sintered Wire Mesh Laminate is made by taking several layers of woven wire mesh and sintered them to a layer of perforated metal.The woven wire mesh layers consist of a filter layer,a protective
layer and possibly a buffer layer between the fine mesh layer and the perforated plate.The perforated plate is then added as the base and the entire structure is sintered together to form a very strong yet
tractable plate.Due to the support of the perforated plate,this type of sintered wire mesh laminate has a high resistance to pressure and high mechanical strength.It is suitable for a variety of applications
which require fine filtration,but also the need to protect and preserve the filtration layer.One example of an application is in oil wells,where fine particles need to filtered under extremely high pressure
condition.

material	1Cr13Al4,1Cr12Al4,0Cr21Al6,0Cr23Al5,0Cr25Al5 wire etc.
wire diameter	0.05-2.03mm
mesh counts	1-635 mesh
Filter rate	1--300um
Layers	1-5 layers or Multi-layers
technique	woven wire mesh sintered wire mesh perforated metal mesh
weaving type	plain weave,twill weave,dutch weave,etc.
hole shape	square,round,etc.
surface	smooth
