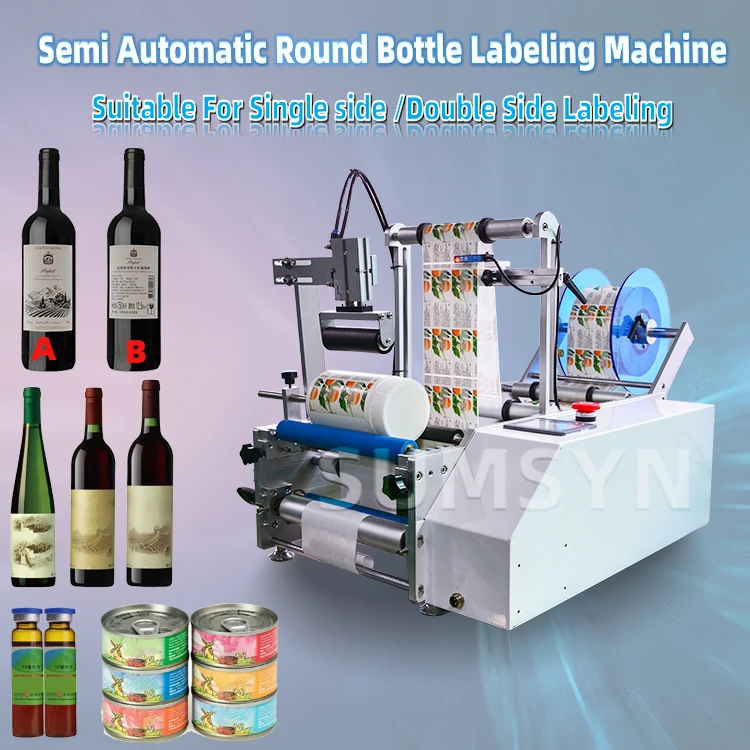

SUMSYN SS 11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser
SUMSYN SS-11111 Semi automatic round bottle labeling machine bottle label dispenser

SUMSYN SS 11111 Semi automatic round bottle labeling machine bottle label dispenser

Share on (62395334620):


Price:RUB 90,981.60 - RUB 121,308.80

Quantity:


Product Overview

Description

General Information
1. Suitable for labeling on round shape product;
2. Easy to replace label;
3. In build speed indicatior and counter;
4. Visually maintenance;
5. Available for labeling on flat surface, circle-arc surface and concave surface;
6. Accurate labeling and high stability;
7. control labeling by using sensors or pedal switch.

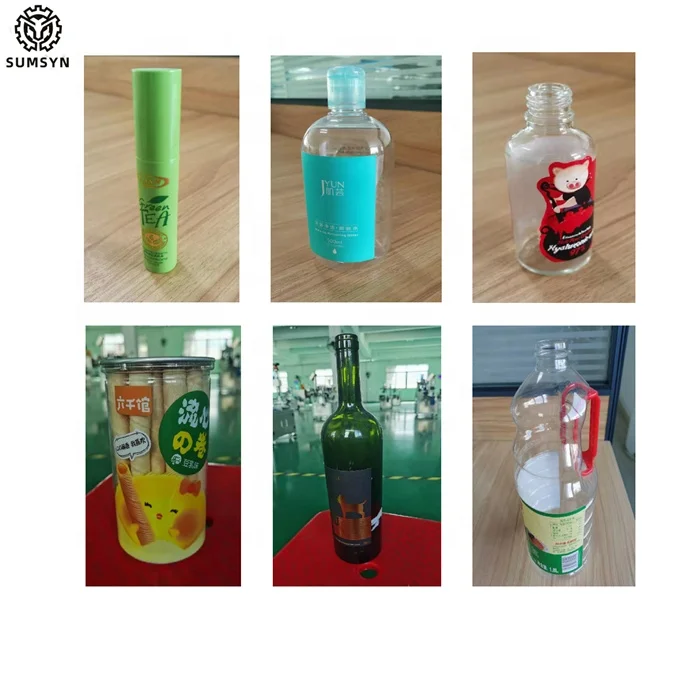

Application Range
Technical Parameters
Details
Parameter
Applicable Product size
Diameter 15 -160 mm
Applicable outer diameter of label roll:
φ280mm
Applicable inner diameter of label roll
φ76mm
Labeling precision
± 0.5 mm
Labeling speed
20 ~ 40 pcs/min
Weight
about 45 kg
Frequency
50HZ
Voltage
220V
Power
200W
Overall dimensions of the machine (L × W × H):
920 mm × 420mm × 500 mm
Air pressure
0.4 - 0.6
Tips：The above are the technical parameters of the standard model. If it is beyond the range of parameters, please contact us ，It can be customized.

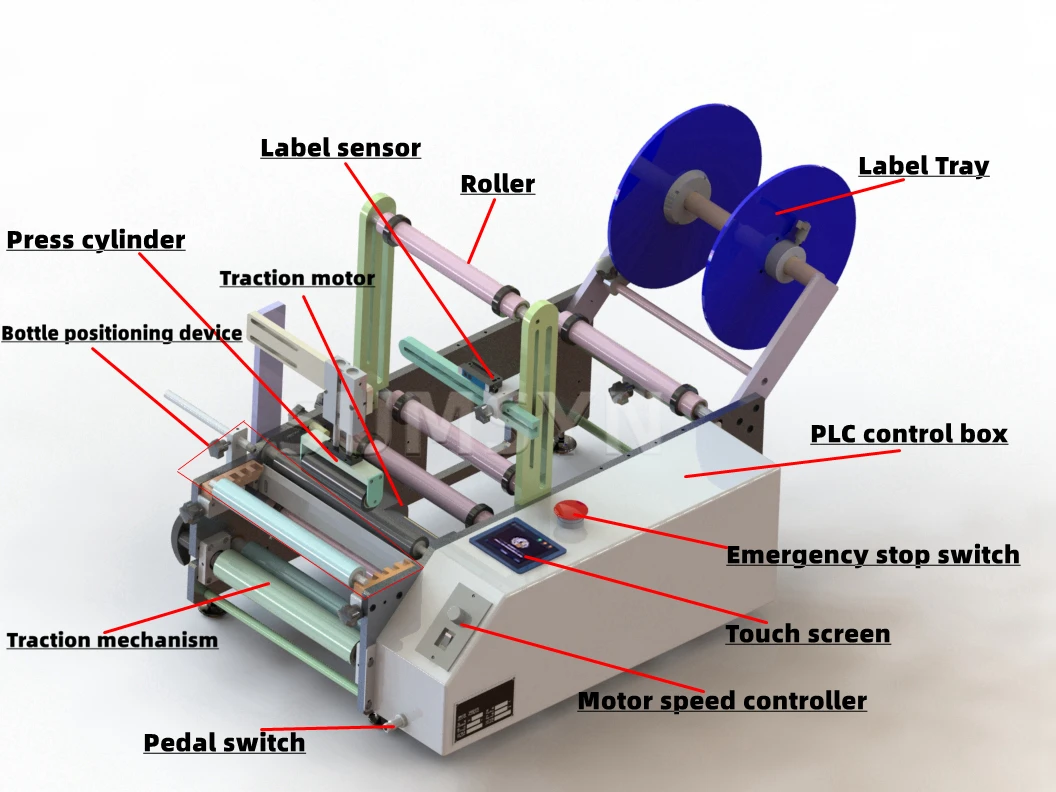

Detail

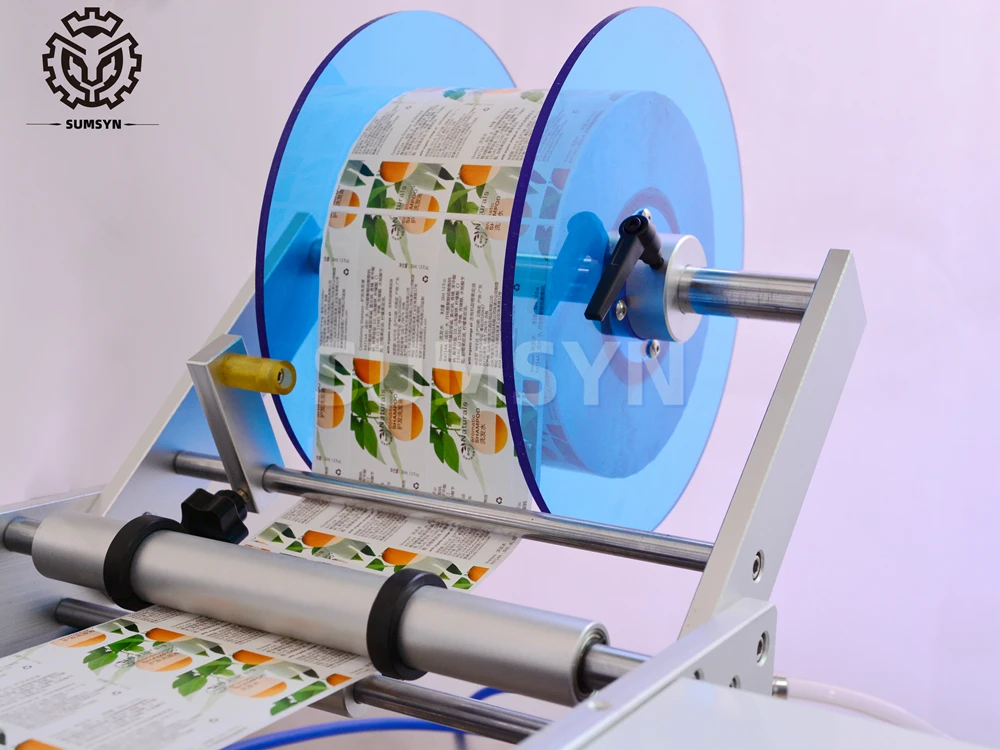

Label Trey

Applicable label size is 15mm-350mm(L),15mm-125mm(W),Out of normal range can be customized.

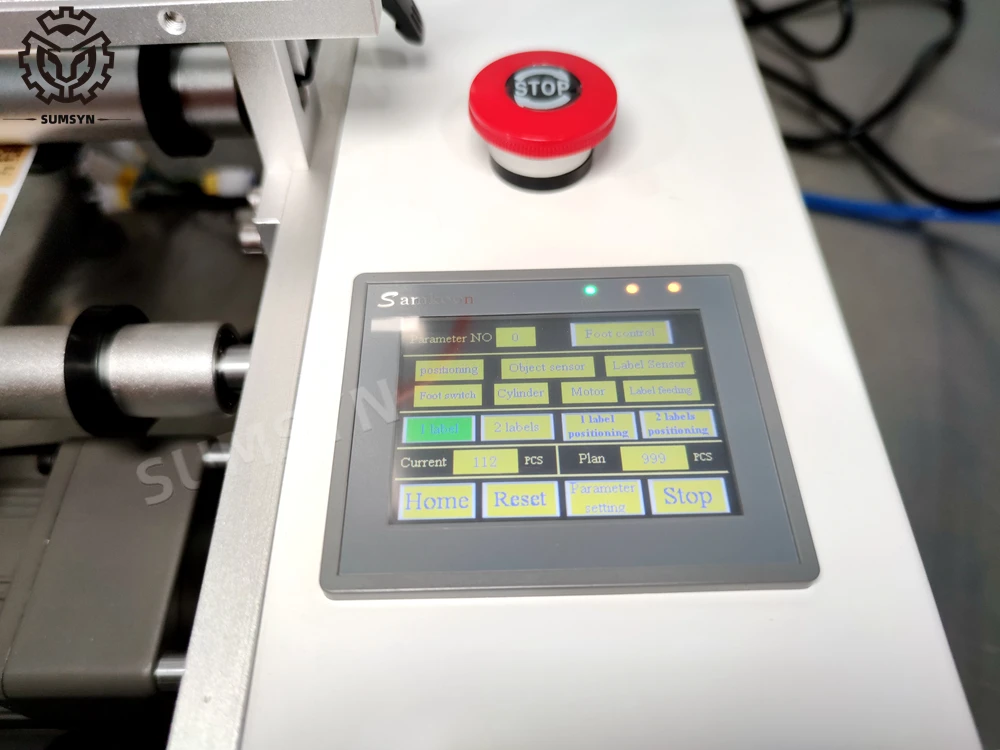

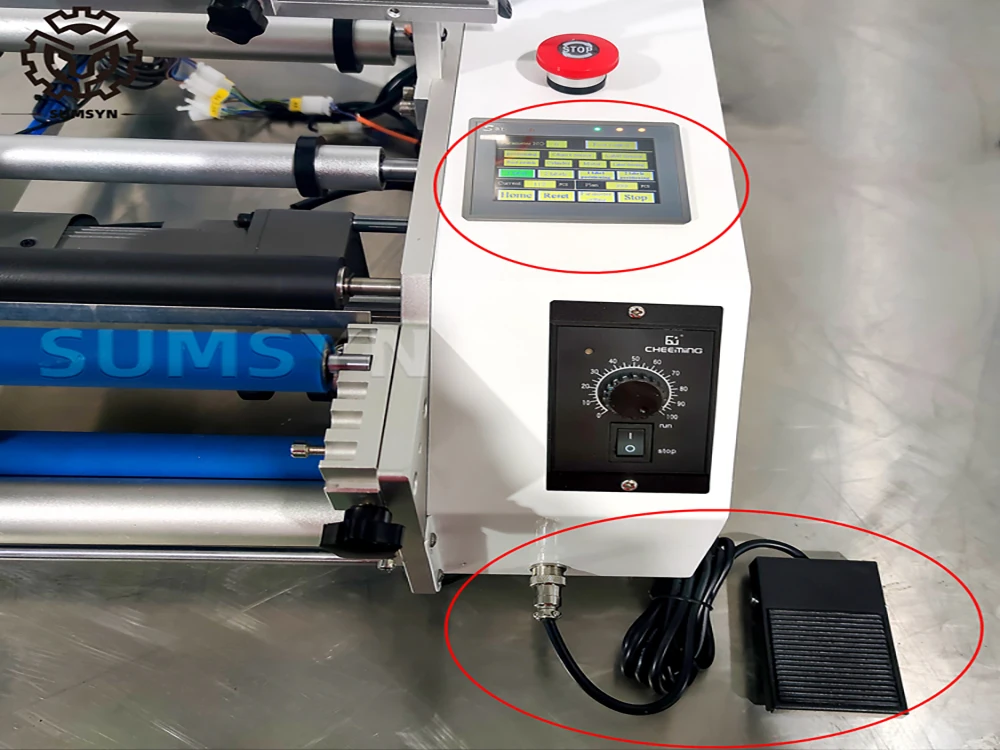

Control touch screen



English /Chinese menu,PLC controller,Faster, Safer and more Reliable.
The Emergency stop switch can protect the operator's safety while working .

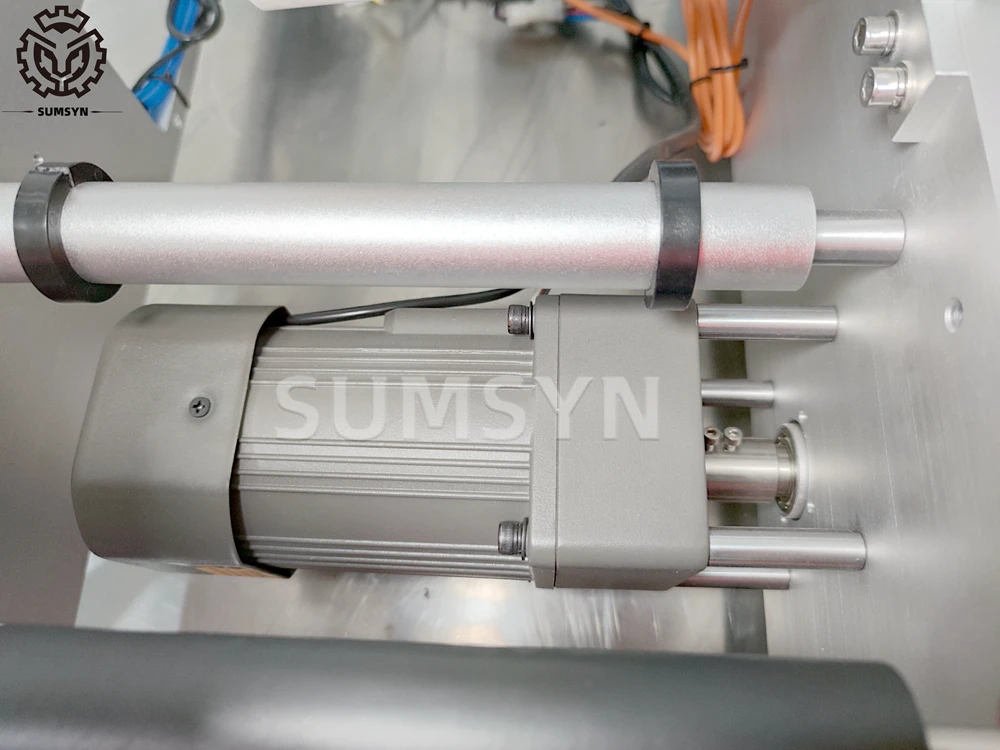

High power motor



High speed motor with adjustable speed can work stably and efficiently for a long time.

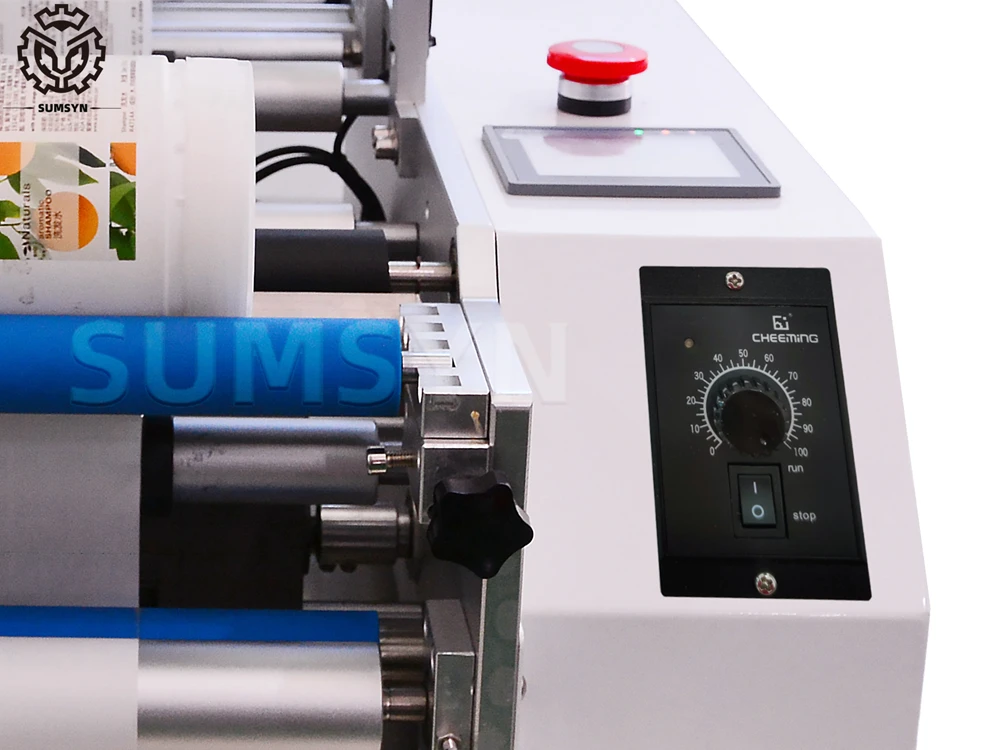

Motor speed controller


Through the speed controller to adjust the most appropriate labeling speed,itcan make the labeling effect more better.
Pedal switch



This machine has two ways of labeling, one is automatic start, the other is pedal start, customers can choose their best way of working.

Press cylinder(Using air)
pneumatic moving way to press bottle,more convenient and ask for extra air compressor.
Press top(Not use air)
Manual moving the press top,for those was no air compressor case.
Optional functions and components

Sensor

Normal machine components

Optional machine components
Normal Label Sensor
Ultrasonic Sensor For Transparent Label

Normal without date coder
Add date coder
If you have other requirements, send us your request, we can customize the suitable machine for you.
Similar Products

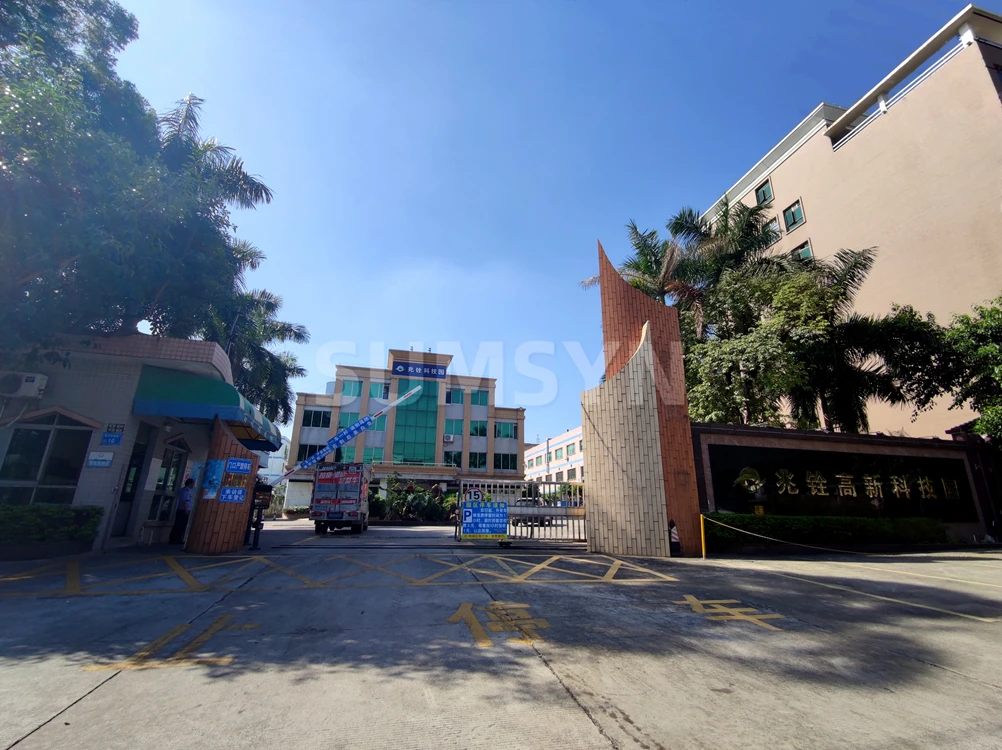

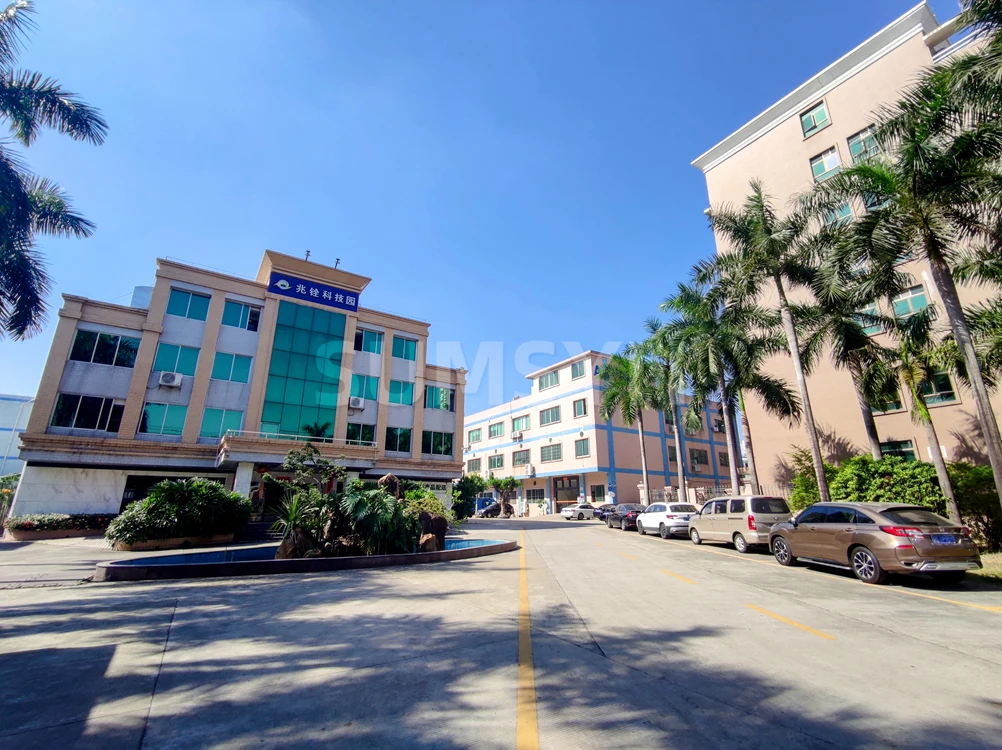

Company Profile

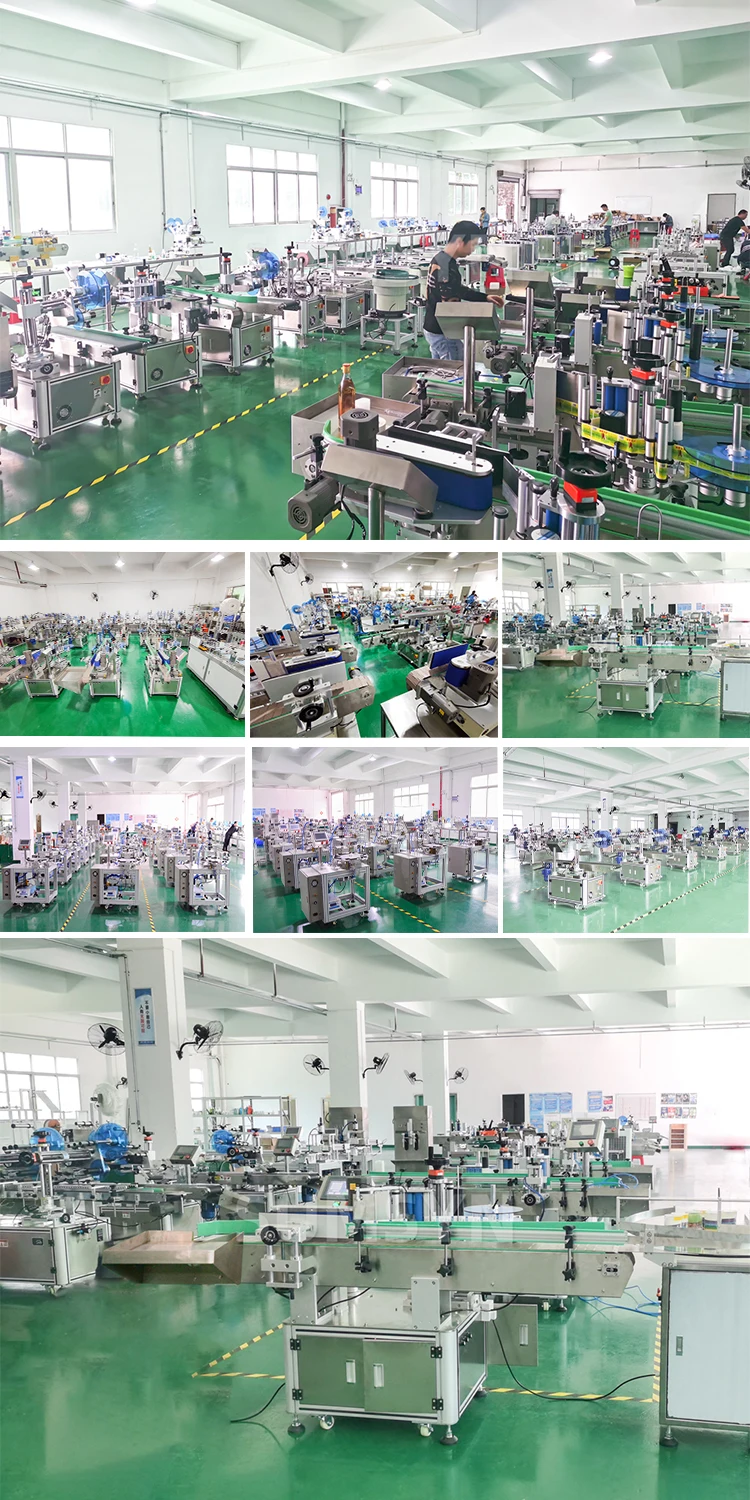

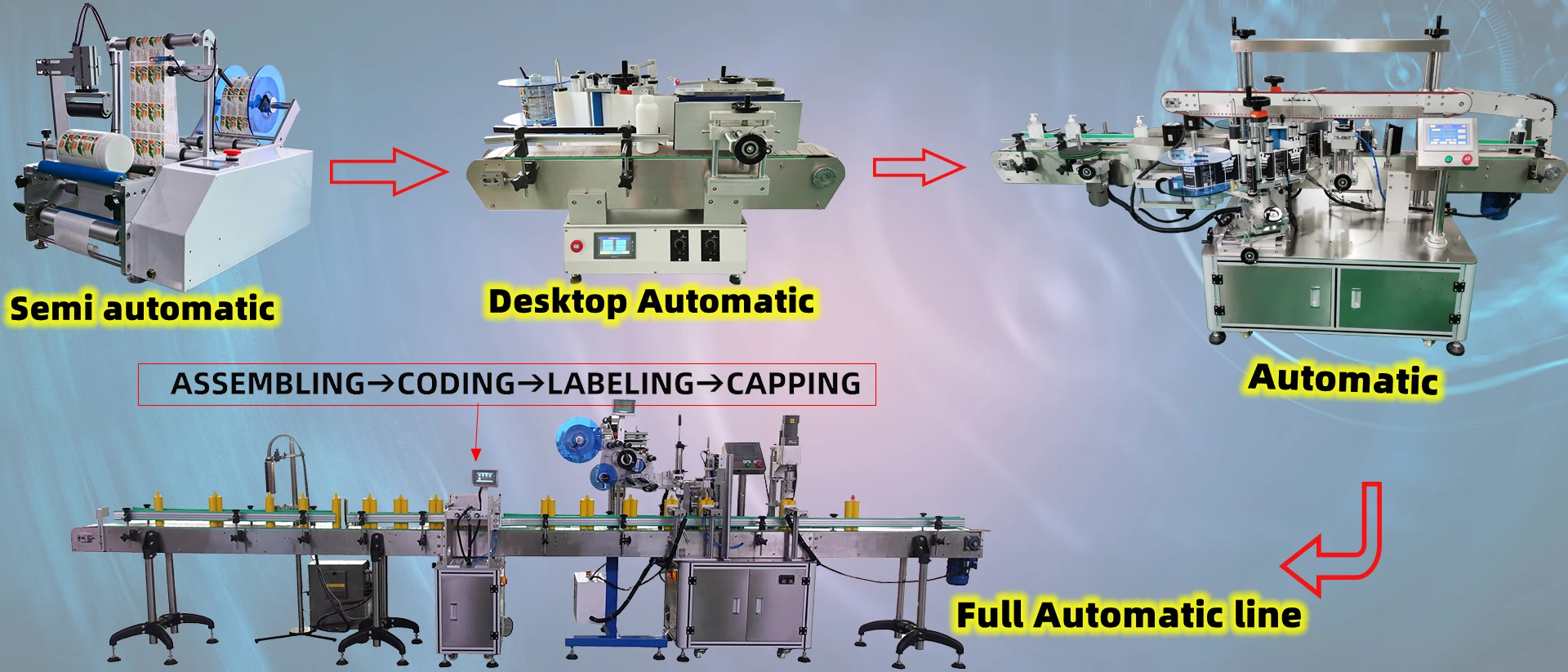

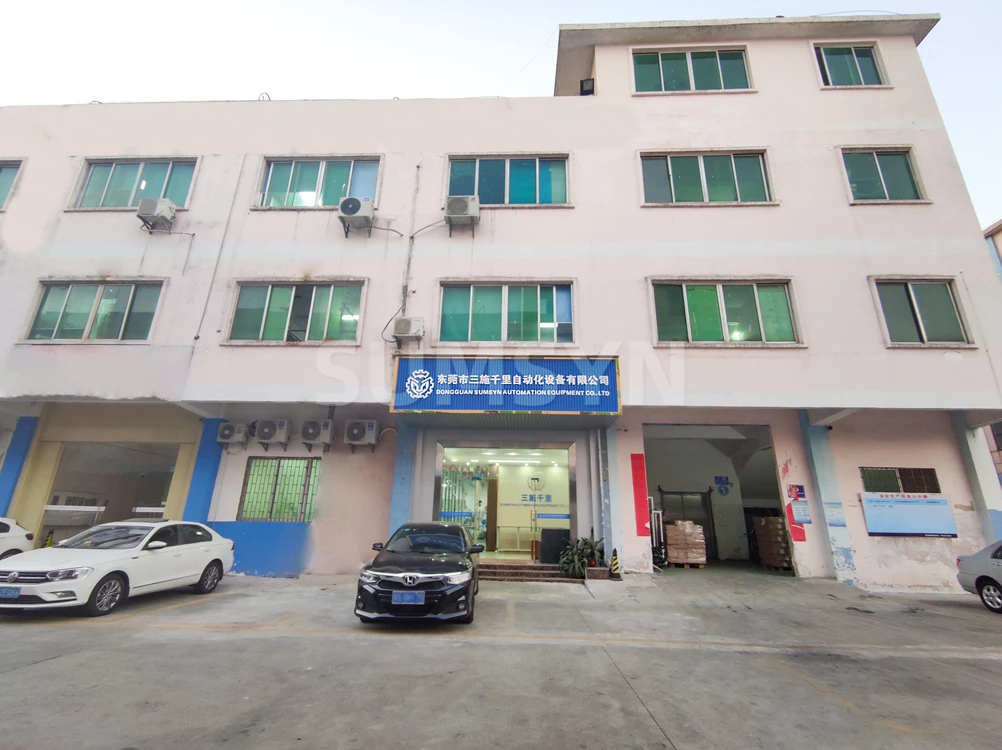

Dongguan sumsyn Automation equipment co.,Ltd SUMSYN located in Liaobu Town Guangdong Province, China. SUMSYN is a leading manufacturer of various automation system such as Labeling Machine, Full automatically solutions Distributed control system, Development of industrial system and so on. SUMSYN designs and builds equipment/system, has various standard machine and special purpose machinery. Based on professional technical force, we are committed to providing our customers with cost-effectiveness, stable and reliable equipment/system.  Our worldwide customer consists of various market and industries, including Food and beverage, Healthcare, Toiletry, Pharmaceutical and Cosmetic, etc.
We have a professional team
Packing and Shipment
We sincerely hope to establish a mutually beneficial business relationship with you and your company. If you have any other inquiry or advice, please feel free to contact with us.
