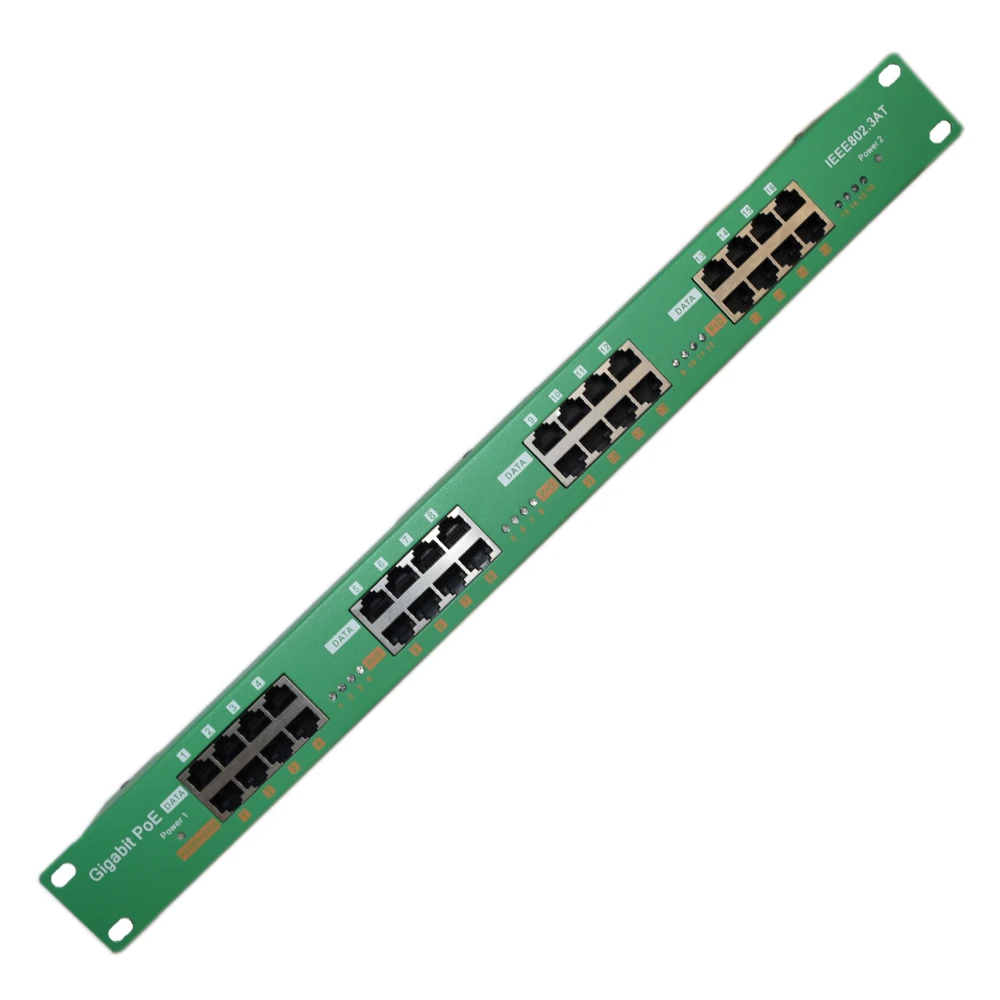

· 16 Port 802.3af / at compliant Gigabit Ethernet Injector
– 16 Shielded RJ-45 LAN
– 16 Shielded RJ-45 LAN+POE
– PoE status LED for each jack
– all 4 data pairs active for gigabit data rates
– shared data and power via transformer power injection on 12 – and 36+
– pins 45 78 pass thru without modification

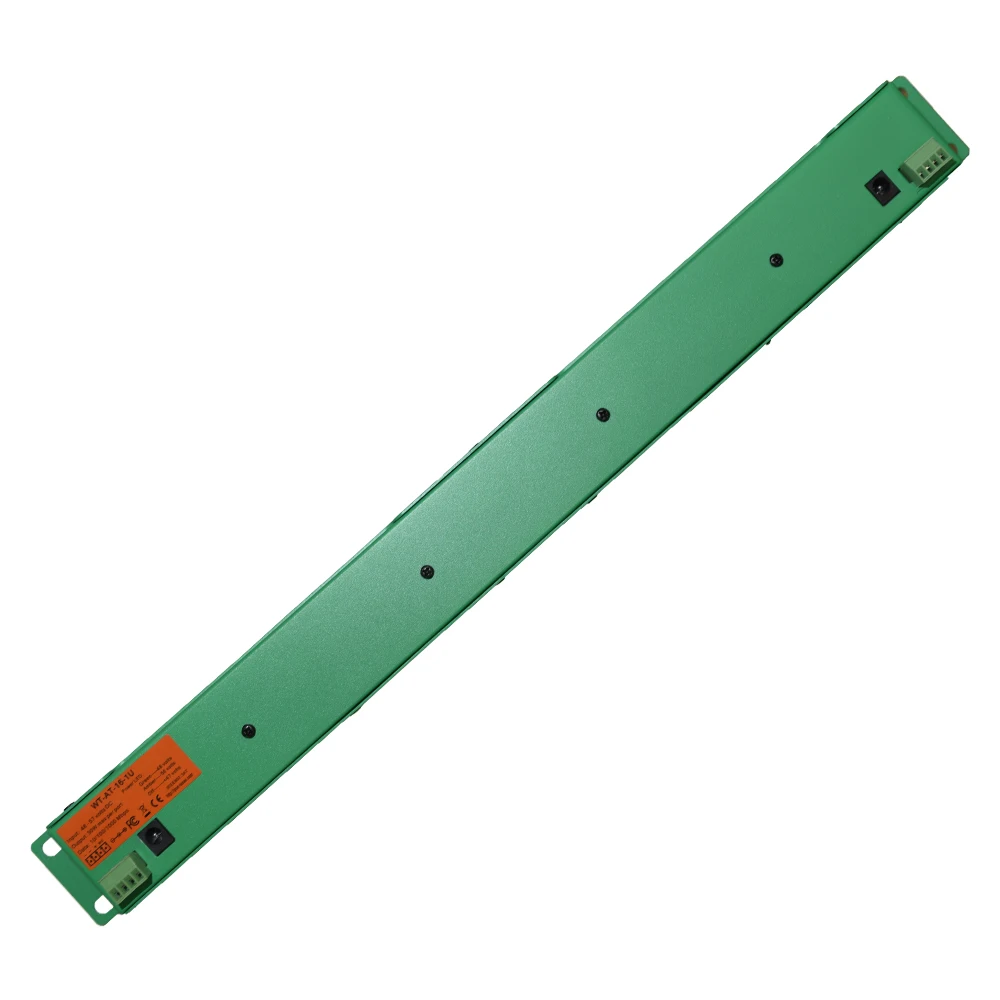

· 1U high standard rack mount ( 1.75 x 19 x 2 inches)
· 315 current limiter per port per 802.3af specifications
· 650 ma current limiter per port per 802.3at specifications with a 802.3at load
· No power is supplied to non-PoE devices
· Same voltage to all ports
· Dual power supply inputs with relay failover/ load balancing.

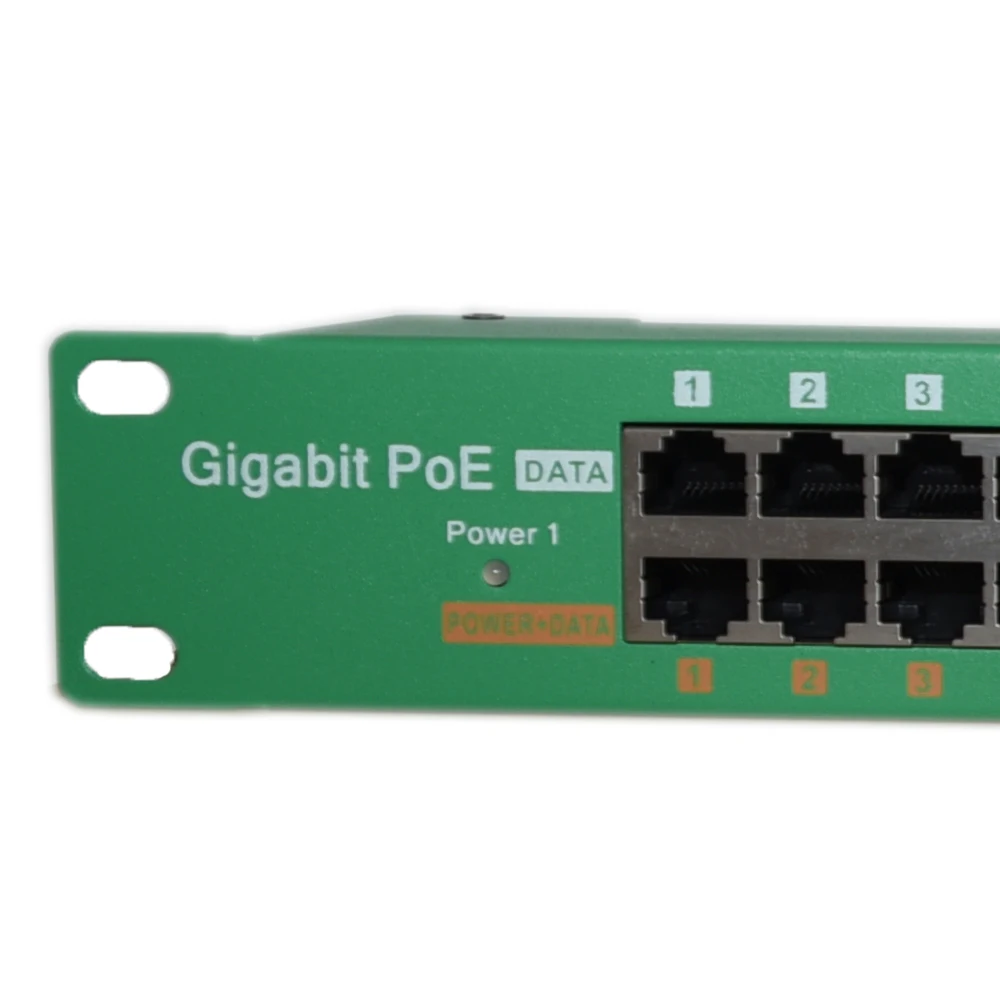

· 2 LEDs for input power display – one per input
Green – 48 volts, Amber – 56 volts

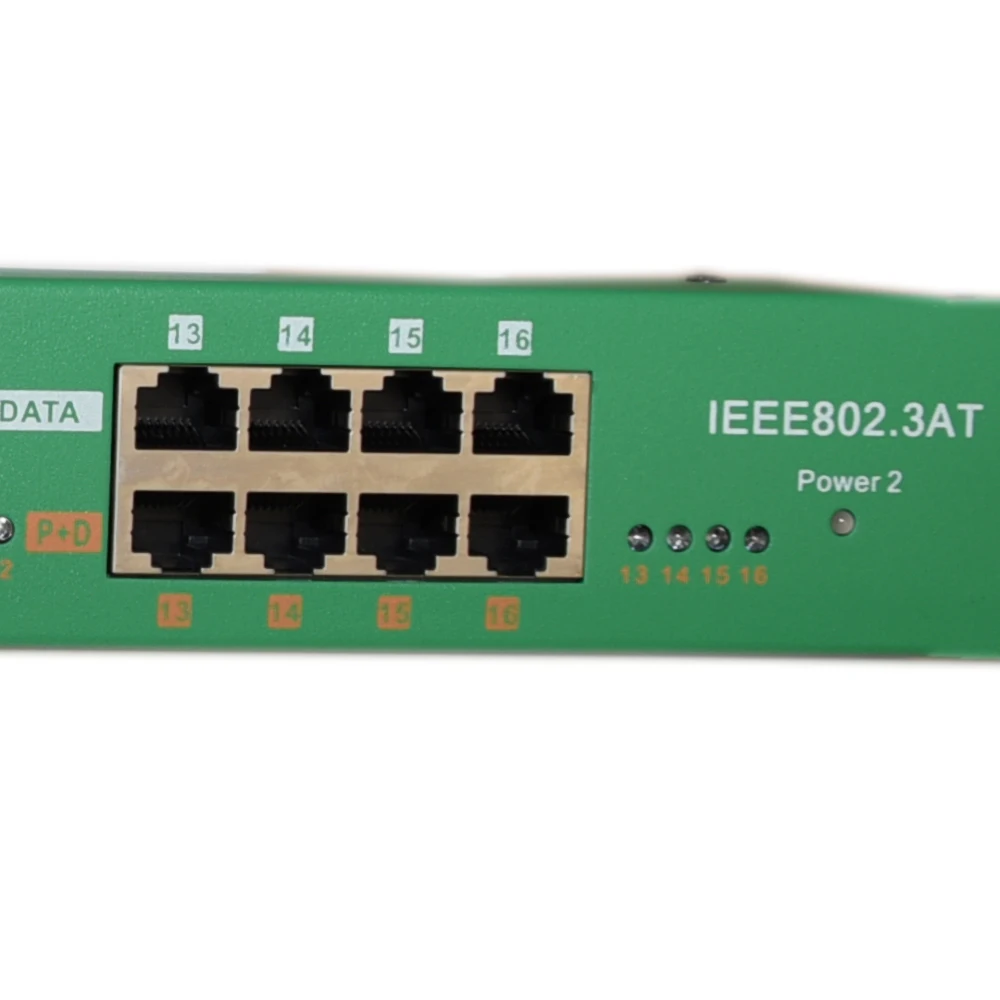

· 16 LEDs for per port PoE mode display. Blue if a PoE device is connected
· Use with any Ethernet switch – passes all management info transparently
· Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at
· Technical support world wide

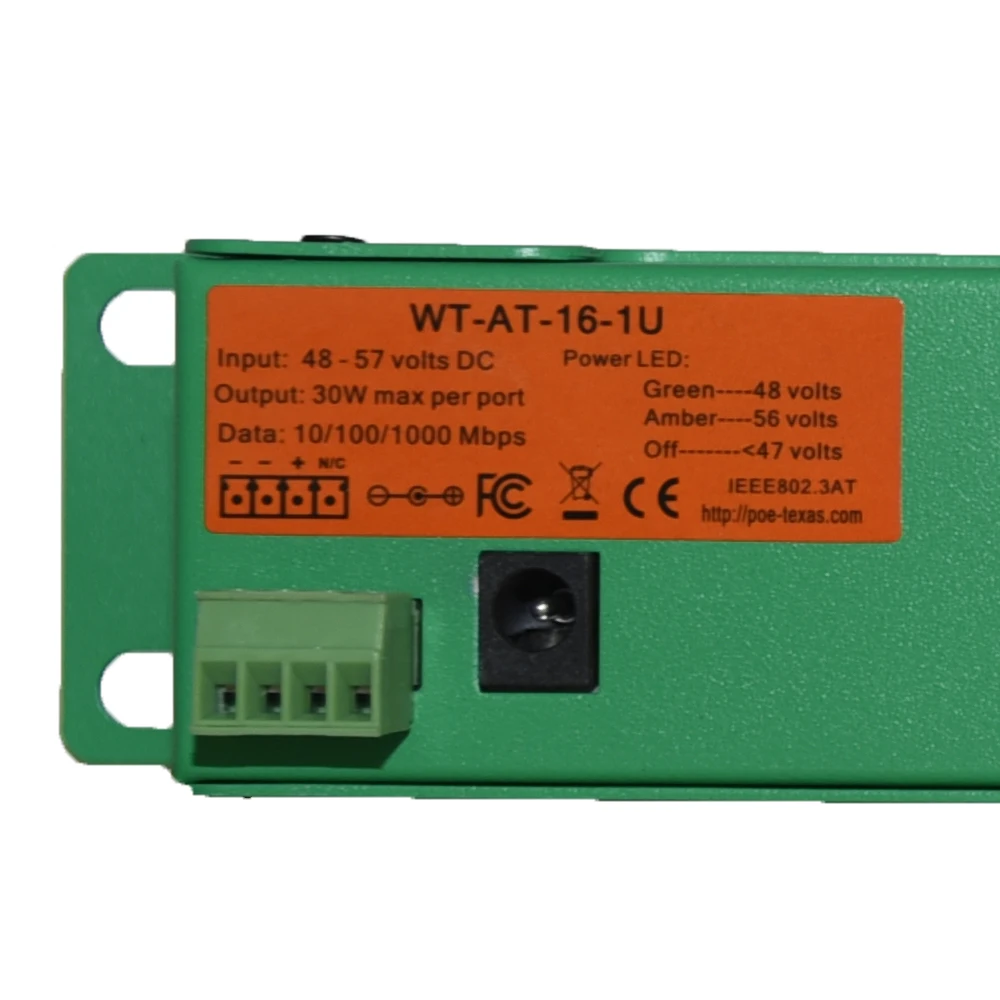

· Power supply range 48 to 56 volts via 2.1mm x 5.5mm input ( 2 )
· Additional Phoenix DC connector
- 3.5mm model 1844236 - pin 1,2 (minus) 3 (plus)
Environmental
– operating temperature range – 0 to 50 deg C
– storage temperature range – 0 to 50 deg C
– relative humidity range – 5 to 90% non condensing
– FCC rules – there are no RF emitting devices in the design
– the device is PELV per NFPA standard 79 – protected extra low voltage
– no cooling is required, no fans. Quiet operation with no moving parts
