Product Overview

Description

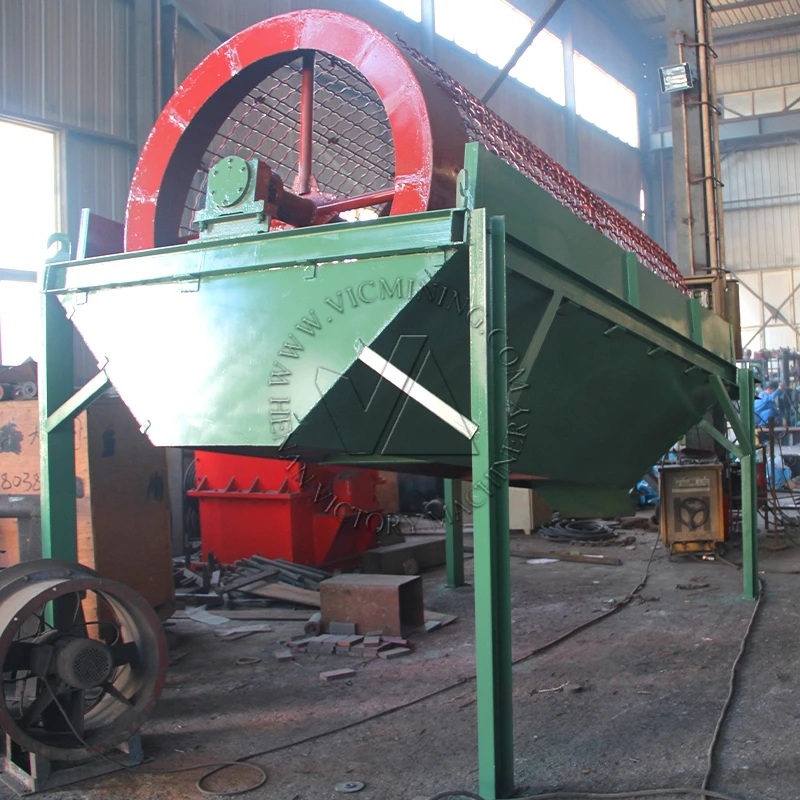

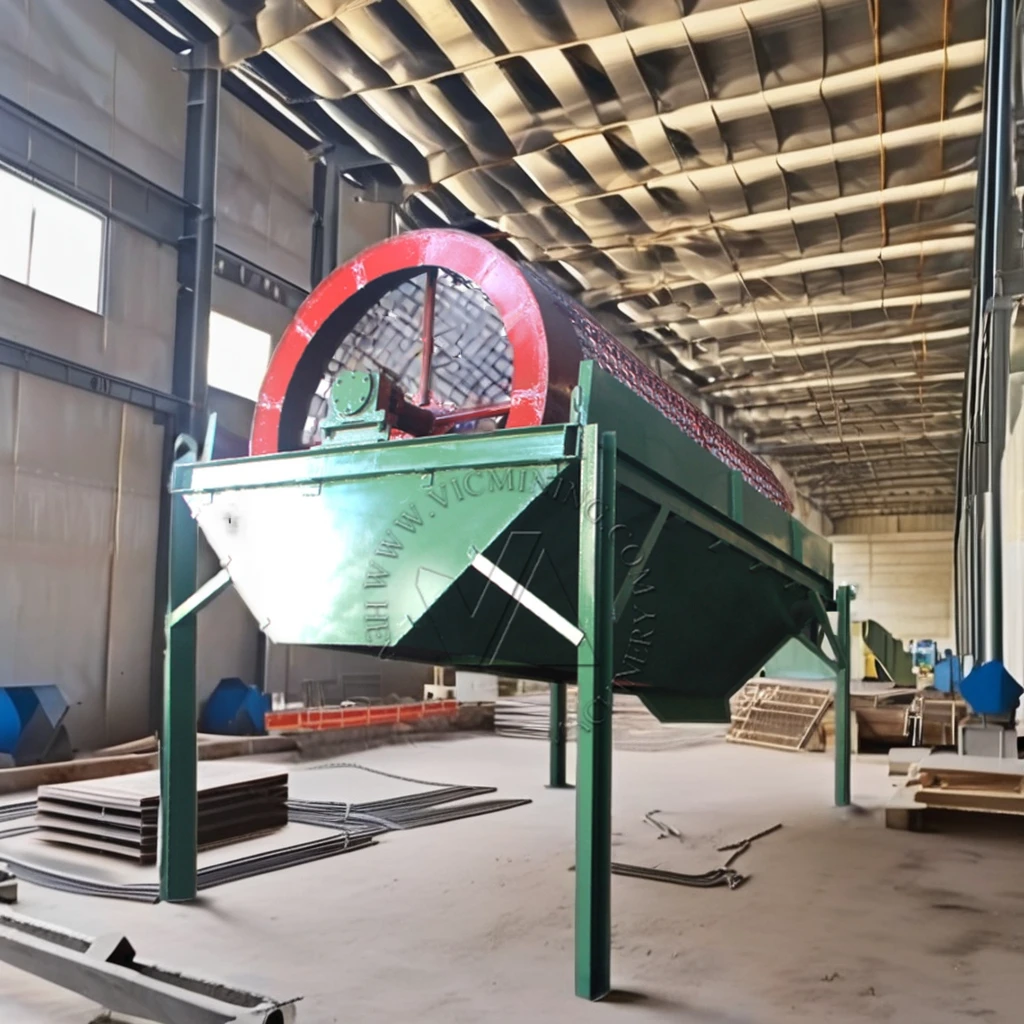

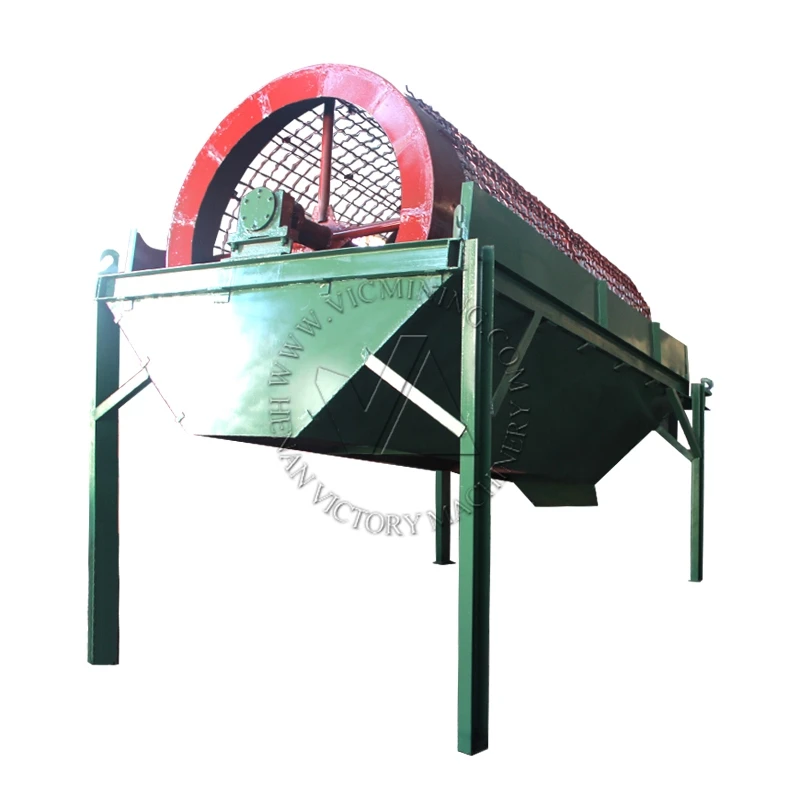

China large rotary drum screen vibrating screen



Product Introduction

 Drum screen is a new type of screen equipment, mainly composed of import and export, motor, reducer, frame, drum device, etc ., which can be used in chemical industry, coking plant, mine, power plant, building materials, metallurgy and other industries. The roller device is installed on the frame obliquely, and the outer part is sealed by the seal isolation cover to prevent pollution.





Performance Features

1. High screening efficiency and long service life with special screen adopted;
2. The rotary screen produced has a small installation inclination angle, and the screen hole is not easy to be blocked;
3. Simple structure, convenient maintenance, stable operation and low noise;
4. The roller screen equipment occupies a small space, which is convenient for process layout.

Working principle

 The motor connects the reducer with the roller device through the coupling , and drives the roller device to rotate around it s axis when the drum screen running. The drum screen is composed of several side -by-side screen bars to form a screen sur face with mechanical method. After the materials are put into the drum device, the materials are turned and rolled due to the inclination and rotation. The materials are screened out one by one through the screens of different mesh purposes, and the materials stuck in the screen holes can also be ejected to prevent blocking.

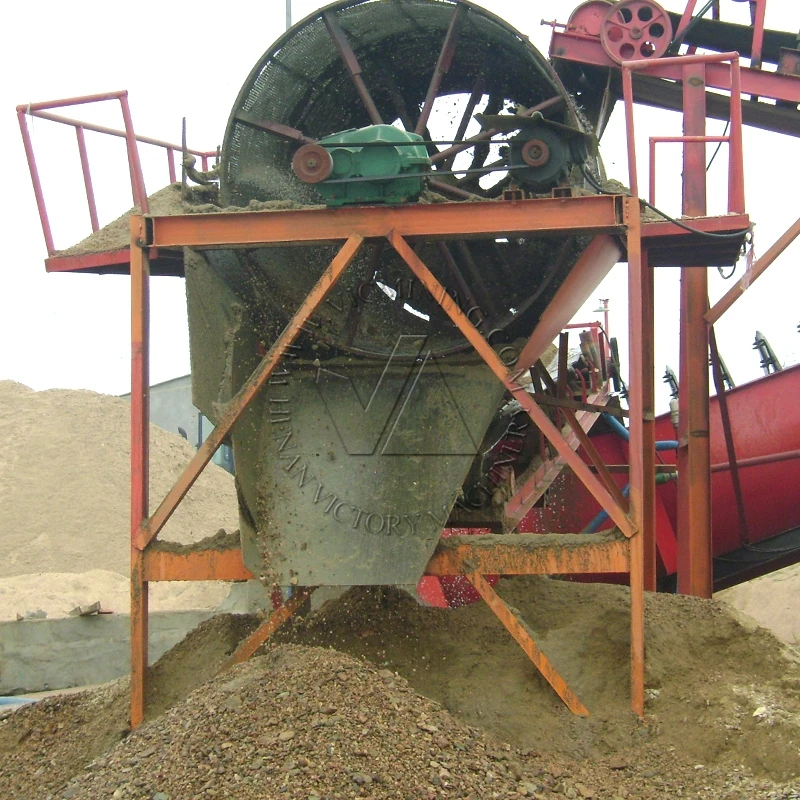

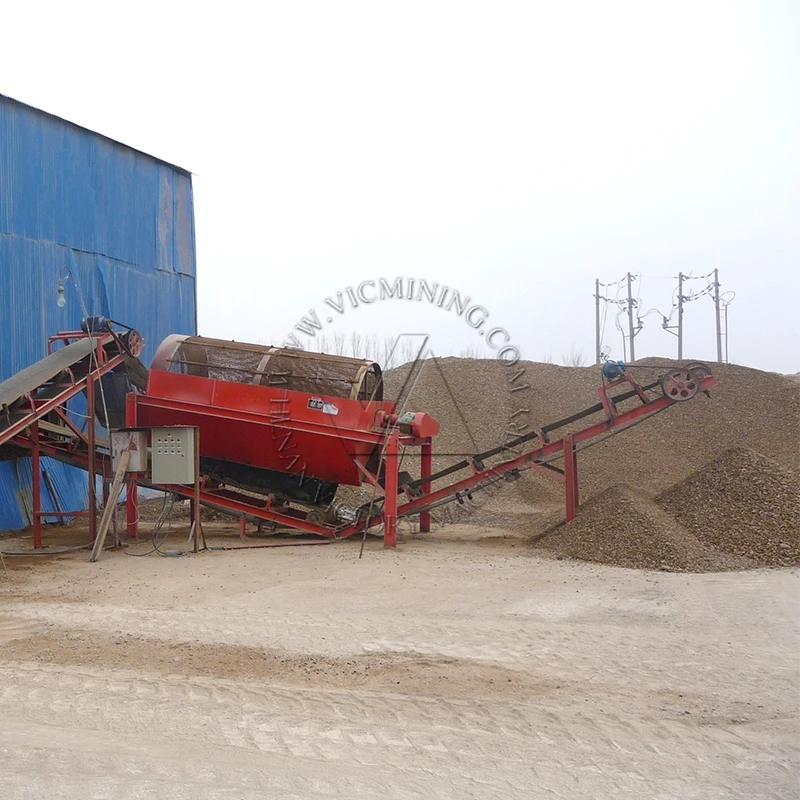

Application











Product Parameters



Model	Yield  (m3/h)		Motor Power (kw)
	Sieve (2mm)	Sieve (30mm)
YTS1230	12	100	5.5
YTS1240	14	120	5.5
YTS1250	15	140	5.5
YTS1530	18	150	5.5
YTS1540	18	150	7.5
YTS1550	20	180	11
YTS1560	22	200	11
YTS2040	25	250	15
YTS2050	30	300	15
YTS2060	35	350	18.5
