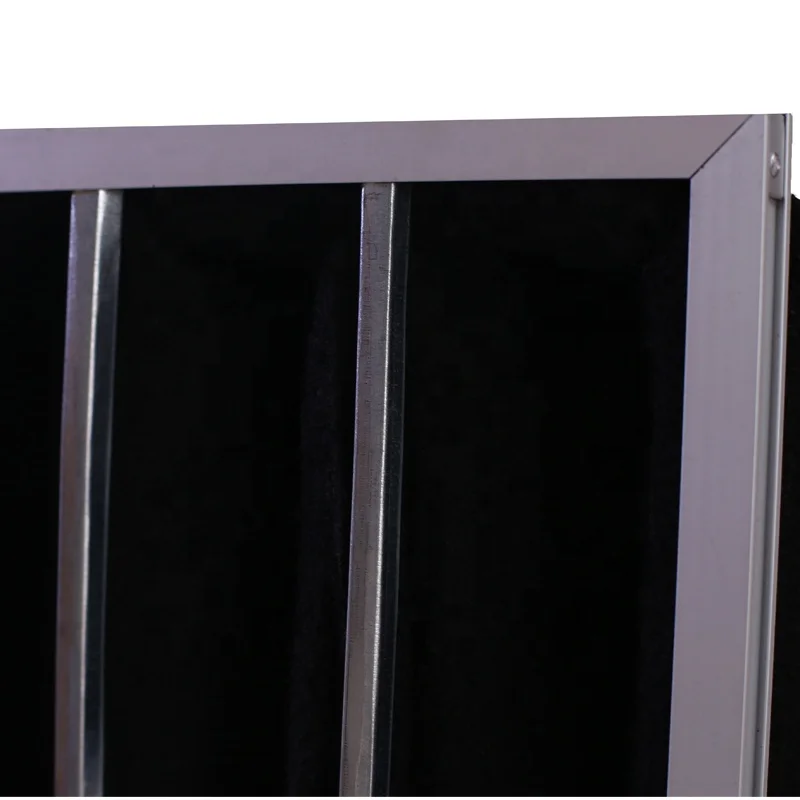

Manufacturers HVAC Activated Carbon Pocket Air Filter

Product Overview

Description

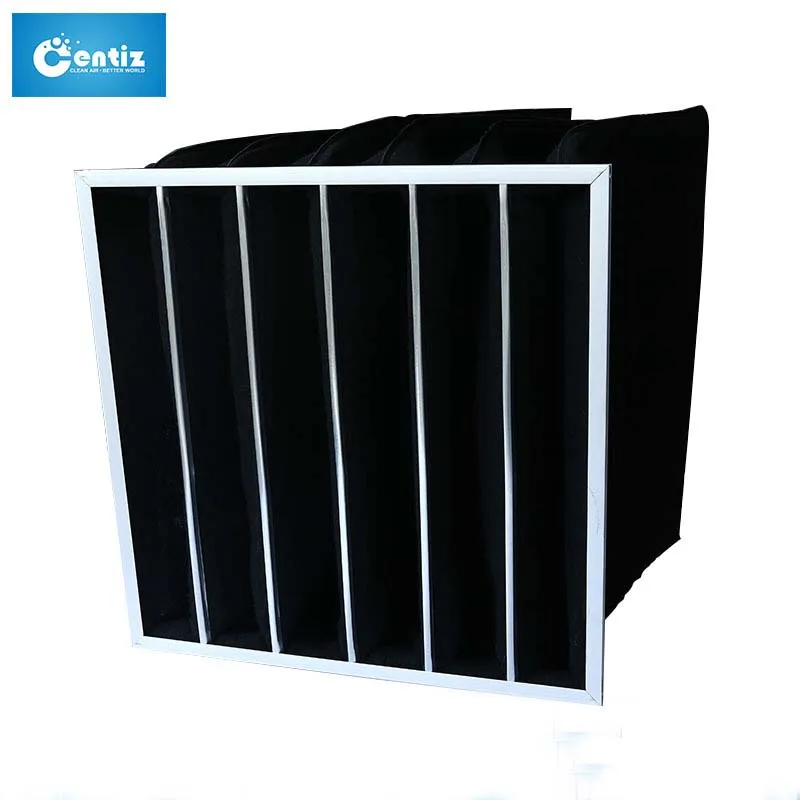

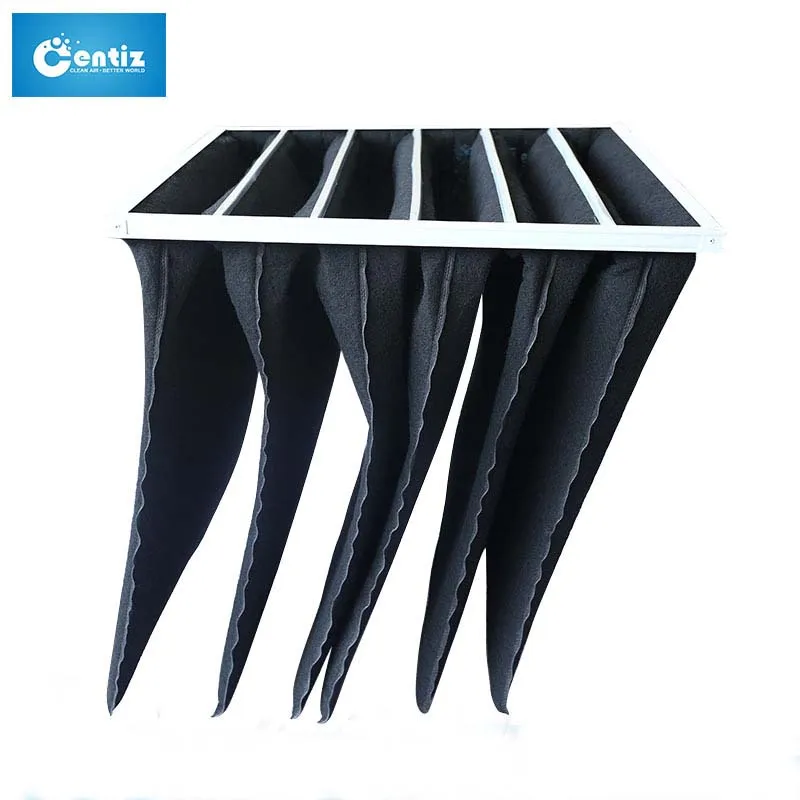

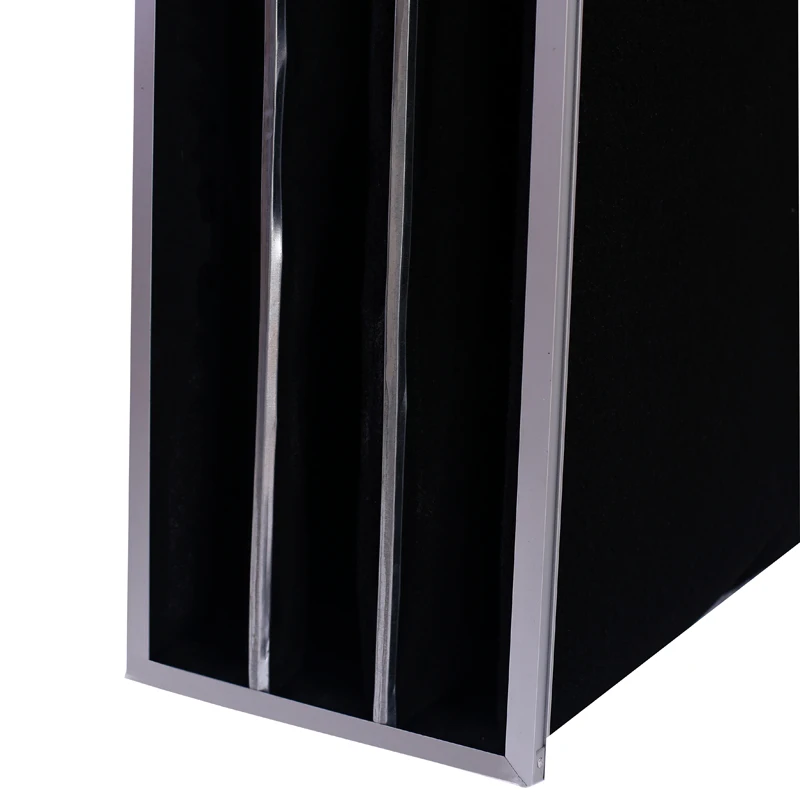

       Manufacturers HVAC Activated Carbon Pocket Air Filter





Product features

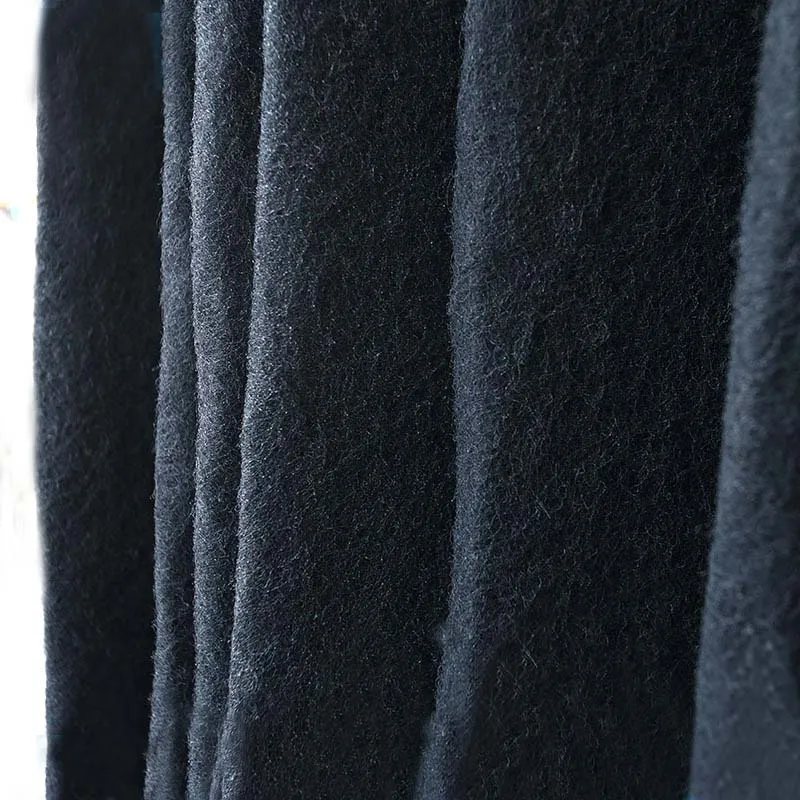

         Small volume and density, large specific surface area, high adsorption efficiency, low drag coefficient, no odor

         Its carbon content is around 35%-50%

         Sealant: hot melt adhesive

         Acid and alkali resistance, VOC(volatile organic compounds)

         Applicable temperature: 0-40 °C

         Applicable humidity: <70% relative humidity





Application of product

         Ventilation and air conditioning system with tight installation space and need to remove odorous gas pollutants

         Commercial and civil buildings such as airports, high-end hotels, office buildings, and large shopping malls;

         Air supply air-conditioning systems for museums, libraries, art galleries, etc.;

         The best choice for optimizing the filtration function of current comfort air conditioning systems

Product specification

Nominal size	Actual size	Number of bags	Filter material area	Rated air volume	Initial resistance under different air volumes						Recommended final resistance
(inch)	(mm)	(a)	(m2)	(m3/h)	Pa						Pa
W×H×D	W×H×D				G4	F5	F6	F7	F8	F9	G4	F5-F9
24×24×25	592×592×635	6	6.6	3400	45	55	58	90	95	125	250	450
20×24×25	490×592×635	5	4.94	2800	45	55	58	90	95	125	250	450
20×20×25	490×490×635	5	3.5	1700	47	55	58	90	95	125	250	450
12×24×25	287×592×635	3	3.3	2380	48	55	58	90	95	125	250	450
24×24×22	592×592×550	6	5.68	3400	49	60	65	100	115	135	250	450
20×24×22	490×592×550	5	4.26	2800	49	60	65	100	115	135	250	450
20×20×22	490×490×550	5	3.02	1700	50	60	65	100	115	135	250	450
12×24×22	287×592×550	3	2.84	2380	50	60	65	100	115	135	250	450
24×24×15	592×592×381	6	3.86	3400	58	70	75	110	120	145	250	450

  Remark: the above the deviation of resistance value is within±10%



FAQ:

1.Certificates:

RoHs,UL,SGS,MSDS,DIN53438

2.Payment terms:

50% deposit upon getting the order,balance against the B/L copy.

3.Delivery date:

About 7 working days(≤500pcs), special order is negotiable to be quicker.

4.Sample Terms:

We can supply 1-2 small samples for tree but express cost is covered by your side.

5.Minimum Order Quantity:

No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

6.Price Terms:

EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

7.Lead time:

3 Days for a 40ft container, weeks for two 40ft container.

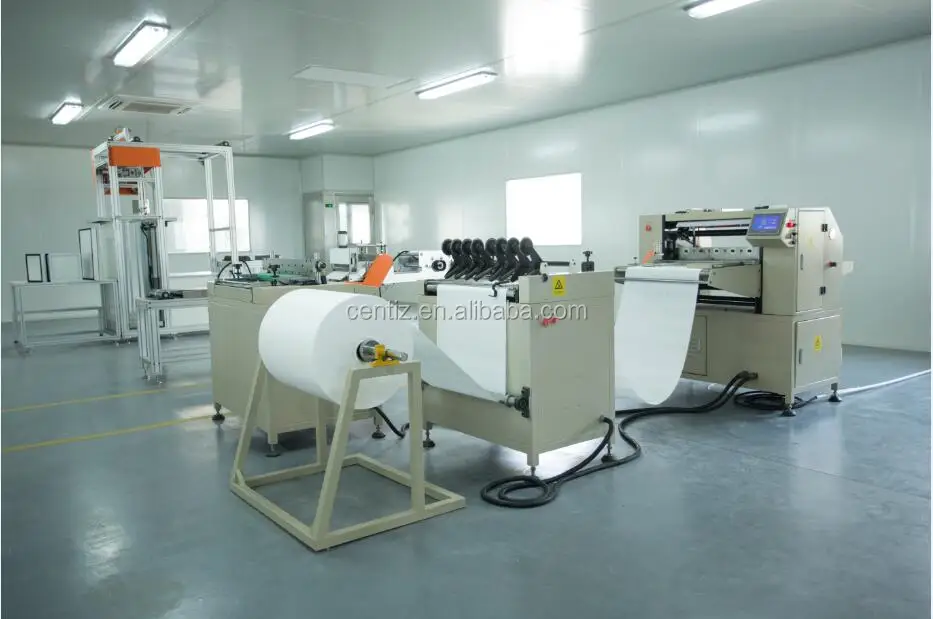

8.Factory:

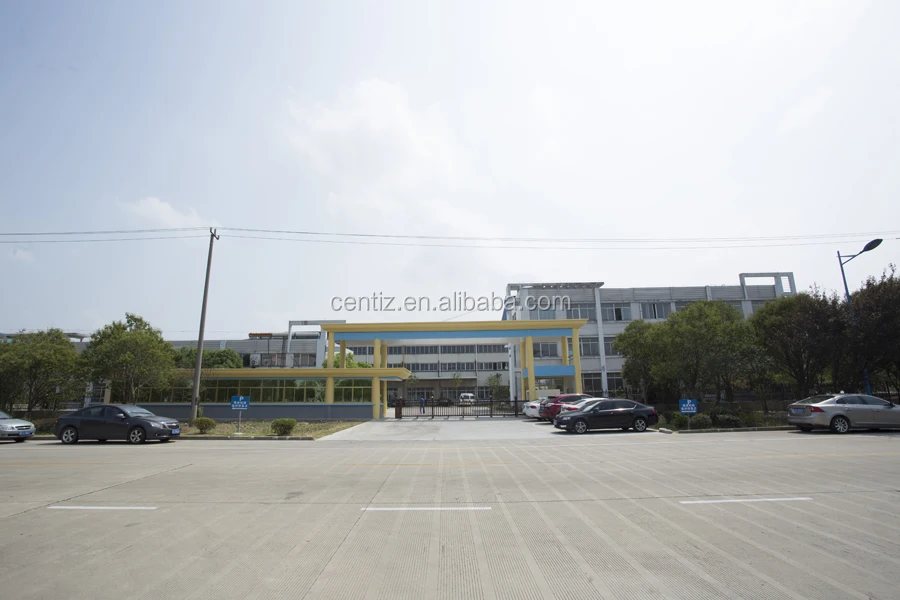

Our factory located in Jiangsu, about 2000sqm, with 30 workers.
