4U Rackmount Server case with 24 1 Hot Swappable SATA/SAS Drive Bay, PCI Slots 11pcs

Product Overview

Description

Product Description

Model	NP-S424650-2
Form Factor	4U Rackmount Server case with 24+1 Hot-Swappable SATA/SAS Drive Bay, PCI Slots 11pcs
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal

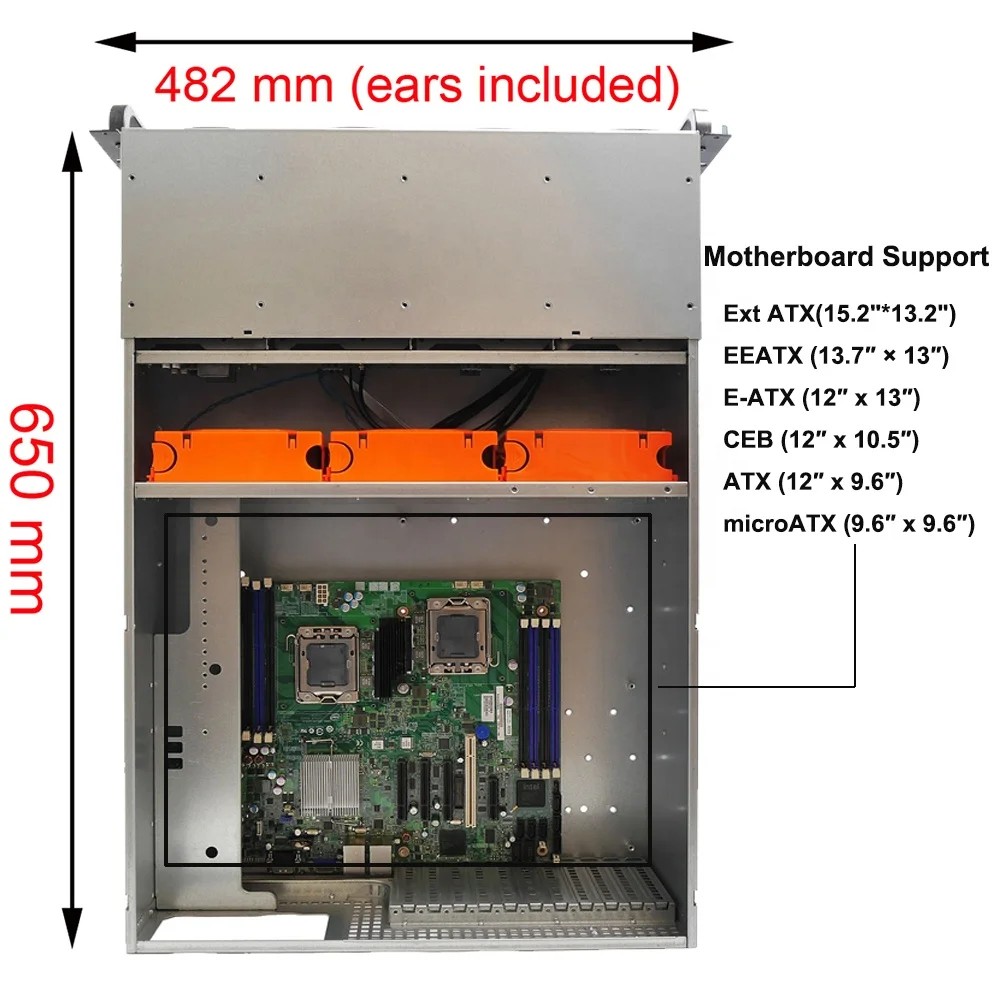

M/B support	Ext ATX(15.2"*13.2"), EEATX (13.7″ × 13″),E-ATX (12″ x 13″),  CEB (12″ x 10.5″), ATX (12″ x 9.6″), microATX (9.6″ x 9.6″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size	D*W*H(mm)	650 x 482 x 176
	D*W*H(inch)	25.6  x 19 x 7
Drive Bay	3.5 "or 2.5" external (hot-swap)	24

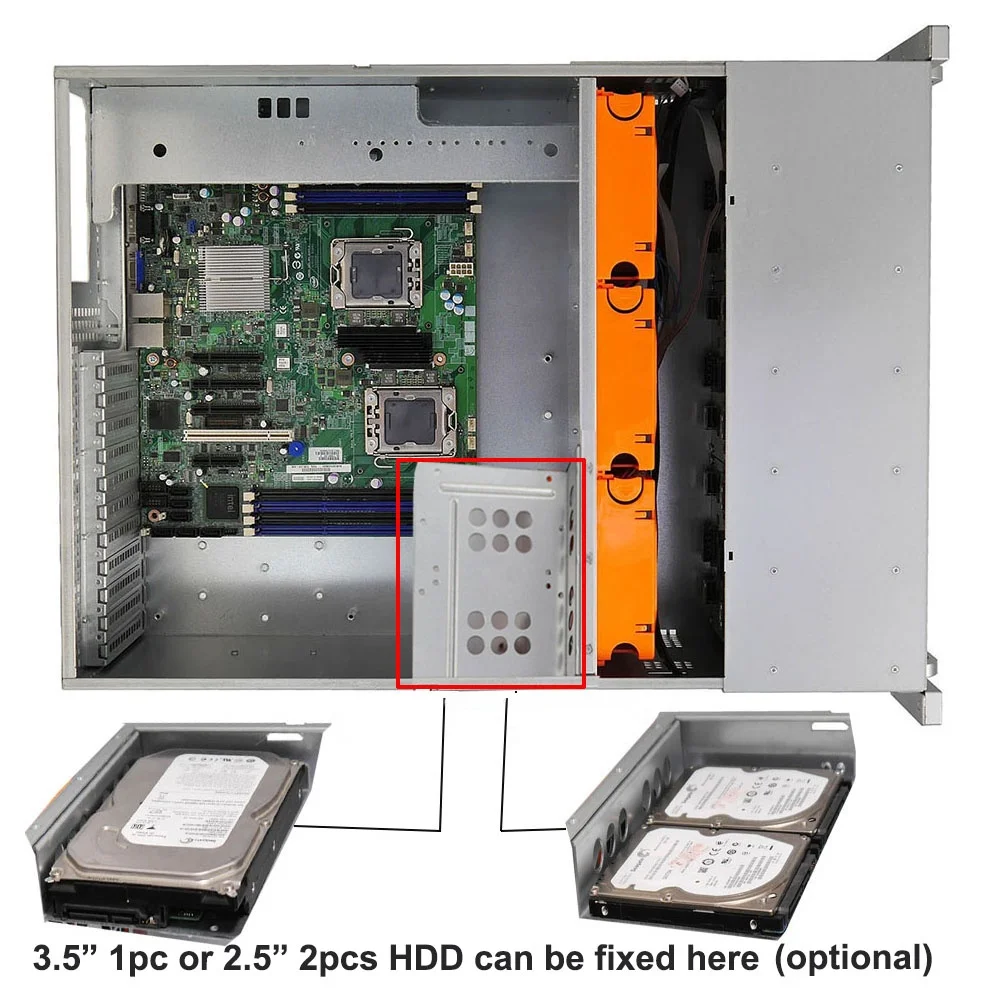

	Internal 3.5" or 2.5"	1 or 2

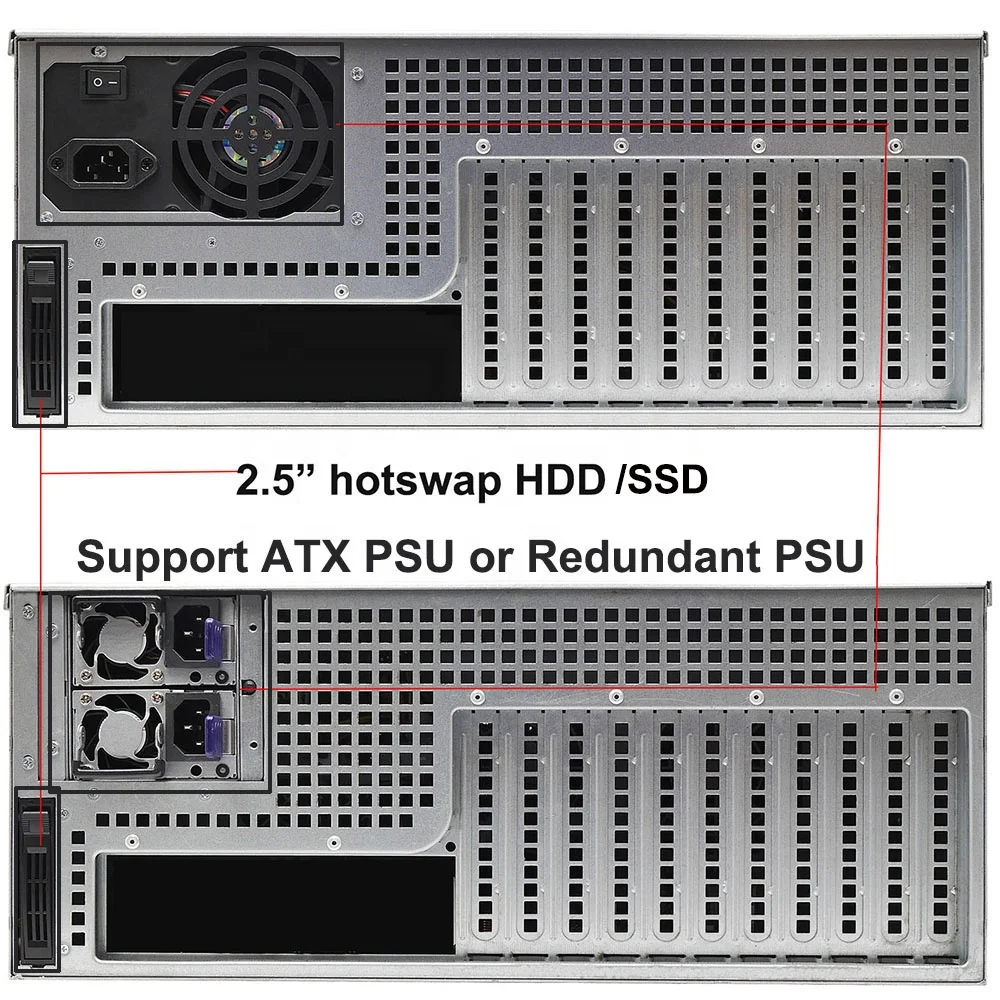

	2.5" hotswap on rear panel	1
Power Supply support	ATX power supply / 2U redundant(1+1)/ Redundant power supply

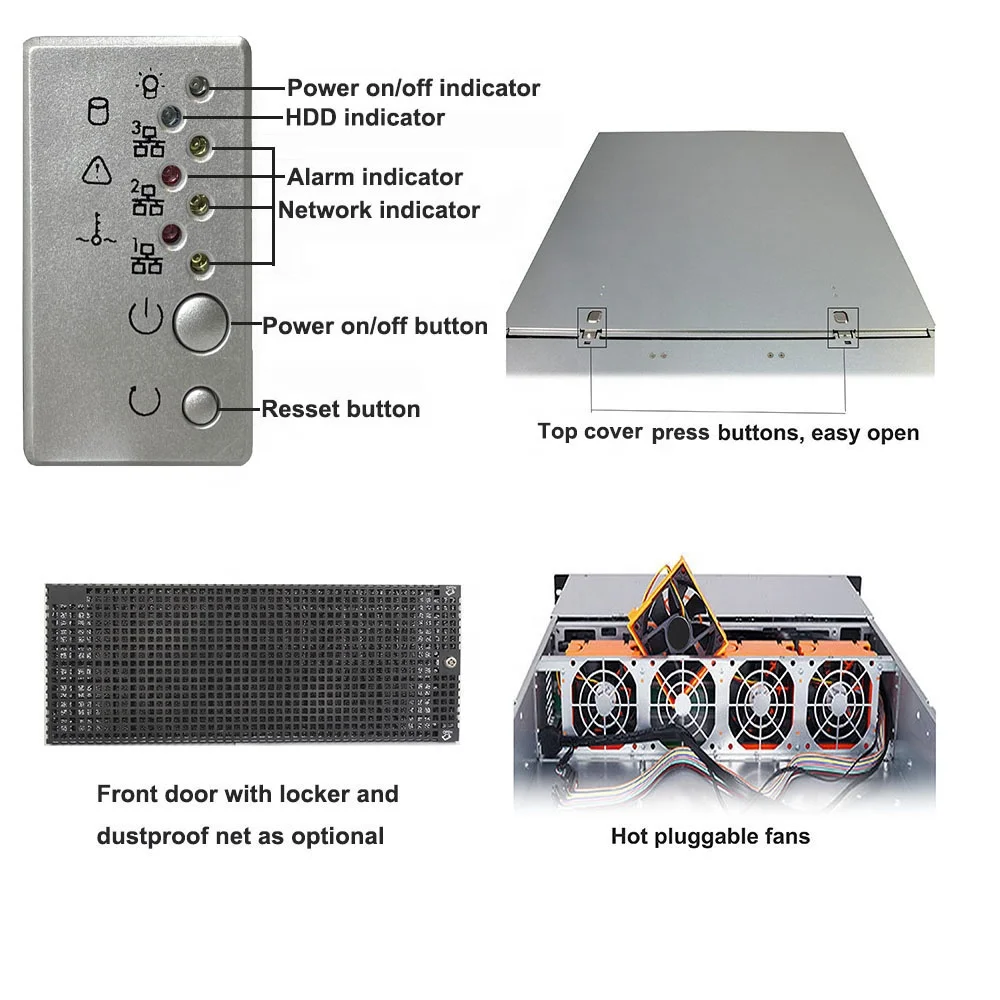

Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD X1,  NETWORK x 3, Alarm x 1
	Ports	USB3.0 x 2
Expansion	Riser Slot	11pcs (full size)

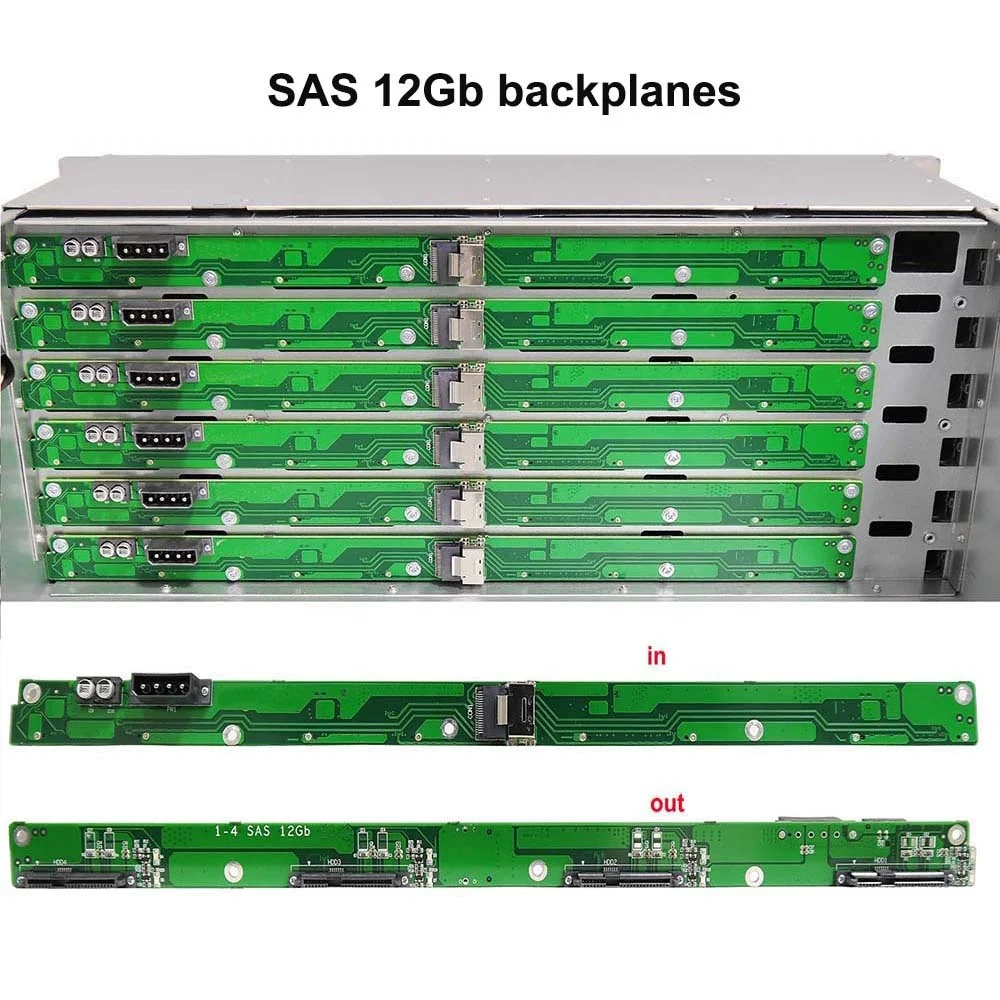

Hot-swap Backplane	S-ATA  or  SAS backplane (12Gbit / s max)
System cooling(optional)	Front	NO
	Middel	3x 120mm or 4 x 80mm  ball bearing fans PWM (hot-pluggable)
	Rear	NO
Net weight	18kg
Gross weight	20kg
Packing size	D*W*H(mm)	840*555*240
	D*W*H(inch)	33.5*21.8*9.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

Detailed Images
