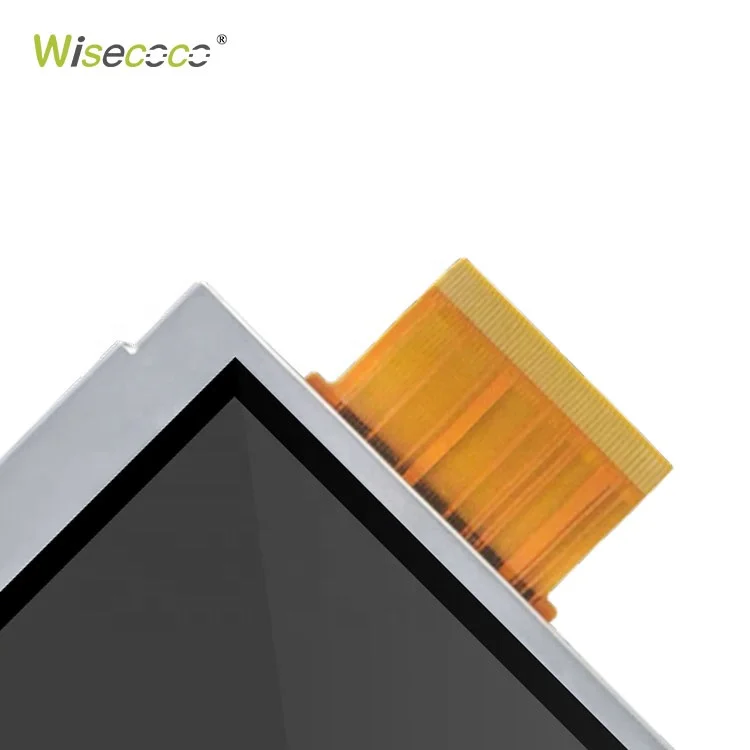

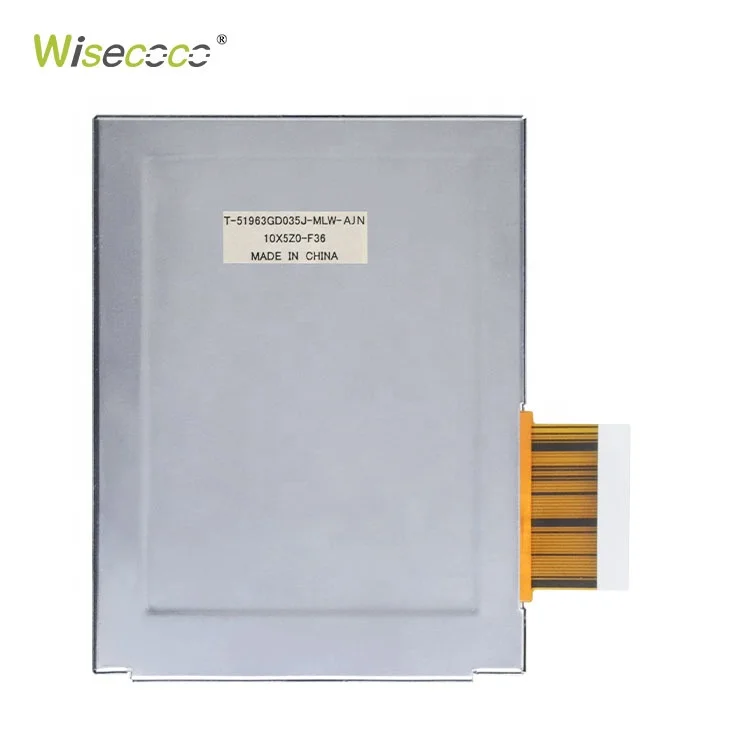

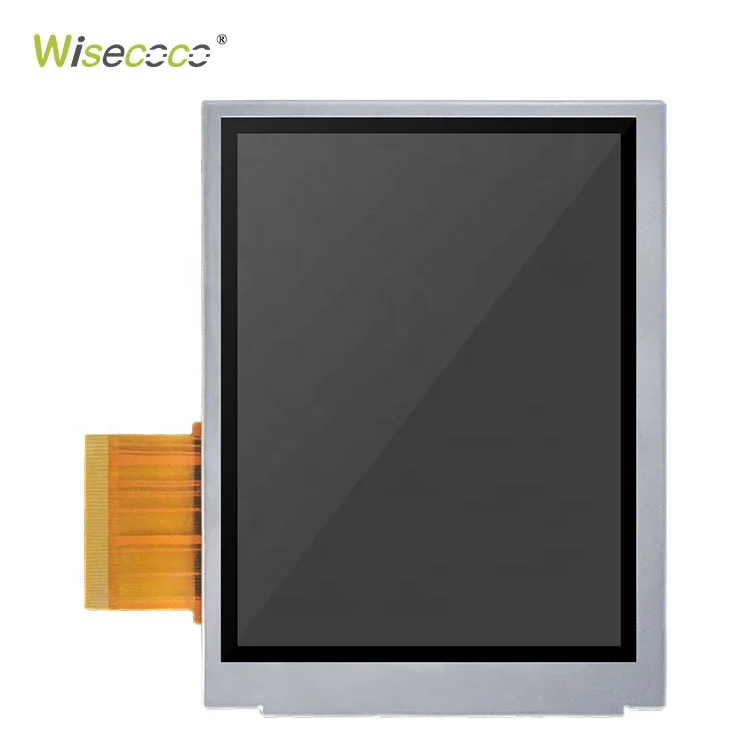

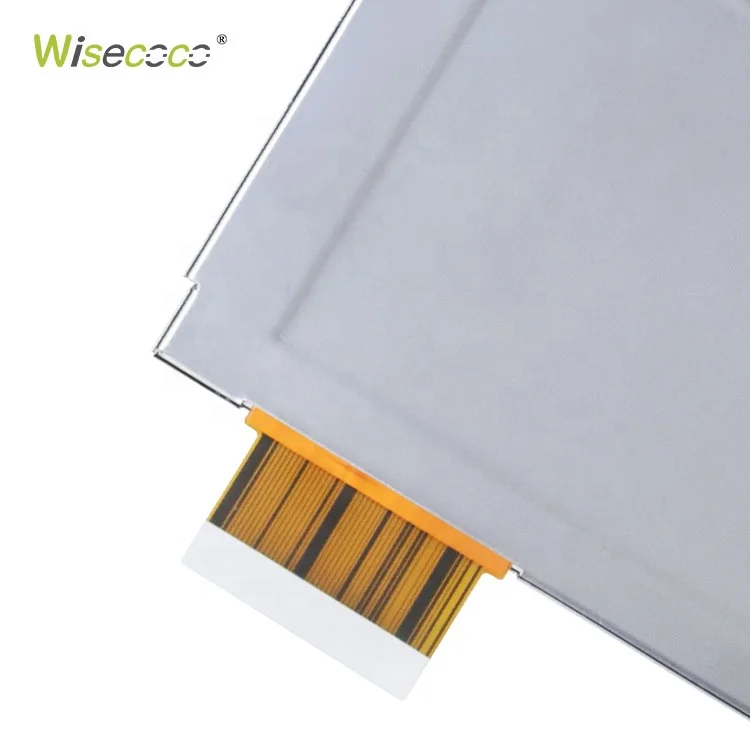

High Sensitive Tft 3.5 Inch Lcd Display Panel Module Cmos 320*240 50 Pin Fpc Connector T 51963GD035J MLW AJN 3.5 Inch Screens

General Features

Screen Size

3.5 inch

Type

a-Si TFT-LCD, LCM

Resolution

240(RGB)×320 , QVGA

Configuration

RGB Vertical Stripe

Active Area(mm)

53.64(W)×71.52(H) mm

Outline(mm)

65(W)×86.2(H) mm

Luminance

130 cd/m2 (Typ.)

Contrast Ratio

70:1 (Typ.) (TM)     8:1 (Typ.) (RF)

View Direction

-

Response Time

30/50 (Typ.)(Tr/Td)

Viewing Angle

40/40/40/40 (Typ.)(CR≥10)

Operating Mode

TN, Normally White, Transmissive

Support Color

262K

Backlight

WLED ,  Without Driver

Panel Weight

50.0g (Max.)

Used for

handheld&PDA, Portable Navigation

Refresh Rate

60Hz

Touchscreen

optional

Voltage Supply

3.3/5.0/16.0/-12.0V (Typ.)(VDDD/VDDA/VGH/VGL)

Signal Type

CMOS (1 ch, 6-bit) , 50 pins , FPC

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C
