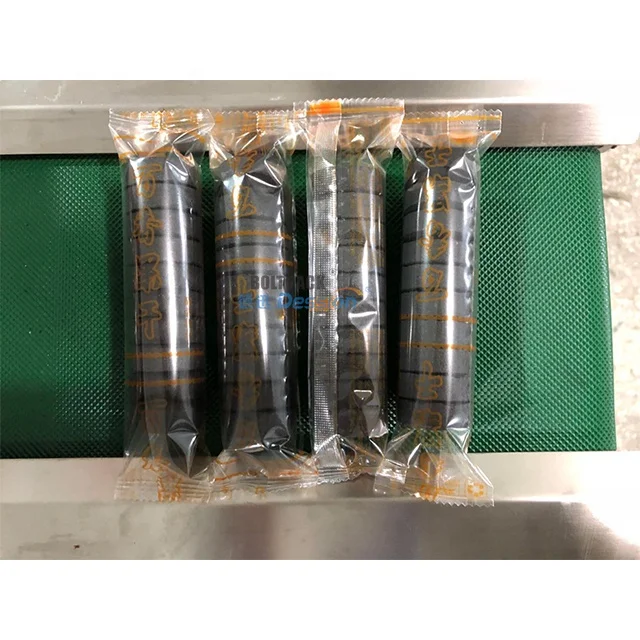

Shisha bbq hookah charcoal packing machine for charcoal lump

Product Overview

Description

Shisha bbq hookah charcoal packing machine for charcoal lump

Product Description

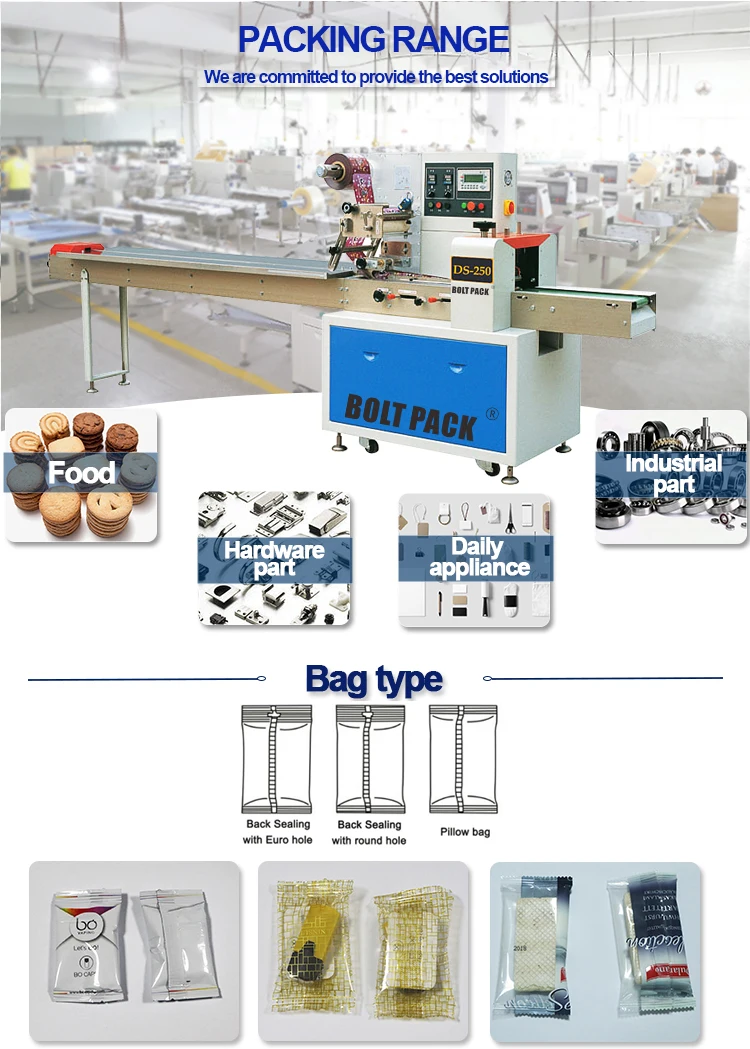

Product Application and Bag Type

Horizontal packing machine is suitable for food, medicine, daily appliances, metals, industrial parts, box, tray and etc.

Technical Parameters

Model NO.	DS-250BD	DS-350BD	DS-450BD	DS-600BD
Filling width	Max. 250mm	Max. 35mm	Max.450mm	Max. 600mm
Product height	Max.40/55mm	50-160mm	60-210mm	60-280mm
Bag length	65-190 or 120-280mm /90-220 or 150-330mm		120-450mm	130-450mm
Packing speed	40-230bags/min		30-180bags/min	30-150bags/min
Machine weight	800KG	900KG	900KG	1050KG
Machine size	3920*670*1450 mm	3770*720*1450 mm	3990*900*1468 mm	3990*1000*1468 mm
Optional device	Date coder, Air-filling device, Punching device

 Main Features

1) The double inventors allow easy and soft cutting of the bag / bag / bag.

2) Diagnosis of self failure, clear failure display; Positioning stop function, no knife stuck and waste of packaging materials.

3) High sensitivity photoelectric eye color mapping, numerical entry of cutting sealing position for additional precision.

4) The alternative sealing device allows a firmer seal and reduces film loss

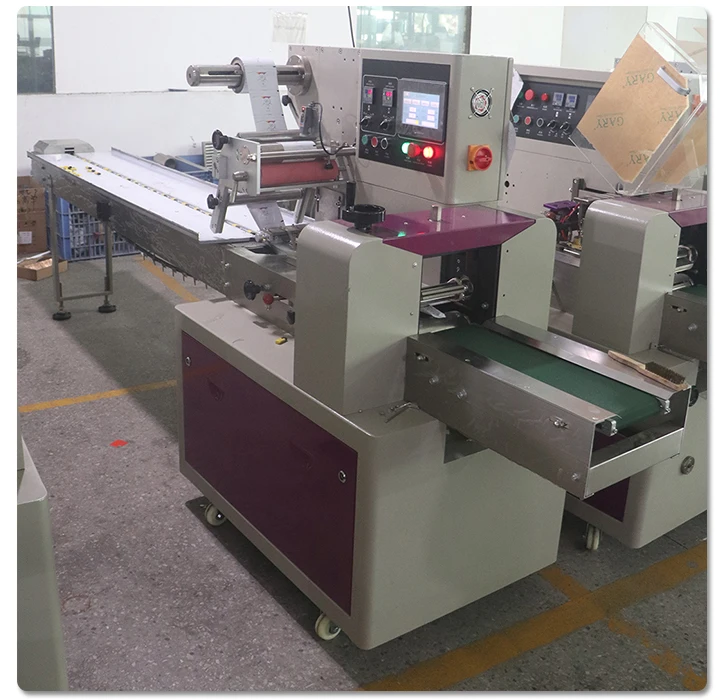

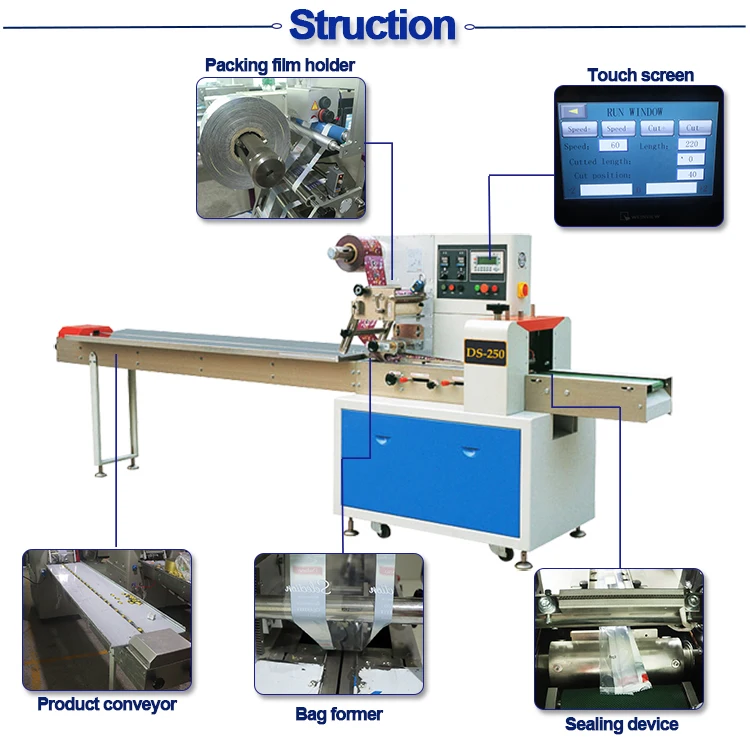

Product Structure

 Electrical Configuration

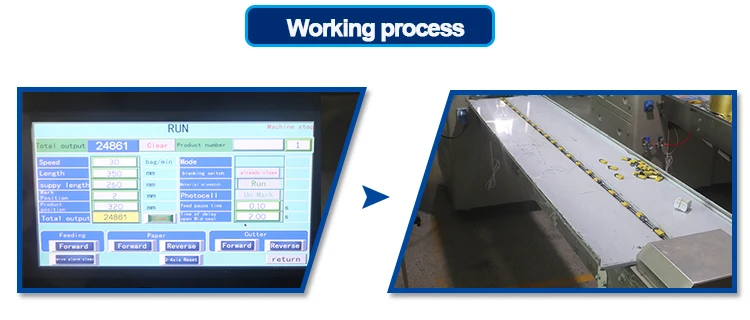

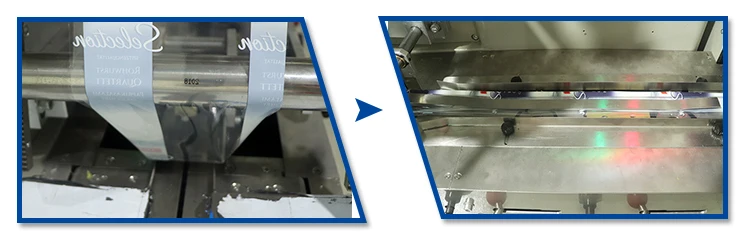

1st step: Setting the parameters you want by touch sreccn

2nd step: Put the material into the stainless conveyor



3rd step: The stainless steel bag maker device will make the bag shape

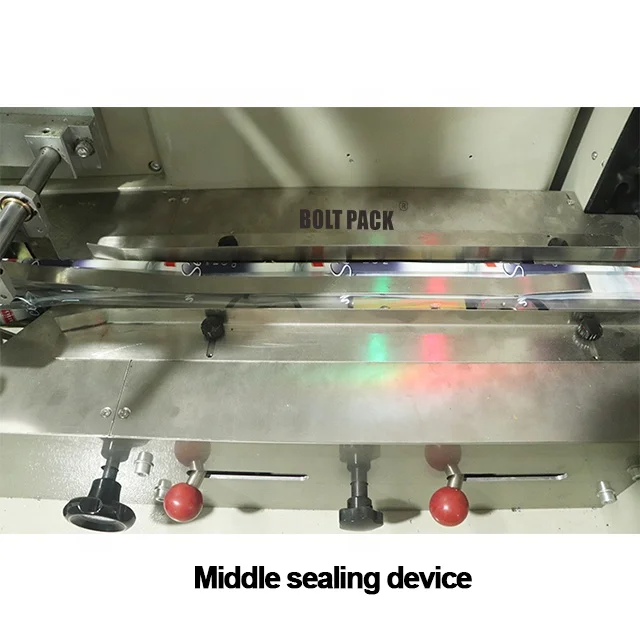

4th step: The middle sealing device will sealing the film together

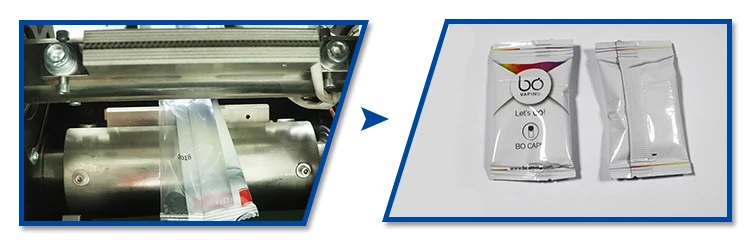

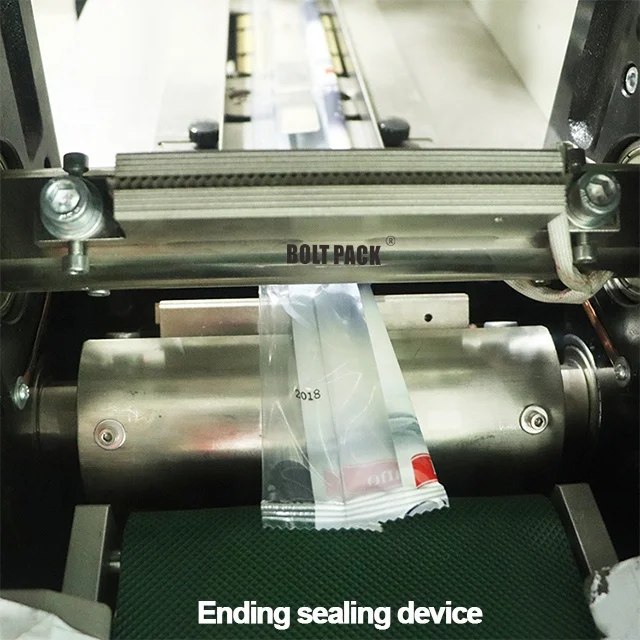

5th step: The cutting device will cut the bag automaticlly

6th step: Then you can get the nicely pcakages

       Send inquiry to us

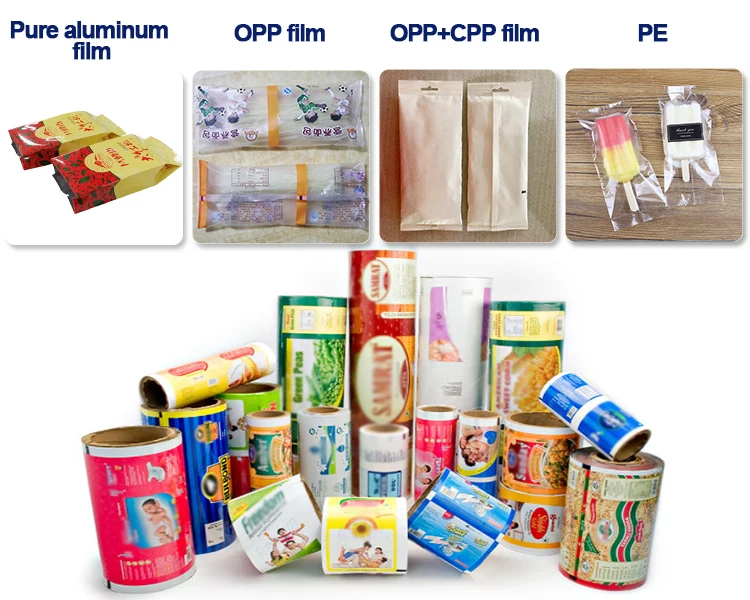

Packing Film

Our horizontal machine can use various of pcaking film like OPP, OPP+CPP, PE, PET+PE, Aluminum metallized films etc.

Optional Device

We have a variety of configurations to choose from, making your packaging more diverse and richer, making your products more popular with customers.

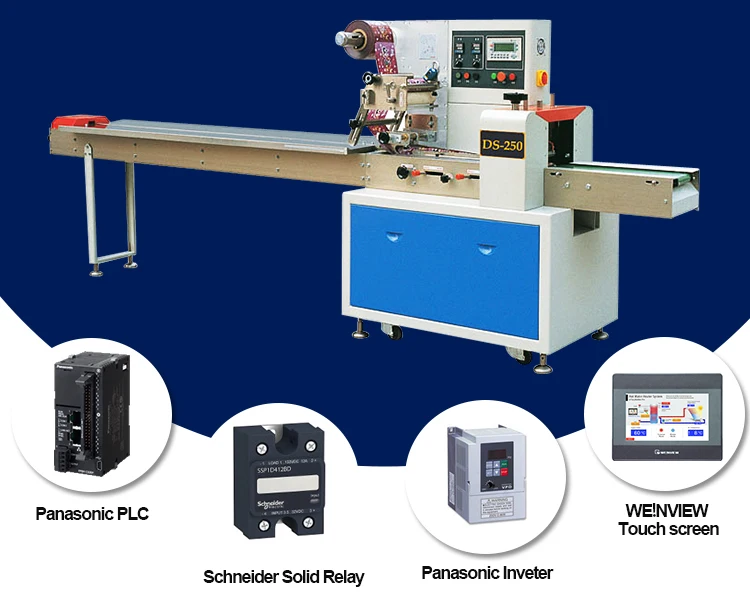

Electrical configuration

Product Electrical configuration
Part name	Brand	Origin
PLC	Panasonic/Delta	Japan/Taiwan
Solid relay	Shneider	German
Inveter	Panasonic	Japan
Touch screen	WE!NVIEW	China



Packing & Delivery

               First protect                                Wood packing                                     Port

Sealed packaging will be wrapped in        Outer packaging is no fumigation              Guangzhou China   Shenzhen China

the machine.                                              wooden box

Payment

1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers

Shipping

1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods

Our company

Foshan Dession Packaging Machinery Co.,Ltd is located in nanhai district, foshan,It is a collection of research, production, sales and after-sales service as one of the production-oriented enterprises.Machines are widely used in food, articles for daily use, hardware industrial products, medical supplies, hotel one-time items, etc. Along with the continuous development of science and technology, the level of automatic packing machinel is higher, scope will be wider.

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?

Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.

Q2:How can I trust you for the first time business ?

Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.

Q3:Is engineer available to serve oversea?

Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q4:How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.

Q5:Will you provides the door to door service?

Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
