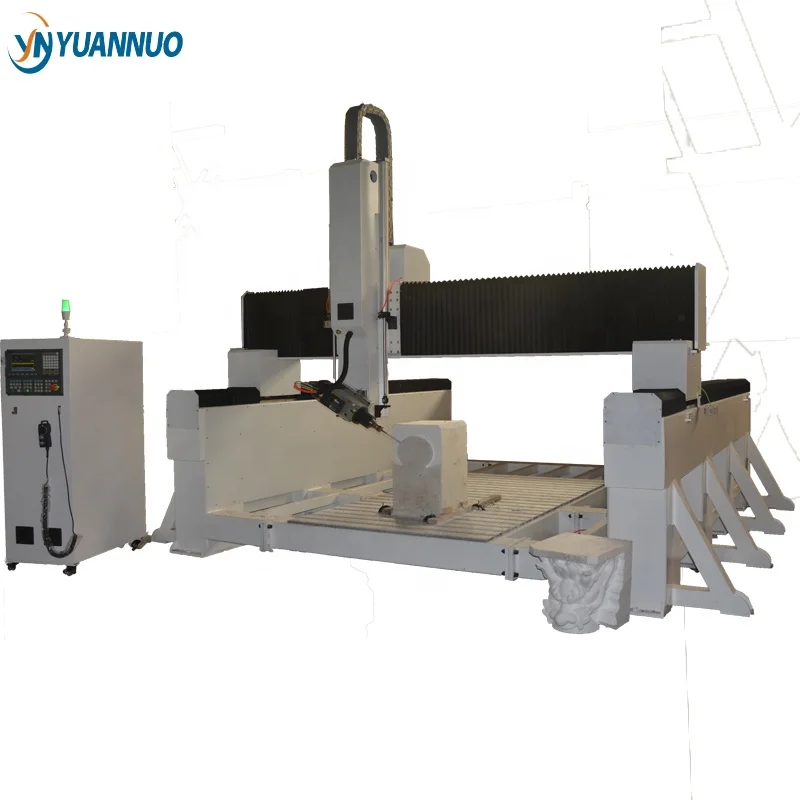

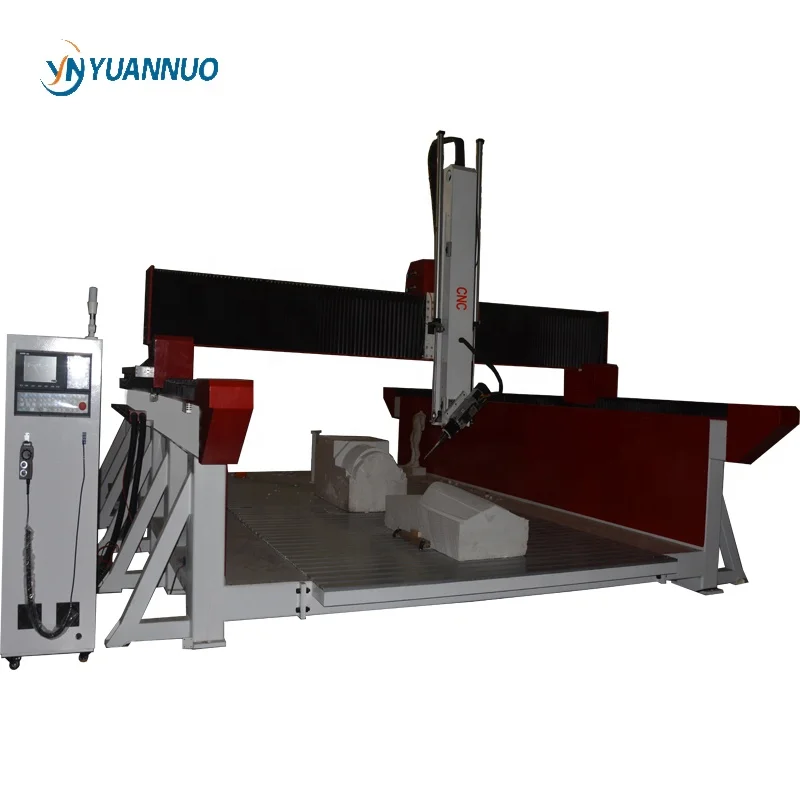

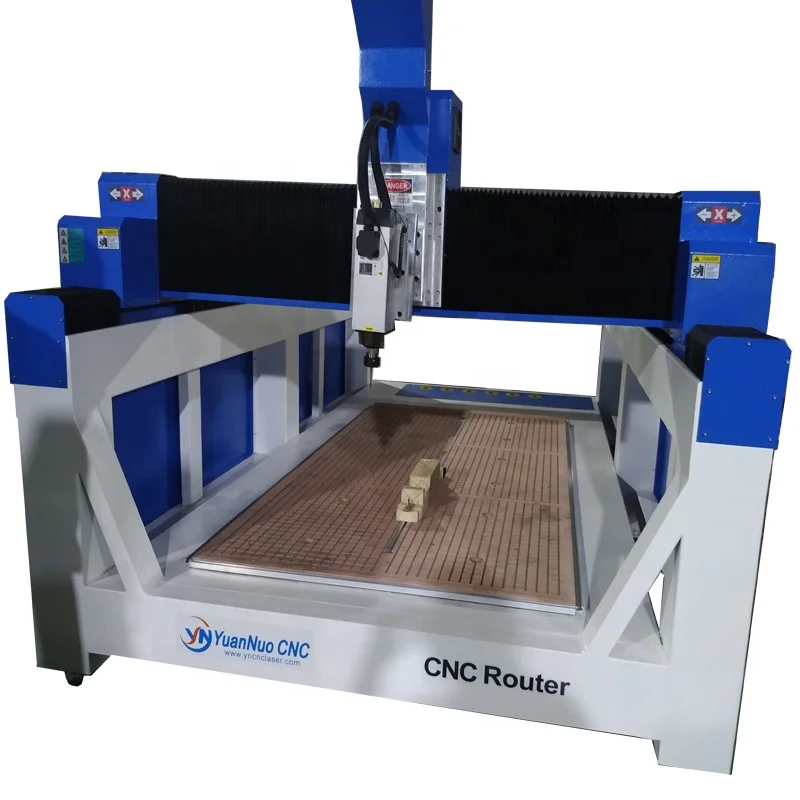

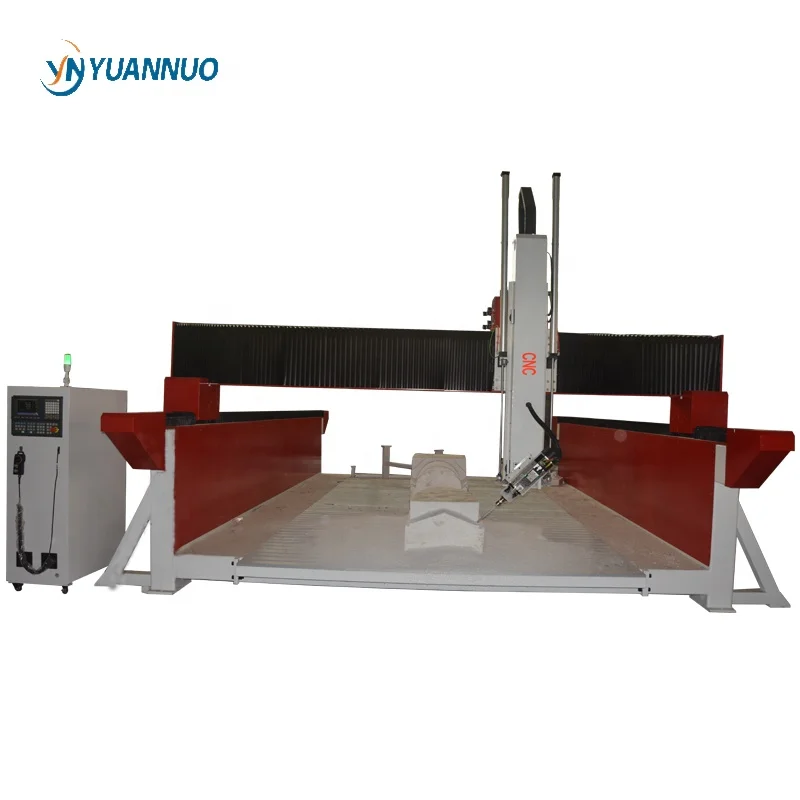

YN1325 YN1530 YN2040 most popular big high Z axis cnc router 4 axis hd48 4d with high quality and stable work
- Category: >>>
- Supplier: Jinan Yuannuo Cnc Equipment Co. Ltd.
Share on (62395627954):
Product Overview
Description
big Z axis cnc router 4 axis
Heavy duty machine frame, with thick steel pipe, high temperature quenching handle, high durable
Italy HSD 9KW ATC air cooling spindle and YASKAWA servo motor
Taiwan Syntec control system and Delta brand high quality inverter
Linear tool changer tool storage for your choice

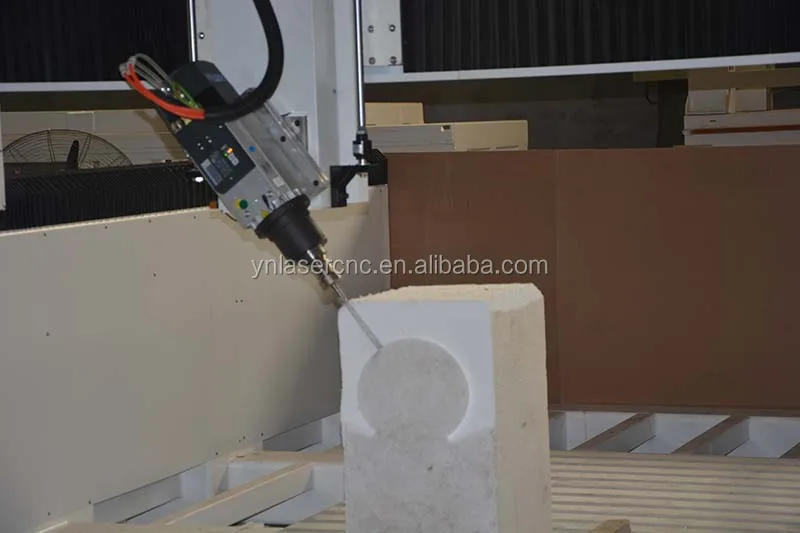

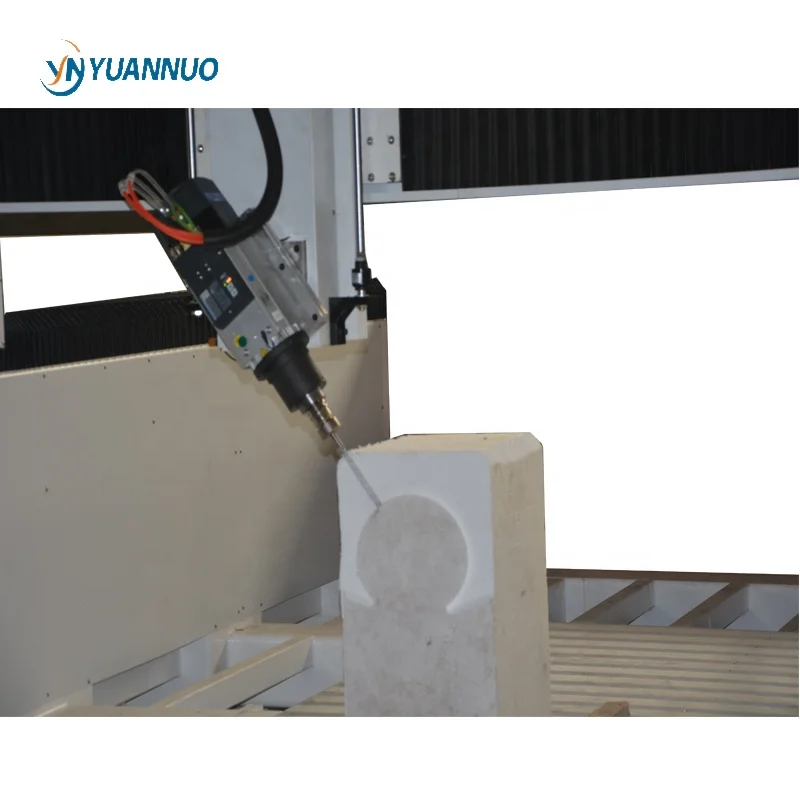

rotating spindle head could do 4 axis work
APPLICATION MATERIALS of YN2040 big Z axis cnc router 4 axis hd48-4d
Various wood, MDF, acrylic, marble, stone, soft metal, ABS, PP,PE,PP,PVC,PCB etc.
APPLICATION MATERIALS of YN2040 big Z axis cnc router 4 axis hd48-4d
1) Furniture: Wooden door and furniture, window, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments etc.
2)Advertising: Billboard, logo, sign,3D characters cutting, acrylic, LED neon channel, literal-hole cut, light-box mold, stamp, mound, etc.
3)Board processing: Insulation, plastic chemical components, PCB, car boady,bowling tracks, ABS, PP, PE etc.
4)Decoration: Acrylic, PVC, MDF, Glass, plastic and soft metal such as copper, aluminum etc.
 |  |  | ||

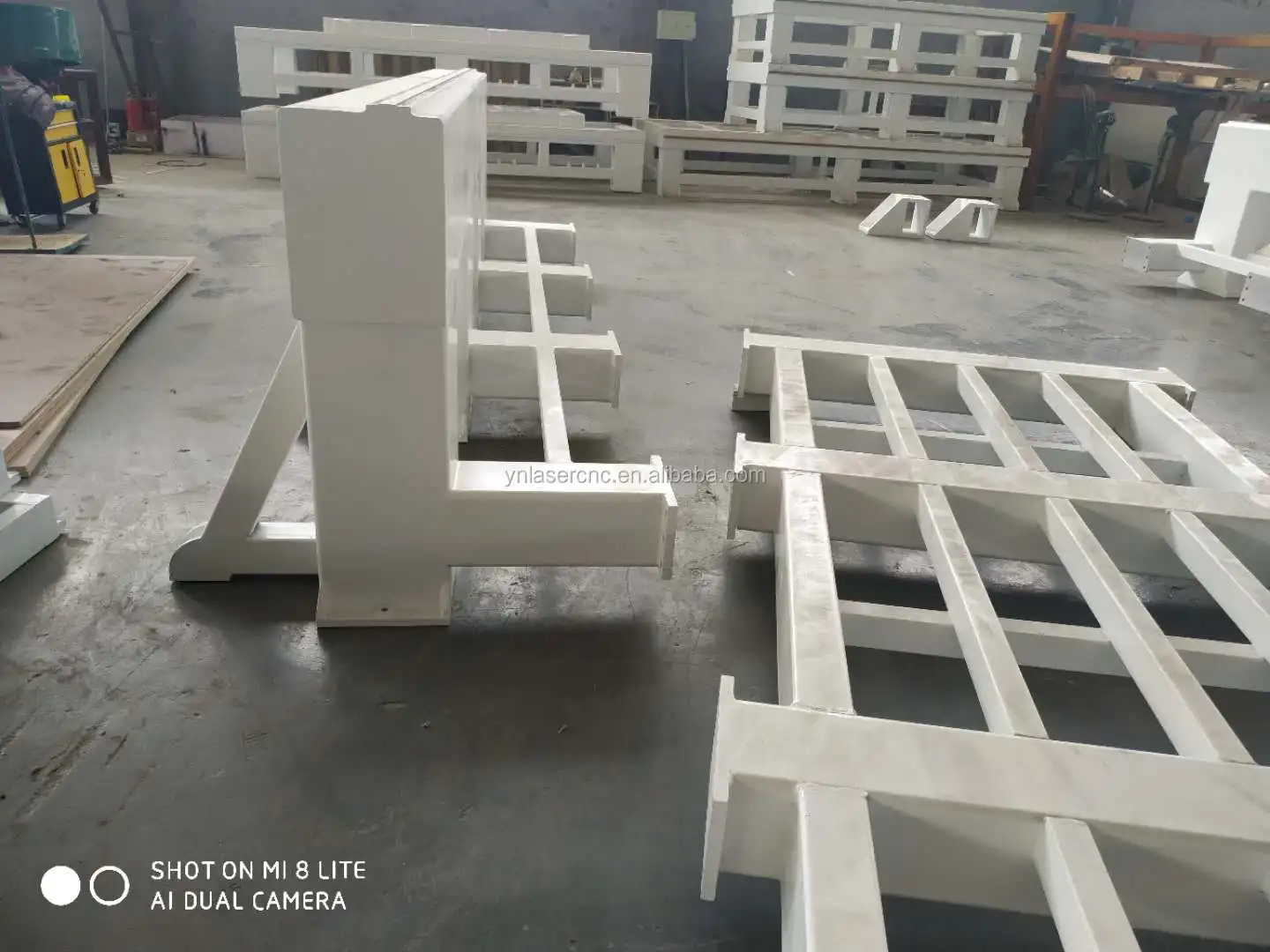

| Heavy duty frame, with thick steel, high durability, will not be deformed | 4 th axis HSD 9KW ATC SPINDLE could rotating | Linear auto tool changer storage | ||
 |  |  | ||
| Taiwan Syntec control system | Tool sensor | Japanese YASKAWA servo motor |
[ PARAMETER OF YN2040 big Z axis cnc router 4 axis hd48-4d]
Model | YN1325 / YN1530 / YN2030 / YN2040 big Z axis cnc router 4 axis hd48-4d |
Working Area (X,Y,Z Axis) | 2000*4000*900mm(can be customized) |
Spindle | 9KW ATC air cooling spindle could rotating |
Table | Vacuum table with T slot also |
Software | Artcam, type3, powermill etc. |
Spindle Speed | Adjustable 0-18,000 rpm |
Optional: | Dust collector system, rotary attachment |
Working accuracy | ±0.02 |
Maximum Travel Speed | 60m/min |
Inverter | FULING/delta |
Drive System (X & Y Axis) | Helical Rack and pinion transmission, Taiwan HIWIN square Guide rail |
Drive System (Z Axis) | Taiwan TBI rolling ball screw, Taiwan HIWIN square guide rail |
Electrical parts | Schneider |
Motor and Driver | Japan Yaskawa Servo Motor and Drive |
Working table | Vacuum table |
Vacuum pump | 7.5kw Water cooling or air cooling for your choice |
Lubrication Systems | Automatic oiling system |
Control system | Taiwan Syntec control system |
Power Requirements | AC380V/50HZ-3 Phase (Optional:220V) |
Command | G code (HPGL,U00,mmg,plt) |

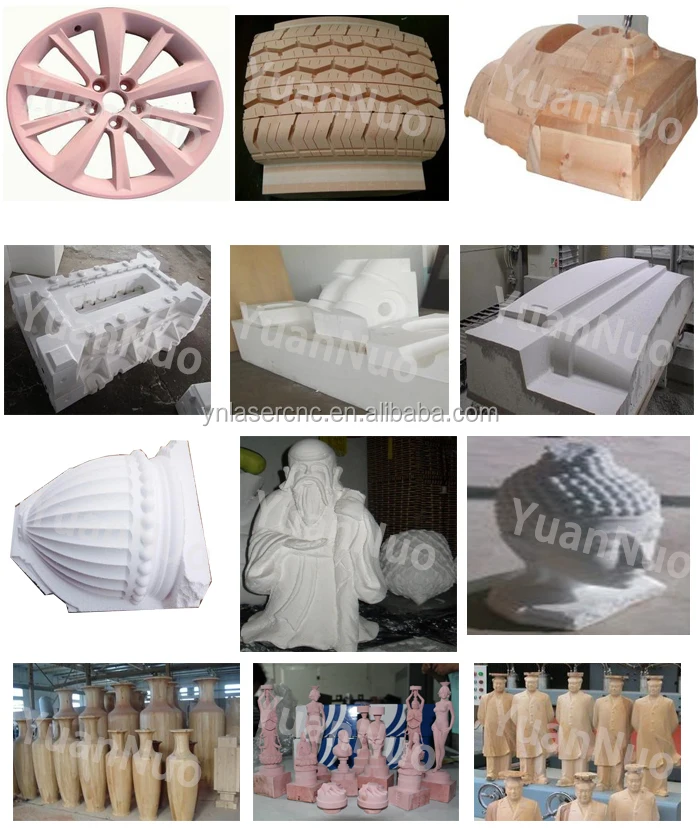

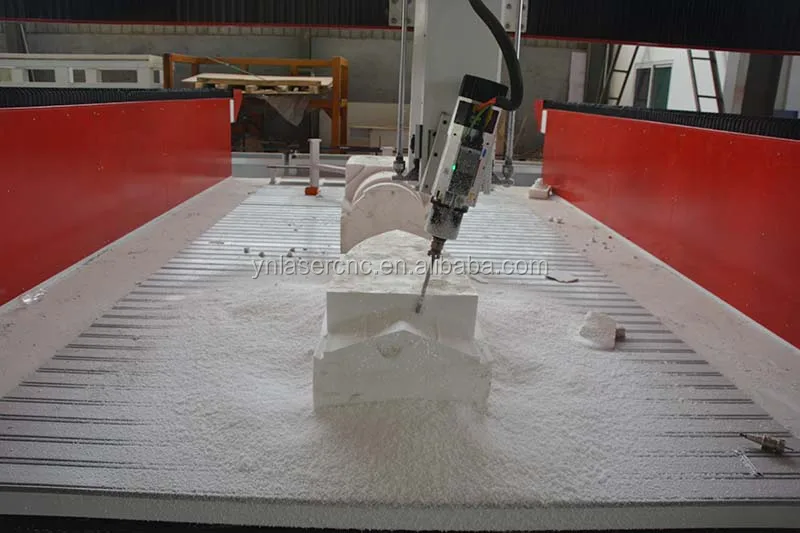

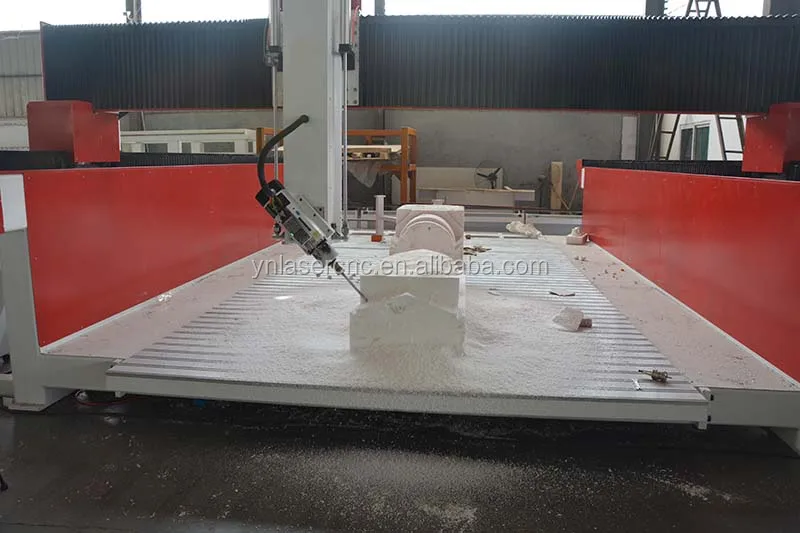

Samples of YN2040 big Z axis cnc router 4 axis hd48-4d
Jinan YuanNuo CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a world famous manufacturer for producing various cnc router and laser machine. The company has a strong technical R & D strength, is committed to providing customers with the most suitable industry solutions. Now we have panel furniture production line, woodworking machining center, CNC cutting machine, advertising engraving machine, laser engraving machine, laser cutting machine, laser marking machine etc., we are high-tech enterprises which is the integration of research and development, production and sales. Company philosophy: quality as the core, and service to the customer as basis, to do what we say, say we can do, serve the global customers. JiNan YuanNuo CNC Equipment Co., Ltd., is willing to cooperate with friends from all over the world sincerely, welcome to come to negotiate.
| 1.How to make order: | |
| 1.1 | Please inform us more information about your work, such as: what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 | Quotation: According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 | Deep communication: Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 | Placing order: If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 | Strat to produce: As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 | Delivery: After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 | Docusments: After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 | One year guarantee for whole machine under normal use |
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 | If need, could also send engineer to your place for training, just customer will stand cost for engineer living, ticket etc. |
