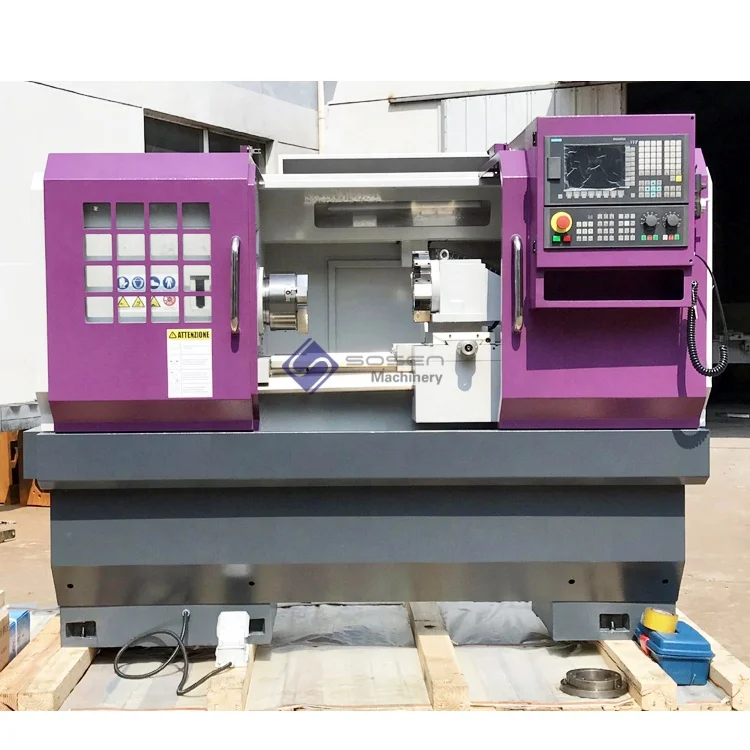

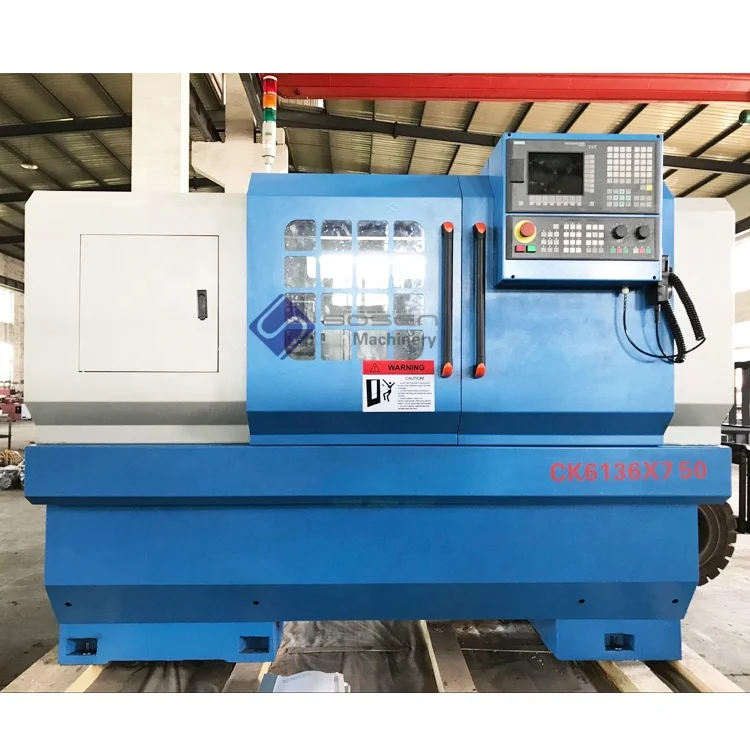

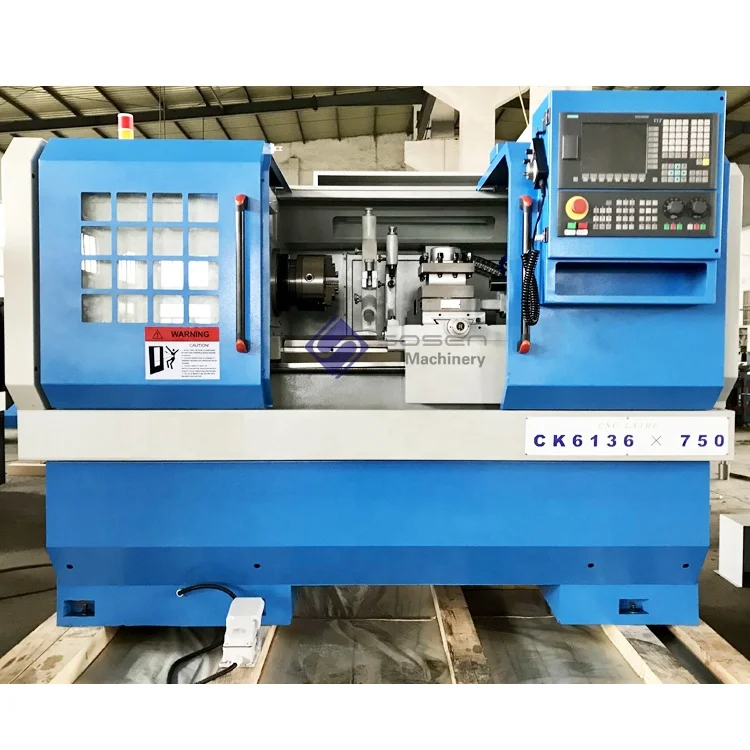

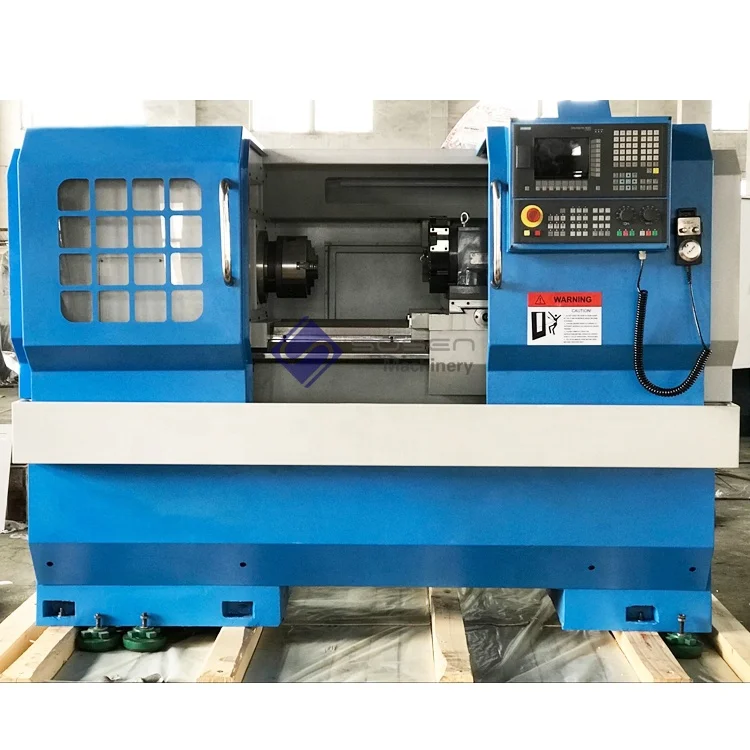

CK6136x750 Mechanical gearbox lathe machine flat bed cnc lathe
Features:
The CK6136x750 Mechanical gearbox lathe machine flat bed cnc lathe is mainly used for processing all kinds of shafts, disk parts, you can turn a variety ofthreads, arcs, cones and rotary body inside and outside the surface, to meetthe ferrous metals and non-ferrous metal high-speed chip speed demand. Suitablefor automotive, motorcycle, electronics, aerospace, military and otherindustries on the body parts for efficient, high-volume, high-precisionprocessing.

1.CK6136x750 Mechanical gearbox lathe machine flat bed cnc lathe adaptable to various control system such as GSK, KND, Siemens, FANUC, etc.
2.Different appearance shapes such as square, circular arc and so on.
3.Optimized guide rail structure by double triangles.
4.Mechanial gear shifts as optional.
5.Steady integral cast iron foot.
Model
Unit
CK6136x750mm
Max.swing over bed
mm
360
Max.swing over cross slide
mm
190
Max. processing length
mm
750
Width of bed
mm
330
X/Z axis travel
mm
250/750
Rapid traverse speed X/Z-axis
m/min
6/8
spindle nose

A2-6
Taper of spindle bore

MT6
spindle bore
mm
60
spindle speed
rpm
                     150-2500  standard                              (Mechanical gear three shifts 120-500/400-800-600-1700rpm is optional)
chuck size
mm
200
spindle motor
kw
5.5 or 7.5
X/Z axis repeatability
mm
0.005
tailstock quill dia.
mm
55
quill traverse
mm
120
quill taper

MT4
tool post type

4 or 6 or 8 station (optional)
cutting tool shape size
mm
20x20
Coolant pump power
W
120
Overall dimension
mm
2130*1400*1680
Packing size
mm
2250*1530*2020
Net weight / Gross weight
kg
1500/1700
Details Images
Standard accessories:
CNC system
Integral cast iron foot
Variable frequency main motor
3-jaw manual chuck
4-position electric turret
Work light
Automatic lubrication system
Automatic cooling system
Dead center
Leveling block set
Tool box & tools
Optional accessories:
Integral cast iron stand
Servo main motor
Spindle unit
Hydraulic chuck & tailstock
Pneumatic chuck & tailstock
6 or 8 position electric turret
Gang type tool post
Power head
Robot arm
Automatic bar-feeder
Different machine color is available:
Product packaging
Company Profile
TENGZHOU SOSEN CO.,LTD located in Tengzhou city, south of Shandong Province. We are specialized in the manufacture of CNC machine center, Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto, mould, construction machinery, military industry, aviation, high speed railway and energy industry.

We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.

Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
