Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.
Model
Water Evaporation(kg/h)
6*0.6
100-130
6*0.75
20-140
6*0.9
140-170
7.5*0.6
130-150
7.5*0.75
150-180
Product Features
1.Upper bed and bottom bed adopt the new quit-open type structure, upper bed can be moved quickly. It is easy to clean completely. 2.Bed plate adopts laser punching way to make, it can avoid the plate be out of shape during the common punching process 3.Bottom plate is supported by stainless steel seamless tube, the structure of bed is stronger, and operational life is long 4.Material is heated uniformly, heat exchange is full, drying intensity is high, energy saving is about 30% than common dryer. 5.Vibrating source is vibrating motor, its work is stable, easy to maintain, noisy is low, life is long. 6.Fluidized state is stable, no dead corner or broken out phenomenon 7.Adjustability is good, and application scope is wide 8.Small damage to the surface of material, it can be used for drying breakable materials. It doesn’ effect the work efficiency when the shape of material is irregular. 9.Adopts all closed structure, it can avoid the cross pollution between material and air effectively. Work environment is clean.
Application
Vibrating fluid bed dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical industry. Material examples are as following: refined salt, aginomoto, citric acid, oxalate, potassium permanganate, sesame, pentaerythritol, HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium borate, activated clay, compound fertilizer, etc.

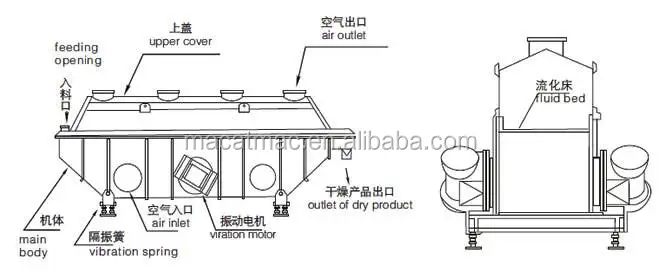

Sketch of Flow Chart

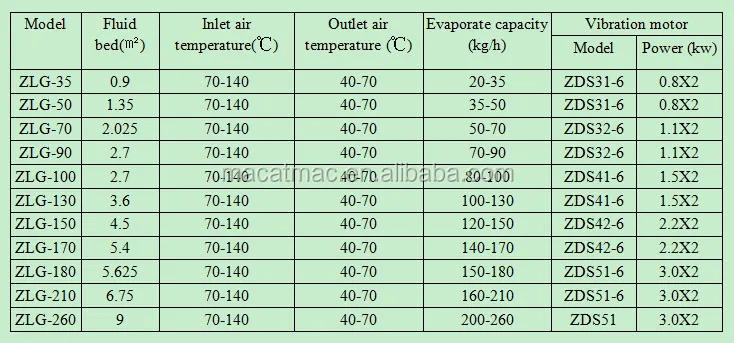

Product Parameters
