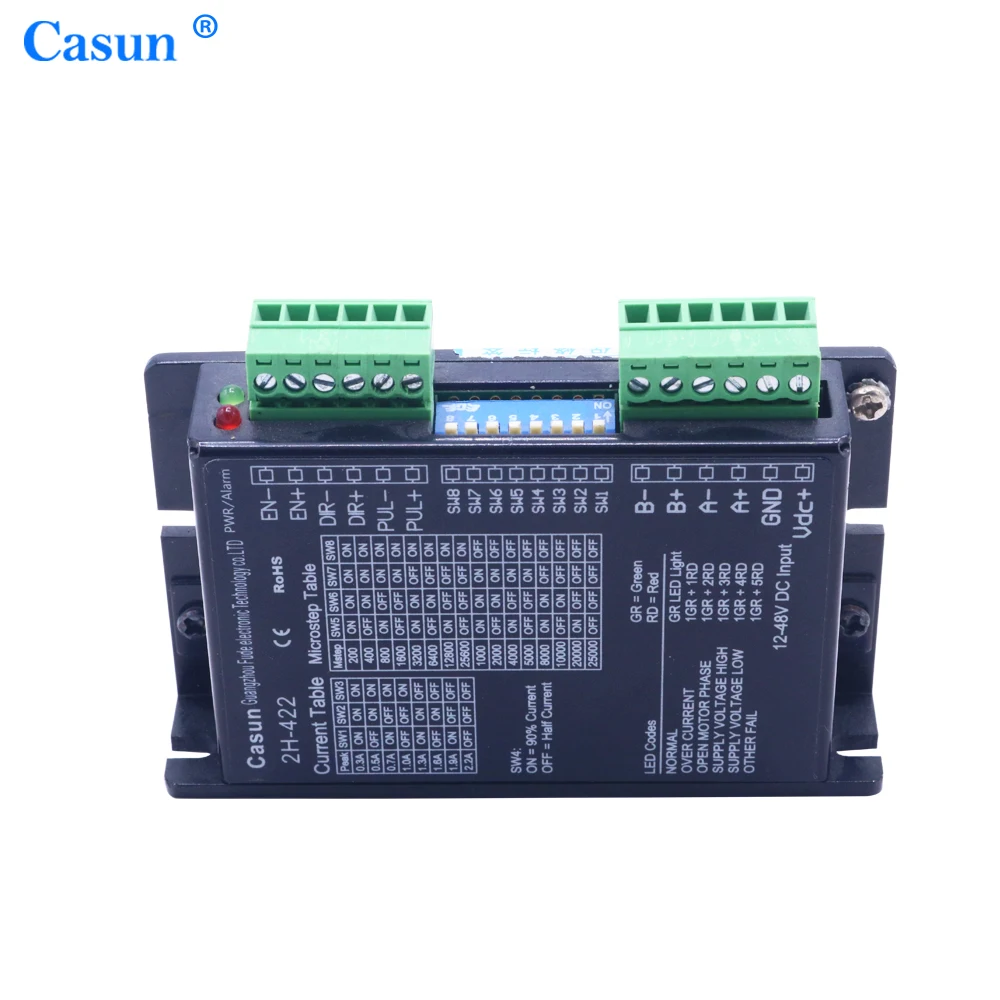

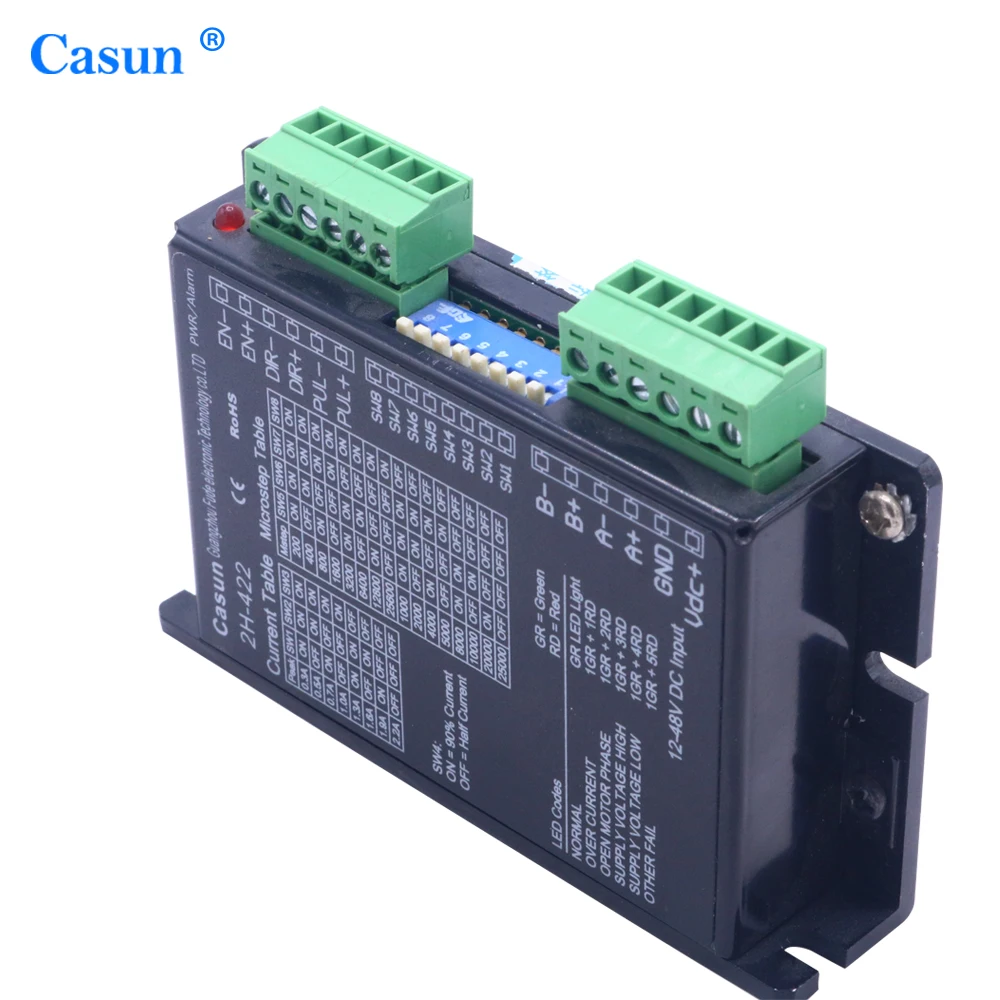

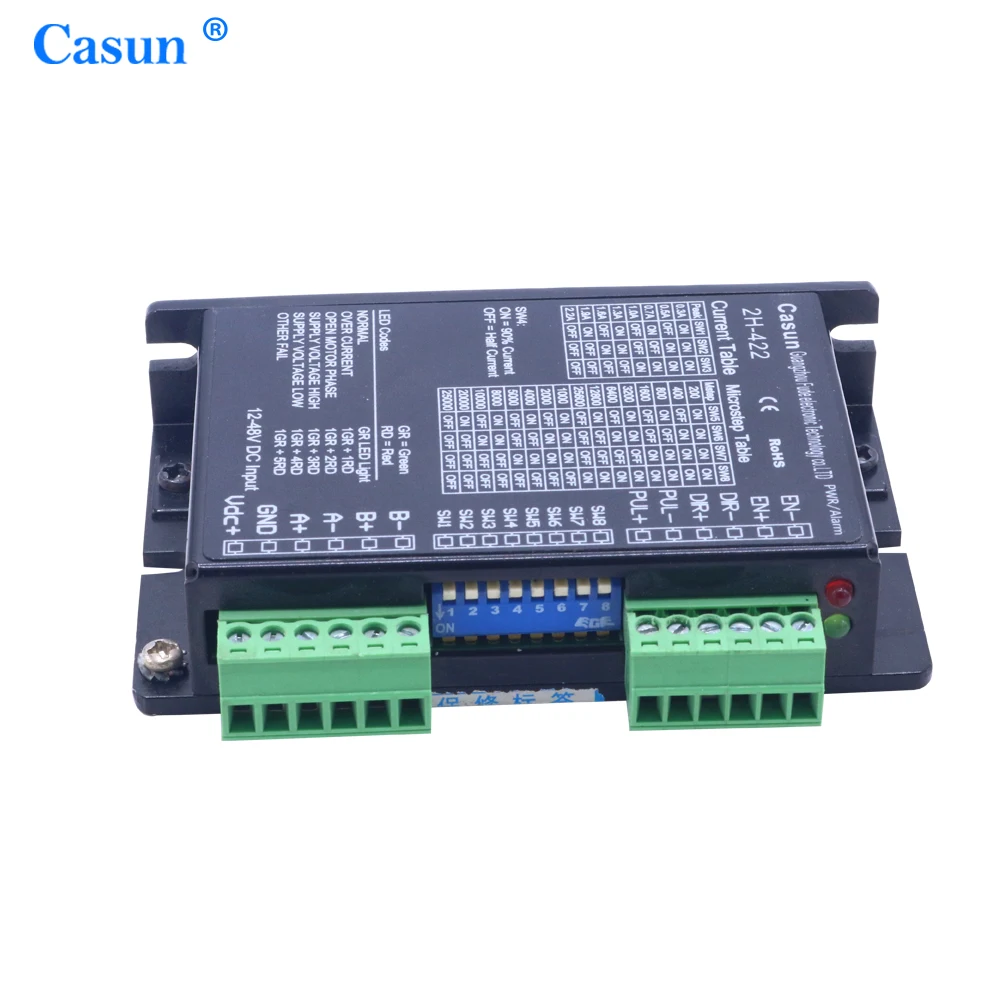

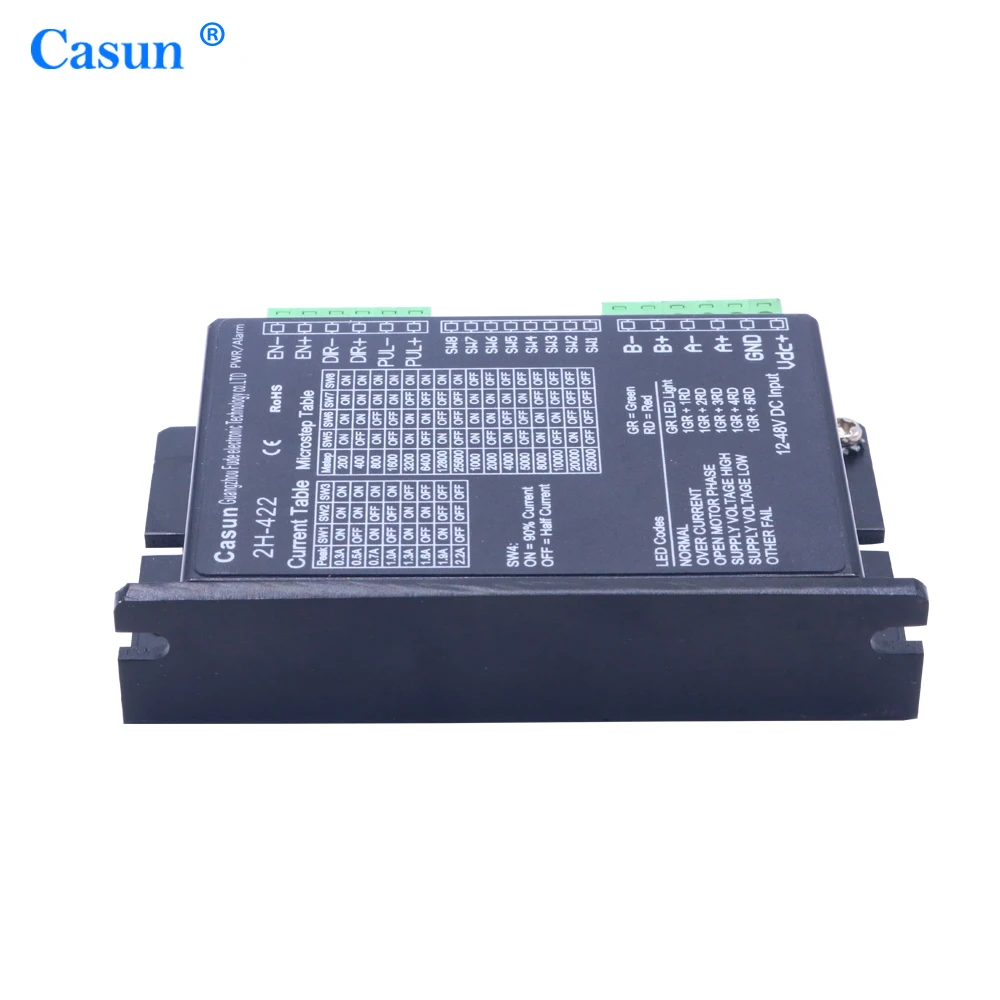

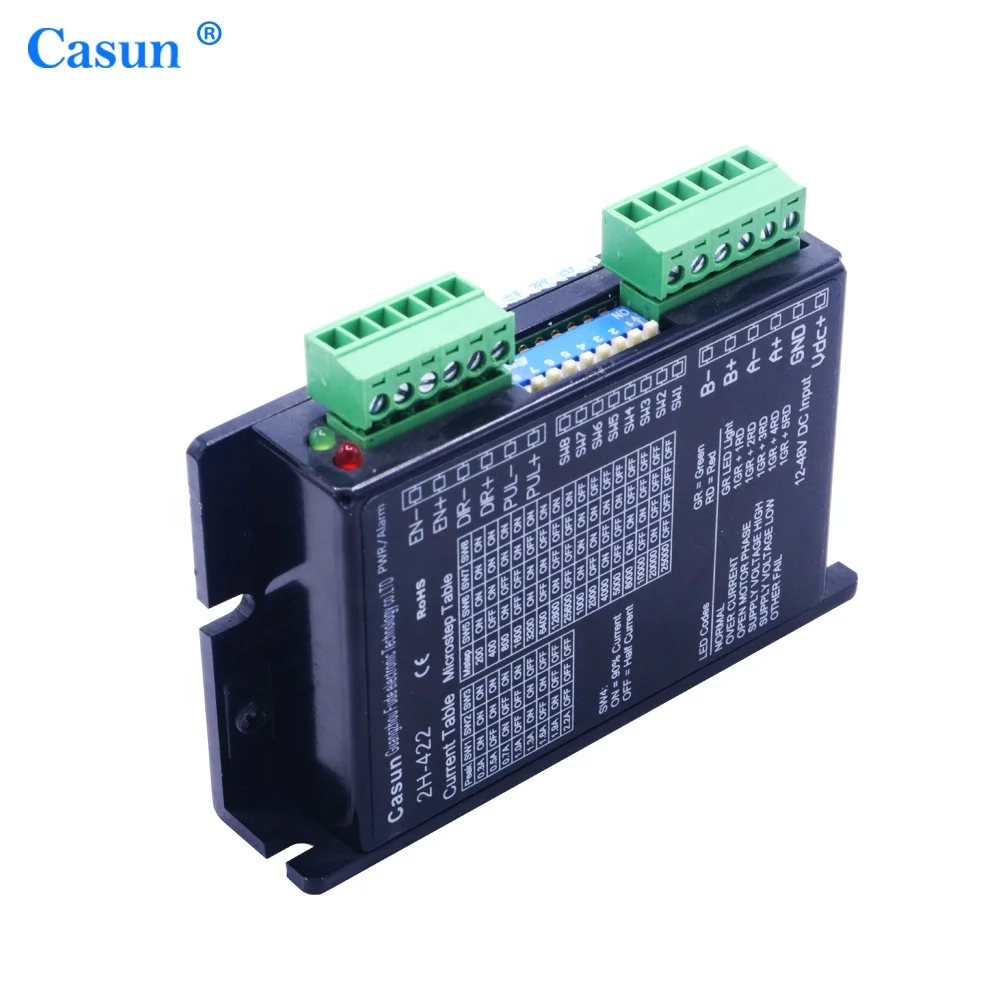

casun motor nema 8 11 14 16 17 stepper motor driver (2H422) for cnc kit laser equipment parts hot sale
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (62395862428):
Product Overview
Description
Fude Manufacture is the super V.I.P GOLDEN SUPPLIER for stepper motor
1) Over 10000+ designs
2) Over 1000+ designs for 2018
3) Small order accept
Product Description
Hot sale casun peak current range 0.3~2.2 A stepping motor nema 8 11 14 16 17 stepper motor driver (2H422)
1. Power Supply 12-48V DC
2.Output Current 3-grade dip switch, with max. 2.2 amp (peak)
3. Current Control PI control algorithm, low vibration, low noise and low heat
dissipation
4. Microstep Setting by dip switch, 16 grades selectable
V
5. SystemAutomatic Detection Motor parameters are automatically detected
when driver powered on, so that the motor current algorithm and anti-resonance
damping algorithm canbe optimized.
6. ControlMode Impulse, direction and dual-impulse modes are supported.
7. Idle Current Current is half reduced when no impulse signal input supplied
within 1 second.
8. Constant Current Input Constant current inputs are available for Impulse,
direction and enable pins, direct connection to signal of high-voltage input, such
as PLC, without additional serial resistors needed for under-voltage/current-limit
protections.
9. Mode Selection If a higher speed is required, you may switch SW9 On, and
the driver will adapt to motor parameters when power on, so the motor runs at a
higher speed.
power supply | DC |
number of phase | 2 |
function | Engraving machine,marking machine |
Output current | 16-grade dip switch,with max.6.5 |
Usage | industrial |
FAQ
Q: How to choose a motor to match my machine
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
Q: If I need a special motor , can you manufacture
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
Q: Can I order samples first
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please let us
