Induction heating stainless steel pipe bender and tube bender

Product Overview

Description

 219-1620mm Stainless Steel pipe and tube bender

Induction Heating Pipe bending machine and tube bending machine

CNC Hydraulic Induction pipe bending machine

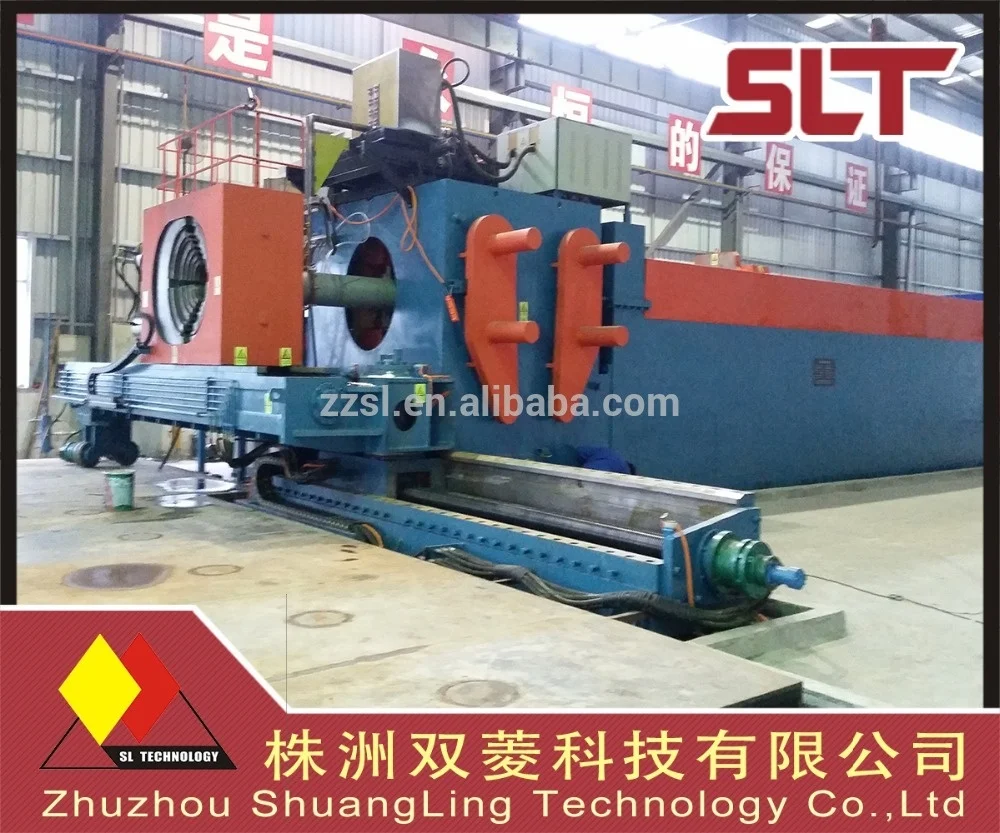

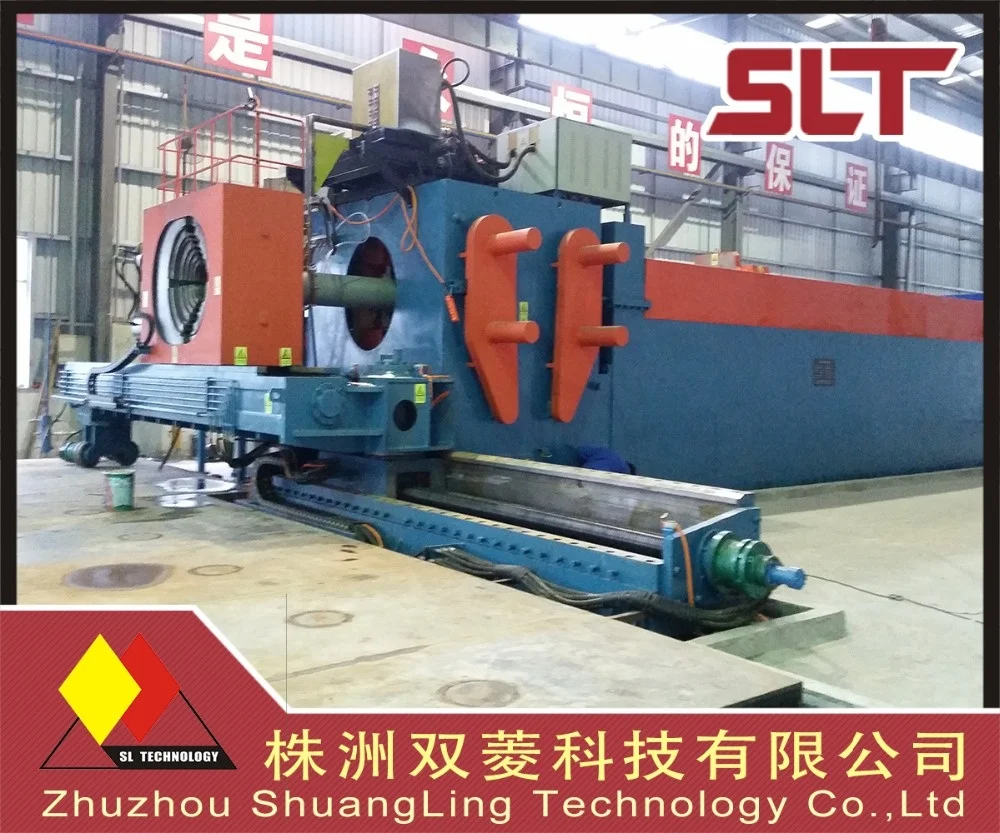

 SLZPW intermediate frequency heating pipe bender

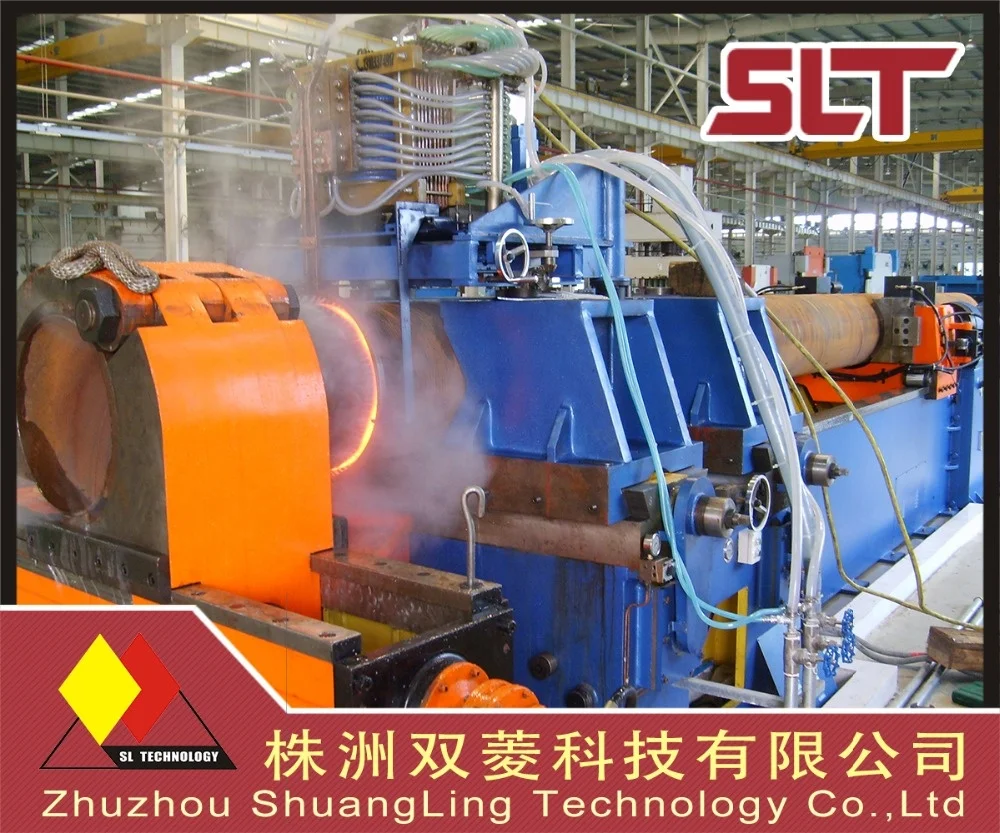

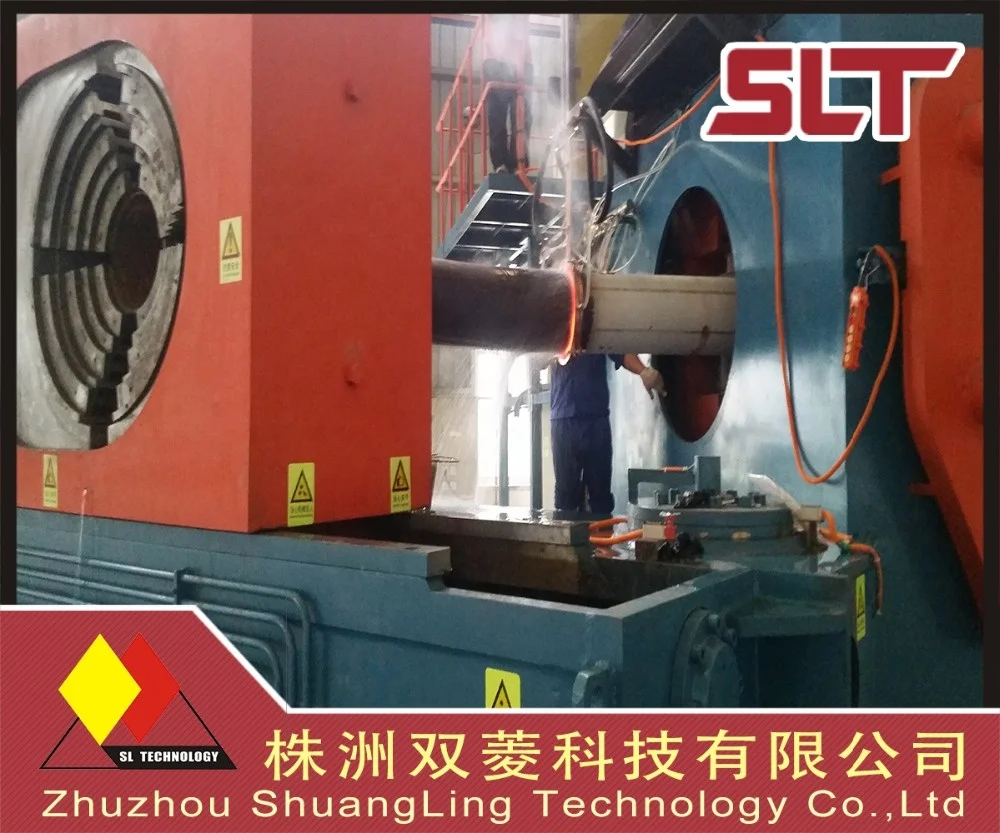

SLZPW series of intermediate frequency heating pipe bender, the intermediate frequency induction heating. The tubes and pipes are bending under local heating condition.



The machine can bend various types of pipes,such as round pipe, square steel ,channel steel ,joist steels and so on.The equipments is widely used in electric power industry, shipbuilding, chemical industry, metallurgy, boiler , heavy machinery and other departments.



Now our company develop the large pipe bender, the maximum radian can be infinite,it fills the blank in the industry.The large pipe bender is mainly used for all kinds of large steel structure workshop, the big bend standing tent and so on.

Model		SLZPW-219	SLZPW-325	SLZPW-426	SLZPW-630	SLZPW-900	Unit
Bending pipe diameter		Φ219	Φ325	Φ426	Φ630	Φ900	mm
Max bending wall  thickness		18	25	30	40	60	mm
Bending Angle		0°~180°	0°~180°	0°~180°	0°~180°	0°~180°	Degrees
Bending radius		3D~8D	3D~8D	3D~8D	3D~8D	3D~5D
Main cylinder max trip		3.2	3.2	4.2	4.2	4.2	m
SCR intermediate frequency devices	Model	KGPS-160	KGPS-250	KGPS-350	KGPS-500	KGPS-1000
	Power	160	250	350	500	1000	KW
	Frequency	1000	1000	1000	1000	1000	Hertz
The advancing speed of tube		0.25~3	0.25~3	0.25~3	0.25~3	0.25~3	mm/sec
Speed of chuck returning	Rapid	2.0	2.0	2.0	2.0	2.0	meter/min
Hydraulic system work pressure		10	10	14	18	21	MPa
Weight of machine		15	25	30	40	45	Ton



Specifies

1.All specifications can be made according to buyer's requirement .

2.The bending radius can be made according to buyer's requirements, maximum radius can achieve infinite.

3.The Lord oil cylinder of equipment is the standard configuration trip,it can be made according to buyer's request .

4, The data in the table is only for reference, the actual item is the standard.
