China Manufacturers Laminar Flow Hood 99.999% Absolute Deep Or Mini Pleated Box Filter HEPA And ULPA Filters For Cleaning Room
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (62395908083):
Product Overview
Description
Product Description

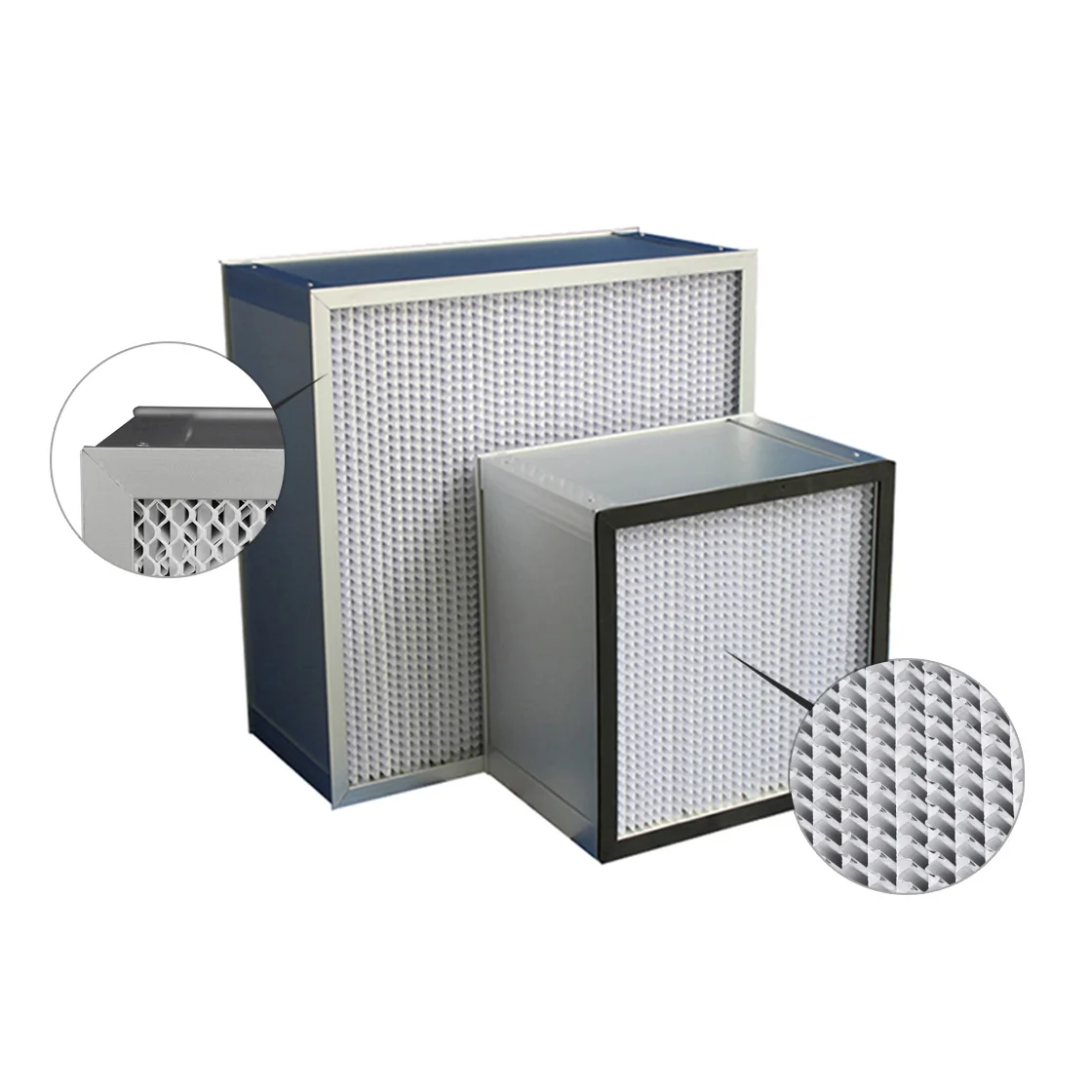

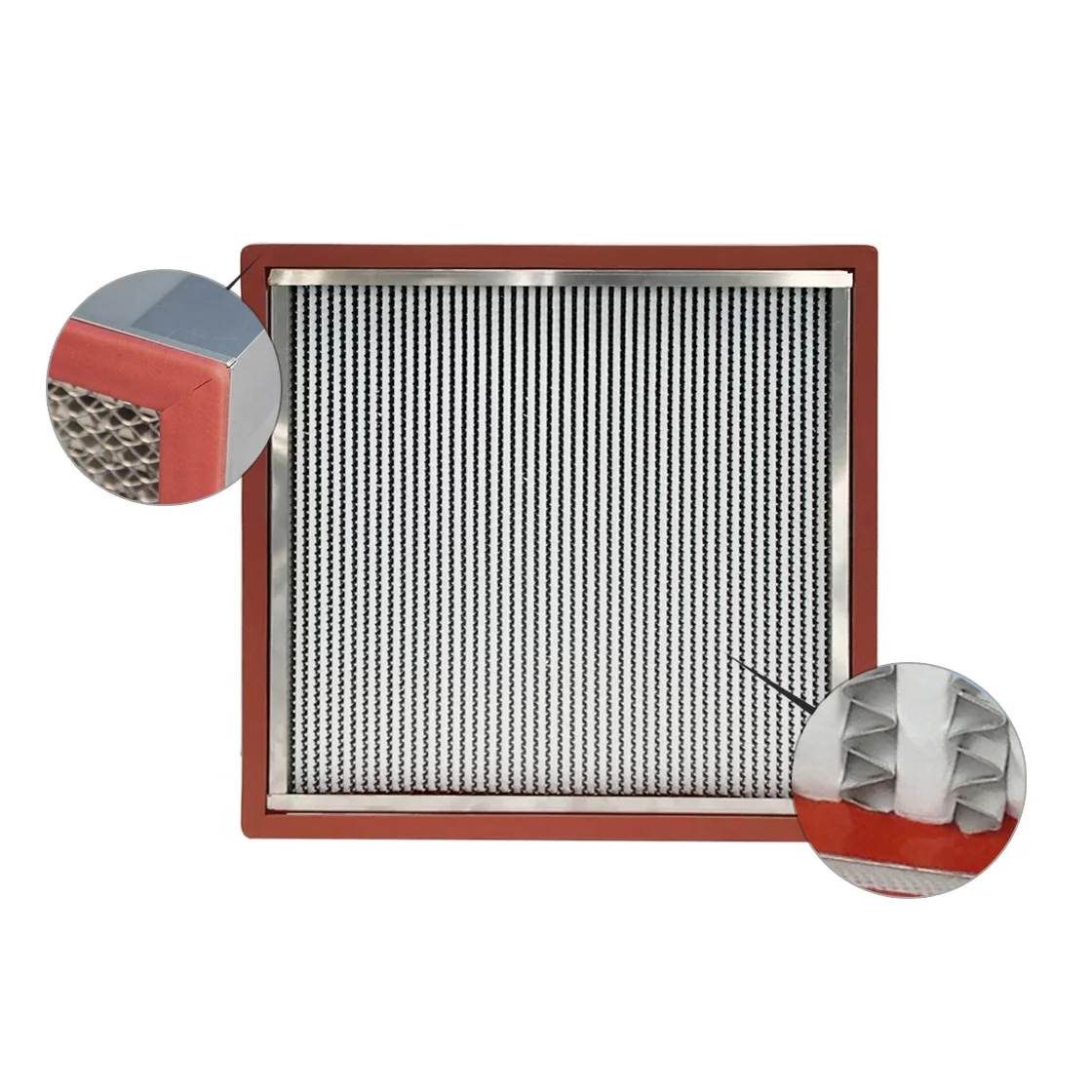

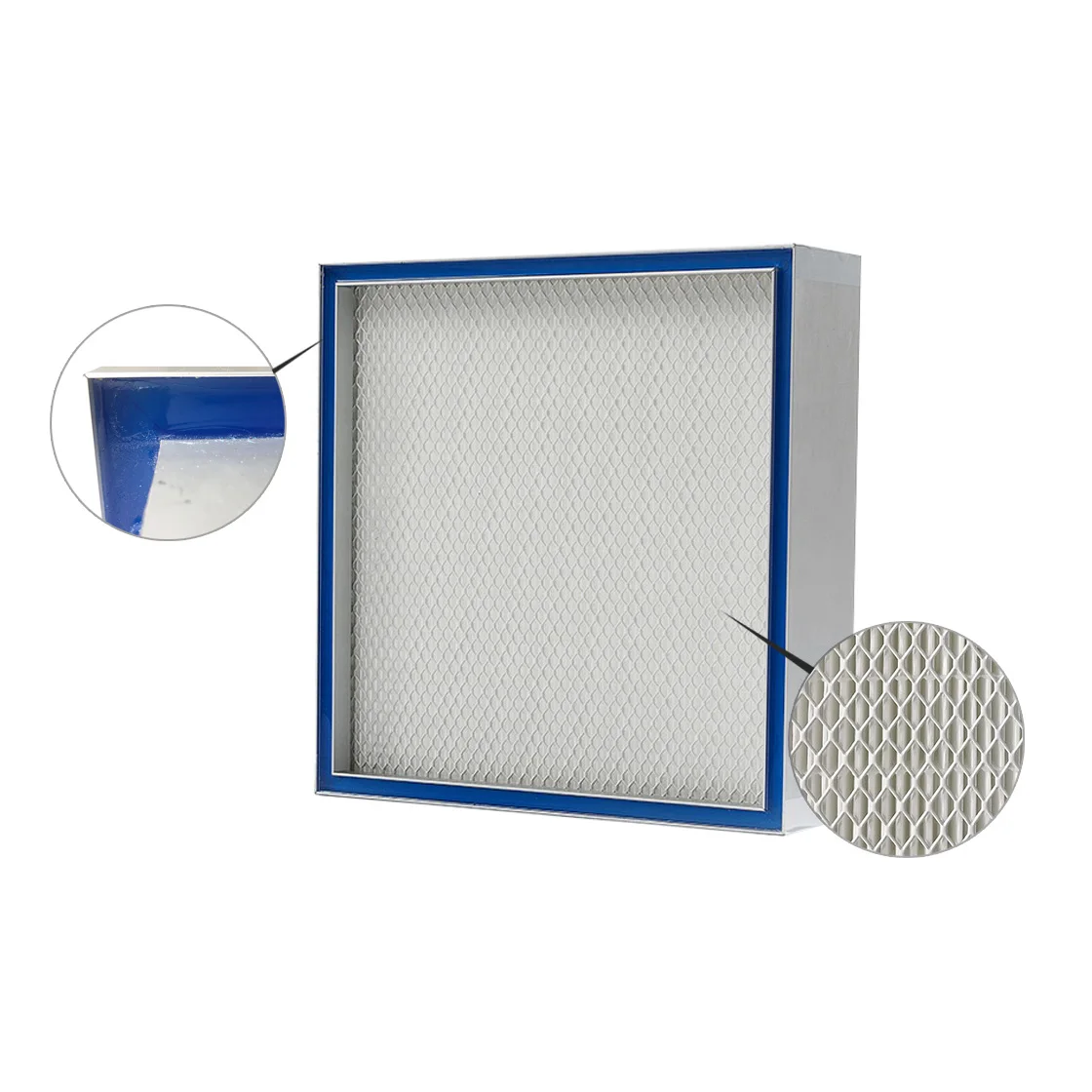

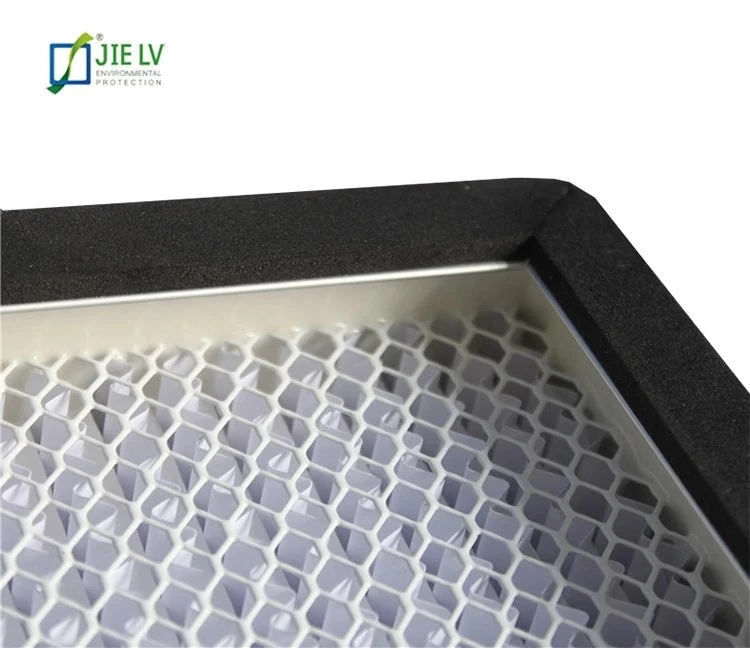

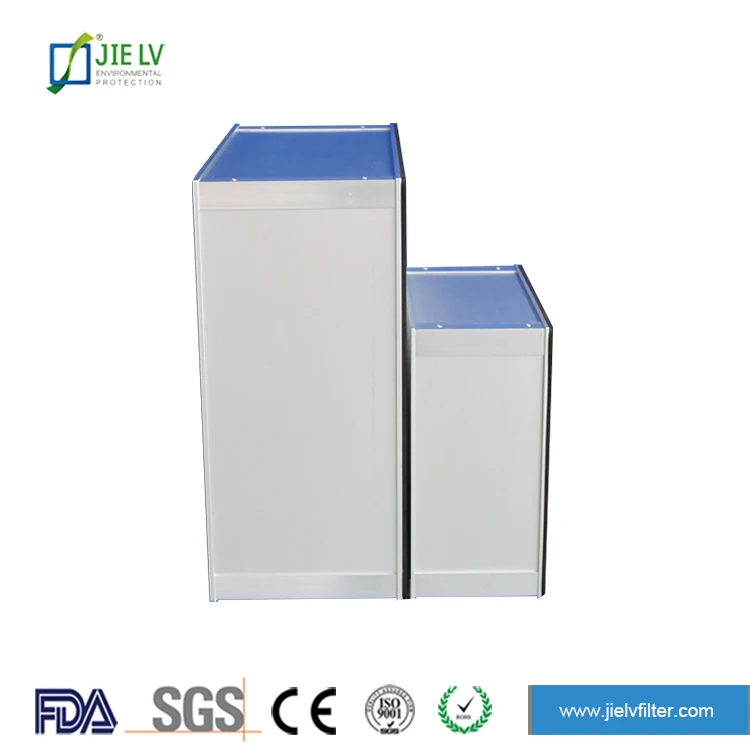

Deep-pleat Hepa Filters are designed to give the optimum combination of high filtration efficiency and excellent dust holding capacity. They consist of a deep pleat pack of filter media, sealed into either a corrosion resistant coated mild steel or MDF case.
Designed for the air intake and extract systems of critical applications such as Pharmaceutical and Electronic manufacturing and in Hospital and research laboratories where high efficiency filtration is necessary.They are also used in Safe Change systems. These HEPA filters are normally used as final filters with pre filters fitted upstream to extend their life.
Product name | Deep-pleat HEPA Filter |
External Frame | Aluminum alloy, galvanized steel, stainless steel, plastic or wooden. |
Filter Material | Ultra-thin glass fiber filter paper, artificial fiber fiter paper |
Separator | Corrugated double glue paper or corrugated aluminum foil |
Sealant | AB component glue, foamed EVA |
Filtration Grade | H10, H11, H12, H13, H14 (EN779) |
Efficiency | 99%, 99.9%, 99.99%, 99.999% (ASHRAE52.1-1992) |
Porosity | ≥0.5μm, ≥0.3μm |
Temperature Resistance | ≤80℃ |
Instantaneous Temperature | ≤100℃ |
Humidity | ≤100%RH |
Dimensions (mm) | Related Air Flow (m/h&Pa) | Initial pressure drop (Pa) | Filtration Efficiency | |||||||||||
W | H | D | 0.25m/s | 0.5m/s | 0.75m/s | |||||||||
320 | 320 | 220 | 400 | ≤120 | ≤220 | ≤240 | 99.99% 99.999% 99.9999% 99.99999% | |||||||
484 | 484 | 220 | 1000 | |||||||||||
610 | 610 | 150 | 1000 | |||||||||||
820 | 600 | 150 | 1200 | |||||||||||
630 | 630 | 220 | 1500 | |||||||||||
610 | 610 | 292 | 2000 | |||||||||||
968 | 484 | 220 | 2000 | |||||||||||
945 | 630 | 220 | 2200 | |||||||||||
1260 | 630 | 220 | 3000 | |||||||||||
Customized specification is available as requirement. | ||||||||||||||
JIELV air filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.
See More Hepa Filters
Jielv HEPA (high-efficiency particulate air) filters are designed for the air intake and extract systems of critical applications where high efficiency filtration is necessary. They are available with efficiencies between 95% and 99.999% (H10-H14 upto U17).
Pre-filters typically need to be cleaned or replaced on a monthly basis, but HEPA filters have a longer lifespan of 12-18 months.
Click the products below to know more: (Pls feel free to contact us if you have any questions!)
Applications
1) Air condition system.
2) Ventilate system.
3) Exhaust gas filter in paint exhaust system on the floor of dry spray booth.
4) Avoid tar room and dust from high-temperature dryer.
5) Clean room, cleaning equipment.
6) FFU.
7) Pharmaceutical factory,hospital, electronic factory food factory.
8) Car production line development.
9) Ultra-clean high-temperature oven.
10) Car spray paint baking temperature applications.
11) Chemical, food factory etc industries.
2) Ventilate system.
3) Exhaust gas filter in paint exhaust system on the floor of dry spray booth.
4) Avoid tar room and dust from high-temperature dryer.
5) Clean room, cleaning equipment.
6) FFU.
7) Pharmaceutical factory,hospital, electronic factory food factory.
8) Car production line development.
9) Ultra-clean high-temperature oven.
10) Car spray paint baking temperature applications.
11) Chemical, food factory etc industries.
Certifications
