Copper cable granulator/mini copper wire granulator equipment
- Category: >>>
- Supplier: Changshu Shi Shouyu Machinery Co. Ltd.
Share on (62395924995):
Product Overview
Description
Product Overview

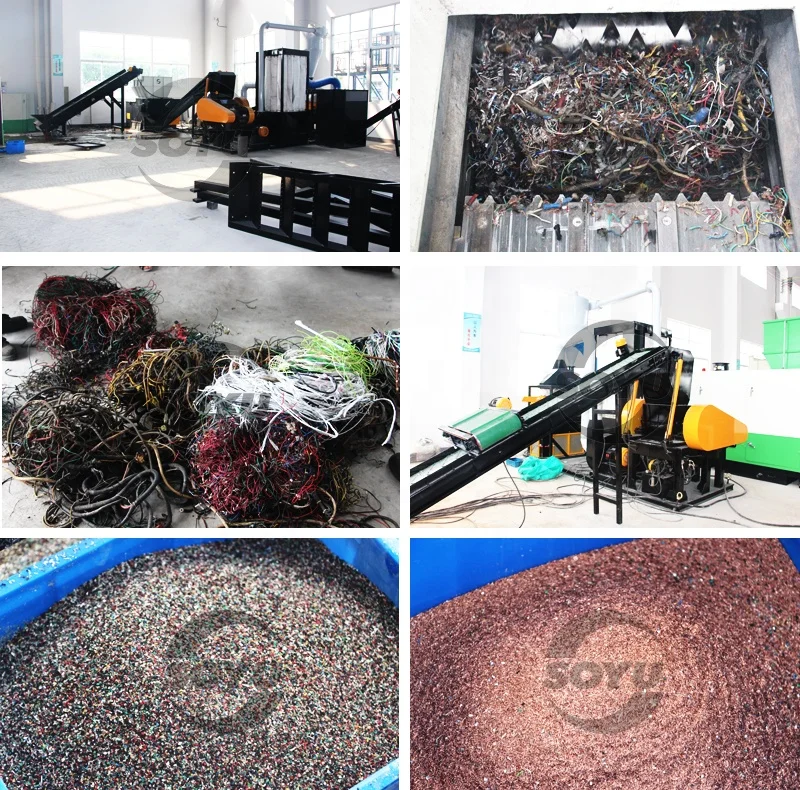

Copper Wire Recycling Machine
Production Capacity: 200-1000kg/h
The Copper Wire Recycling Machine is one of our products that are developed on our own. It is usually used to produce copper and recycle plastic granules. The separator is independently developed by ourselves and has rational structure, stable operation performance, and so on.
The separator of the cable recycling equipment is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.
Besides, the Copper Wire Recycling Machine can facilitate the installation, test running and delivery. You can just put it into
use immediately when you receive it. Moreover, during the whole production process, the cable recycling facility only needs to be fed once because the volume for material is quite big. Custom products are available according to customers' requirements.
The Copper Wire Recycling Machine is one of our products that are developed on our own. It is usually used to produce copper and recycle plastic granules. The separator is independently developed by ourselves and has rational structure, stable operation performance, and so on.
The separator of the cable recycling equipment is suitable for processing all kinds of cables. It can separate copper from plastic effectively by crushing, vibrating screening separation and vibration separation so as to achieve comprehensive utilization. It features good cost effectiveness, dust-free producing progress and second pollution-free property.
Besides, the Copper Wire Recycling Machine can facilitate the installation, test running and delivery. You can just put it into
use immediately when you receive it. Moreover, during the whole production process, the cable recycling facility only needs to be fed once because the volume for material is quite big. Custom products are available according to customers' requirements.
FEATURES AT A GLANCE
- Applications:
copper wire
PRODUCT CONFIGURATION
The cable recycling machine ensures the complete separation, crushing and recycling of the insulating layer and conductor wire cores.
This system features a reasonable structure, stable and easy operation, highly automatic performance, low energy consumption and a high production efficiency.
The cable recycling machine ensures the complete separation, crushing and recycling of the insulating layer and conductor wire ores.
TYPICAL APPLICATION RANGE
PRODUCT SPECIFICATIONS
1. Single shaft shredder The cable shredder is mainly used for the first stage---shredding the cable. The power voltage is customizable according to your need. Specification Power (Kw): 17.2 Rotor Blade Quantity: 24 Stator Blade Quantity: 4 Mesh Diameter (mm): Φ40 Rotating Speed (rpm): 83 Shaft Diameter (mm): Φ220 Dimension (mm): 1585 (L) × 1100 (W) × 1800 (H) |
2. Cable Granulator It is used for cutting, shearing, and tearing the cable in our cable recycling plant. Specification Power (Kw): 45 Stator Blade Quantity (PCS): 10, Rotor Blade Quantity (PCS): 4 Mesh Diameter (mm): Φ12 Rotating speed (rpm): 526 Shaft Diameter (mm): Φ420 Dimension (mm): 1800 (L) × 1800 (W) × 2400 (H) Voltage: customizable |
3. Gravity Separator It is mainly used for retrieving the metals with different density from the cable granules and separating the non-metal granules. Specification Power (Kw): 7.5 Mesh Diameter (mm): 1000 (W) × 1500 (L) Dimension (mm): 2100 (L) × 1200 (W) × 1700 (H) Voltage: customizable 4. Dust Removal System It is mainly for the dust removal during the cable recycling progress Specification Power (Kw): 8.6 Dimension (mm): 1000 (L) × 1000 (W) × 3000 (H) |
SALES AND SERVICE NETWORK
Successful Project
Project in UK
Project in Spain
Project in South Africa
Project in Italy
Project in India
Project in Japan
Project in South Korea
Project in UK
Project in Pakistan
SERVICE
Non-standard customization
Shredder & Crusher customization
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
1. A suitable shredder is chosen according to the size and features of the materials to be shred and output requirements.
2. A suitable material feeding and discharge method is select according to the material features and production site conditions.
Common material feeding means include: chain conveyor feeding, belt conveyor feeding, elevating conveyor feeding, etc. Special feeding system is also available based on customer’s needs.
3. Machine height and discharge height can be customized.
4. A variety of screens with different mesh hole size are provided to satisfy the discharge particle size requirements.
Recycling plant customization
Based on the feeding material size and requirements of subsequent steps, customized recycling plants are provided to meet customer’s expectations. SOYU custom recycling plants are small-footprint, energy saving and environmentally friendly equipment sets.
Installation and debugging
1. Single machine: SOYU standard single shredders are easy to operate and start-up—you only need to connect the power line to the electricity box. In order to save the purchasing cost for customers, SOYU offers off-site technical guidance service.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
2. Non-standard complete plant: according to customer’s requirements, we can provide on-site installation and debugging service.We will help customers to train operators and offer routine maintenance service, including operation procedure training, easy failure predication, shaft greasing, hydraulic station oil change, etc.
