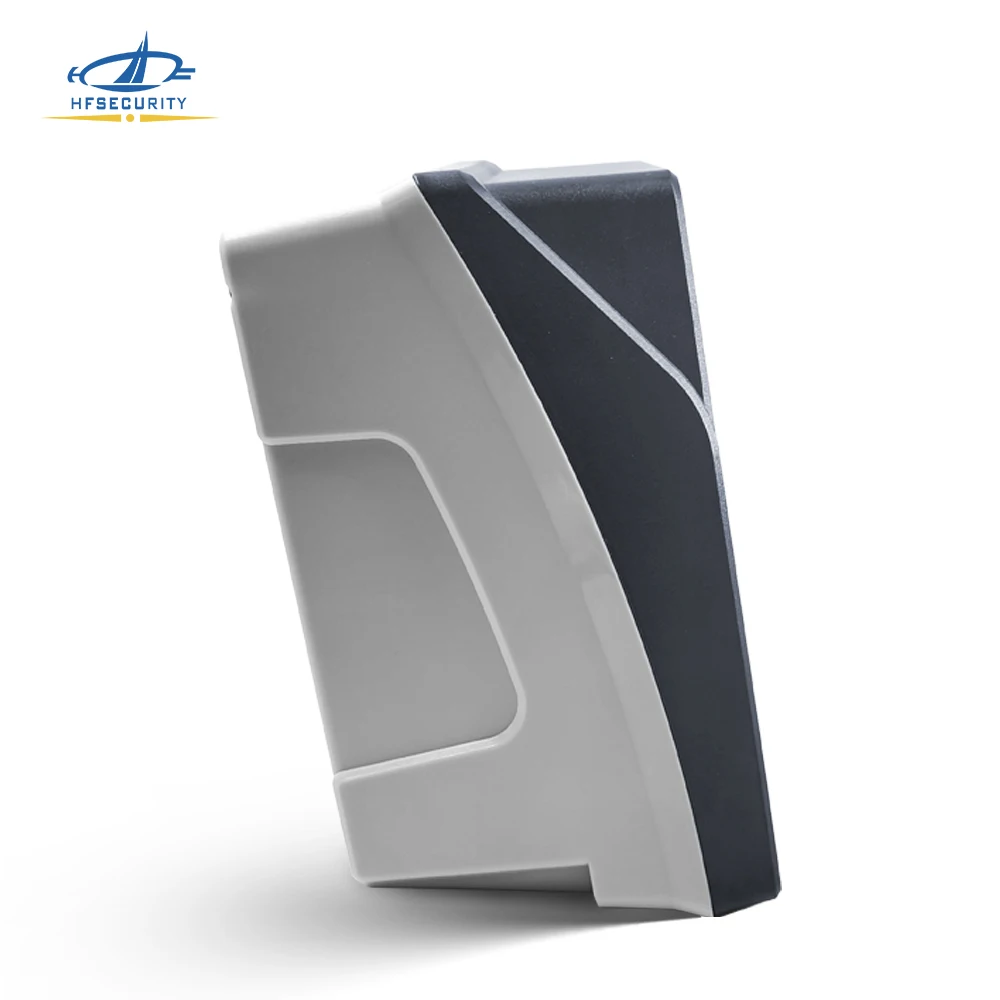

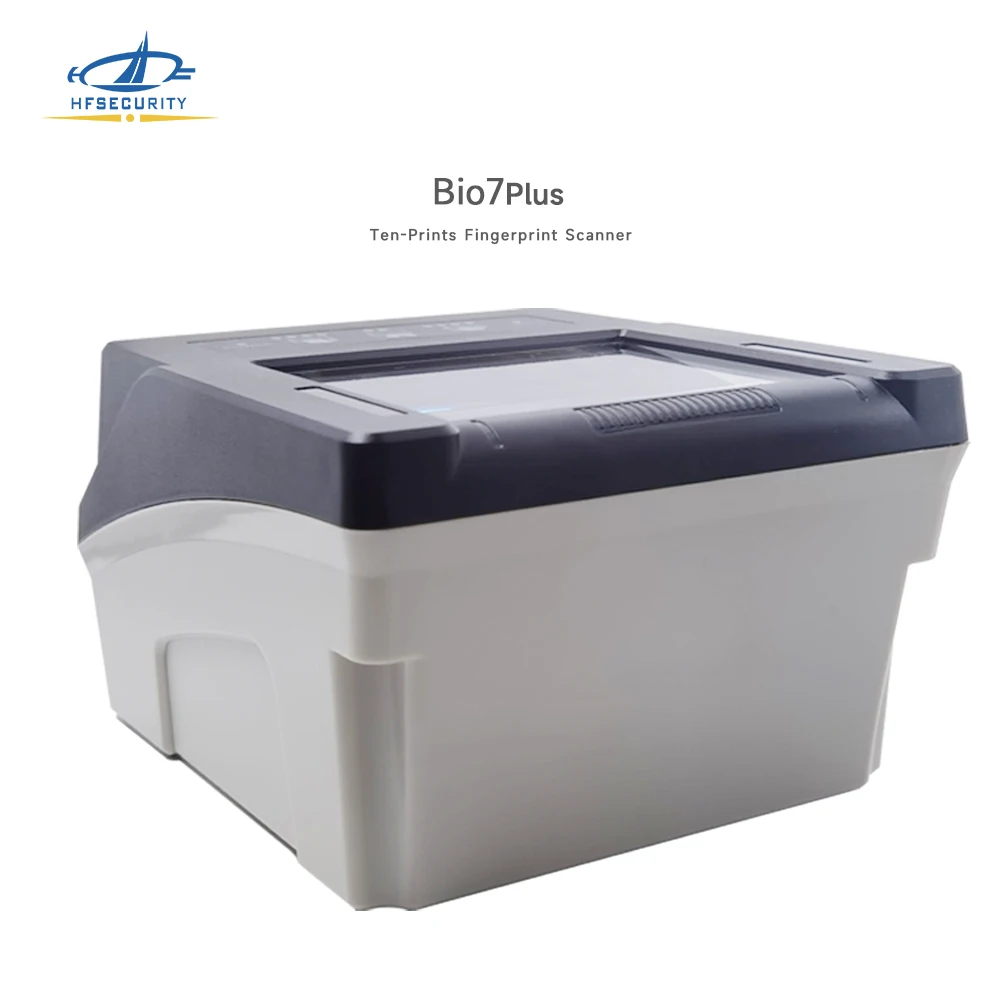

Ten print Fingerprint Reader with Free SDK and authorized certification Bio7 Plus HFSecurity for NIMC project
- Category: Time Recording >>>
- Supplier: Chongqing Huifan Technology Co. Ltd.
Share on (62396006991):
Product Overview
Description
Product Description
Product Introduction

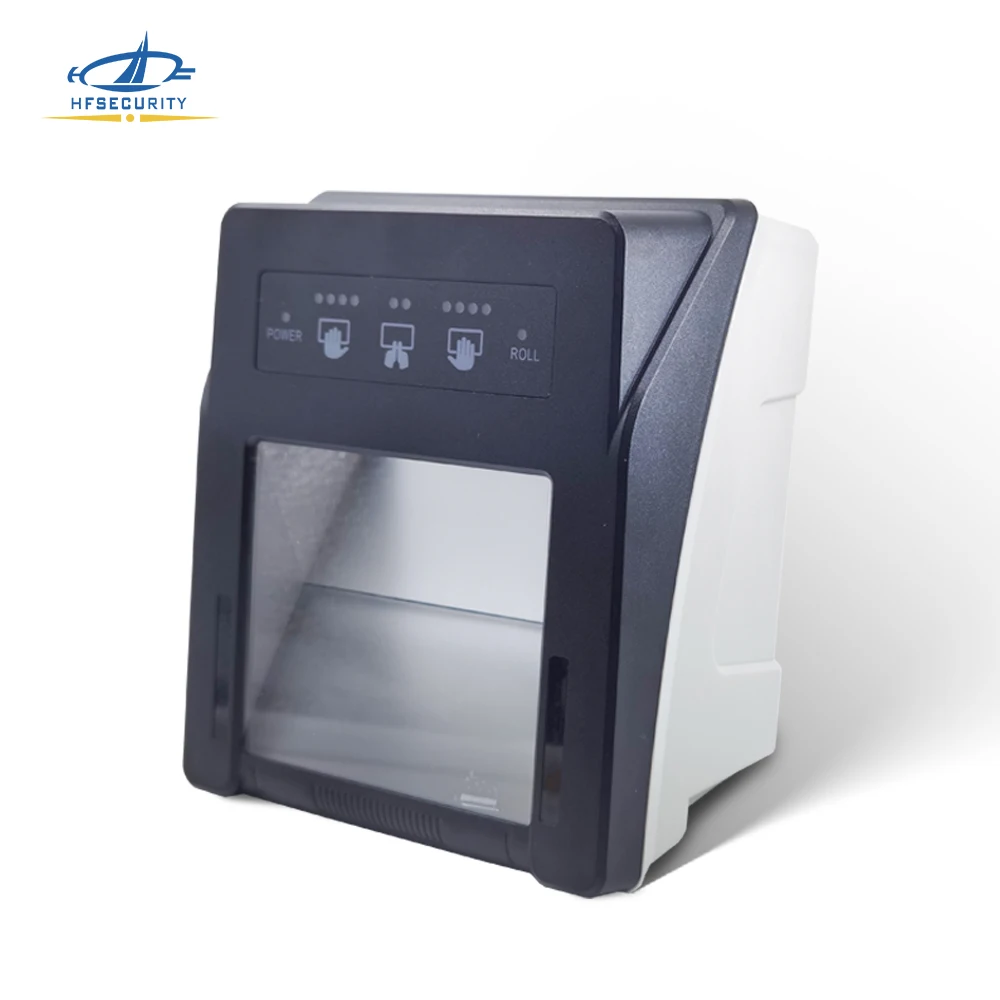

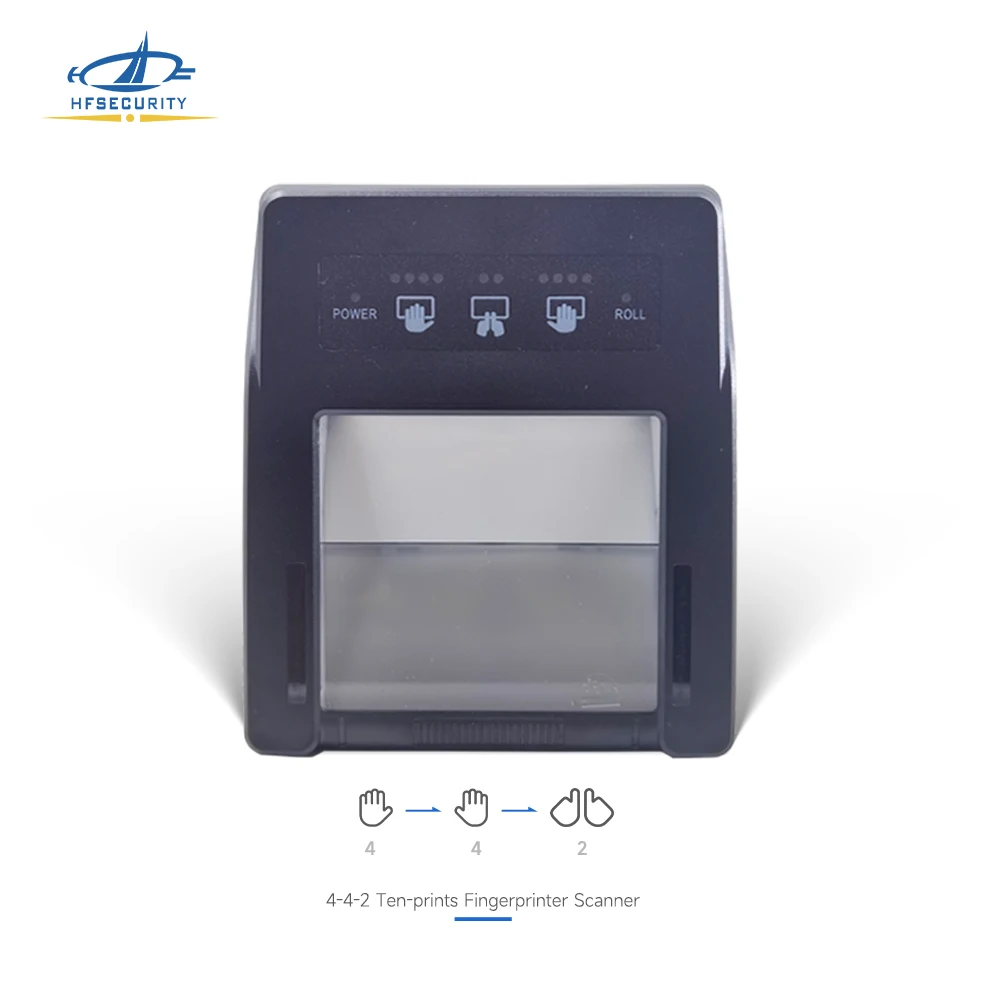

Bio7 Plus is the compact ten-print livescan device FBI’s IAFIS Appendix F certified and designed to capture four finger slaps, two thumbs or rolled finger simultaneously. The employs the most advanced optical technology and dedicated special light source that allow high speed print image capturing and seamless image processing, which ensure the best image quality for slap prints as well as for rolled fingerprints. The is absolutely your ideal choice for all your civil or criminal identification applications such as voter registration, national ID issuance, applicant background checks, etc.
Features
* Intuitive system requires no training
* Ergonomic design with extra wide platen
* Supports latent print and halo elimination
* Smart LED indicators during all prints scan
* Segmentation of slap into discrete single image
* Automatic calibration at start-up
* Ultra lightweight and portable
* Supports flat and rolled capture capabilities
* Ergonomic design with extra wide platen
* Supports latent print and halo elimination
* Smart LED indicators during all prints scan
* Segmentation of slap into discrete single image
* Automatic calibration at start-up
* Ultra lightweight and portable
* Supports flat and rolled capture capabilities
Specification
Capture Mode | Single finger flats/rolls, four finger slaps and 2 thumbs |
Active Platen Area | 81mm x 76mm |
Platen Size | 90mm x 85mm |
Image Quality | Complies with FBI's IAFIS Appendix F specification |
Resolution | 500 dpi, 256 levels of gray |
LED Indicators | Power, status and fingerprint position |
MTBF | More than 50,000 hours |
Fingerprint | ISO19794-4, support BMP, WSQ image foramt |
Light Source | Green light with smart indicators during scans |

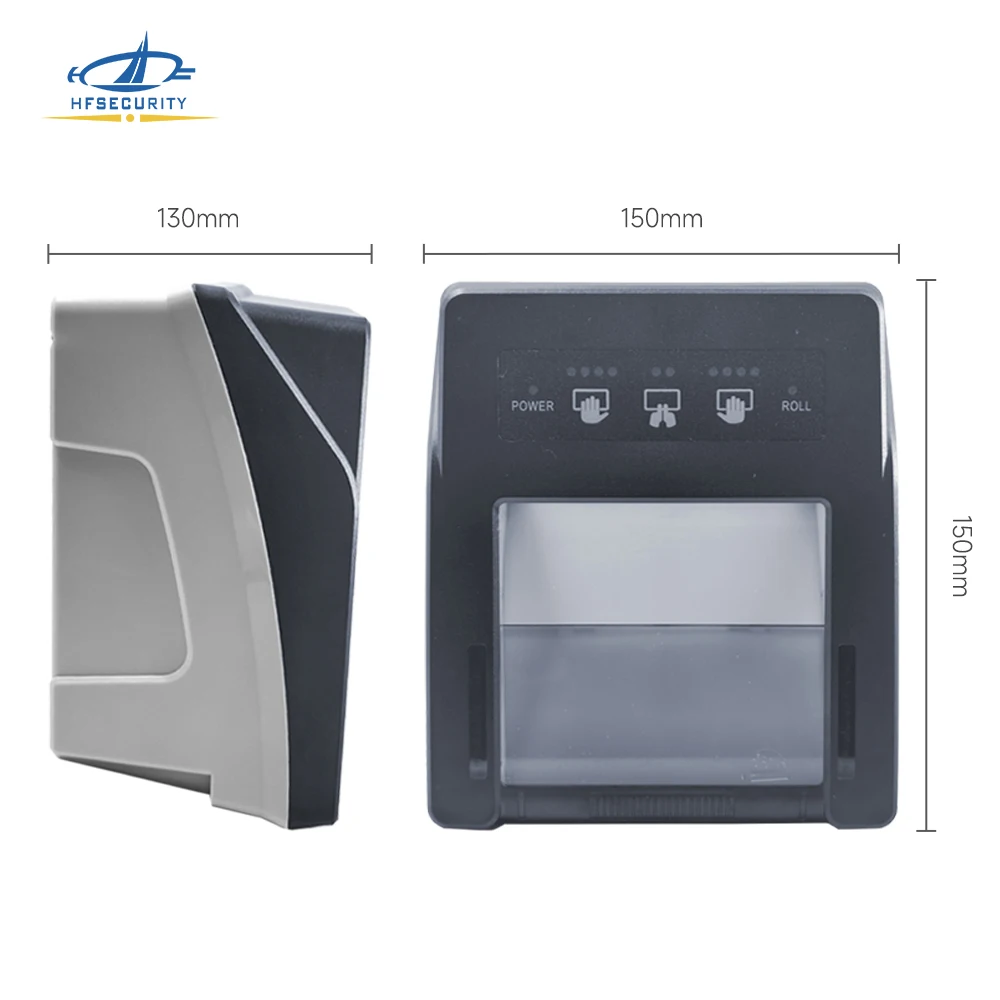

Dimensions | 150mm(L) x 150mm(W) x 130mm(H) |
Weight | 1.6 kg |
Data Interface | USB 2.0 |
Power Supply | 5V DC supplied via PC |

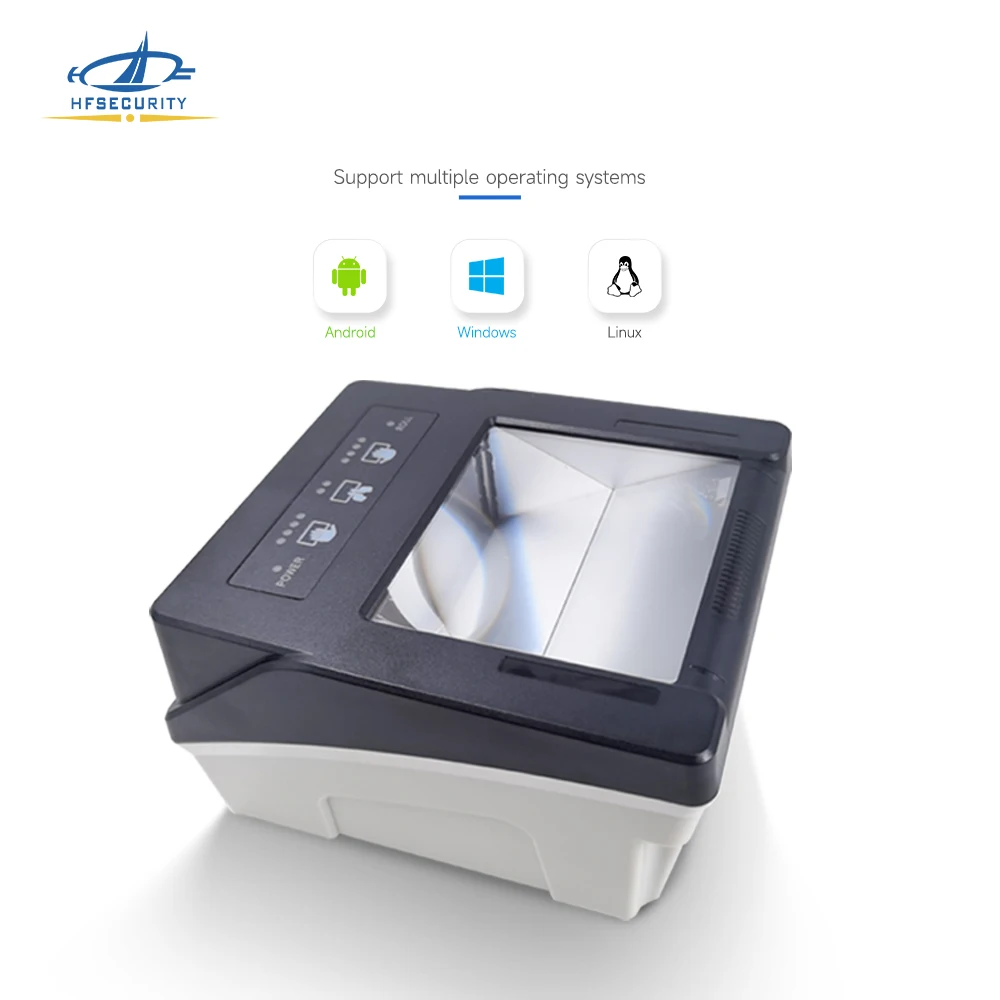

Operating Systems | WIN 7/8.1/10, LIN, 32 and 64-bit |
Software | Scan demo and essential SDK C#; VB; VC ;JAVA ( WIN) |
Operating Temperature | 0°Cto 50°C |
Storage Temperature | -20°C to 60°C |
Humidity Range | 10% to 90%, non-condensing |
Certificate | FBI, CE, UL, FCC, WHQL |
Pictures of Product

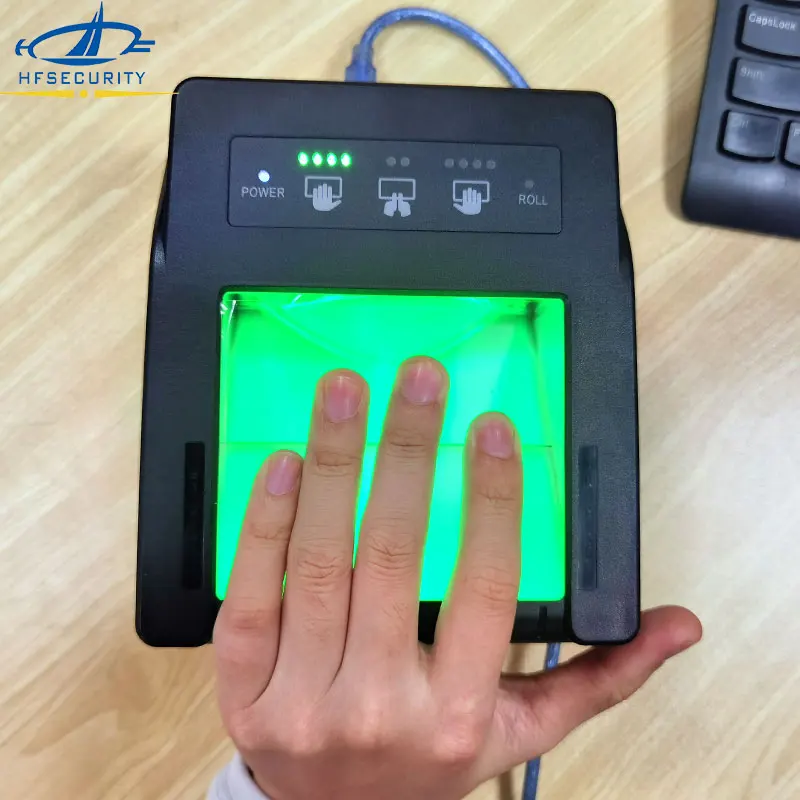

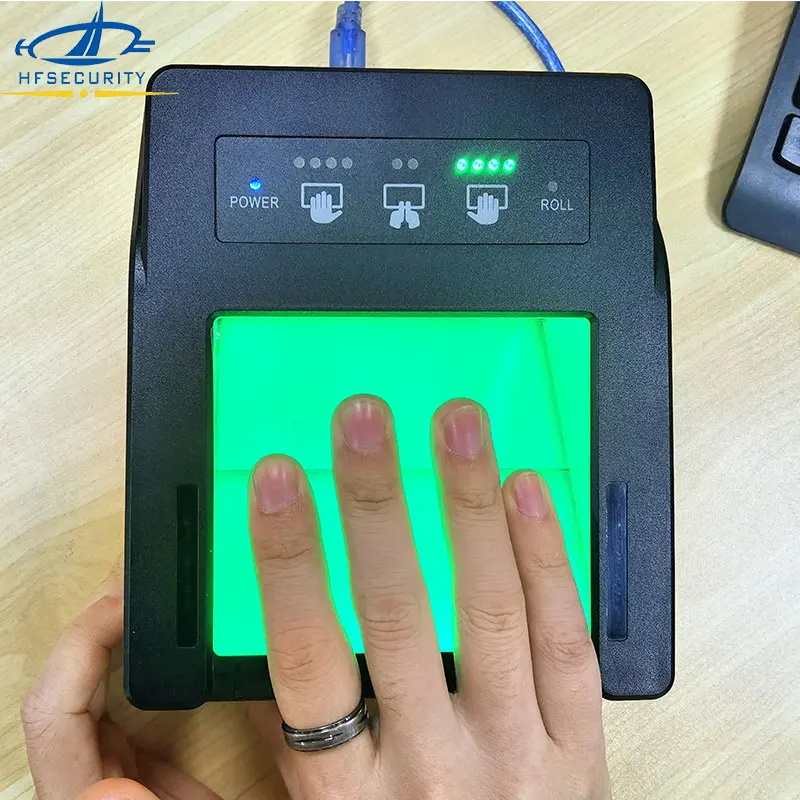

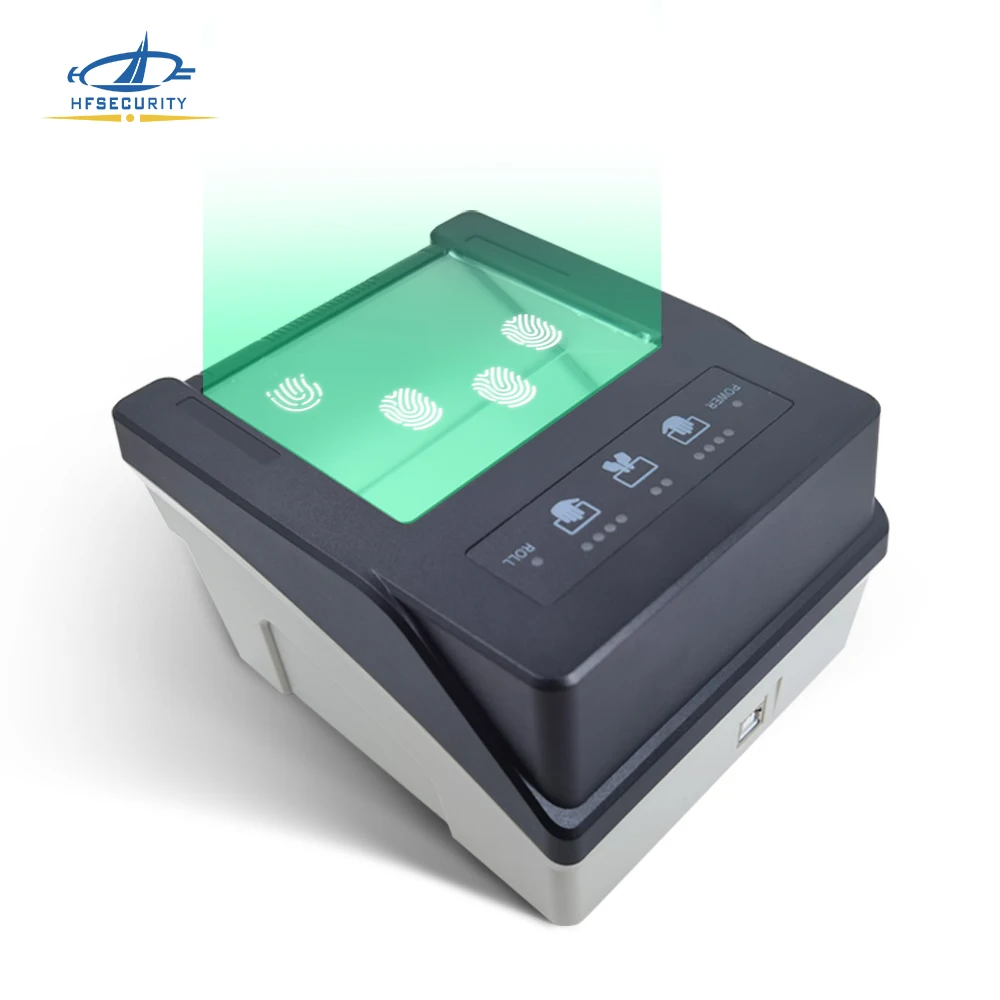

4 fingerprints demo

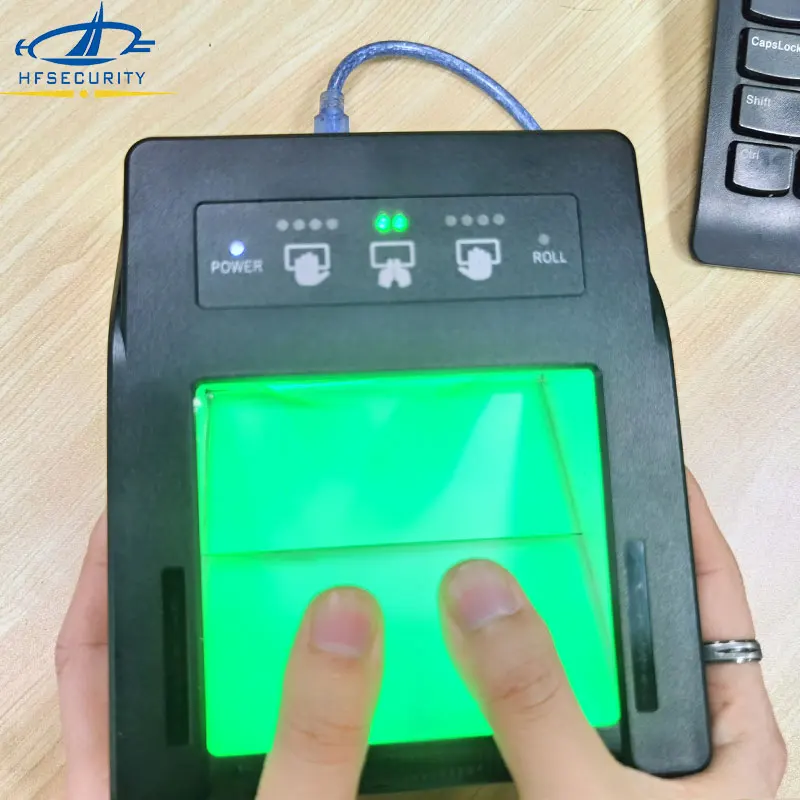

2 fingerprints demo

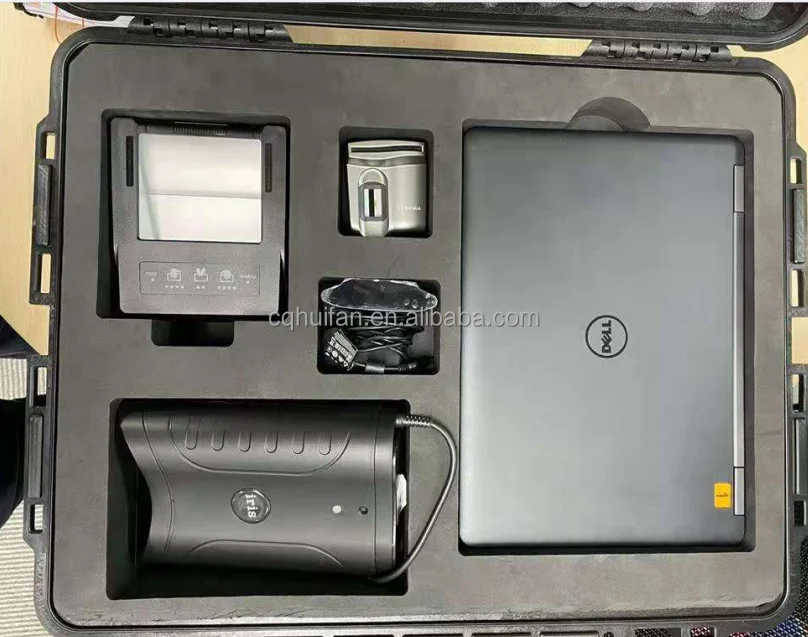

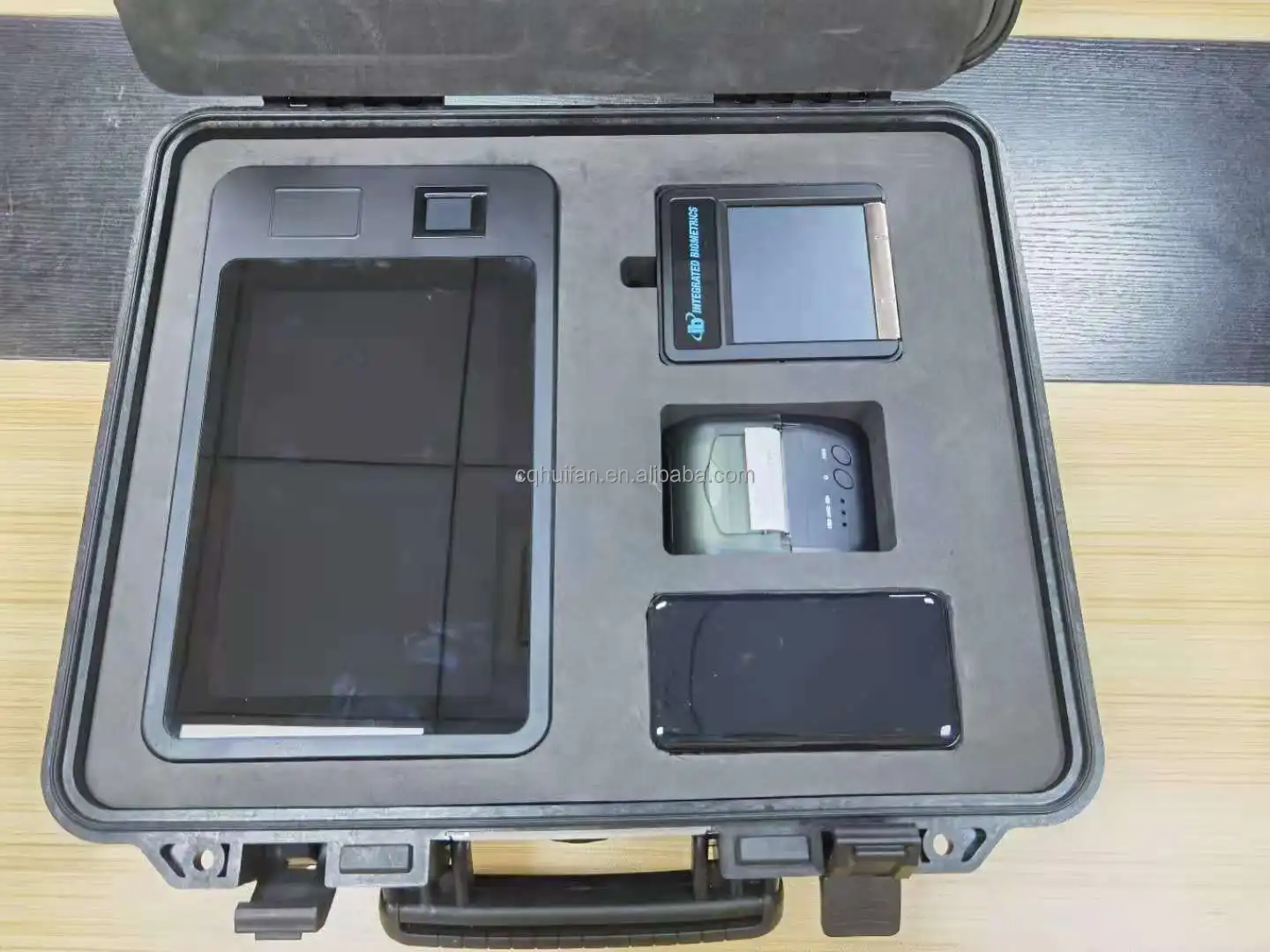

Product packaging
In the package, except the device. We also provide user manual, SDK and API.
Recommend Products
Why Choose Us
HuafanGroup is located in Chongqing city,Southwest of China.Her severalbrands,HFSecurity,BIO,Heystar,are widely in the field of interior decoration,light current,security and protection.We provide your one-stop solution in security and protection with the most professional and exprienced team in China(Shenzhen and Chongqing city),Pakistan,and United Kingdom.With professional attitude,we provide secure integration solution and products.Committed to the success of clients,we have server for more than thousands pf partners with 90% positive feedbacks in the last 10 years.We will keep going,creat interests of clients,create opportunities for staff,and create value for the society.
FRQ
F:Do you offer warranty for the device?
Q:Yes, we offer one year warranty, also lifetime technical support.
F:What is your MOQ?
Q:MOQ is 1 piece.
F:What is your payment terms?
F:What is your MOQ?
Q:MOQ is 1 piece.
F:What is your payment terms?
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card.
F:How to get software and SDK?
Q:Software and SDK is free. Will send download link after you place order.
F:How to get software and SDK?
Q:Software and SDK is free. Will send download link after you place order.
