high quality IP65 600mm 18w weatherproof led batten lighting lamp

Share on (62396052506):


Price:$35.00 - $37.00

Quantity:


Product Overview

Description



Detailed Images


The waterproof led light fixtures has a rectangular design and offers both optimum lighting and sealing results, thanks to its water, dust and corrosion resistant materials which give it IP65 protection. It has an aluminum housing and a PC cover and is ideal for replacing conventional fluorescent tubes. A massive internal aluminum core provides stability and assures good thermal conditions for SMD LED chips as well as the internal isolated power driver


General features of tri-proof LED tube light
Ingress Protection: IP65
Impact Rating: IK08
Lumens efficiency: 140lm/W
Rated Life: 50,000 hours

Sensor: option
Dimming: Option(0-10V)
Emergency backup: optional
temperature: -40℃ Up to 50℃ (-40℉up to122℉)
Warranty: 5 Years

* Certificate: DLC, ETL, TUV, CE, CB, SAA, RoHS



Materials
* Grey color PC body
* Milky/clear PC diffuser

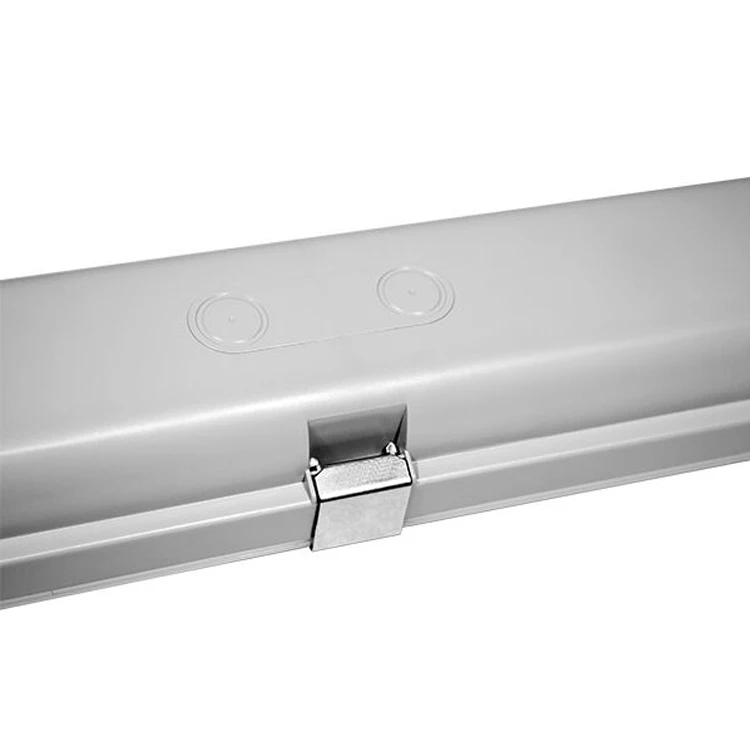

* stainless steel clips
* Reinforced drill points in base for direct surface fixing or conduit suspension.

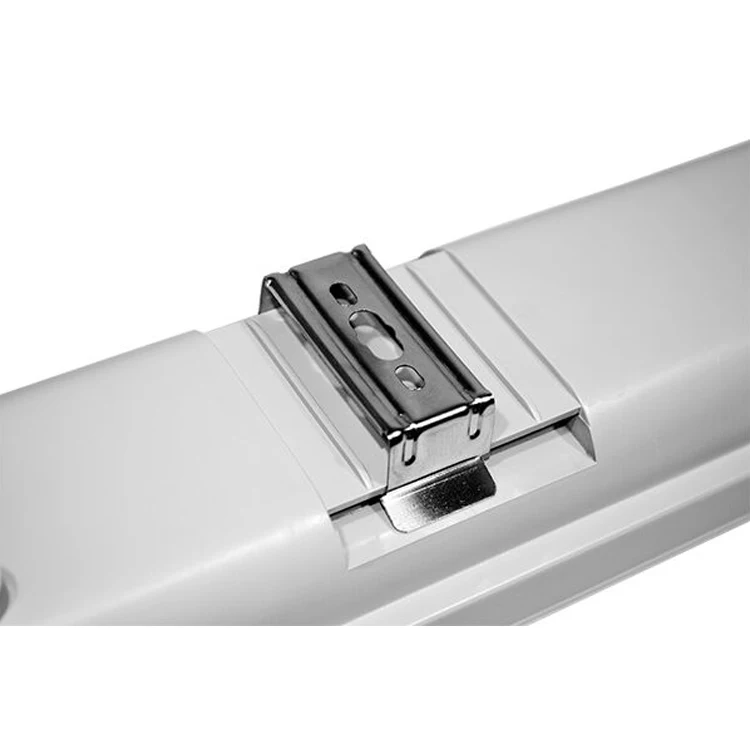

* stainless steel surface mounting clips
* Suspended form wire/chain using clips provided

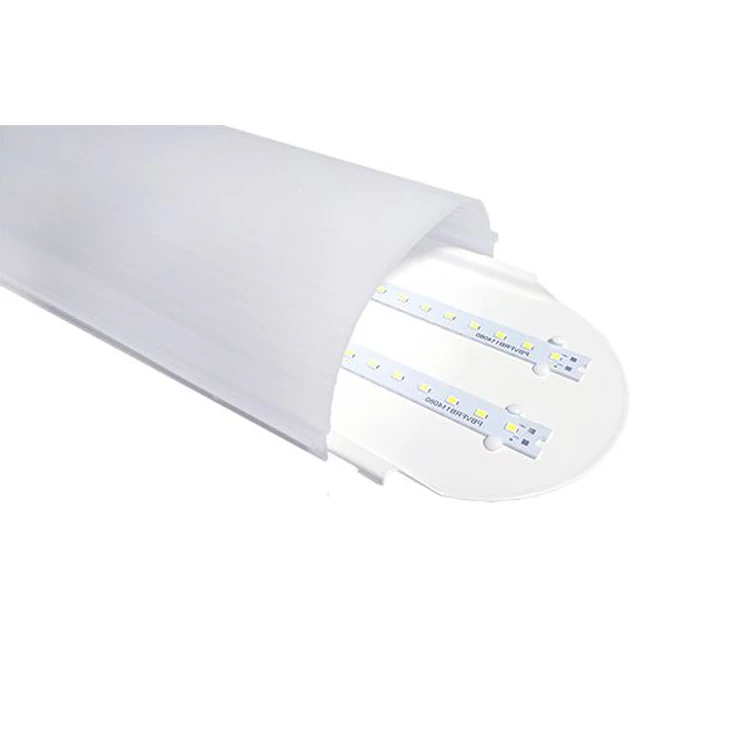

* Epistar SMD2835 chips

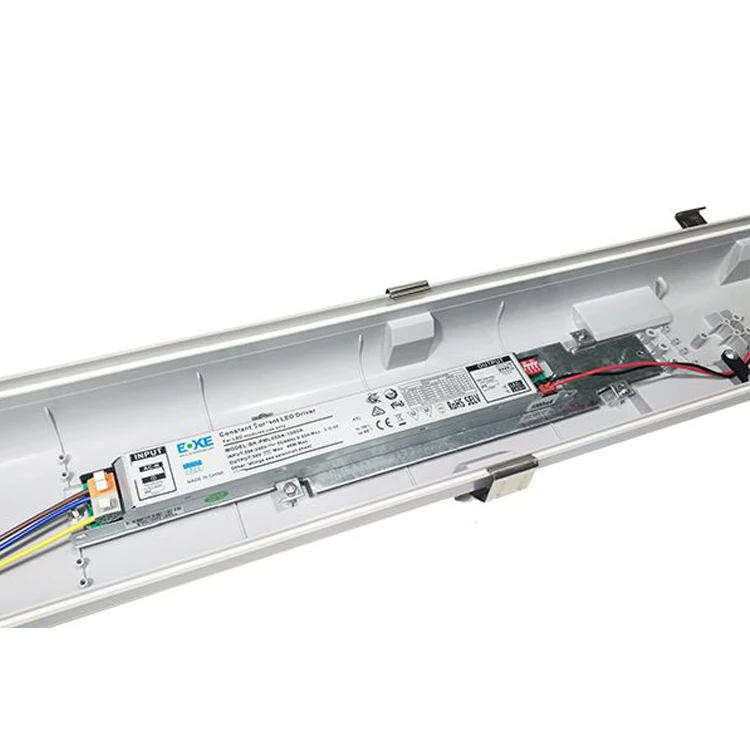

* Flicker free isolated LED driver

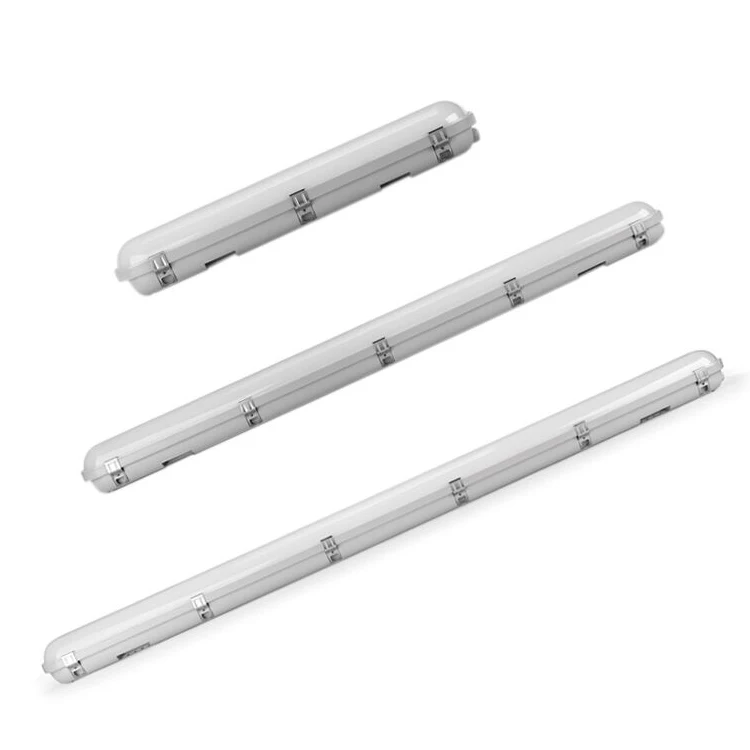

LED vapor tight is available in full range watts with different size


Size available:
600mm(2ft) 20W/30W
1200mm(4ft) 30W/40W/50W
1500mm(5ft) 60W/70W





Installation: Surface Mount/Chain Operating
Beam Angle: 120°
CRI: >80
Voltage: 200-240VAC
PF: >0.9
Color Temperature: 3000K/4000K/5000K/5500K/6000K/6500K


Product Presentation


LED vapor tight is widely used for wet areas, outside walkways, warehouses, storage areas, industrial units, farm buildings (Non-corrosive atmosphere), garages, workshops, car parks, changing rooms




Product Name
LED vapor tight

Material
Grey color PC body+ PC diffuser
Power
40W
Voltage
AC200-240VAC
Size
4ft                        1200*120*88mm
Color temperature
3000K/4000K/5000K/5500K/6000K/6500K
Lumens
5100lm(milky diffuser)
5500lm(clear diffuser)


Series LED vapor tight


Model NO.
Watt
Dimension
Lumens
CCT
HZ-VFS2F
20W
2ft(600*90*88mm)
2500lm(milky diffuser)
2700lm(clear diffuser)
3000k/4000k/5000k/
5500k/6000k/6500k
HZ-VFD2F
30W
2ft(600*120*88mm)
3800lm(milky diffuser)
4100lm(clear diffuser)
3000K/4000K/5000K
5500K/6000K/6500K
HZ-VFS4F
40W
4ft(1200*90*88mm)
5100lm(milky diffuser)
5500lm(clear diffuser)
3000K/4000K/5000K
5500K/6000K/6500K
HZ-VFD4F
50W
4ft(1200*120*88mm)
6400lm(milky diffuser)
7000lm(clear diffuser)
3000K/4000K/5000K
5500K/6000K/6500K
HZ-VFS5F
60W
5ft(1500*90*88mm)
7700lm(milky diffuser)
8300lm(clear diffuser)
3000K/4000K/5000K
5500K/6000K/6500K
HZ-VFD5F
70W
5ft(1500*120*88mm)
9000lm(milky diffuser)
9700lm(clear diffuser)
3000K/4000K/5000K
5500K/6000K/6500K


Related Products




FAQ


Q1. CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. DO YOU HAVE ANY MOQ LIMIT FOR LED LIGHT ORDER?
A: Low MOQ, 1pc for sample checking is available

Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes
3-5 days to arrive. Airline and sea shipping also optional.

Q5. HOW TO PROCEED AN ORDER FOR LED LIGHT?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. IS IT OK TO PRINT MY LOGO ON LED LIGHT PRODUCT?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: DO YOU OFFER GUARANTEE FOR THE PRODUCTS?

A: Yes, we offer 2-5 years warranty to our products.

Q8: HOW TO DEAL WITH THE FAULTY?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order.
