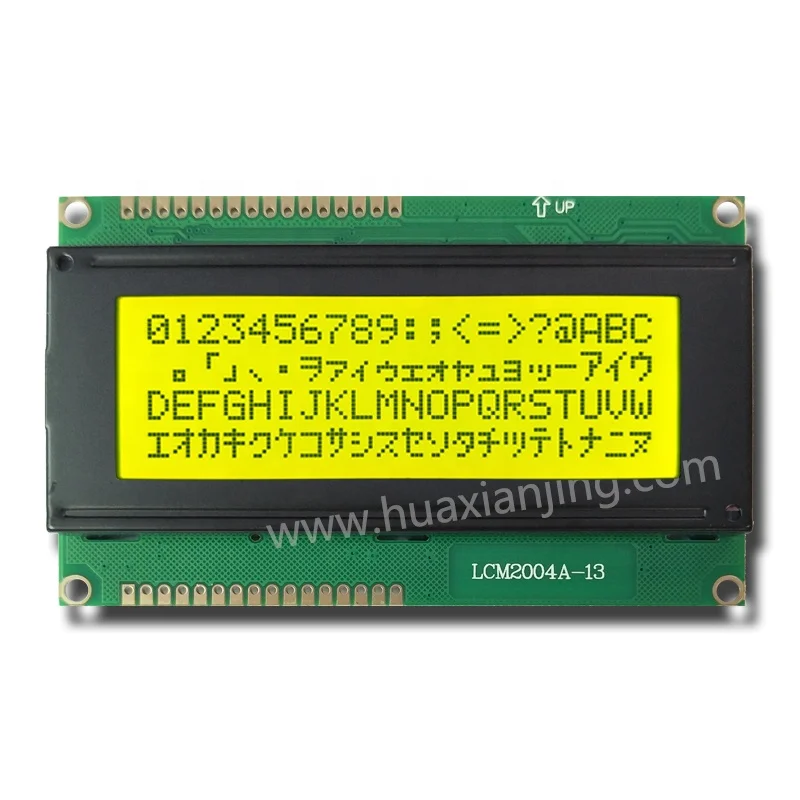

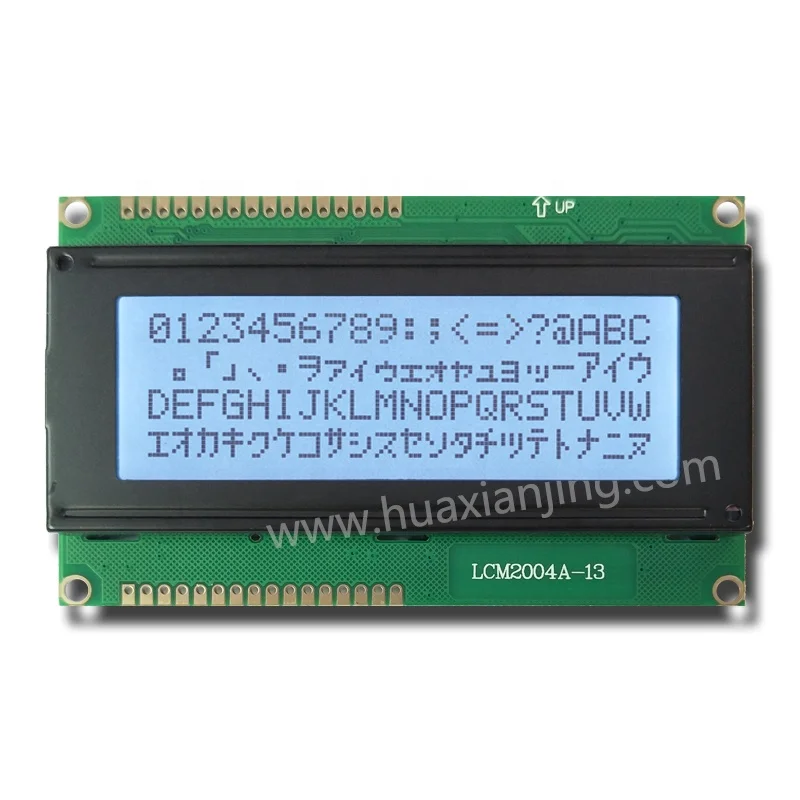

Character LCD 4 line x 20 character with top pin and bottom pin
- Category: >>>
- Supplier: Hua Xian Jing Display Limited
Share on (62396069447):
Product Overview
Description
Character LCD 4 line x 20 character with top pin and bottom pin
Product Description
Product information:
Module No.: | HSM2004A-13 |
Display Type: | 20 Characters x 4 Lines |
Encapsulation: | COB |
Outline Size: | 98 x 60 x13.2 mm |
Viewing Area: | 77 x 25.2 mm |
Screen Color: | Yellow-Green/Blue/Gray |
Backlight Color: | Yellow-Green/Green/White/Blue/Orange/Red |
Backlight:: | Side LED |
Driver IC: | AIP31066 |
Connector: | Conductive Silicon Rubber |
Pin Number: | 16 |
Interface: | 8-bit MPU interface |
Driver Condition: | 1/16 Duty,1/5 Bias |
Viewing Direction: | 6 O’Clock |
Operating Voltage: | 5V/3.3V |
Operating Temperature: | -20~+70℃ |
Storage Temperature: | -30~+80℃ |
Character LCD 20x4 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

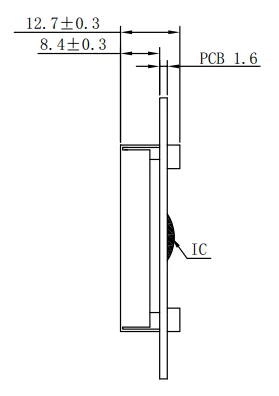

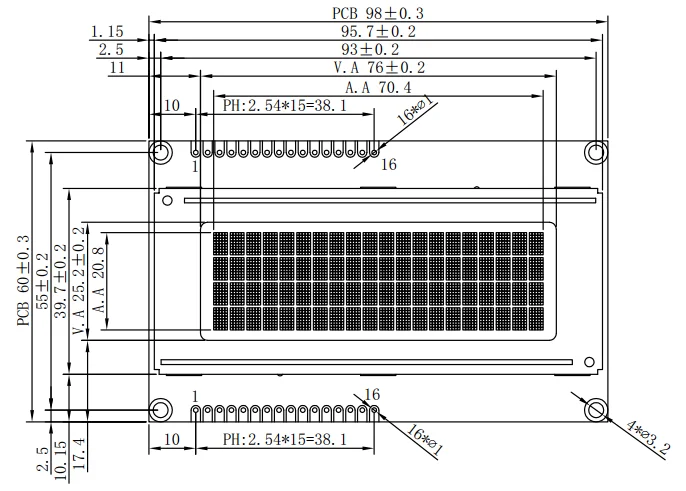

Mechanical Diagram:
Interface Pin Description:
No. | Symbol | Function |
1 | VSS | Ground (0V) |
2 | VDD | Supply Voltage for Logic (+5.0V ) |
3 | VO | Contrast Adjustment |
4 | RS | Data/Instruction Select |
5 | R/W | Read/Write Select |
6 | E | Enable Signal |
7--14 | DB0—DB7 | Data Bus |
15 | LED_A | LED Power Supply + (5.0V) |
16 | LED_K | LED Power Supply - (0V) |
Company profile
HUA XIAN JING Display Limited was established in 2008.We are specialized in R&D,production and sales of LCD panel,LCD module,COG LCD,TFT LCD, resistive & capacitive touch panel products,OLED and backlight.
Huaxianjing has 10,000 square meters of workshop.Its total investment is up to USD 5 million.We have 800 employees,15 R&D staff and 40 QC personnel.
In line with quality management standardization,the company sets up quality management system in accordance with ISO international quality management system.
Quality Control
| Quality Control:
1.Our quality control process has been refined to ensure that 100% of the products we sell meet or exceed industry standards!
2.Our technicians and QC teams test the original productsone by one using special device and instruments to ensure every product are perfect one before package and shipment!
|
Our Services
| Fast Quotation: | LCD panel 24 Hours, LCD Module 48 Hours |
| Mass production lead time: | 30 days |
| Sample lead time: | 15 days |
| Quality control | 100% product testing and inspection before shipment |
| After-sales service | 100% free replacement for defective products |
FAQ
Q1How long can i get the components ?
A Quantity less than 100 pcs will be shipped within 2 days. 5-15 working days for OEM/ODM orders. And it will take another 3-5 days to reach you by DHL, UPS, FEDEX,TNT... etc
Q2What is the warranty of your products?
A We provide one year Warranty.Generally,customers send the broken lcd back to us, we will assume the shipping costs,and send customers a new lcd.
Q3What is your minimum order?
A Different lcd have different MOQ.In general,total amount need exceed 250$ for every time.Sample also is acceptable.
Q4What payment methods and payment terms do you have?
A Trade assurance,HSBC,TT (Bank transfer),Western Union,Paypal,etc.
100% payment before shipment.
If OEM/ODM order,30% deposit before production and 70% balance before shipment.
Q5Free sample?
A 1-2 pcs sameples free,more samples need customers to pay.
