Lumiax 12v 24v 15a lifepo4 solar charge controller mppt solar regulator
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (62396098093):

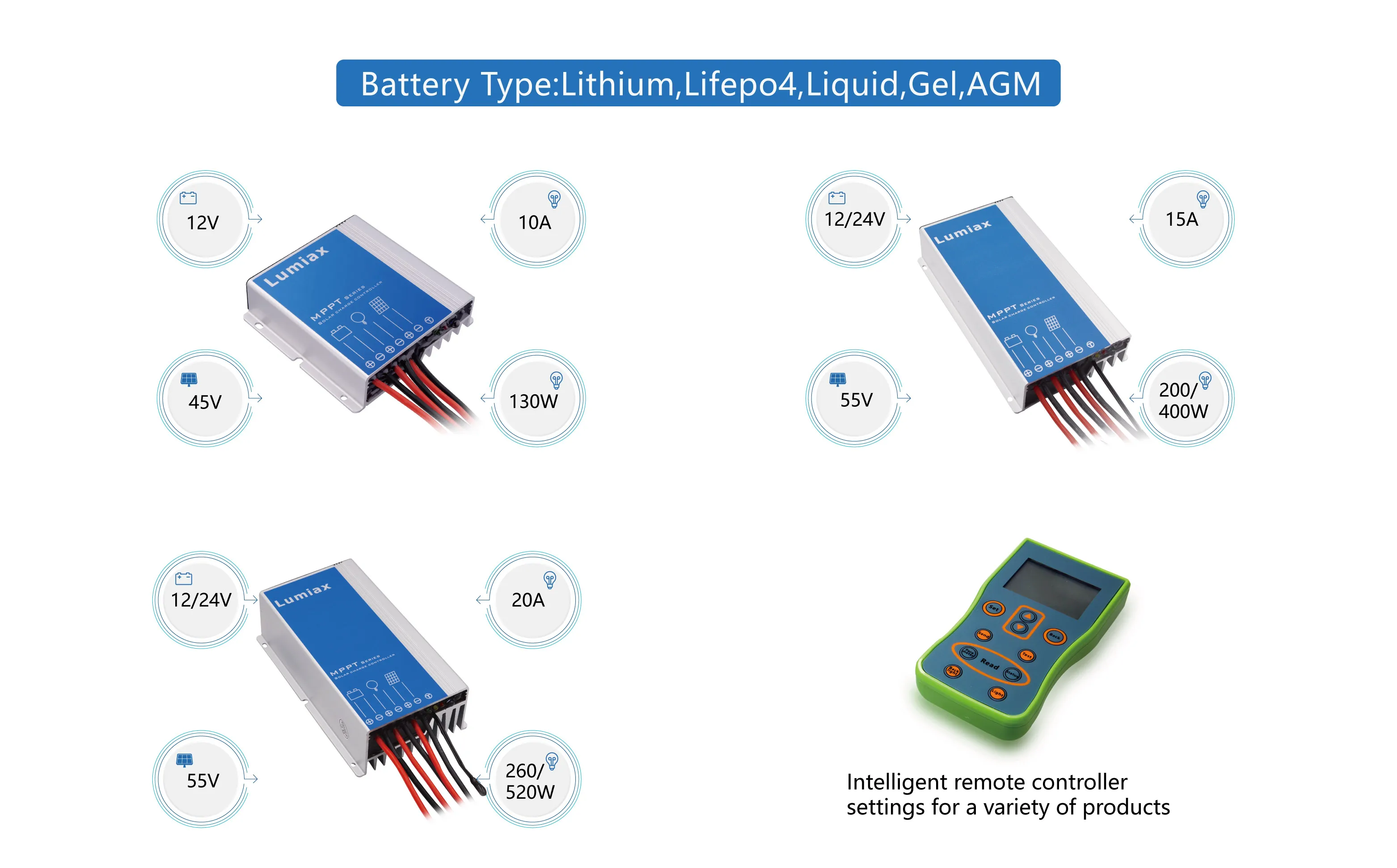

Product Overview
Description
Product Description
Lumiax 12v 24v 15a lifepo4 solar charge controller mppt solar regulator
The charging efficiency is about 20% higher than the traditional PWM controller, which can make the cost of the whole system much lower.
*MPPT tracking effiency > 99%
*Conversion efficiency up to 97%
*When BMS power off because of LVD,it can activate the system automatically
*5 stages time can be adjusted
*Remote Unit to configure,with LCD display
Product Paramenters
Type | SMR-MPPT1575Li | MPPT1050-DCLiR | |
Syatem Voltage | 12/24V Auto | ||
15/Max charging current | 15A | 10A | |
Charging voltage target | 10.0~32.0V(Programmable) | ||
Charging voltage recovery | 9.2~31.8V(Programmable) | ||
Low voltage disconnect | 9.0~30.0V(Programmable) | ||
Low voltage reconnect | 9.6~31.0V(Programmable) | ||
MPP Charging Voltage | <Charging voltage target | ||
Max battery voltage | 35V | ||
Max Solar Voltage | 55V | ||
Battery Type | Lithium | 120~150W | |
MPPT tracking range | (Vb+1.0V)~Voc*0.9 * | ||
Max Input Power | 150W(3 series)~400W(8 series) | ||
Day/NIght Threshold | 3~20V(Programmable) | 45V | |
Day/NIght Delay Time | 0~30min(Programmable) | 1~60W | |
Output Current | 15A | 20~45V | |
Max Tracking Efficiency | >99.9% | ||
Max Charge Conversion | 97% | ||
Self Consumption | 5mA | ||
Dimensions | 85.8*145*30mm | ||
Weight | 550g | ||
Wire Size | 4mm² | ||
Max Altitude | 4000m | ||
Protection Degree | IP67 | ||
Packing&Shipping
Company Introduction
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system and solar street light.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system and solar street light.
1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding\\welding slag\\high temperature harm to components around.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
Certifications
Exhibition
Contact me
1.Q:Why always choose Lumiax?
A.* Professional--More than 12 years Professional Solar Controllers Experience
* Reliable--10 years Alibaba Gold Supplier
* Hi-tech--Famous Brand IC and material
*Certifications--CE(TUV), ISO 9001, Patent etc.
2. Q: Are you a factory or trading company?
A: We are a factory, located in Qingdao, China. You are warmly welcomed to visit us.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for batch order
4.Q:How about your payment and shipment terms?
A: Payment: We accept T/T, L/C Western Union,Paypal etc. terms of payment.
B.Shipment: We can choose DHL, TNT, FEDEX etc; For batch order, by sea or by air, also can deliver to your forwarder.
Any other controllers,welcome to contact with me!
A.* Professional--More than 12 years Professional Solar Controllers Experience
* Reliable--10 years Alibaba Gold Supplier
* Hi-tech--Famous Brand IC and material
*Certifications--CE(TUV), ISO 9001, Patent etc.
2. Q: Are you a factory or trading company?
A: We are a factory, located in Qingdao, China. You are warmly welcomed to visit us.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for batch order
4.Q:How about your payment and shipment terms?
A: Payment: We accept T/T, L/C Western Union,Paypal etc. terms of payment.
B.Shipment: We can choose DHL, TNT, FEDEX etc; For batch order, by sea or by air, also can deliver to your forwarder.
Any other controllers,welcome to contact with me!
