Surge Protection Device Standard 35mm DIN Rail 2P 20KA 385V AC Household Low Voltage Anti lightning SPD Surge Arrester
- Category: >>>
- Supplier: Dongguan Lude Photovoltaic Co. Ltd.
Share on (62396155462):
Product Overview
Description

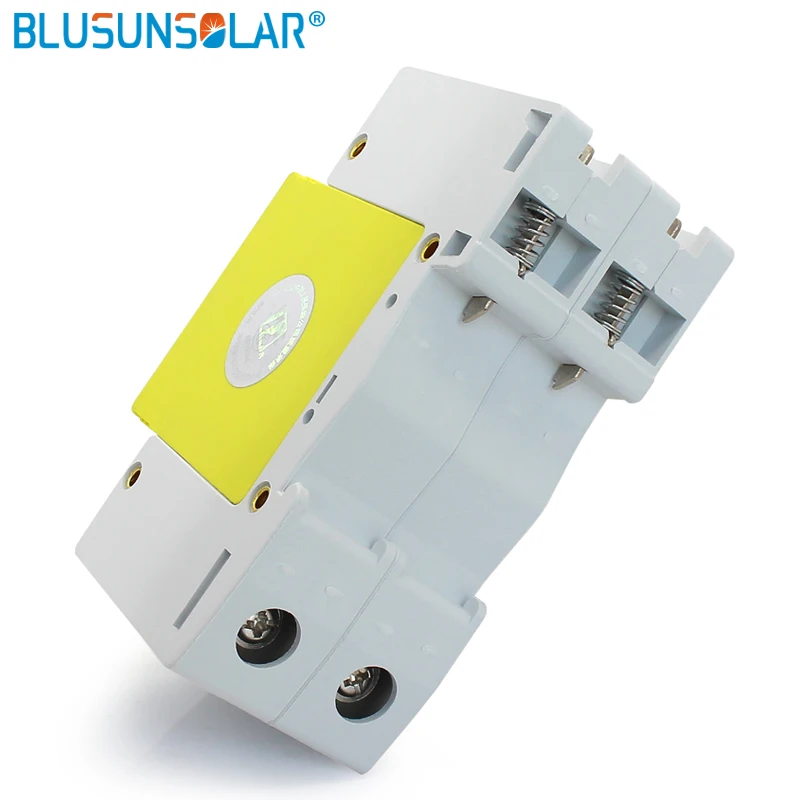

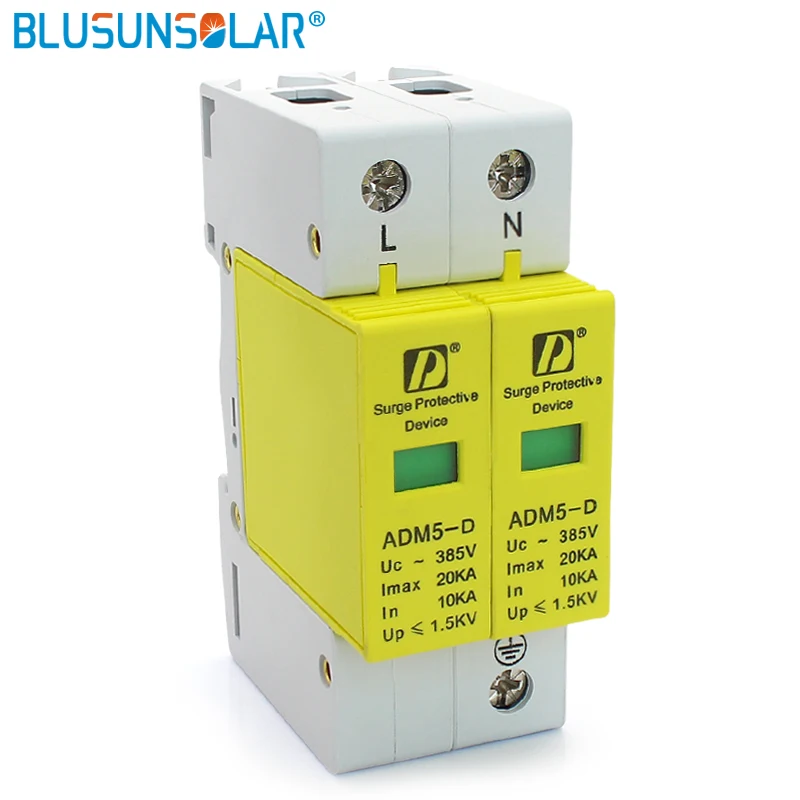

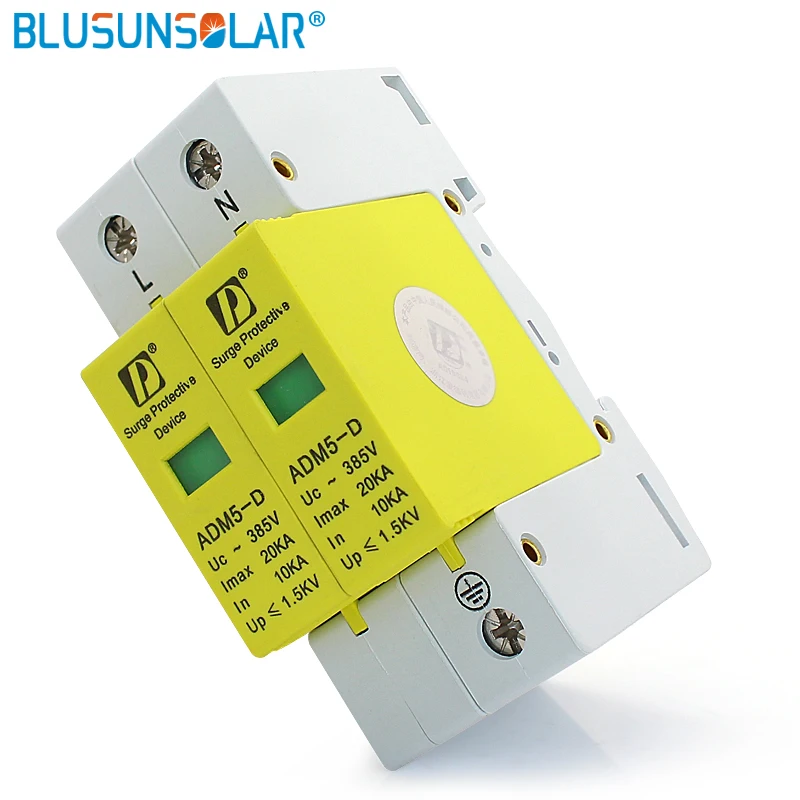

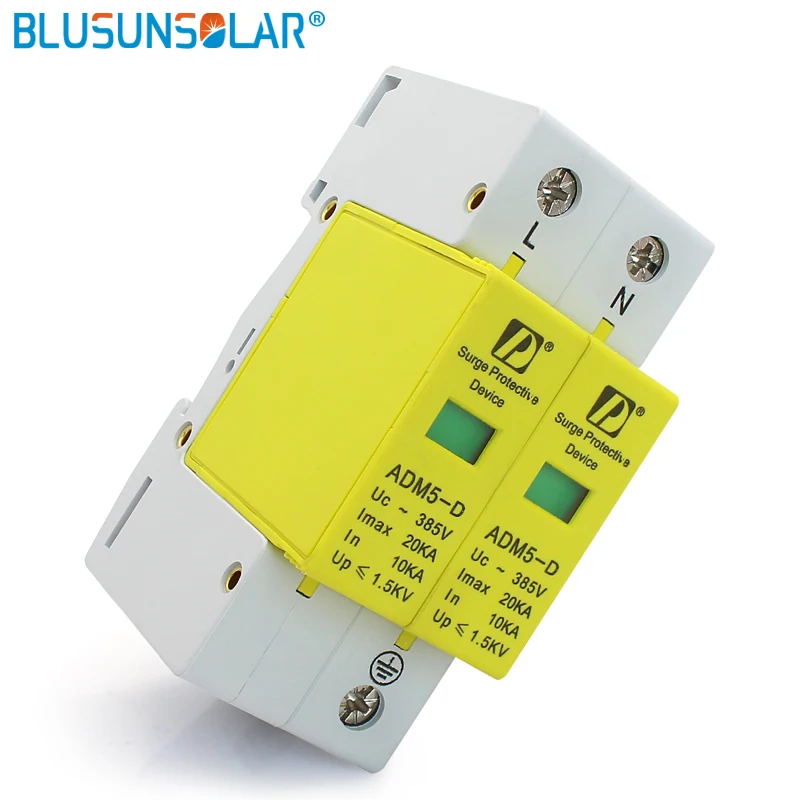

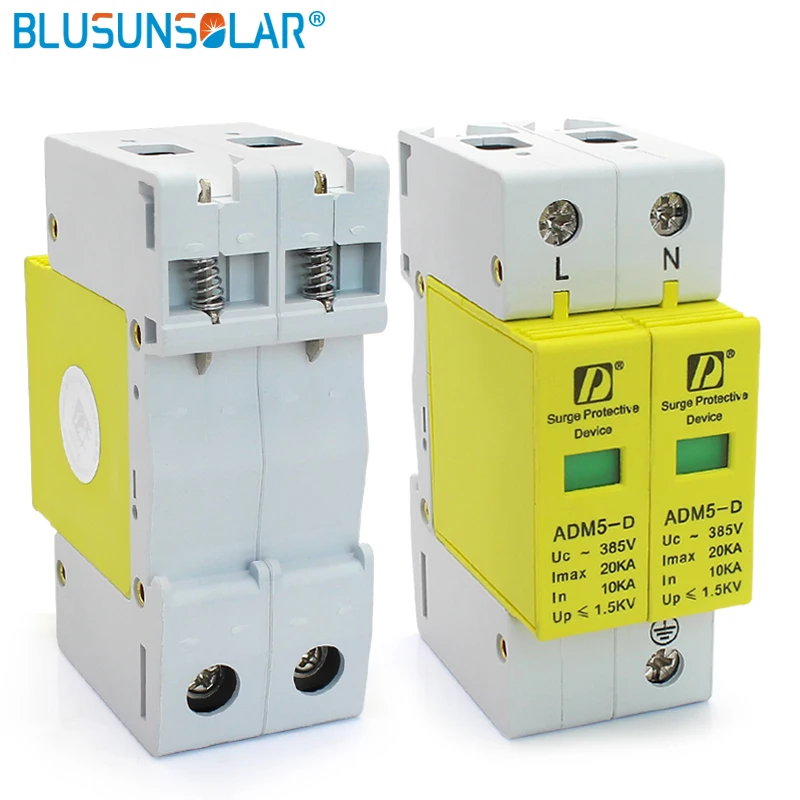

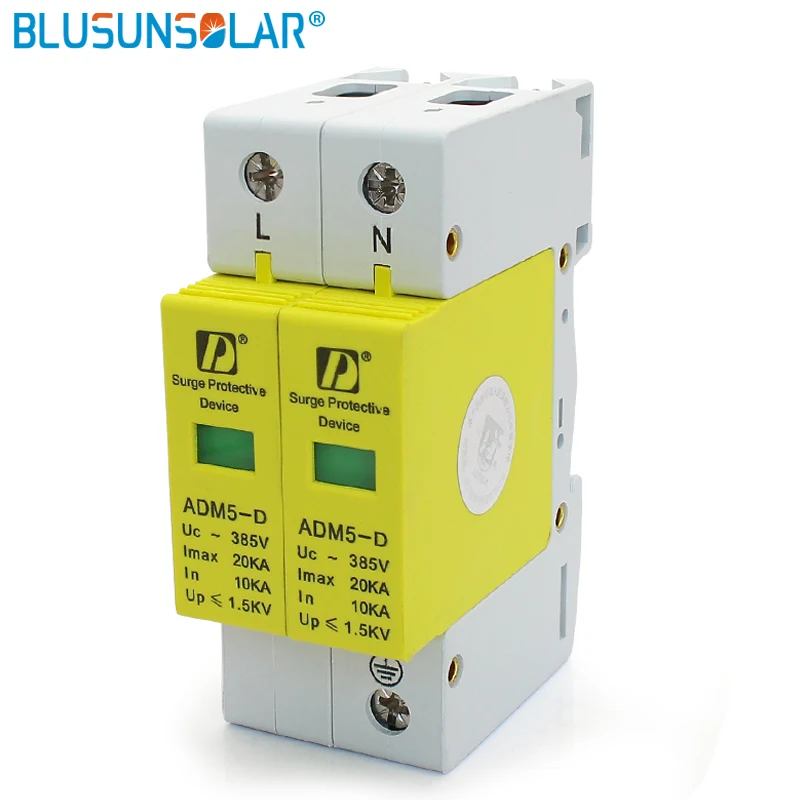

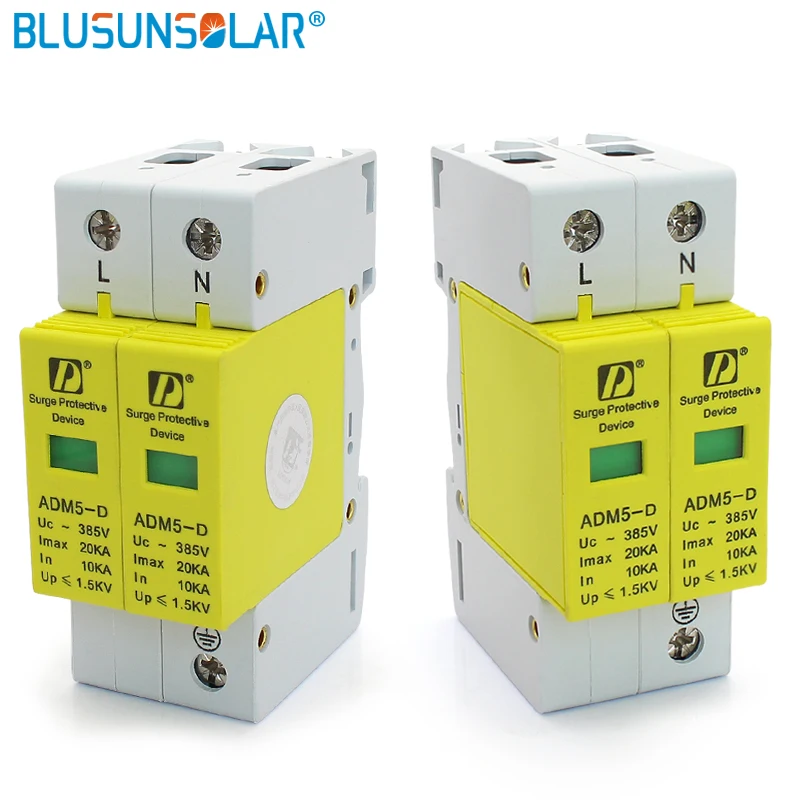

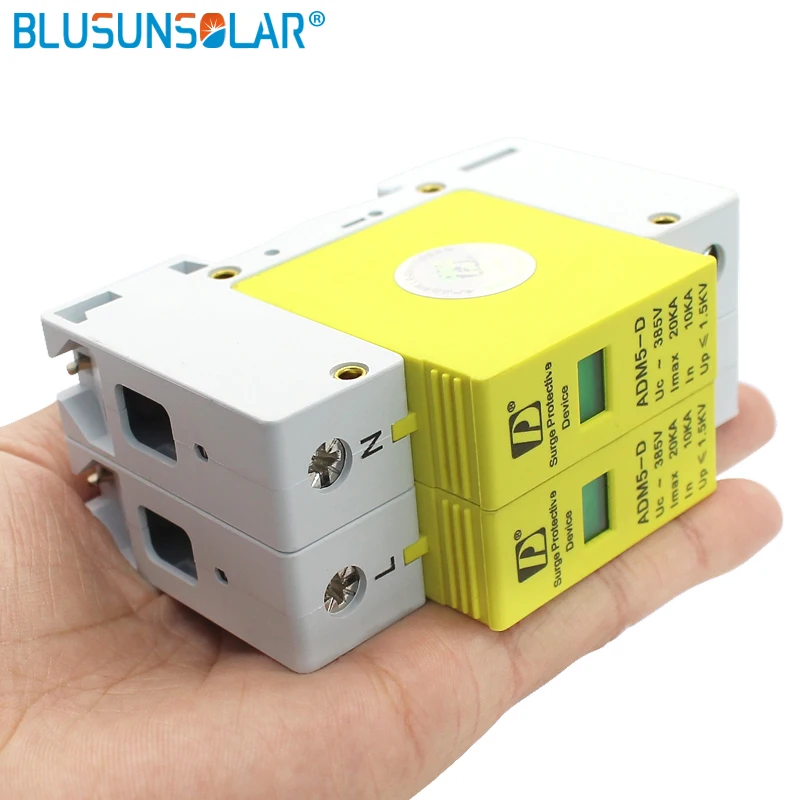

Surge Protection Device Standard 35mm DIN Rail 2P 20KA 385V AC Household Low-Voltage Anti-lightning SPD Surge Arrester
Product Description
Application:
1. AC 385V 1 Phase Surge protection device,widely used in sub-distribution box
2.Maximum continuous operating voltage Uc(V): 1385V AC
3.Voltage protection level up(KV): ≤1.8KV
4.Nominal discharge current In(8/20μs)KA: 10kA
5.Maximum discharge current Imax(8/20μs)KA: 20kA
6.Response times(ns): <25 ns
7.Test standard: GB18802.1 IEC61643-1
8.Operating environment°C: -40°C~85°C
9.Relative humudity(25°C): ≤95%
10.Installation: Standard rail 35mm
11.Material of outer covering: Fiber glass reinforced plastic
Packaging & Shipping
1.All the goods will packed by paper carton well and protect to get damaged during the transportation
2.We can offer the shipping model like TNT,Fedex,DHL
3.After the shipment we will offer the tracking number for your record to track the status,we will keep checking and keep you posted for the delivery status
Our Services
We will give you a best service.
1) Reply inquiry in 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested and the reasonable price will be provided you upon.
Company Information
\\
FAQ
Q: Is sample available and free?
A: Sample is available but the sample cost should be pay by you.The cost of sample will be refund after further order received.
Q:Do you accept customized order?
A:Yes, we do.
Q: What's the delievery time?
A: It usually takes 4-27 days after confirming payment, but specific time should be based on the order quantity.
Q:How can I contact you?
A:Contact person:Matte Mao
Email: sales1(at)leadergroup-cn.com
Mob: 0086-139-2683-2641
