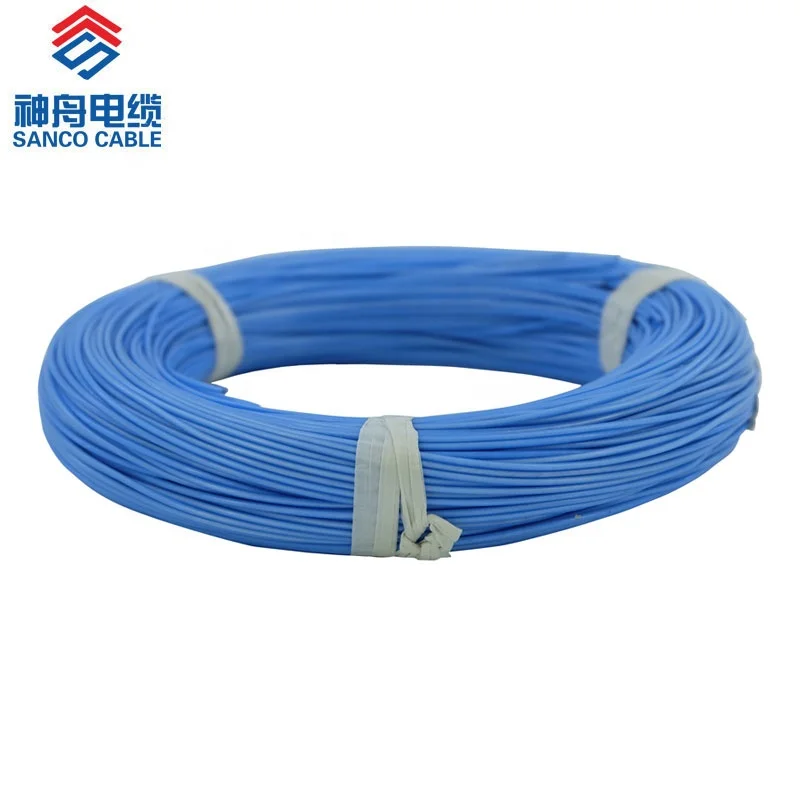

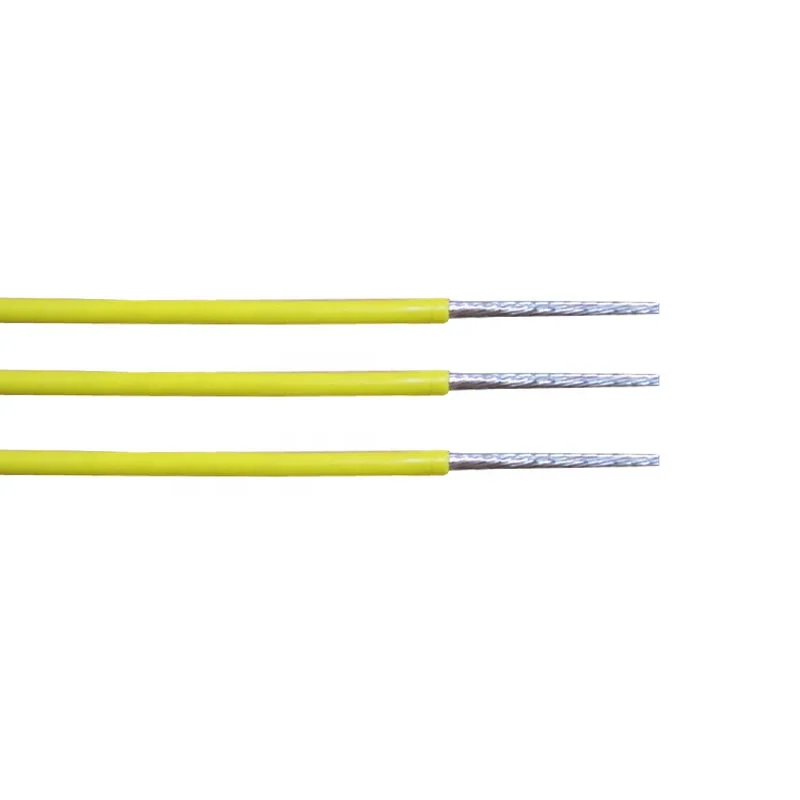

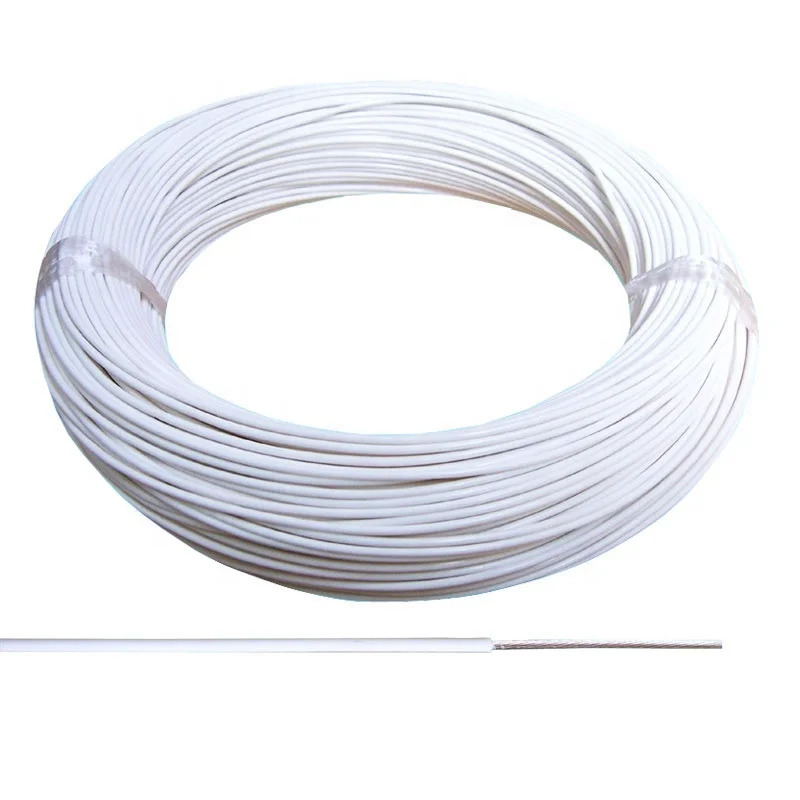

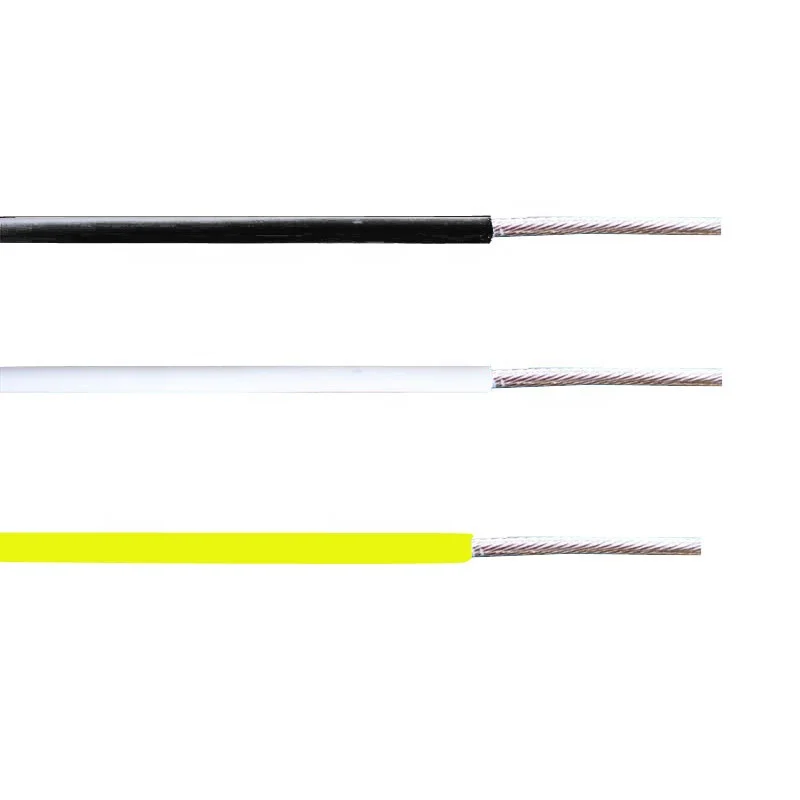

PTFE Silver Copper 250 Degree Fluoroplastic Extruded Wire
- Category: >>>
- Supplier: Xiangtan Shenzhou Special Cable Co. Ltd.
Share on (62396282520):
Product Overview
Description
PTFE Silver Copper 250 Degree Fluoroplastic Extruded Wire
Product Description
Application:
PTFE Silver Copper Wire is suitable for aircraft wiring, electrical equipment, telecommunication equipment and instrumentation circuits with alternating rated voltage of 600V and below in aviation and electronics industries.
PTFE Silver Copper Wire can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance; flame-retardant, Anti-ageing, long age of usage
Color: red yellow blue green white black orange purple brown
Cable structure:
Insulation: FEP insulated,PFAinsulated (250ºC), PTFE insulated( 250ºC)
Conductor: tinned copper wire conductor , silver plated copper wire or bare copper wire conductor
Temperature range:-65~+200ºC, -80~+250ºC
Rated voltage:600V and below
Type and Name:
| Type | Name |
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Cable Structures:
Sectional Area (mm2) | Conductor Construction (mm) | Insulation Thickness(mm) | Outer Diameter(mm) | Max Conductor Ressistance DC20℃(Ω/km) |
0.05 | 7/0.10 | 0.18 | 0.66 | 376.2 |
0.08 | 7/0.12 | 0.25 | 0.86 | 227.0 |
0.15 | 7/0.16 | 0.25 | 0.95 | 126.0 |
0.20 | 7/0.20 | 0.25 | 1.10 | 83.5 |
0.35 | 19/0.16 | 0.30 | 1.40 | 49.5 |
0.50 | 19/0.18 | 0.35 | 1.60 | 36.0 |
0.75 | 19/0.23 | 0.35 | 1.85 | 22.7 |
1.0 | 19/0.26 | 0.35 | 2.00 | 19.0 |
1.20 | 19/0.28 | 0.40 | 2.20 | 15.3 |
1.50 | 19/0.32 | 0.40 | 2.40 | 11.7 |
2.0 | 19/0.37 | 0.45 | 2.75 | 9.45 |
2.5 | 19/0.41 | 0.50 | 3.15 | 6.86 |
4.0 | 37/0.37 | 0.55 | 3.58 | 4.51 |
Name | PTFE Silver Copper 250 Degree Fluoroplastic Extruded Wire |
Conductor Materials | Silver Plated, Tinned Plated or Bare Copper |
Insulation | |
Rated Voltage | 600V and below |
Rated Temperature | -65~+200ºC, -80~+250ºC |
Color | White, Yellow, Green, Black, Blue, Red, Yellow/Green.. |
