Product Overview
Description
Automatic 500g 1kg 10kg paper bag corn / maize / wheat / flour packing machine/5 kg pouch packing machine
Product Description

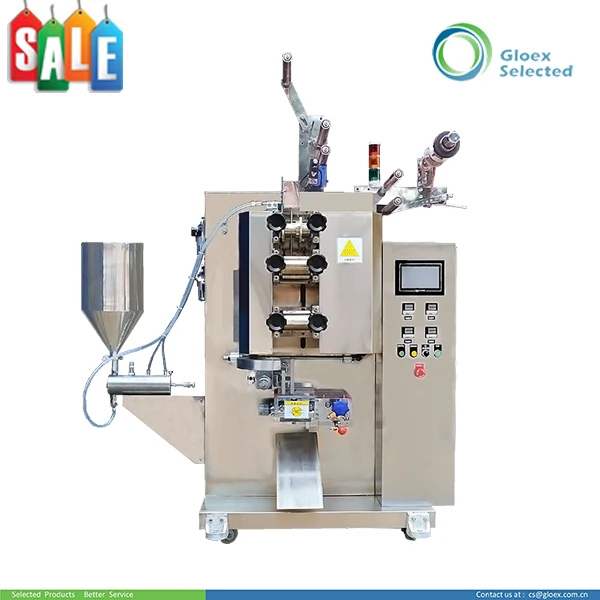

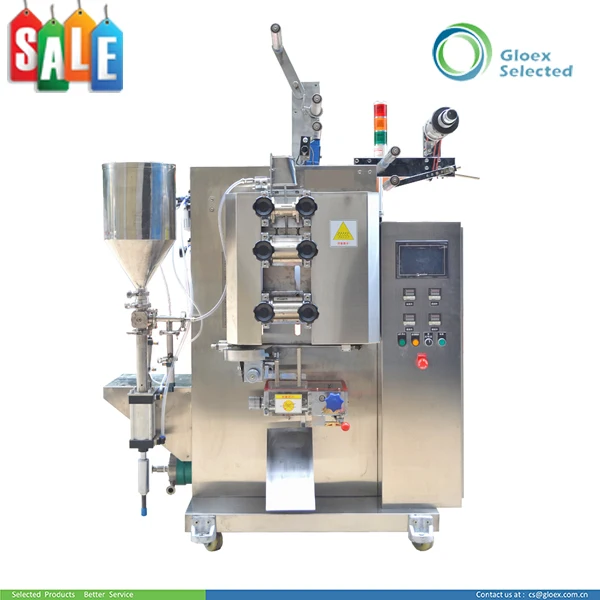

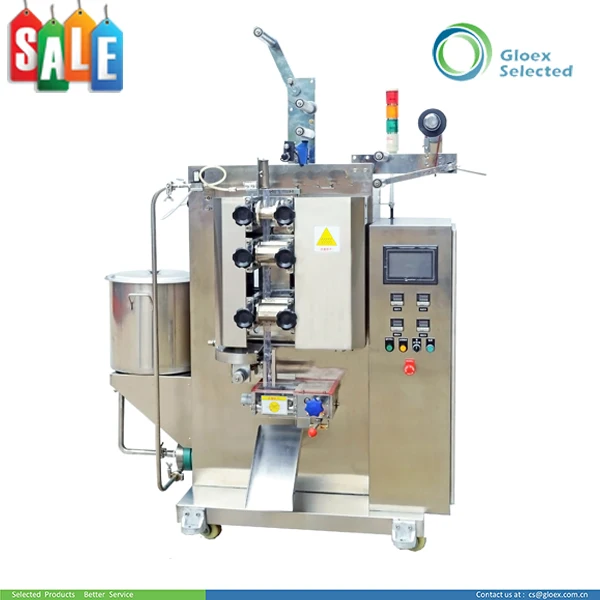

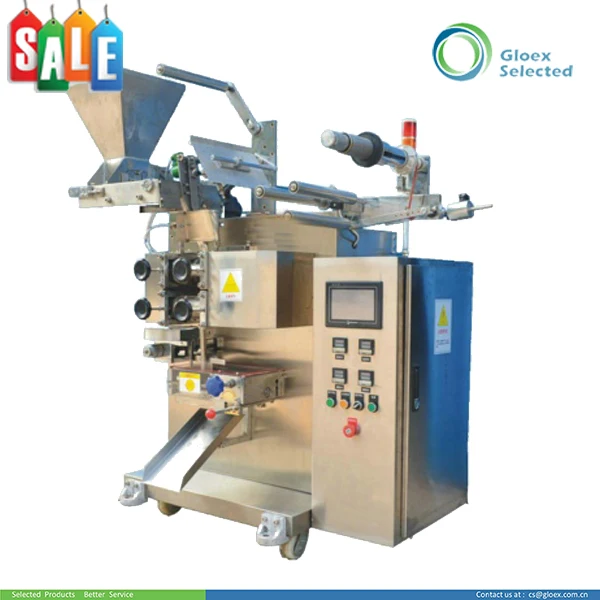

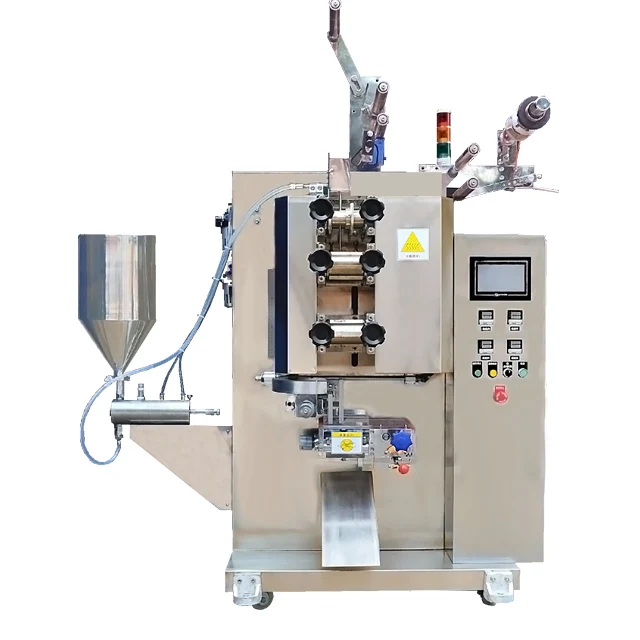

This machine is applicable for dosing powder, granule or liquid and sealing in form of sachets, with 3, 4 sides or back sealing, different patterns of sealing, and different styles of cutting, the detail application description as following table:
Issue | Application Description |
Applicable Sachets | One of the following scenarios can be selected for one machine: 1) 3 or 4 sides sealing 2) Back sealing |
Applicable Products | Configure with different dosing devices, capable to pack with liquid, powder or granule |
Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL etc |
Above are the reference style of sachets
Standard Features
• Laminate heat sealable sachet dosing, making and sealing by roller pressing, more tightness of sealing
• PLC & HMI Control , Easy for parameter setting and troubleshooting
• Able to achieve 3 and 4 sides sealing sachet packaging without changing any component.
• Different sachet size adaption, simple adjustment
• Intelligent temperature controlling configuration, ensure the artistic and neat sealing
• Double motor configuration, achieve continuous packaging, more faster speed; achieve separate power between sealing and cutting off, more reliable performance
• Pressing type coder built-in, saving cost of coder printer configuration
• Flexible setting up of linking sachet cutting off
Optional Features
Optional Features | Options/Description |
Products Touching Parts | 1) Stainless Steel 304 2) Stainless Steel 316 |
Sealing Patterns | 1) Checkerboard Pattern 2) Flat Line Pattern |
Sachet Cut-off Shape | 1) Flat Cut-off 2) Serration Cut-off 3) Linking Sachet Cut-off |
Tear Notch | 4) Utilize the serration shaped cutting as the tear notch 5) Addition Tear Notch Punching Device |
Code Printing | 1) Pressing Type Coder built-in 2) Ribbon Code Printing 3) Code Inkjet Printing |
Material Pre-heating | Apply for liquid dosing |
Material Stirring | To stir material and get better fluidity |
Sachet Types | 1) 3 and 4 sides sealing types 2) Back sealing types |
The working processes include: The machine pull laminate packaging film to the roller press sealing devices for horizontal and vertical sealing, in the meanwhile, the dosing device dose the product into the sachet with one side open, then will do the last side sealing and cutting off. Upon the different products, we need to configure specific dosing device. Above are the typical working process diagram
Technical Specification
Catalogue/1M-2/319-x | 11 | 15 | 18 | 20 |
Sachet Size-Length ‘mm | 50-210 | 50-210 | 50-210 | 50-210 |
Sachet Size-Width ‘mm | 30-110 | 30-150 | 30-180 | 30-200 |
Filling Volume-gram | 1-50 | 1-100 | 1-150 | 1-200 |
Packing Speed –Sachets/min | 20-120 | 20-120 | 20-120 | 20-120 |
Power Requirement | AC380V 50/60HZ | |||
Power Consumption-KW | 3.8-4.0 | |||
Approximate Weight -kg | 400-500 | |||
Dimension ( ‘mm ) | 1) Liquid Sachet Packaging 1400*1000*1800 2) Powder Sachet Packaging 1400*900*1670 3) Granule Sachet Packaging 1400*1000*1670 | |||
Practically, the flat pressing type sachet packaging machine also is a prevail sachet packaging solution. But compare to flat pressing type machine, this roller pressing type machine has its advantages as indicated in the following table:
Advantages | Description |
More tightness of sealing Add value of products | The roller pressing technology enable stable, high strength and longer time of sealing |
More suitable for liquid sachet, No leakage | Double horizontal sealing rollers to reinforce the sealing effect, assure no leakage, no damage during market distribution |
High Availability | The double driving motors and roller pressing design enhance the availability factor, achieve 7x24 hours operation |
1/2-1/3 faster speed | The frequency conversion motor and roller design enable the packing process in non-stopping status other than stepping status |
3 and 4 sides sealing integrated | Able to implement 3 and 4 side sealing in one machine without changing of any components |
Code pressing function embedded | Code pressing function embedded on roller , it is not necessary to configure additional code printing devices |
