factory price palm leaf pellet machine paddy straw pellet mill

Product Overview

Description

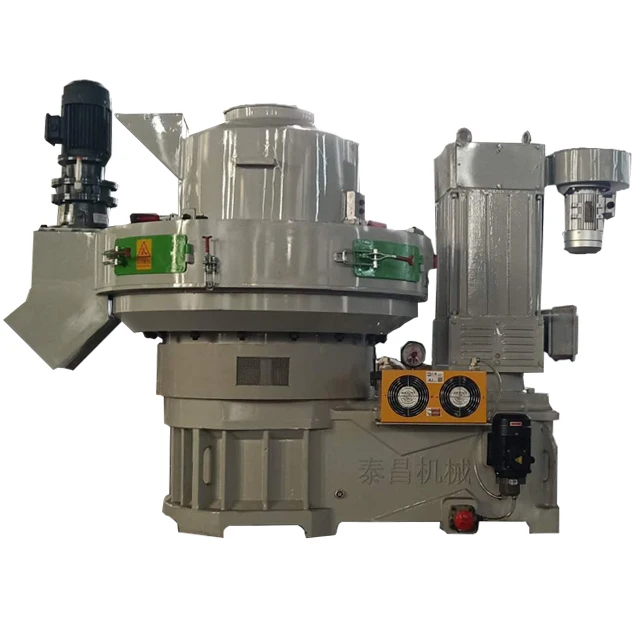

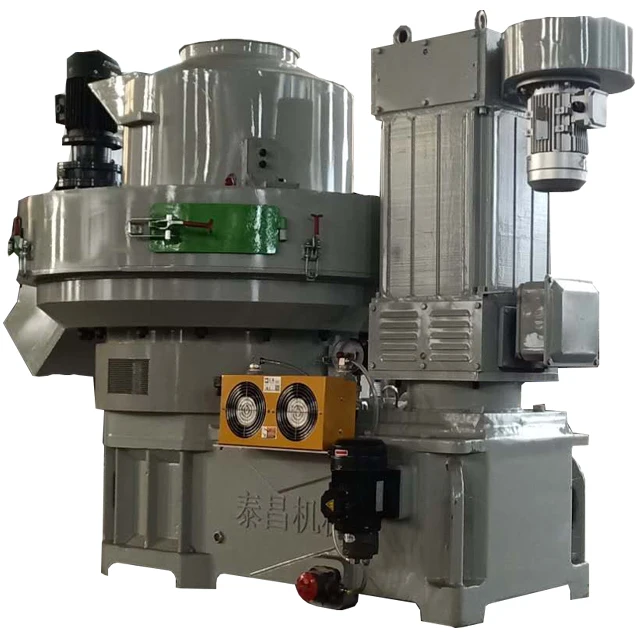

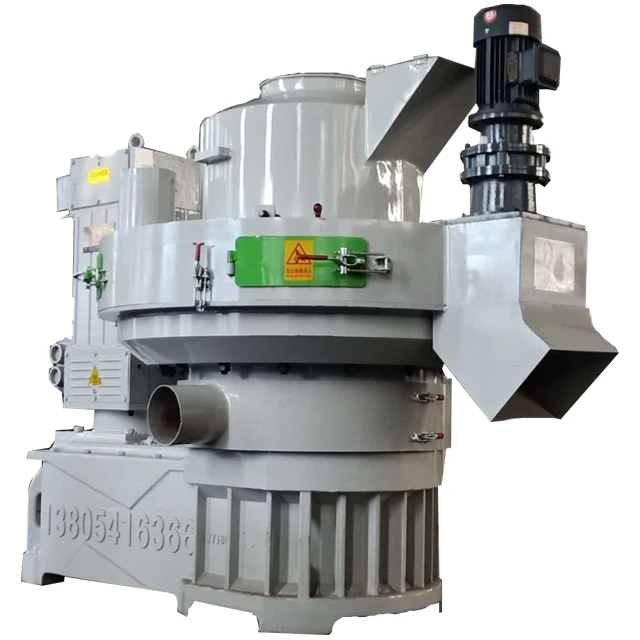

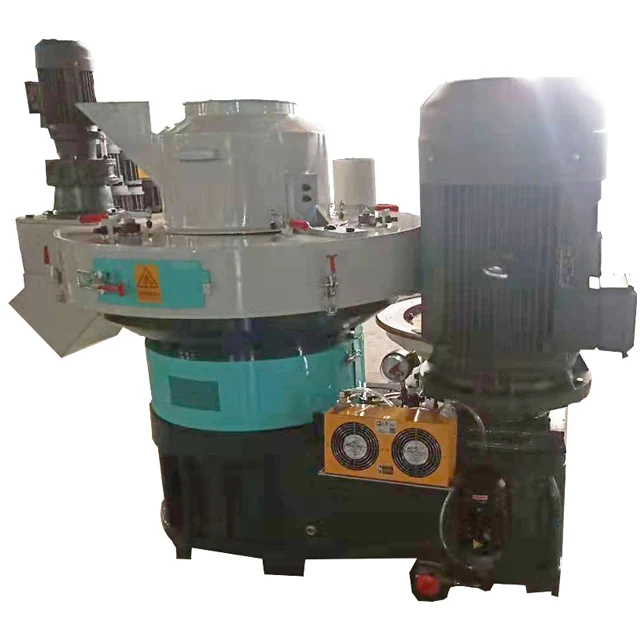

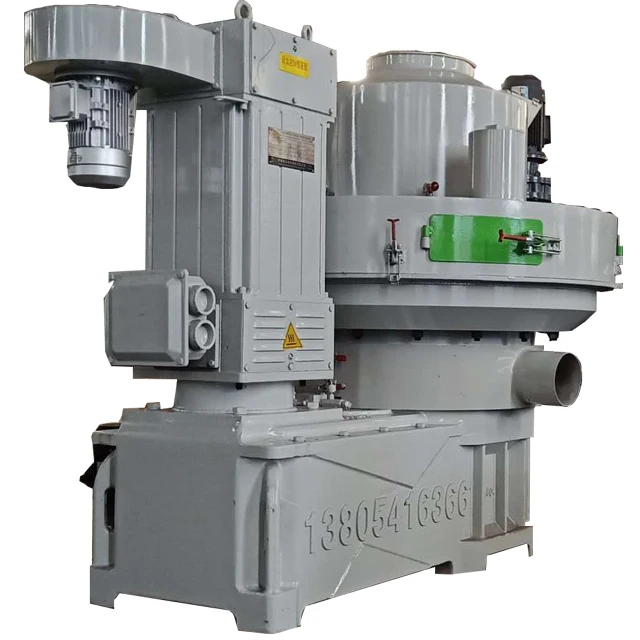

factory price palm leaf pellet machine paddy straw pellet mill

Brief Introduction:

straw pellet mill

Power:160kw

Capacity:2.5-3t/h

Pellets Size:6mm,8mm,10mm,12mm

Introduction of straw pellet mill:

LKJ700 series is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, fuel plants, fertilizer plants, chemical plants etc.

Application:

Widely used for crude fiber granulator, such as sawdust, rice husk, cotton stalks, cottonseed skins, weeds,other crops straw and plant waste,widely used in large-scale complete pellet production lines.

Advantage points of straw pellet mill

1. Ring die, vertical structure, conducive to the pelletizing room cooling

2.Die static, rollers rotating, materials centrifugal, evenly distributed around

3.Wood pellet mill can press 6-12mm pellets diameter,if you need different pellets diameter,

just change the different ring die is ok.
4.Pellet mill power supply is 380v,50hz,3phases,we also can design the special motor for you,like 220v,415v,60hz,3phases.

Special motor and reducer for straw pellet mill

Motor: The first special motor for pellet machine only, the power output efficiency is increased by more than 10%, the power density of each center height can reach 3-5 times, the voltage and frequency tolerance range is wide, and it is more suitable for operation under harsh environmental conditions. It is energy saving and safety stable.

Reducer is a special reducer for pellet machine designed and developed by ourselves. It shields the short plate of ordinary industrial reducer in the operation of pellet machine. It adopts finite element design and parallel hard tooth surface gear transmission. step by step and other strength, even if the high temperature, lack of oil or load instantly increased to 3-4 times normal, it can still operate normally.



Specifictions of straw pellet mill:



Type	Power(kw)	Pellets(mm)	Modelφ(mm)	Output(t/h)	Dimension(mm)	Weight(t)
LKJ560	90+1.1+1.5+0.55+2.2	φ6-12	φ548	1-1.5	1600*1210*1700	4.5
LKJ700	160+1.+1.5+0.55+2.2	φ6-12	φ700	2.5-3	1650*1261*1783	5.5
LKJ850	185+1.1+1.5+0.55+3	φ6-12	φ850	3-3.5	1800*1450*1850	7





Packing &Shipping:



Company Information:

Jinan Taichang Transmission Machinery Co.Ltd was founded in 2004 with registered capital of 8 million Yuan(USD 1,400,000.00),plant building area of 40000 square meters .More than 200 employees, including 10 senior engineers, 16 mechanical designers, 20 technicians, and is a research, development, production, operating as one of the modern machinery manufacturing enterprises. Strong technical force, advanced production technology, perfect after-sales service. Our company is the largest professional manufacturer with all types and large production in the domestic same industry.



Our service:

1.We treat customers as GOD, and provide considerate services from shipment to maintenance, including professional free training, guidance, installation,and debugging.
2.After sale, we provide one year's warranty. we will help to solve any mechanical problems in time. Also engineers are available to service overseas

FAQ:

1.Q: What are pellets? What are their main characteristics?
A:Pellets are made from fine dry biomass which was run through a pellet machine
and formed into small compressed pellets of different sizes.Pellets can be used
as animal feed, animal bedding or as bio fuel.

2.Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives at the customer’s side.)
If there is any problem within guarantee period (excluding cased by
worker's wrong action), we will send you spare parts for free.
After this period we will definitely support you when needed. You will
be welcome to contact us with any problem may happened.

3.Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.
Or you can get local contractors to do the commissioning
and we send one supervising engineer.

4.Q: Do you have some foreign customers using your equipment?
A: yes, we have. Our company has established business relationships
with customers in Africa,Asia,Europe,Middle East,South Americanetc.And we have
many positive feedbacks from our customers.
