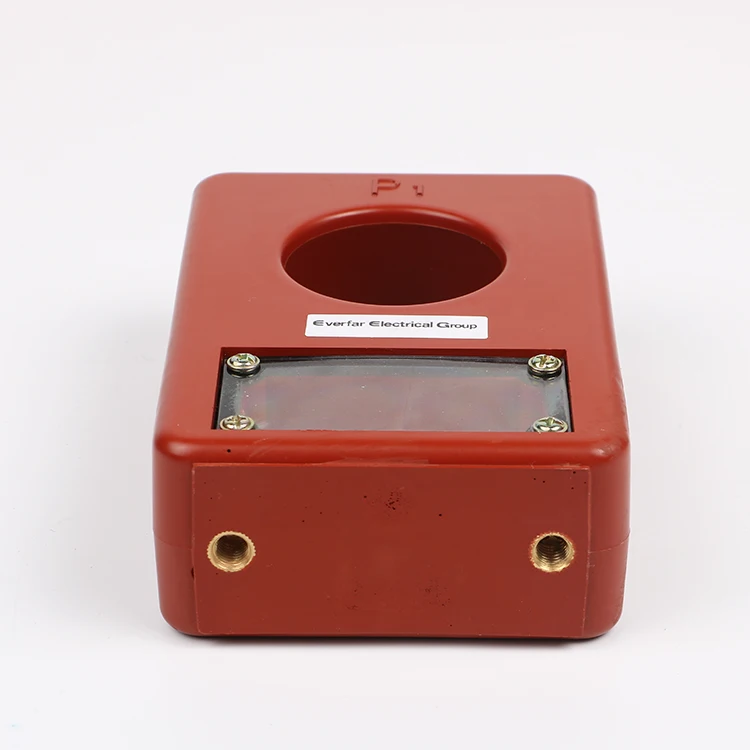

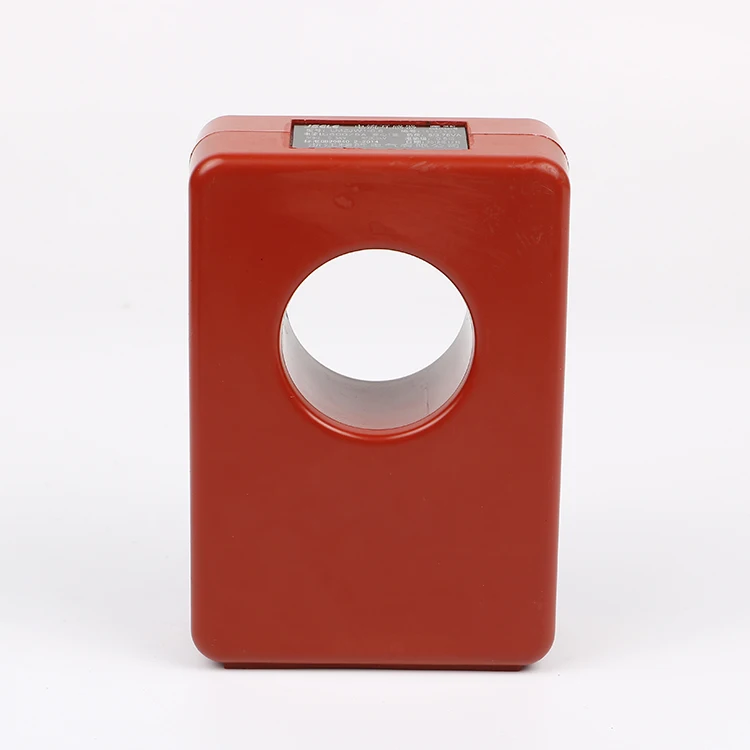

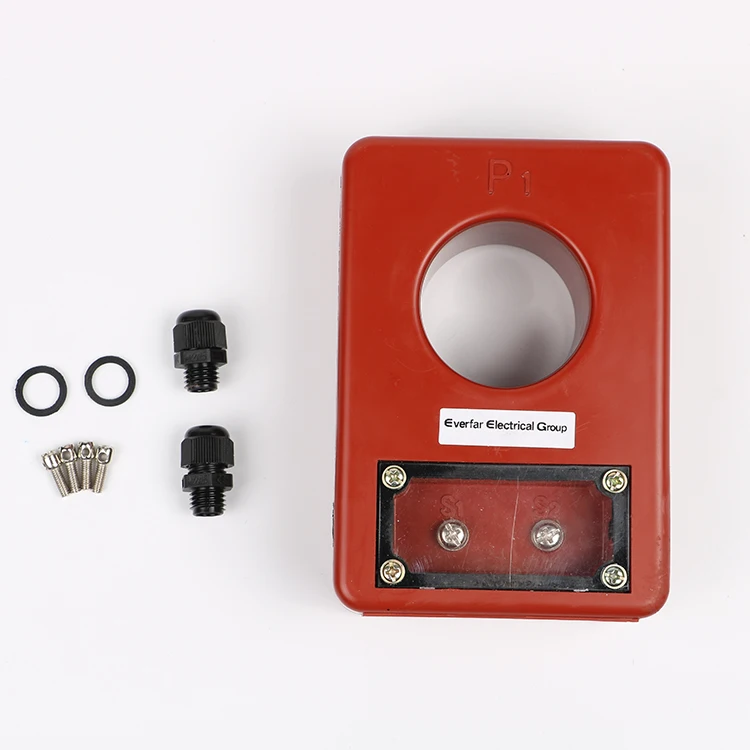

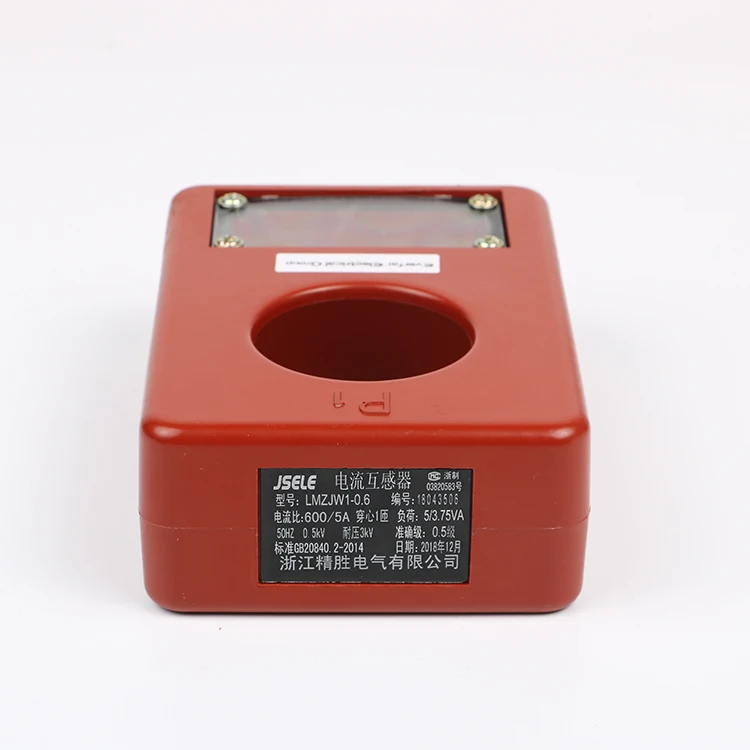

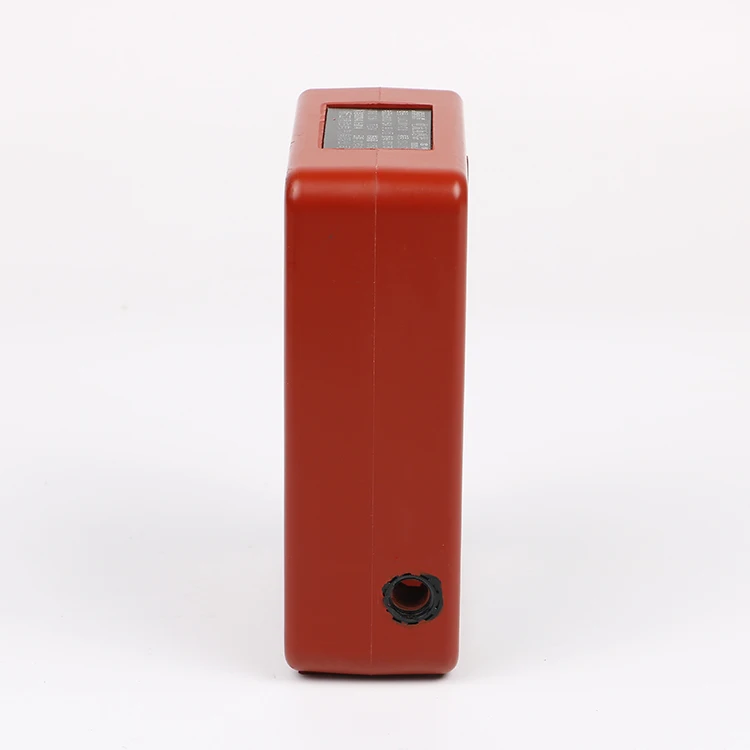

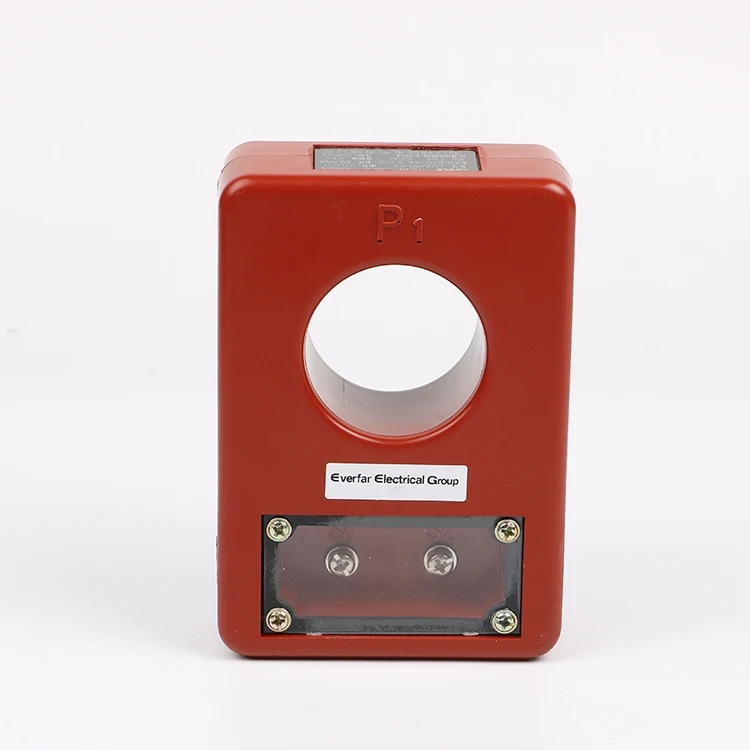

Wp50/30 High Accuracy Outdoor Waterproof Outside Used Electric Split Core Current Transformer
- Category: >>>
- Supplier: Wenzhou Everfar Electrical Co. Ltd.
Share on (62396309145):
Product Overview
Description
Product Description
Clamp on current transformer Manufacturer
Features:
Small size, low cost
High secondary turns
Secure locking hinge
Features:
Maximum continuous primary current 5A to 600AAC
Current Ratio: 3000: 1
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
| Model | I.D. | Ratio | Rated Amps | Accuracy |
| EF-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
| EF-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| EF-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
| EF-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
| EF-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
