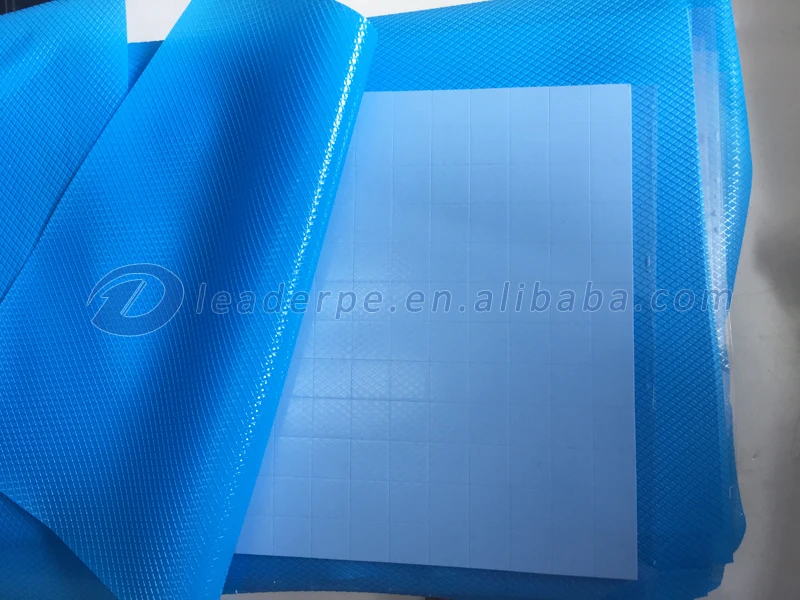

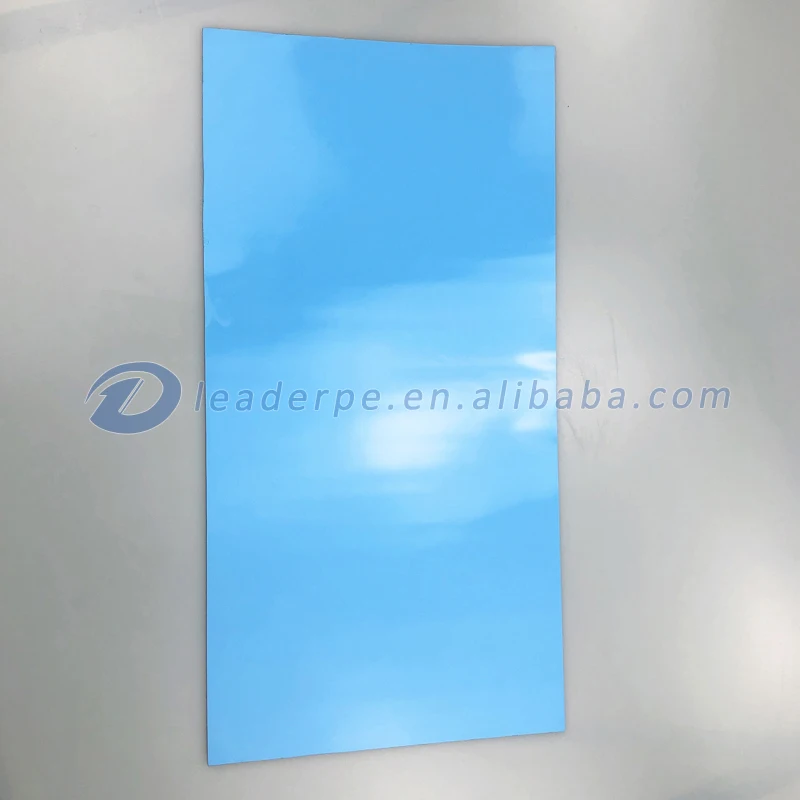

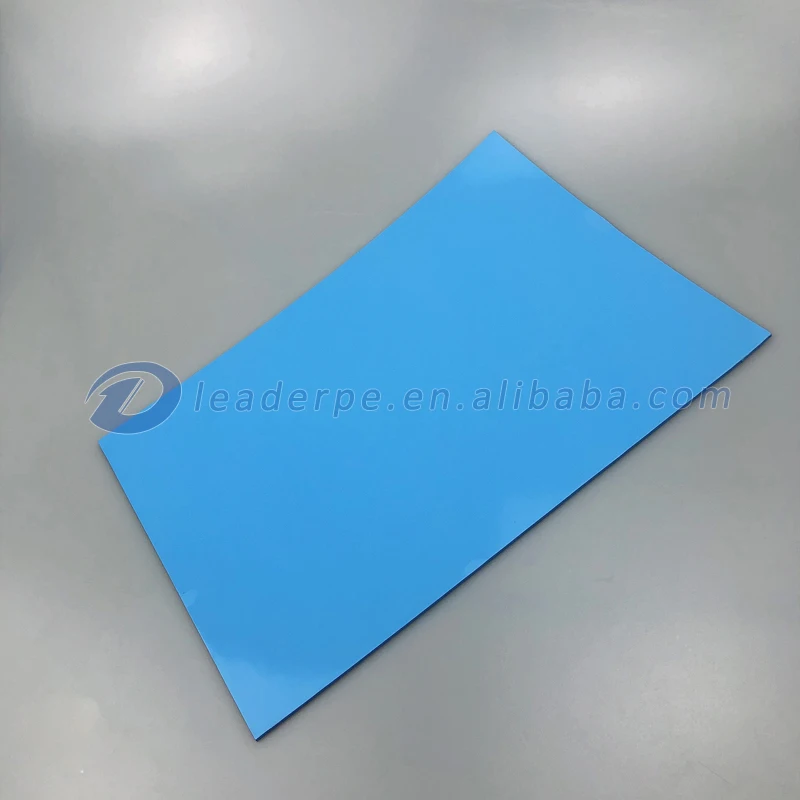

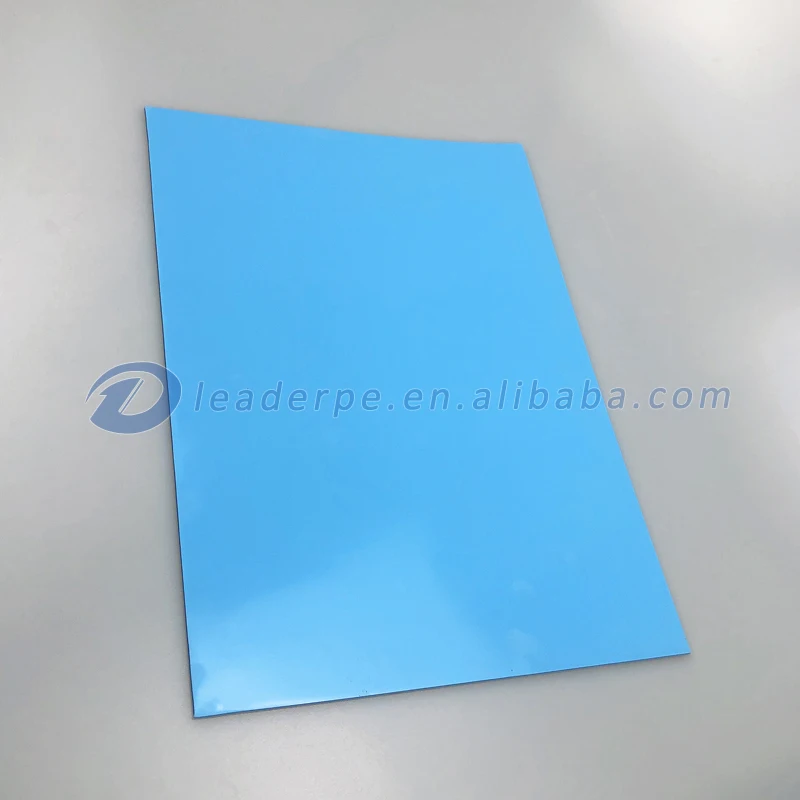

BEST die cut thermal conductive insulation silicone pad for wide uses
Soft thermal conductive insulation silicone pad sale
The thermal conductive insulation silicone pad is silicone based thermal pad which has been designed for both efficient heat transfer away from critical devices and ease of manufacturing. It can also be provided in a range of formats and thickness, such as sheets, rolls and die cut parts. The thermal conductive insulation silicone pad offers a good combination of low thermal impedance, good compressibility and a high dielectric breakdown voltage.
Advantages of thermal conductive insulation silicone pad
Thermal conductivity: 3.0w/m.k
High thermal performance at cost effective
Low stress application
Electrical Isolating
Thermal Pad Configurations
Sheet form, die-cut parts
Roll form available
LD8200 Thermal Pad Size Available:
200x400mm
Thickness available: 0.5-5.0mm, increment by 0.5mm
Technical sheet of thermal conductive insulation silicone pad
Metric Value
Property
Test Method
Unit
LD8100
LD8150
LD8200
LD8250
LD8300
LD8400
LD8500
Color
Visual
-
Light Grey
Dark & Grey
Red
Yellow
Blue
Light Blue
Light Green
Thickness
ASTM D374
mm
1.0~2.5
0.5~20.0
0.5~20.0
0.5~5.0
0.3~20
0.5~5.0
1.0~5.0
Density
ASTM D792
g/cc
2
2.5
2.8
3.0
2.7
3.2
3.4
Hardness
ASTM D2240
Shore C
15±5
25±5
25±5
25±5
30±5
40+/-5
45±5
Tensile Strength
ASTM D412
KN/m
2.5
0.47
0.33
0.42
0.29
0.12
0.15
Continuous Use Temp.
EN 344
°C
-40-150
-40-150
-40-150
-40-150
-40-150
-40-200
-40-200
Electrical
Breakdown Voltage
ASTM D149
Kv/mm
≥6.3
≥5.2
≥6.0
≥5.3
≥4.8
≥6.0
≥4.0
Volume Resistivity
ASTM D257
Ω.cm
6.2×1015
8.0×1015
1.0×1016
3.2×1016
3.2×1016
1.0×1012
1×1012
Flame Rating
UL 94
V-0
V-0
V-0
V-0
V-0
V-0
V-0
V-0
Thermal
Thermal Conductivity
ASTM D5470
W/m.k
1.0
1.5
2.0
2.5
3.0
4.0
5.0
Remark: Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
Application of thermal conductive insulation silicone pad
High power applications
LED Lighting
Mass storage drives
Between CPU and heat spreaders
Communication devices
OEM thermal conductive insulation silicone pad test equipment
OEM thermal conductive slicone manufacturer
Leader OPUS strives to provide the reliable thermal interface materials for customers. In order to meet today’s thermal management demands, spanning markets as diverse as home appliances to handheld technologies. We improve our R&D department with the aim to provide the great thermal conductive insulation silicone pad to effectively control the heat.
Customer by thermal conductive insulation silicone pad at factory price
Thermal Conductivity Material Silicone Certifications
Leader Thermal Pad Cooperation Partners
FAQ about thermal conductive insulation silicone pad
What's the thermal conductivity test method given on the data sheet?
All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
How to Find a right thermal conductivity for my application?
It depends on the watts of power source, ability of heat dissipation.
Do you accept custom orders?
Yes, we products can be customized in dimension, shape, color, coated on side or two sides adhesive or coated fiberglass. Our design team will help on drawing, please contact us for more details.
Do you offer free samples?
Yes, we are happy to offer the free samples for your test.
