Product Overview

Description



Product Description


Introduction

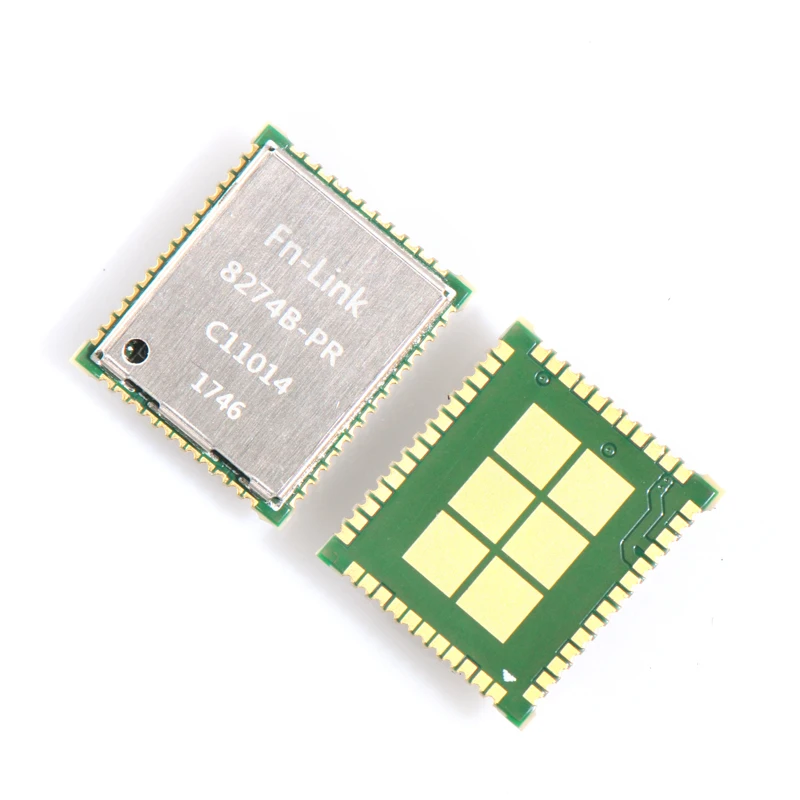

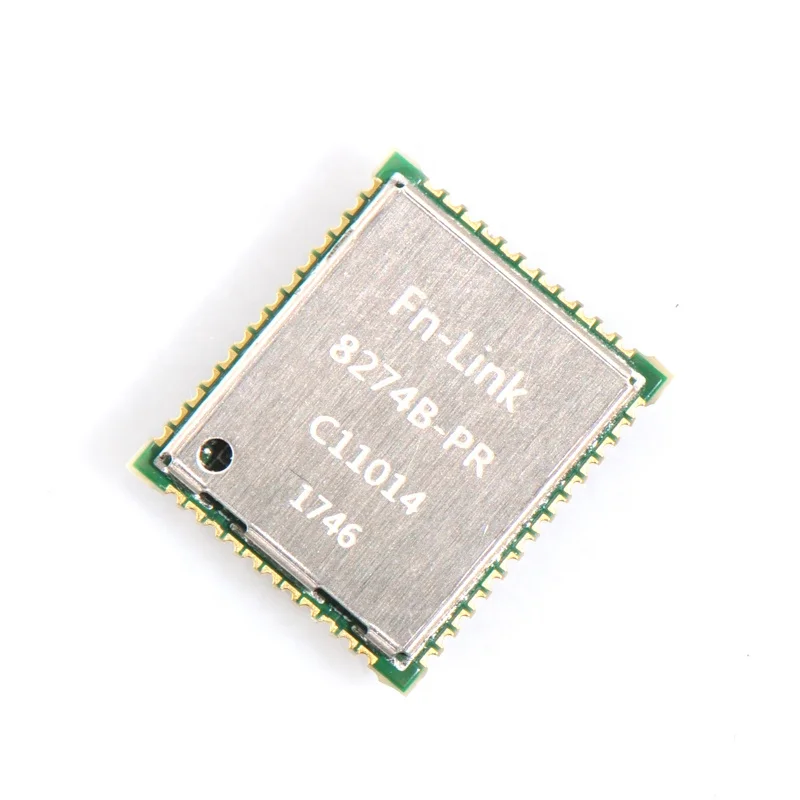

8274B-PR is a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors' 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.

The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.The integrated module provides PCI-e interface for WiFi, UART / PCM interface for Bluetooth.
This compact module is a total solution for a combination of WiFi and Bluetooth V4.1 technologies. The module is specifically developed for all portable devices.



Features

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.
802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Supports low power PCI-e interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data







Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
8274B-PR
Main Chipset
QCA6174
WIFI/BT Interface
PCIE
WIFI Standars
IEEE802.11a/b/g/n/ac
Date Rates
867Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux/Windows
Operating Frequency
2.4/5.8GHz
Operating Voltagc
3.3V
Dimensions
L x W : 15x 13 mm
RF Chains
2T2R
Operating temperature
-30°C to 85°C
Storage temperature
-40°C to 125°C

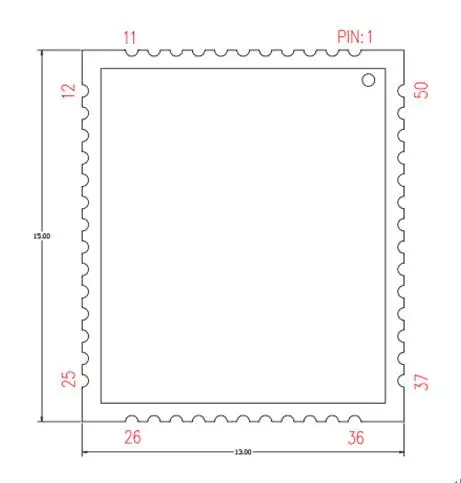

Layout Recommendation

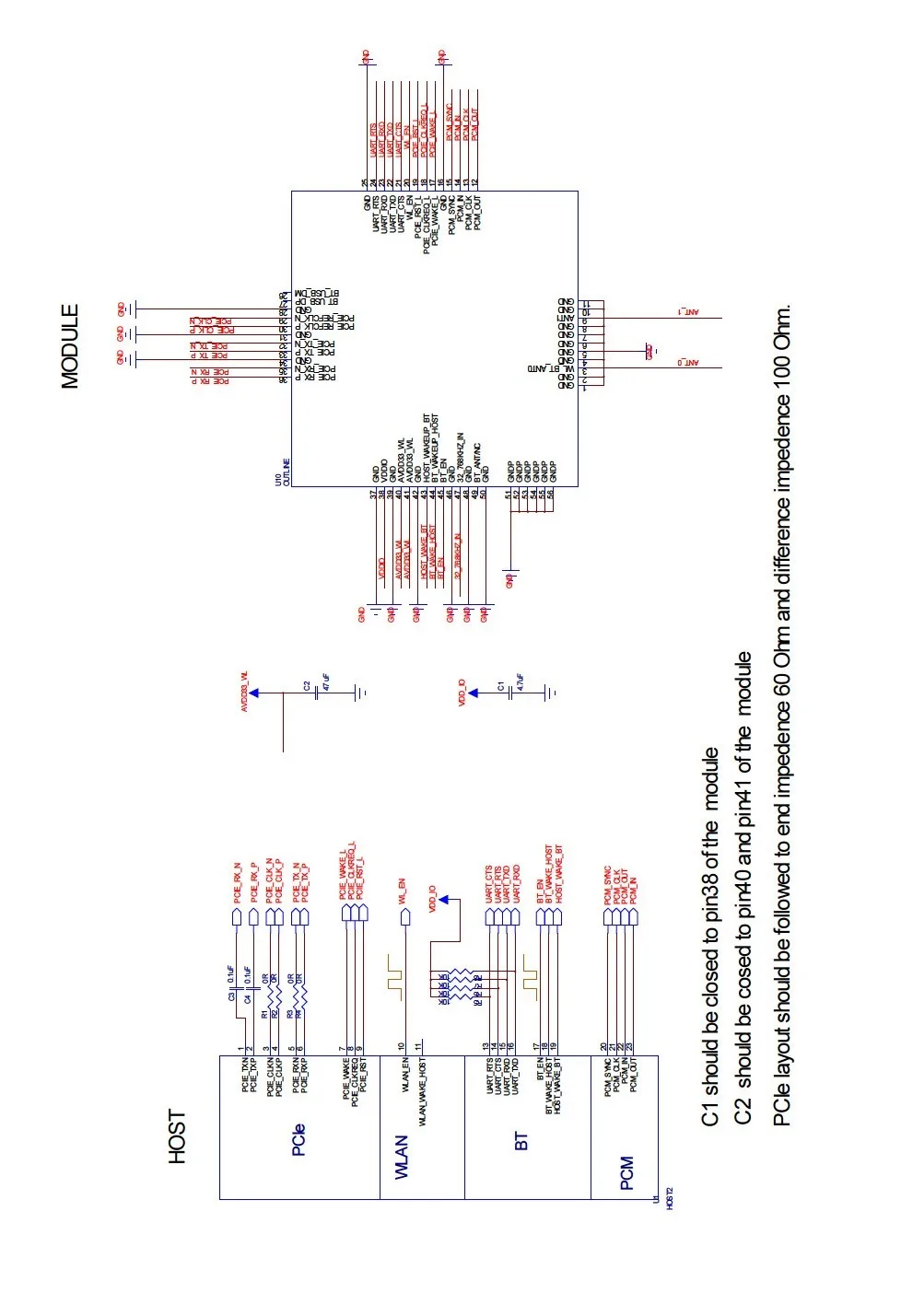

Reference Design





Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
