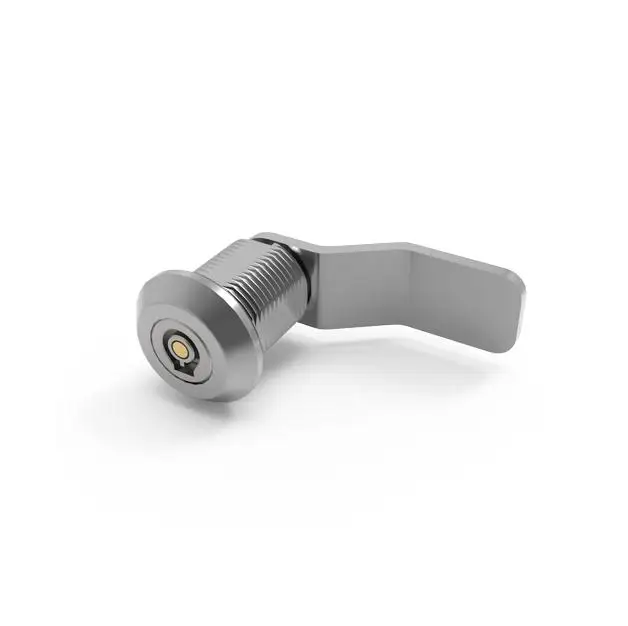

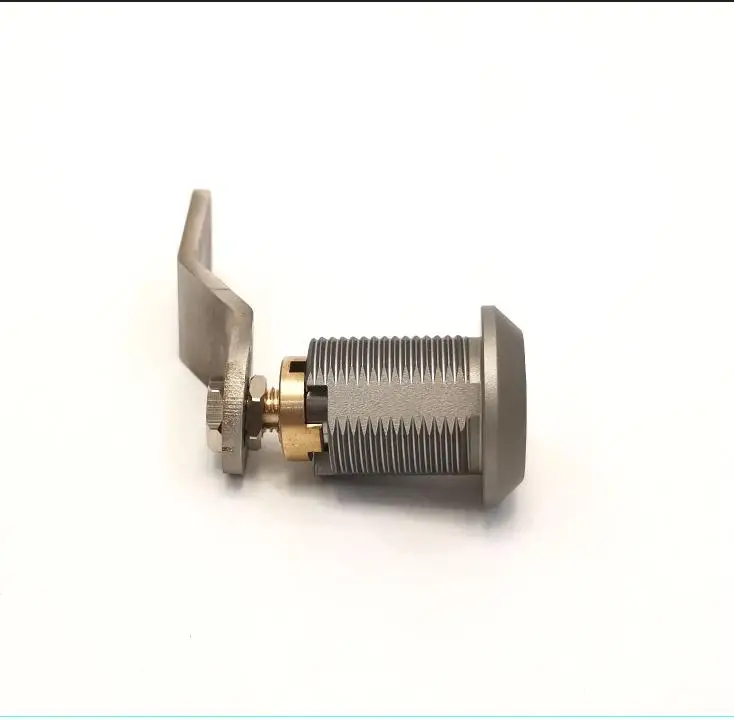

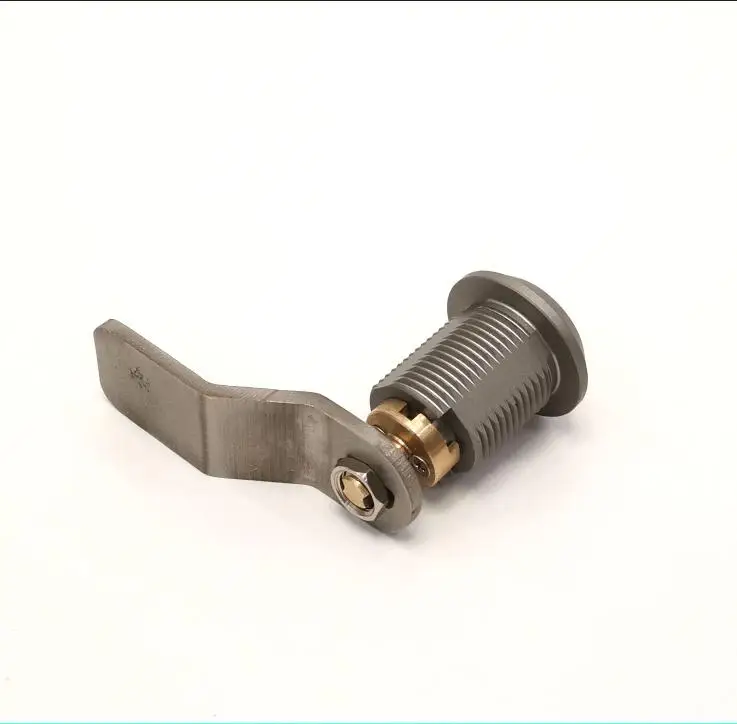

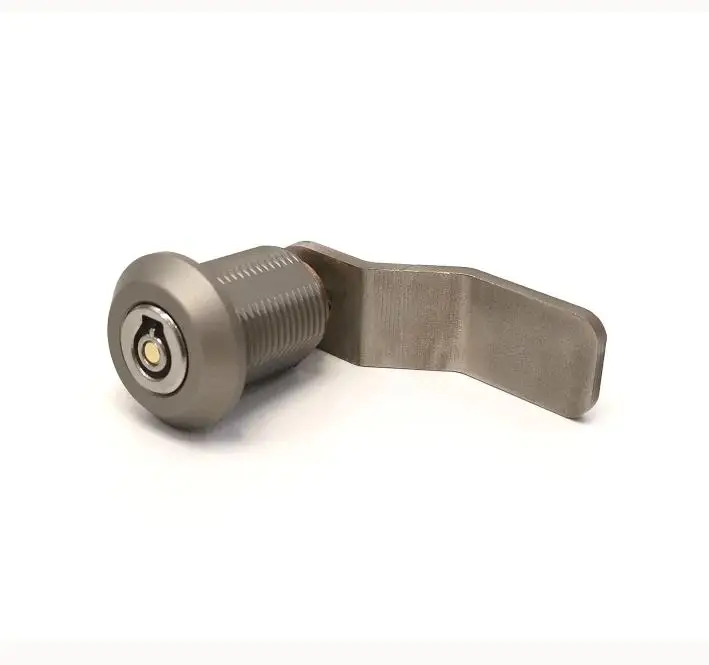

This is a Cam lock that supports bluetooth key and network key communication unlocking.
The products uses US304 as the material, equipped with the passive electronic lock cylinder. Built-inencryption chip in lock cylinder , no power supply design. When the key contacts unlocking, electronic key reverse power supply lock, complete the authorization identification, decoding unlocking. After the unlocking is completed, the record is stored in the lock and electronic key storage for permanent retention.
Through the sensor of opening and closing of the lock cylinder, the record can be used to detect the opening and locking.
.Product parameters
Items
Description
Working voltage
3.7V-4.2V DC
Working current
unlock current:≤200mA
Standby current:0mA
Temperature range
-40℃to 80℃
Humidity range
5%to 95%(No condensation)
Standby time
forever
torque
≥3Nm
material
SUS304
Surface treatment
Drawing polishing
anti-static
1500V electrostatic discharge
Electromagnetic interference
Not affected at 80mhz-1000mhz
Magnetic interference
Unaffected even if 25,000 gauss magnetic material
The electric field interference
Unaffected even if electromagnetic field of 50V/m radiation
IP grades
IP65
Salt-fog
24 hours salt spray test(The test environment:temperature:35±2℃,reference standard:GB/T10125-1997;GB6458-86;GB/T6461-2002,technical parameters:PH:6.5-7.2;density:50±5g/L), lock opening test was carried out and it worked normally
Communication protocol
Customize, see attachment
One key can open all the locks with the authorization of the cloud-based controal platform which is suitable for power grid, telecom, transport, big factories that need to be mornitored in real time.
