Obstacle Lights Flashing Red Yellow Warning Light Beacon Aviation Lamp Tower Signal Lantern Low intensity Flashlight
- Category: LED Aviation Obstruction Lights >>>
- Supplier: Shenzhen Qianhai Baihuixin Invest Industry Company Limited
Share on (62396515376):
Product Overview
Description
Product Description
Flashing aviation obstruction light Aviation Obstruction Light Navigation Warning Light Moderate Light Intensity 155 LED Highrise Outdoor Architectural Lights
Item Name | Aviation Obstruction Lights Navigation Warning Lamp |
Specification | Input Voltage: AC80-275V Power: 20W Light Source: Long life of imports, high luminous efficiency, energy consumption is very low, LED light source group Light color: red, white, green. (Common models: red) Effective light intensity: moderate light intensity of about 2000CD Flashing frequency: 20-60 times / minute (adjustable), there are often bright file. Light range:> 5KM (T = 0.95) Light control sensitivity: 200LX (adjustable) Working environment: -40 ℃ - +70 ℃ Sealing level: IP65 Insulation strength: 200V / 50HZ 1MA 1min not breakdown Applicable height: H≤150M |

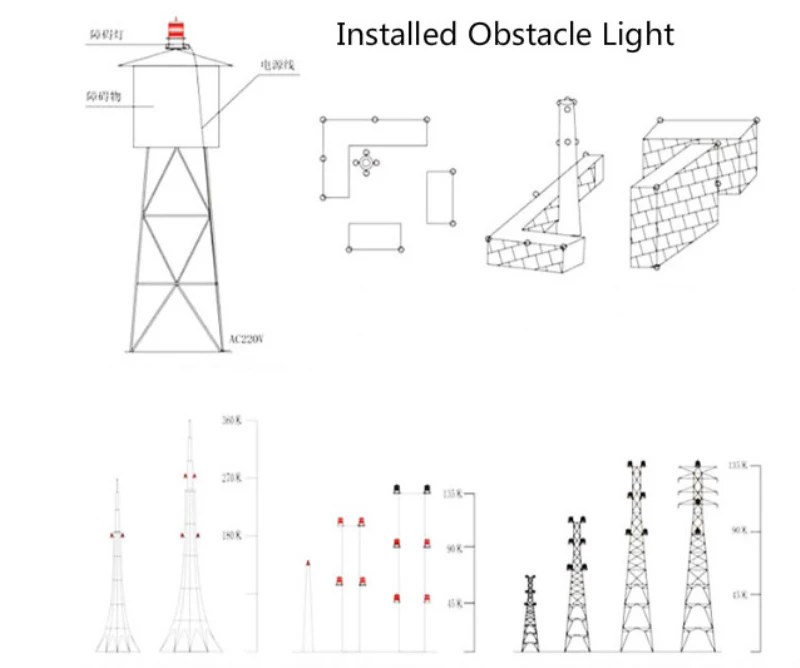

Application | Bridge Skyscraper Signal Tower Safety Equipment |
medium-intensity A-type aviation obstacle lamp, the bottom is made of aviation aluminum die-casting, fully sealed structure; imported xenon lamp, with high luminous brightness, low energy consumption, long life characteristics; lampshade using PC materials, corrosion resistance, UV resistance, impact resistance; control circuit with strong impact resistance, with surge protection device, It can be applied to harsh working environment.
It has the function of automatic synchronization, and can realize synchronous function simply without controller. The monitoring function can be selected, and remote monitoring can be realized with the controller.
FAA classification: L-888
Model: LT-020
Power Supply: AC220V
Power frequency: 50HZ ~ 60HZ
Average power consumption: ≤45W
Operation mode: Flash 40 times / minute
Lighting duration: 80ms
light intensity: ≥2000-20000cd (±25%)
Horizontal luminous angle: 360 degrees
Vertical luminous angle: ≥10°
Light source life: ≥20 years
Luminescence color: white

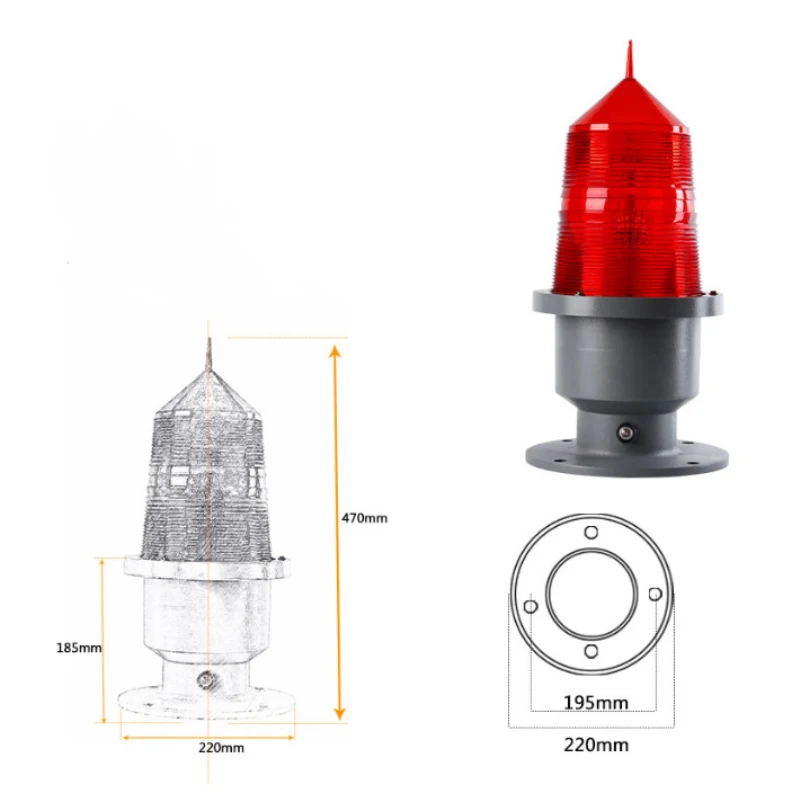

Shape size: 210mm (D) x 450mm (H)
Installation size: 195mm x M8
Protection grade: IP65
Light controlled ambient brightness: 50/100Lux
ambient temperature: -40 ℃~ 70 ℃
weight: ≤4kg
Resistance to wind: 80 meters per second
Welcome any customized lighting products.
Any inquiry is highly appreciated.
Innovation is root and quality is life, we supply good added value and competitive lighting products to our consumers.
Hope mutual benefit and win-win cooperation.
