NO tax internal 36v 11ah lithium ion e bike battery pack with BMS for electric scooter bicycle 500w750w motor

Product Overview

Description

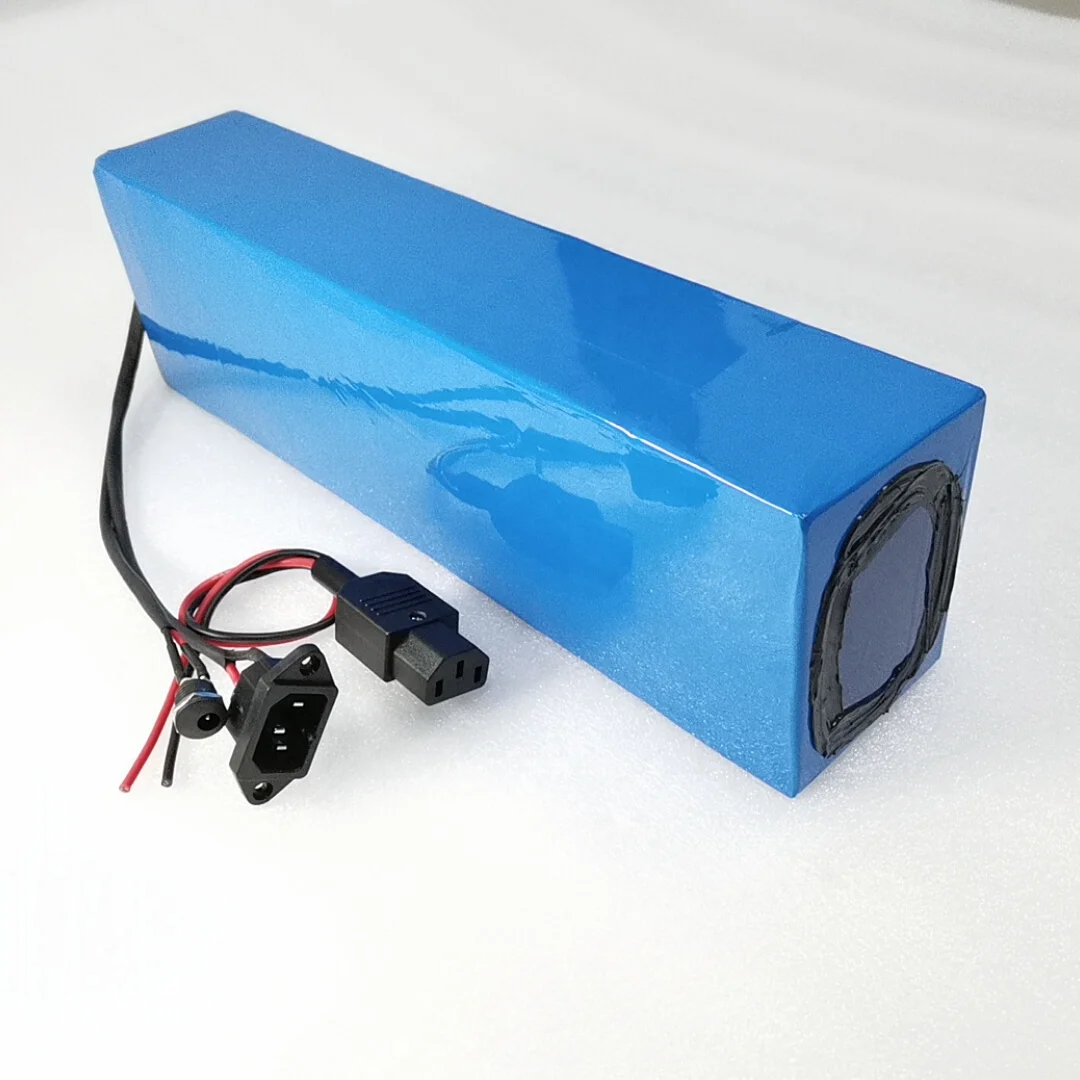

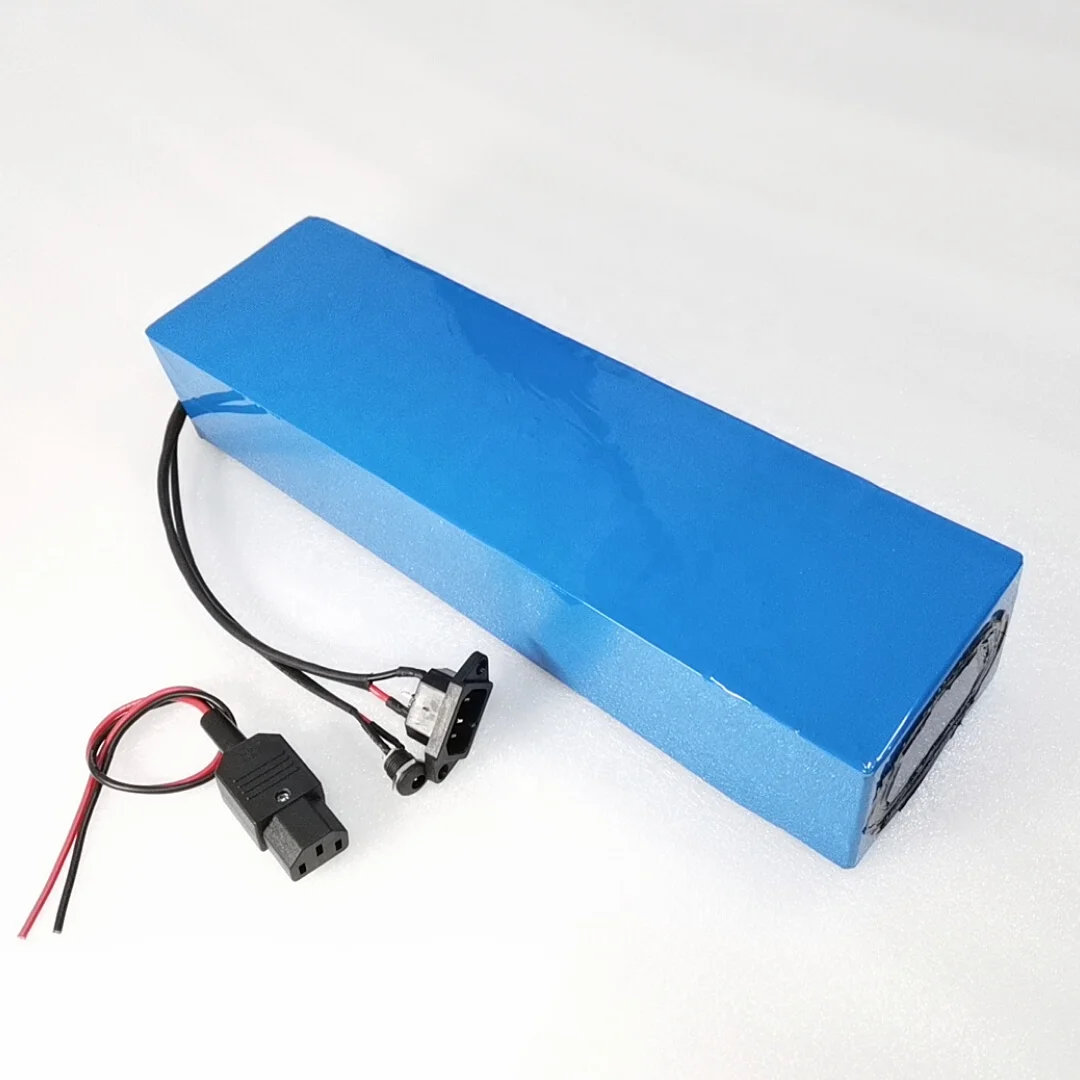

NO tax internal 36v 11ah lithium ion e bike battery pack with BMS for electric scooter bicycle 500w750w motor

     36V 250W---750W electric bicycle li ion battery pack,PVC case ,it NO shell





Specification
Battery Model	BLV10S4P
Nominal Capacity (AH)	11AH
Nominal Voltage (V)	36V
size:	340*70*40mm
Cell Source Resistance (mΩ)	Less 40mΩ
Cell Specification	3.7V 2.6AH 18650  samsung cell inside
Maximum peak discharge current (A)	30A
Rated Discharge Current (A)	20A
Charger mode	CC/CV(Constant Current Constant Voltage)
Standard Charge Current (A)	2A
Battery Weight	About 2.0kgs
Life cycle	more than 800 cycles

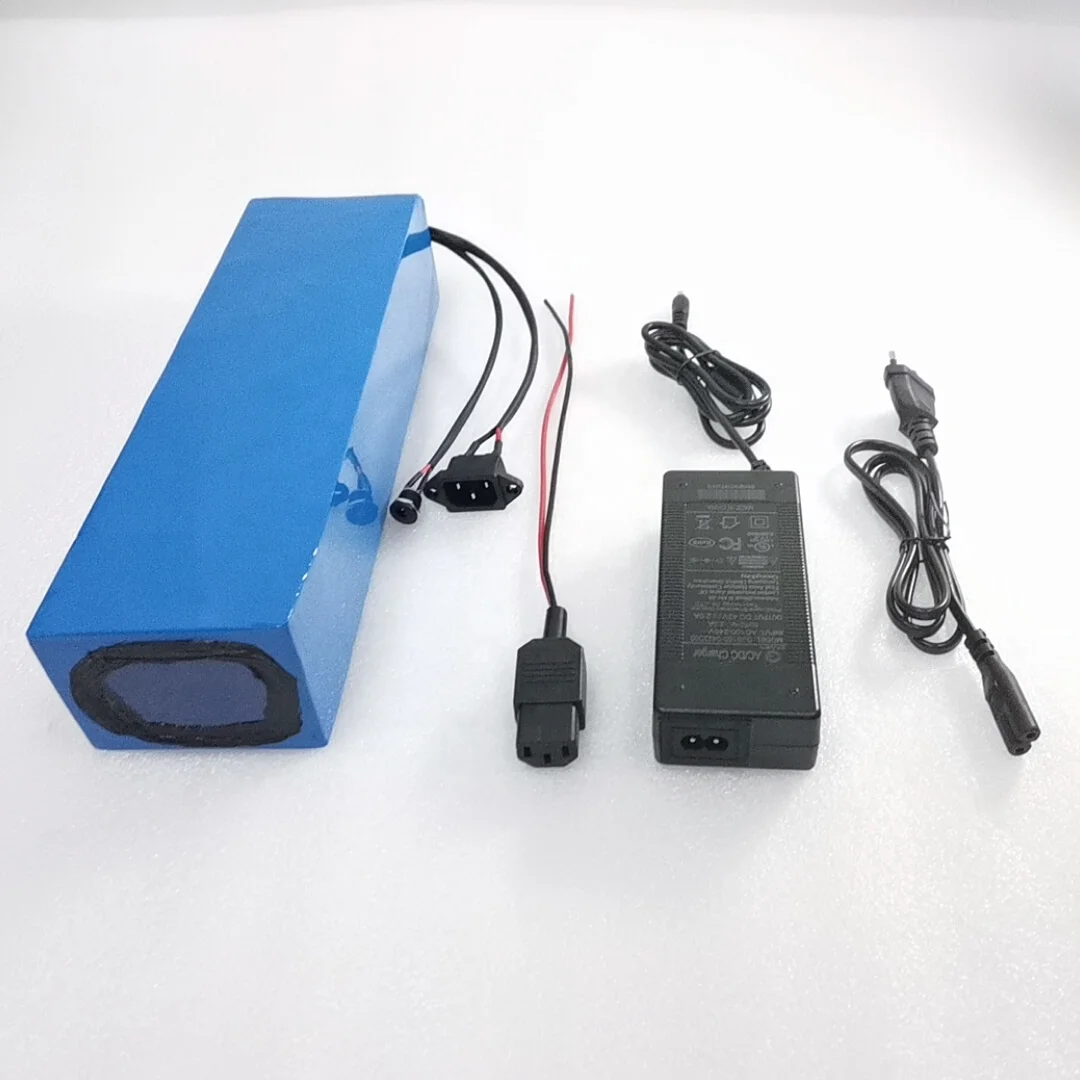

Part include:



1. 36V11ah Lithium Battery with PVC CASE

2. 20A Maximum Continuous Discharge Current Built-in BMS board

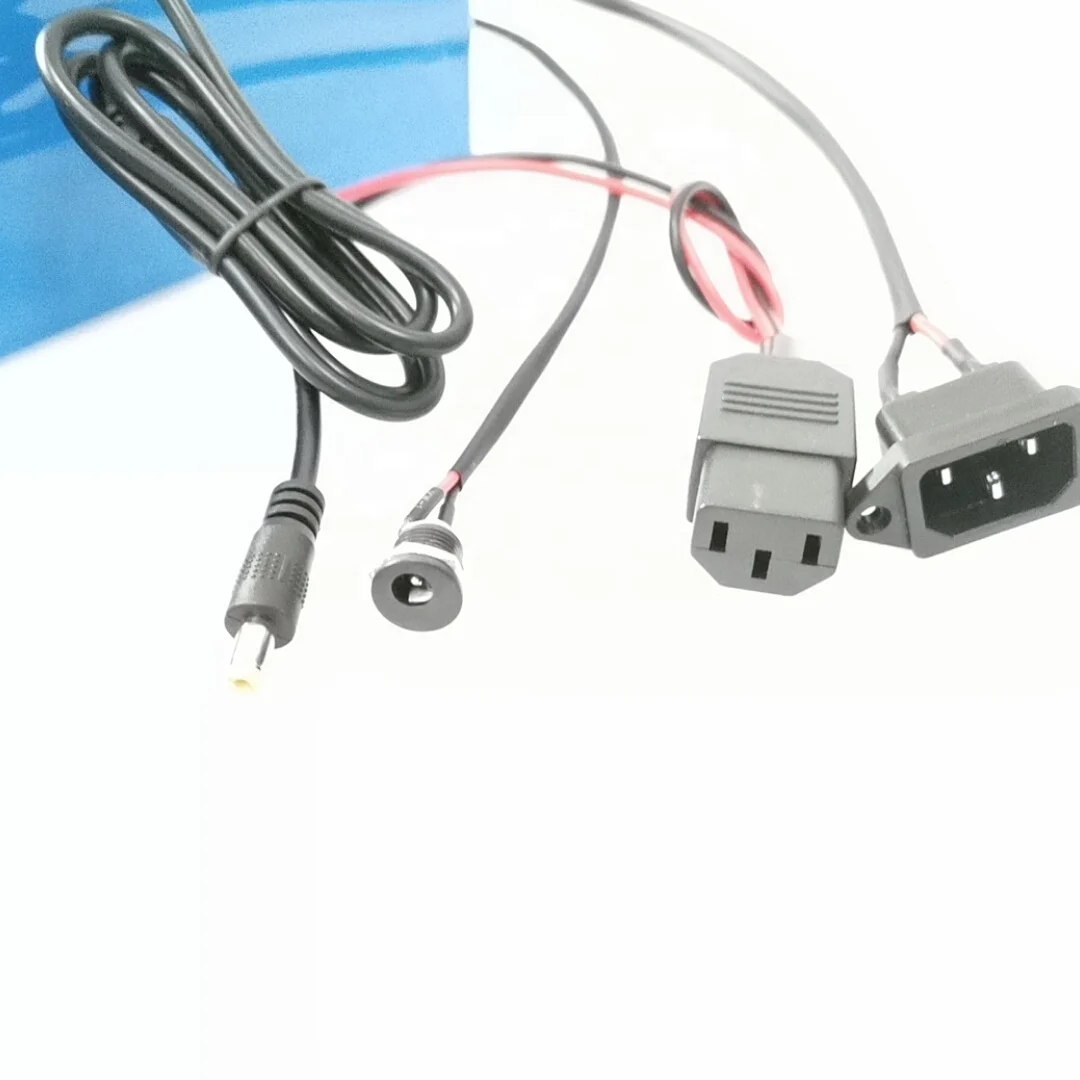

3 .one discharge wire and a DC 42v charger

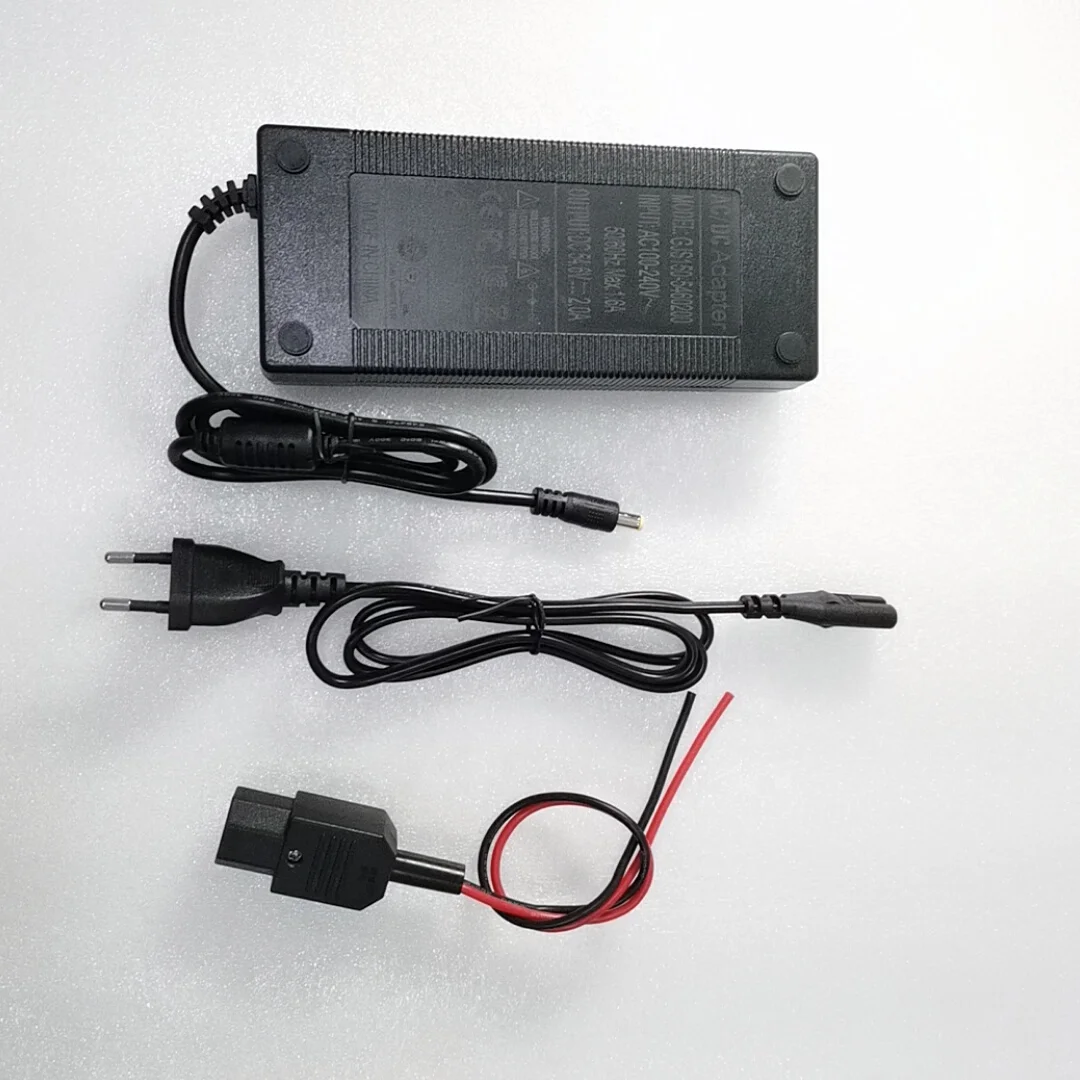

Lithium Ion Charger Specification:

1. AC Input Voltage: 100-240V.
2. Charge Voltage:42Volts.
3. Charge Current: 2Amps.
4. AC Charger Plug: European/American /UK /Australia Standard you can choose.



 Applications:

·Electric Vehicles, such as E-bike, E-scooters

·Robots for industries and military

·Remote data transfer system

·Satellite communication station

·UN-mannedaircrafts

·Power tools, such as drilling, cutting and polishing tools

·Power supplier for Training systems, such as Torpedo Trainer
