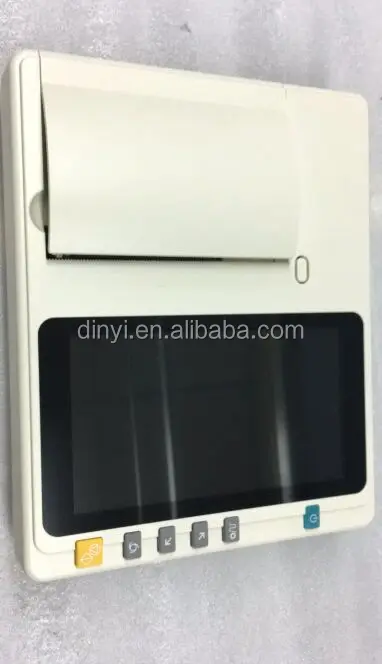

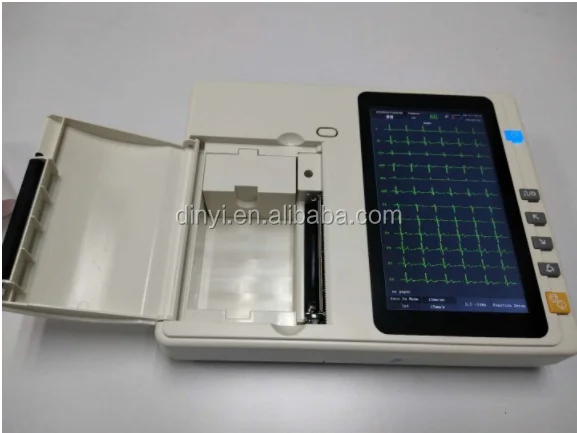

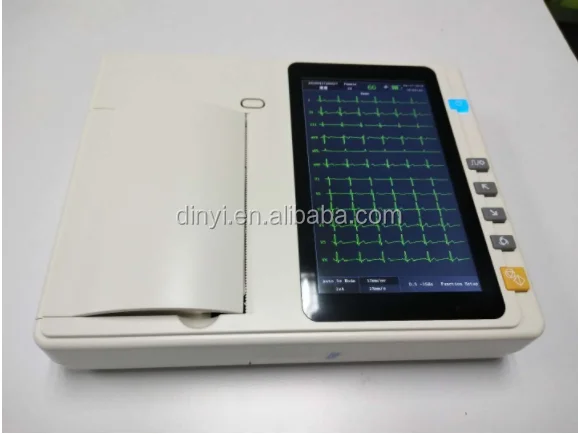

China Professional Manufacturer Direct CE Certificated Ecg Machine

Items

specification

Lead

standard 12 leads

lead acquisition

synchronously 12 leads

Input circuit

Floating; Protection circuit against Defibrillator effect

Input Impedance

≥50MΩ

Input circuit current

≤0.0.05μA

Record mode

Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2;

Manual: 3CH, 2CH, 3CH+1R, 2CH+1R;

Rhythm: Any lead selectable.

Filter

EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz

DFT Filter: 0.05 Hz/ 0.15 Hz

AC Filter: 50 Hz / 60Hz

CMRR

>100dB

Patient current leakage

<10μA

Input Circuit Current

<0.05µA

Frequency Response

0.05Hz~150Hz (-3dB)

Sensitivity

2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV

Anti-baseline Drift

Automatic

Time constant

≥3.2s

Noise level

<15μV_p-p

Paper speed

12.5 mm/s, 25 mm/s, 50 mm/s

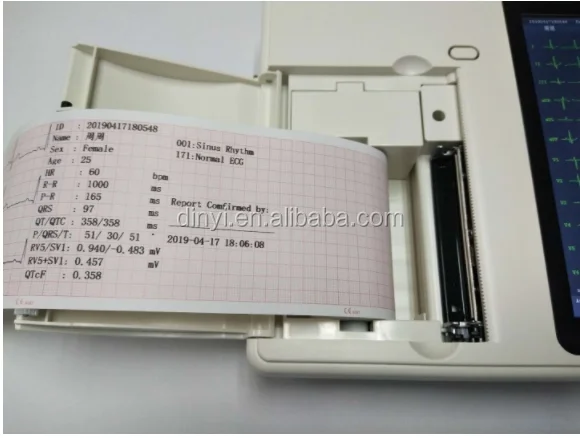

Recording mode

Thermal printing system

Paper specification

80mmx20m paper roll

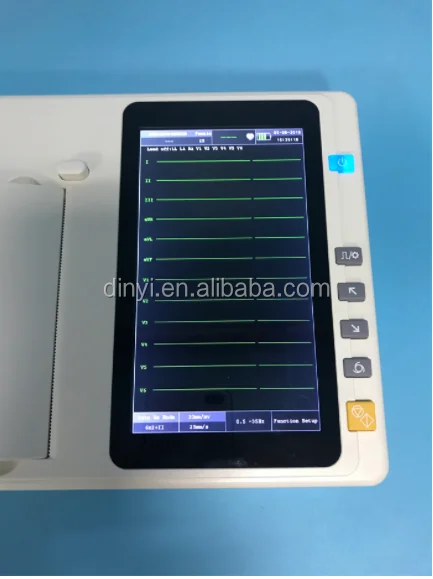

LCD display

7” graphic LCD

Safety classification

IEC60601-1 class I, type CF

Power supply

AC: 100~240V, 50/60Hz, 30VA~100VA

DC: 14.8V/2200mAh, built-in lithium battery

Fuse

AC220V±10%  2*Φ5×20mm,T2A/250V  AC time lag

AC110V±10%  2*Φ5×20mm,T4A/250V  AC time lag

Item

Description

Quantity

1

Patient Cable

1

2

Limb Electrode

4pcs/set

3

Chest Electrode

6pcs/set

4

Three plugged power cable

1

5

Grounding Cable

1

6

Paper Shaft

1

7

Thermal Recording Paper

1
