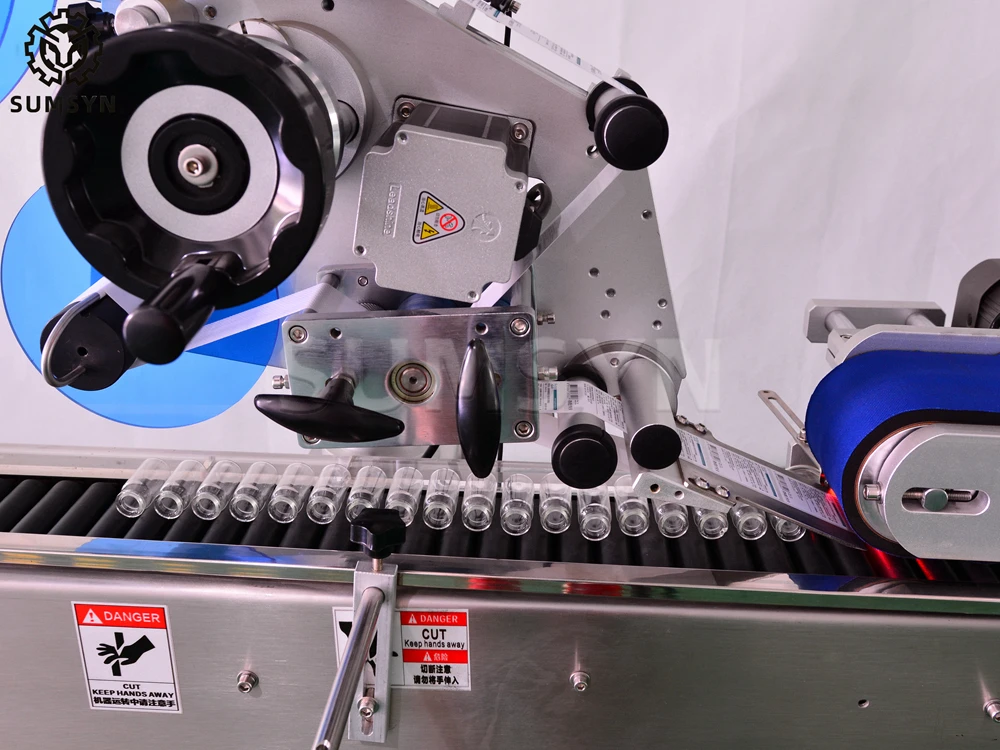

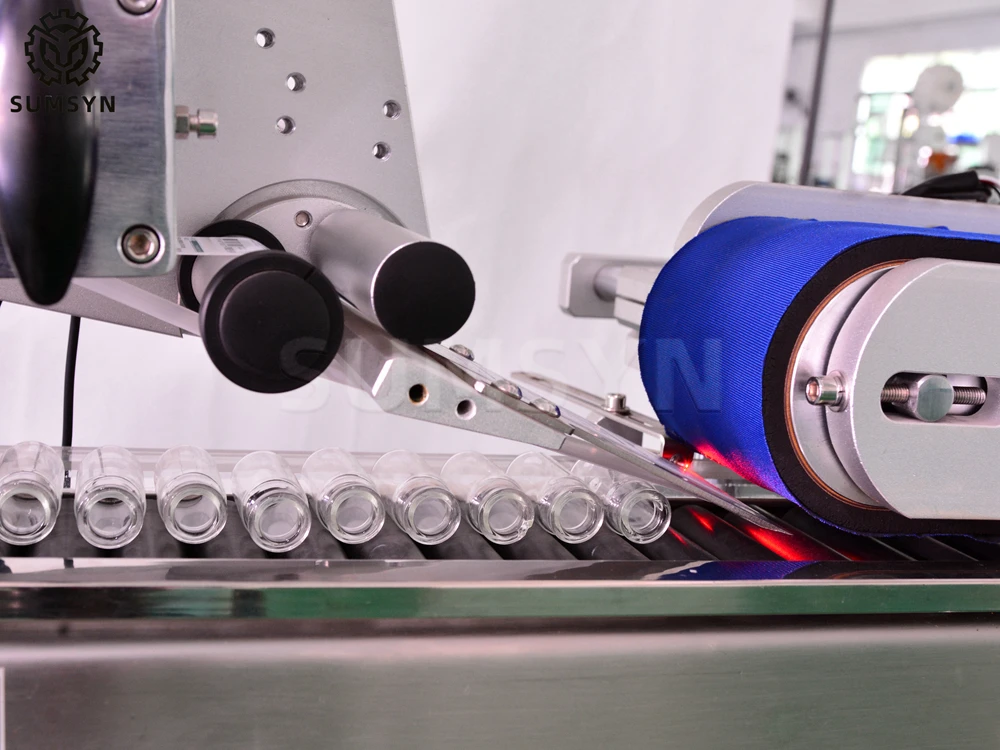

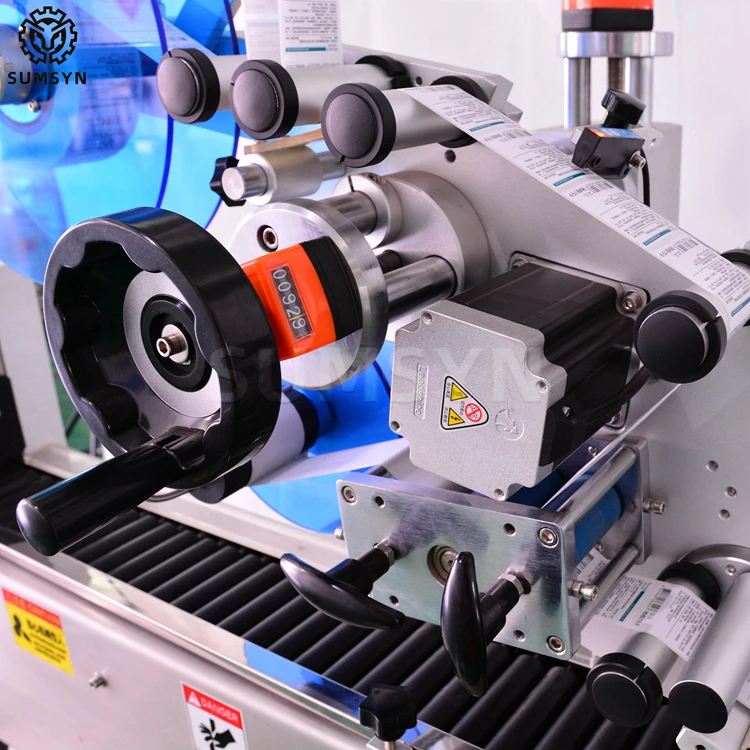

It is suitable for the labeling of the whole circumference and half circumference of small diameter cylindrical objects. It adopts horizontal transmission and horizontal labeling methods to increase stability and improve labeling efficiency.
Application Range
Application Range
Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.

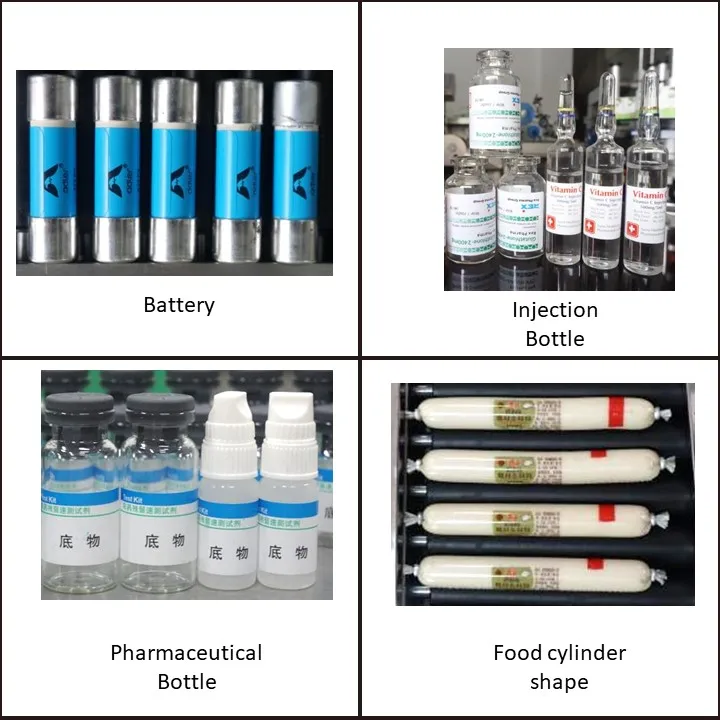

Applicable products: small products that require to label or film on circumferential surface or conical surface.
Application industries: widely used in medicine, cosmetics, electronics, hardware, plastics and other industries.
- High speed. Labeling speed up to 200 bottles / minute, saving a lot of manpower and material resources;
- Low bottle breakage rate. Application of flexible bottles dividing technology and flexible label overlaying technique, smooth bottle dividing and labeling. Bottle breakage rate less than 1/100000;
- High-quality labeling. no air bubbles, improving the quality of packaging;
- High stability. Advanced electric control system composed PLC + Touch screen + electric eye + label detecting electric eye, making it possible for long run high-speed operation;
- Intelligent control. No object no labeling, automatic correction and automatic detection of labels, preventing label waste and missing labeling;
- Strong. Compliance in line with GMP production requirements; solid structure and beautiful look;
- Various functions, such as failure alarming, production counting, power saving, production number setting prompt and parameters setting protection.
Machine Specification
Detail
Specification
Applicable Product size
Product Diameter: 10 - 35 mm
Product Hight: 25-80 mm
Applicable outer diameter of label roll:
φ280mm
Applicable inner diameter of label roll
φ76mm
Labeling precision
± 1 mm
Labeling speed
60 ~ 200 pcs/min
Weight
about 200 kg
Frequency
50HZ
Voltage
220V
Power
1020 W/1470 W Depend on motor
Overall dimensions of the machine (L × W × H):
about 2050 mm × 650mm × 1450 mm
Air pressure
N/A
Optional functions and components:
(1) hot print coding / ink-jet printing function; (2) automatic materials loading function (based on products); (3) automatic materials receiving function (based on products); (4) increase of labeling devices; (5) circumferential positioning labeling function;
