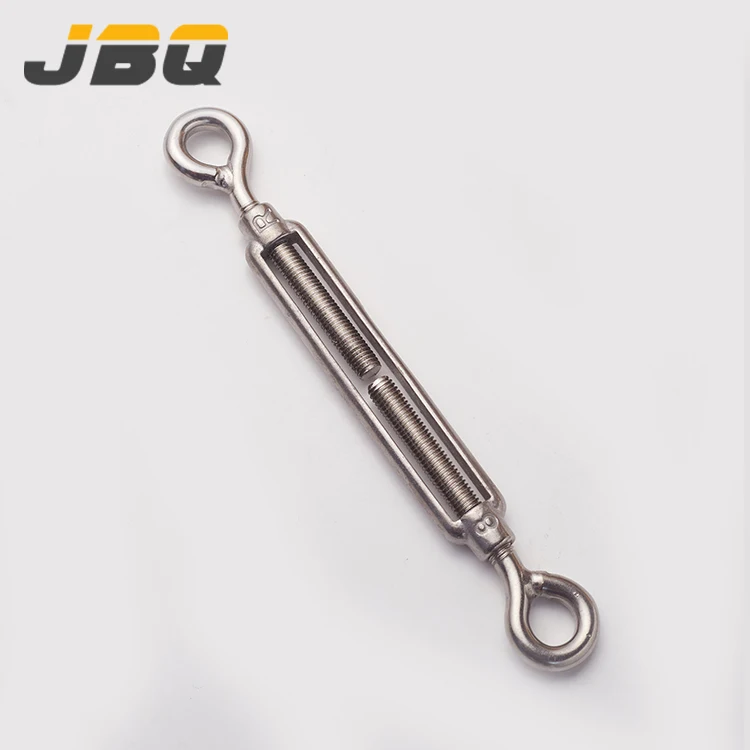

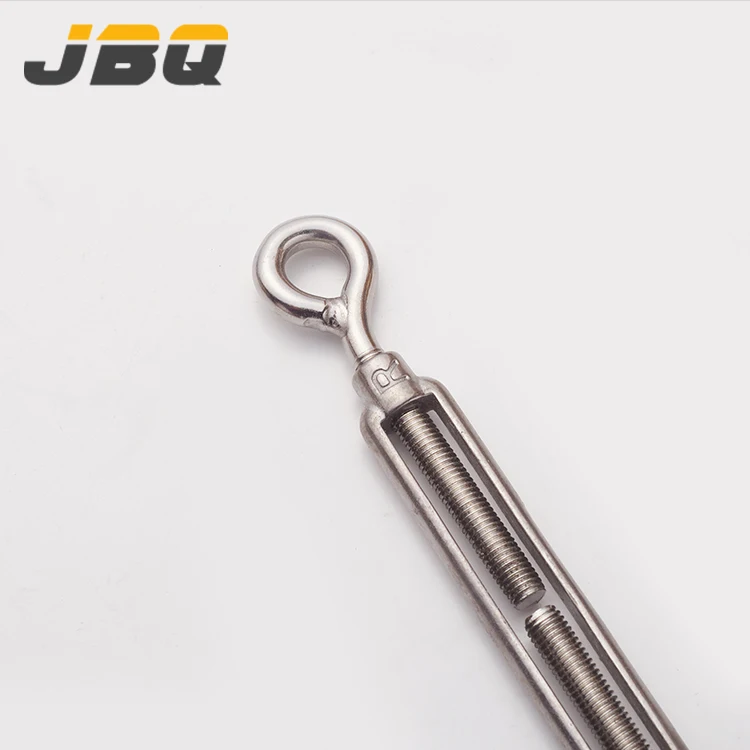

Stainless Steel Closed Body Turnbuckles With Eye And Eye Bottlescrew
Closed Body Turnbuckle
Closed body turnbuckles are made from grade 304 stainless steel and grade 316 stainless steel, SS316 is better than SS304 in corrosion resistance and durability, if their application areas are very bad like marine and biogas..., we recommend you choose grade 316 stainless steel, If not, SS304 is good enough.
Closed body turnbuckles are available in size from M5 to M20, when you don't know how to choose the size of closed body turnbuckle, you could refer to the following dimensions and their working load limit. The ends of turnbuckles could be revised as your request, like fork and hook, eye and hook...
If you have any other questions,please feel free to contact us
Size（φA） | B | L | F | BL |
mm | mm | mm | mm | kg |
M4 | 61 | 105 | 8 | 480 |
M5 | 80 | 140 | 11 | 700 |
M6 | 90 | 160 | 11 | 1600 |
M8 | 110 | 198 | 15 | 2800 |
M10 | 120 | 226 | 15 | 4000 |
M12 | 150 | 278 | 20 | 5000 |
M16 | 190 | 346 | 26 | 6500 |
M20 | 220 | 420 | 30 | 9000 |

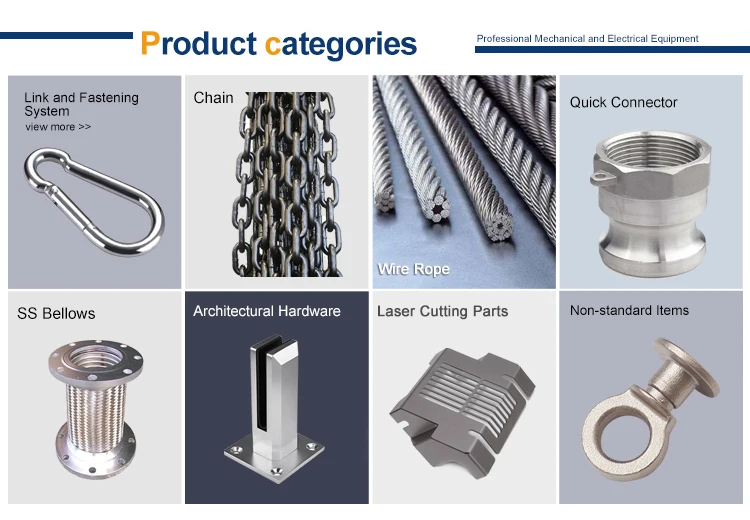

Product Categories

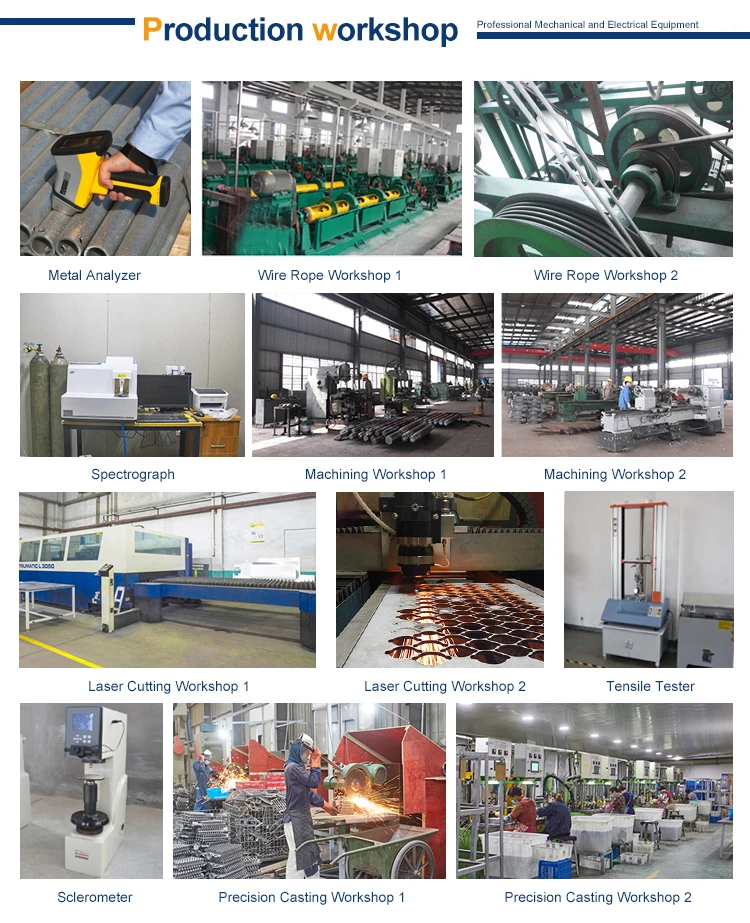

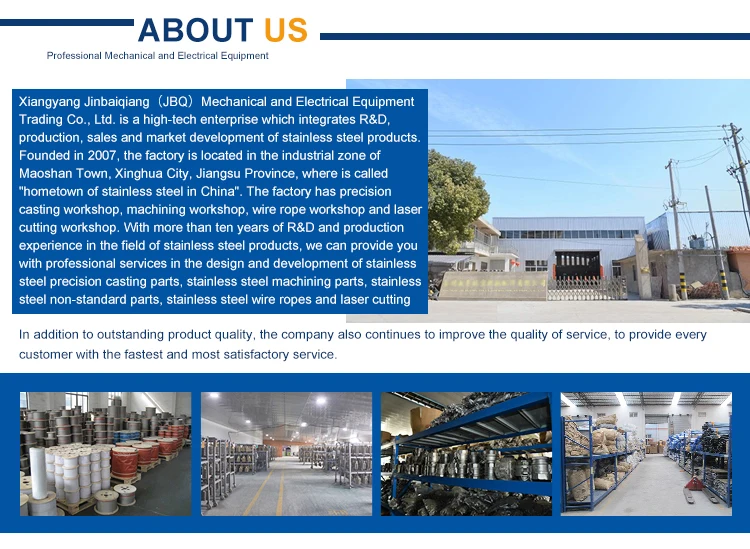

Our Company
