CPU laptop cooling pads thermal silicone conductive gap pads
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62396789156):
Product Overview
Description

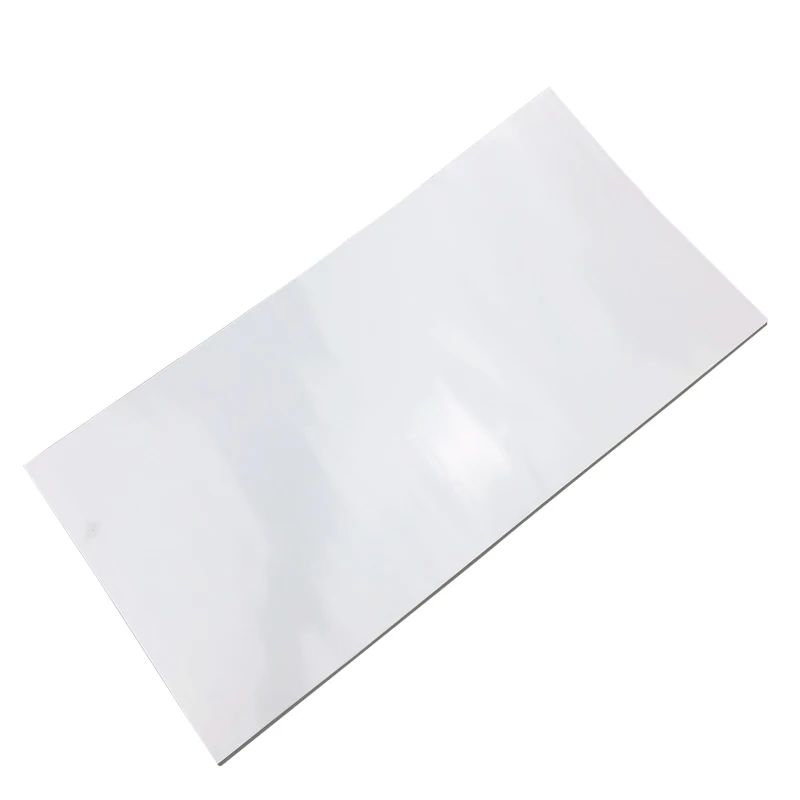

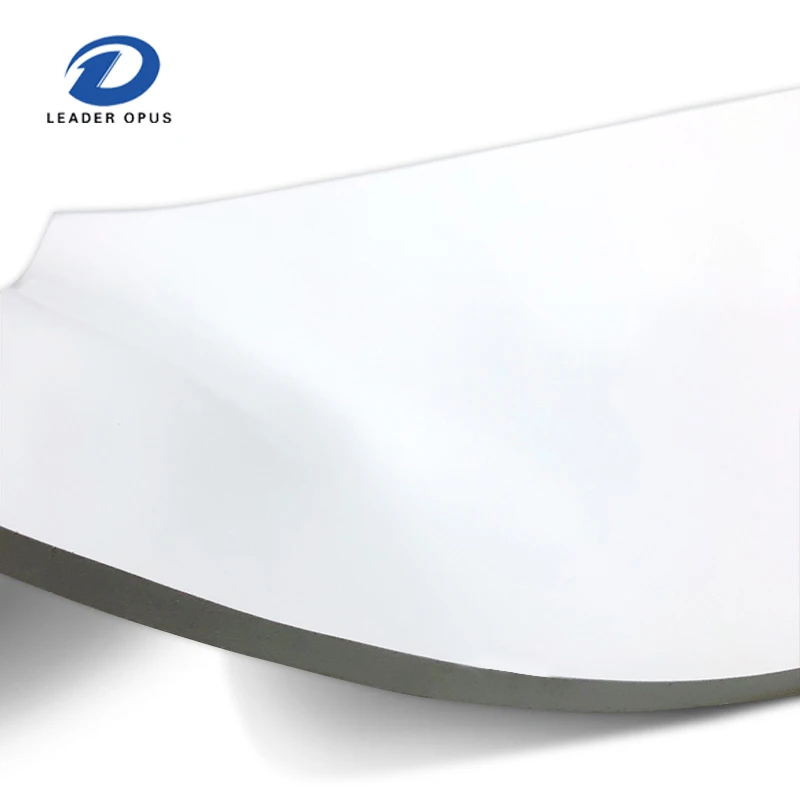

CPU laptop cooling pads thermal silicone conductive gap pads
Thermal Silicone Rubber Pad for Sales
we offer design support, rapid sampling and full engineering support

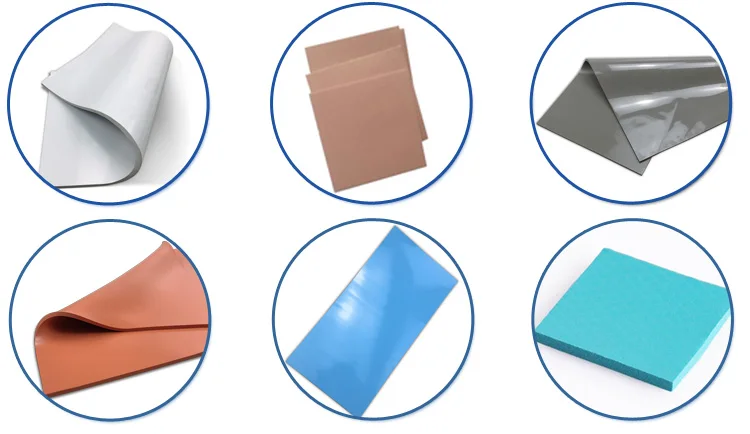

Thermal Silicone Rubber Pad Configurations
Sheet form, die-cut parts
Roll form available
Thermal Silicone Rubber PadSize Available
200x400mm,300x435mm; 300x350mm, can custom-made, etc.
Thermal Silicone Rubber Pad Thickness Available
0.3-15.0mm, increment by 0.5mm
Typicl Properties of Thermal Silicone Pad
| Metric Value | |||||||||
| Property | Test Method | Unit | LD8100 | LD8150 | LD8200 | LD8250 | LD8300 | LD8400 | LD8500 |
| Color | Visual | - | Light Grey | Dark & Grey | Red | Yellow | Blue | Light Blue | Light Green |
| Thickness | ASTM D374 | mm | 1.0~2.5 | 0.5~20.0 | 0.5~20.0 | 0.5~5.0 | 0.3~20 | 0.5~5.0 | 1.0~5.0 |
| Density | ASTM D792 | g/cc | 2 | 2.5 | 2.8 | 3.0 | 2.7 | 3.2 | 3.4 |
| Hardness | ASTM D2240 | Shore C | 15±5 | 25±5 | 25±5 | 25±5 | 30±5 | 40+/-5 | 45±5 |
| Tensile Strength | ASTM D412 | KN/m | 2.5 | 0.47 | 0.33 | 0.42 | 0.29 | 0.12 | 0.15 |
| Continuous Use Temp. | EN 344 | °C | -40-150 | -40-150 | -40-150 | -40-150 | -40-150 | -40-200 | -40-200 |
| Electrical | |||||||||
| Breakdown Voltage | ASTM D149 | Kv/mm | ≥6.3 | ≥5.2 | ≥6.0 | ≥5.3 | ≥4.8 | ≥6.0 | ≥4.0 |
| Volume Resistivity | ASTM D257 | Ω.cm | 6.2×1015 | 8.0×1015 | 1.0×1016 | 3.2×1016 | 3.2×1016 | 1.0×1012 | 1×1012 |
| Flame Rating | UL 94 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
| Thermal | |||||||||
| Thermal Conductivity | ASTM D5470 | W/m.k | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
Remark: Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
Thermal Silicone Rubber Pad Features
Thermal conductivity:1.0w/m.k
One side slightly tacky, the other side moderate tacky
Ultra softness offer high conformability at low stress application.
Reinforced fiberglass for puncture, shear or tear resistance.

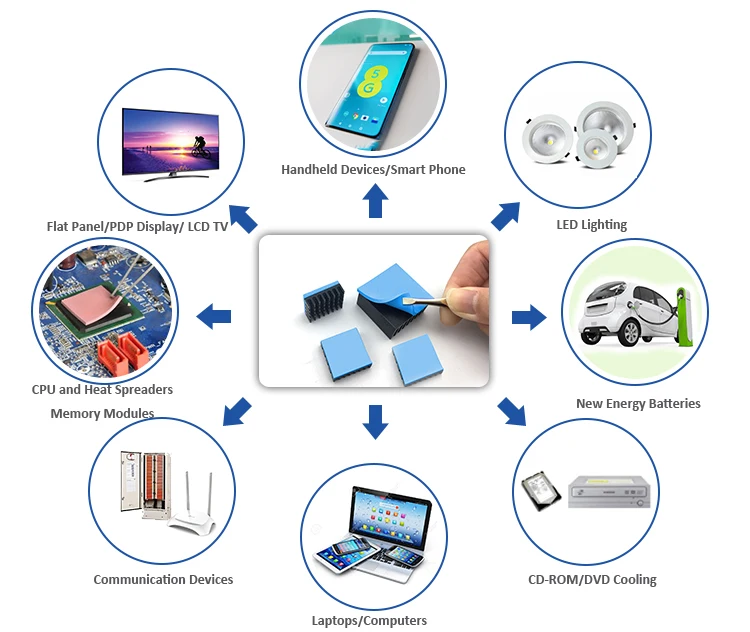

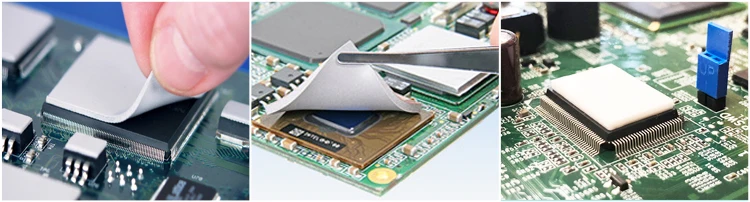

Silicone Thermal Wide Application
No matter what kind of heat sink device is adopted, if the tightness between the electronic components and the heat dissipation device is not good, there will be a lot of air between the components to hinder the heat transfer, and the heat sink device will not be able to effectively reduce the heat of the electronic components.
Thermal Silicone Rubber Pad has very good thermal conductivity and filling, its own flexibility can fill the gap between heating elements and heat dissipation module, metal mechanism and housing, quickly dissipate thermal energy, improve the efficiency of the components, to extend the life of the equipment.
Professional Test Equipment Ensure High Quality Thermal Pad

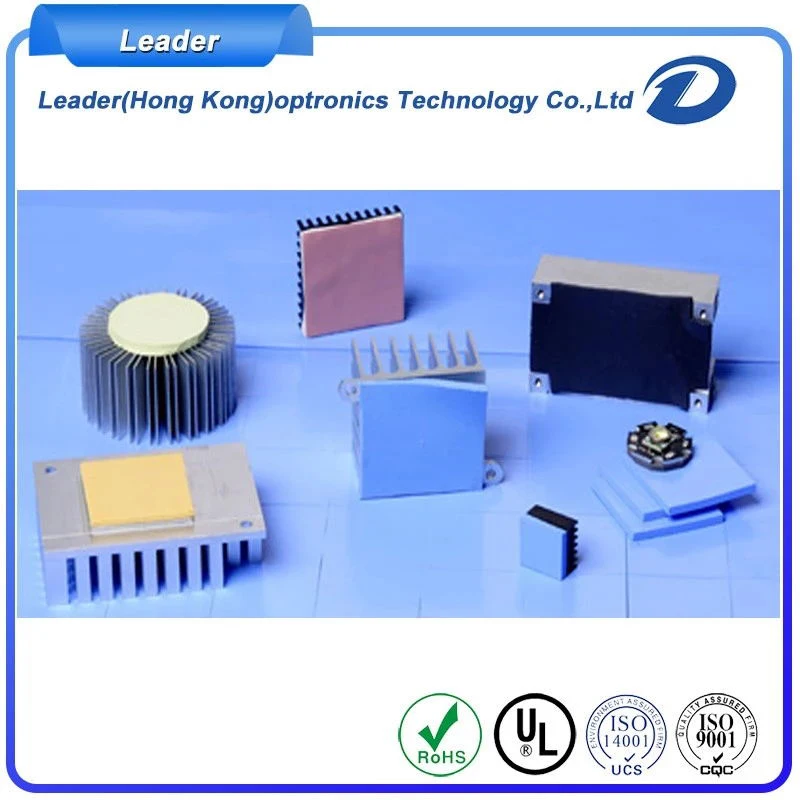

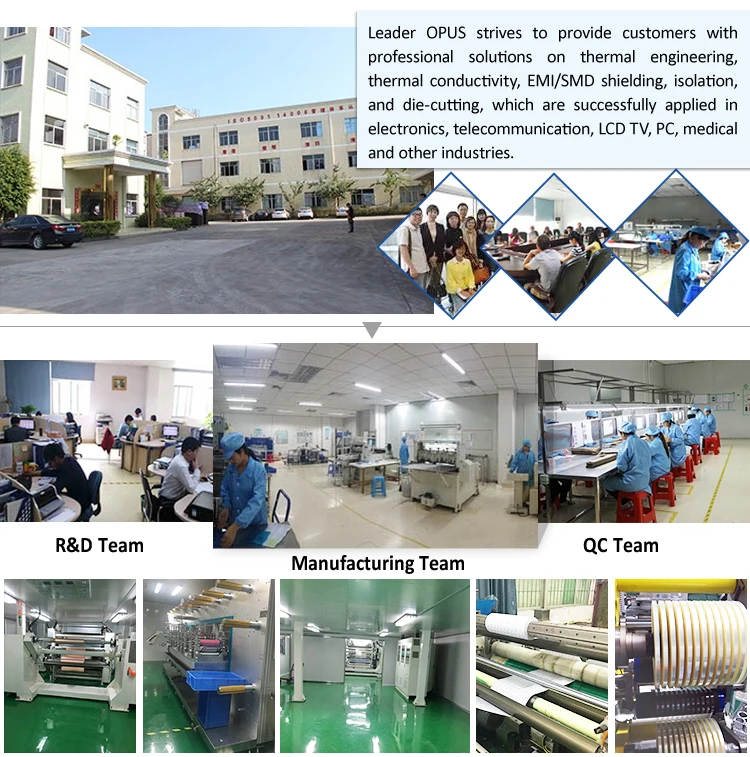

Reliable Thermal Silicone Pad Manufacturer - Lead OPUS
Leader OPUS, established in 1997, is an expert in thermal management solutions. Based on the customers' request, we boast strong capacity to design, develop and manufacture various interface materials, including thermal silicone pads, thermal tape, thermal conductive, heat sink ceramic, etc. If you have any questions, please do not hesitate to contact us for samples.
Customer Vist Our Factory for Die-cut Thermal Silicone Pad
Thermal Silicone Rubber Pad Certifications
Thermal Managment Solutions for Global Partners
FAQ about Thermal Silicone Rubber Pad
What's the thermal conductivity test method given on the data sheet?
All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
How to Find a right thermal conductivity for my application?
It depends on the watts of power source, ability of heat dissipation.
Do you accept custom orders?
Yes, we products can be customized in dimension, shape, color, coated on side or two sides adhesive or coated fiberglass. Our design team will help on drawing, please contact us for more details.
Do you offer free samples?
Yes, we are happy to offer the free samples for your test.
