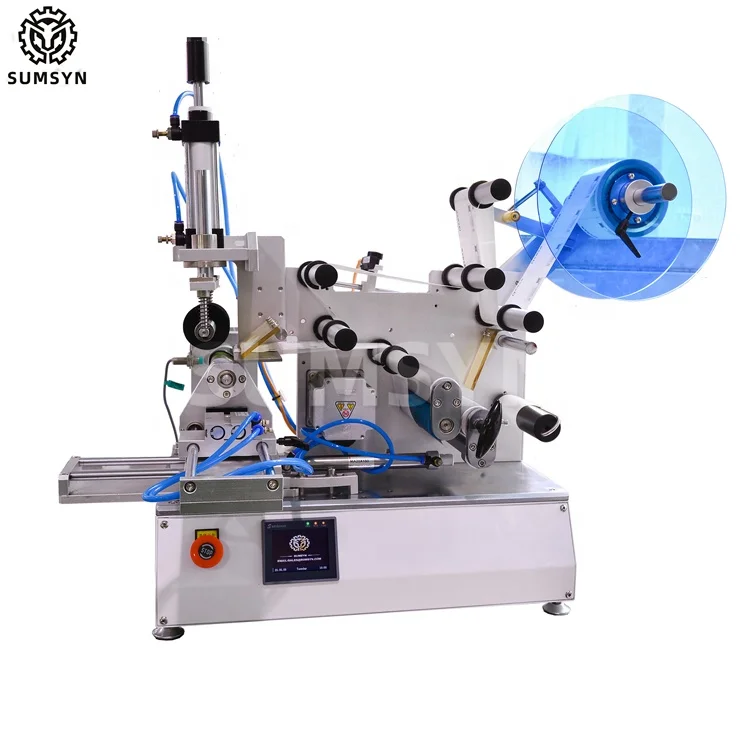

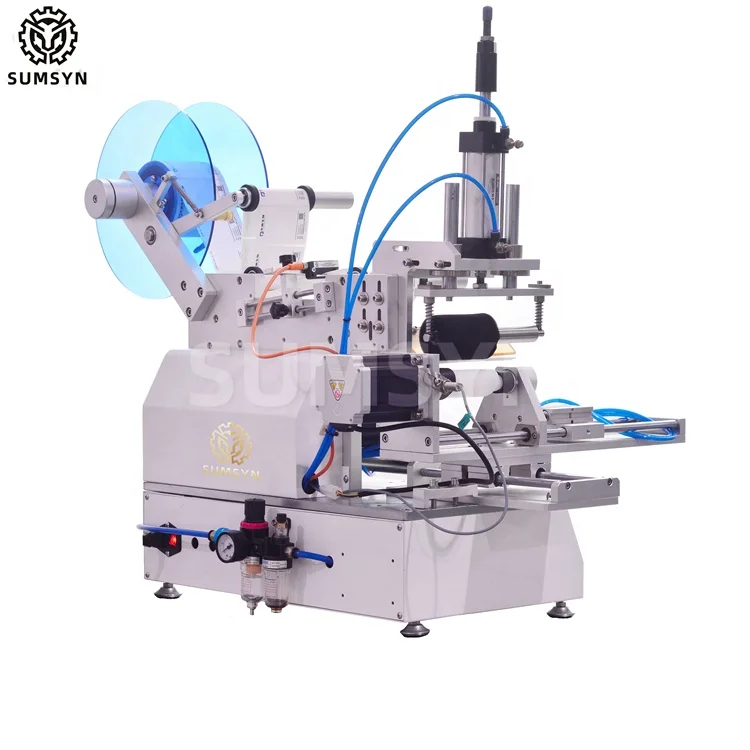

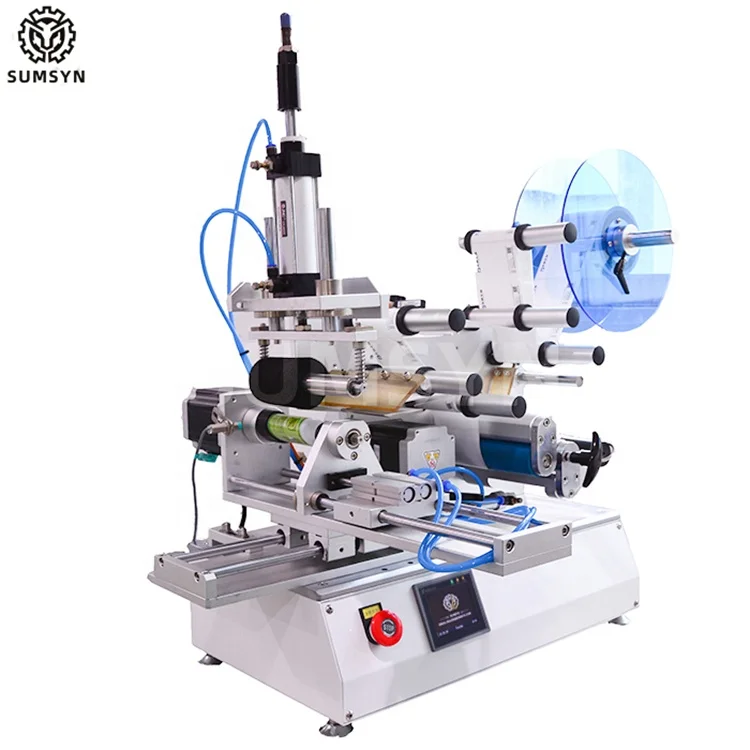

General information Specifically designed for self-adhesive labeling on Square bottle, curved flat bottles, with no bubbles and high precision. Suitable for various shape of bottles/can. Easy to operations and increase productivity.
Brand: SUMSYN

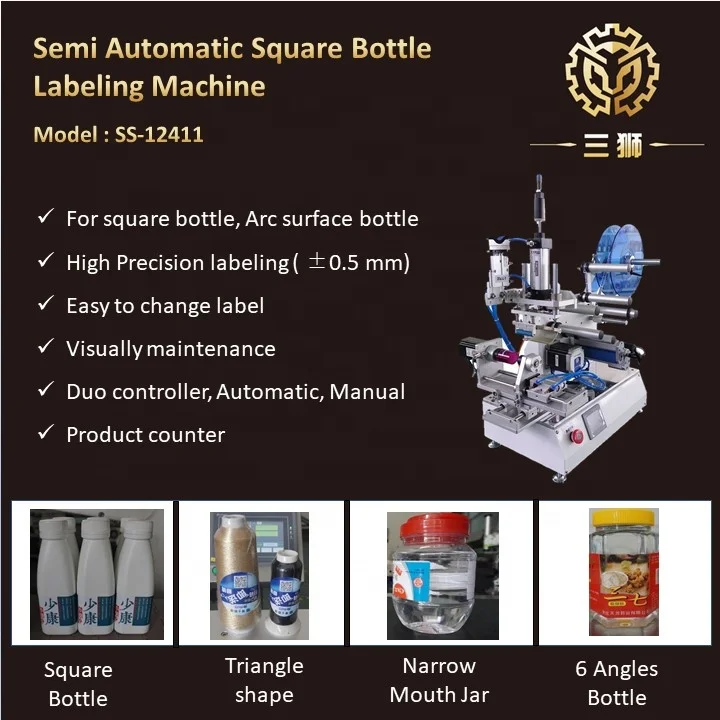

For Square bottle, flat bottle, round bottle,arc surface bottle
High precision label ± 0.5 mm
One machine can be applied many style of bottles.

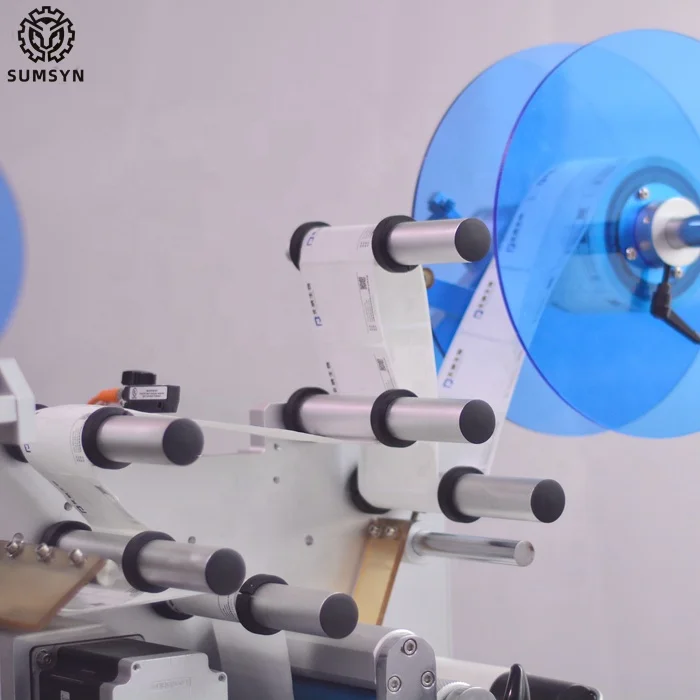

Easy to change label
Visual maintenance
Product counter
Application range
Application Range
Applicable labels: self-adhesive label, self-adhesive film, etc.

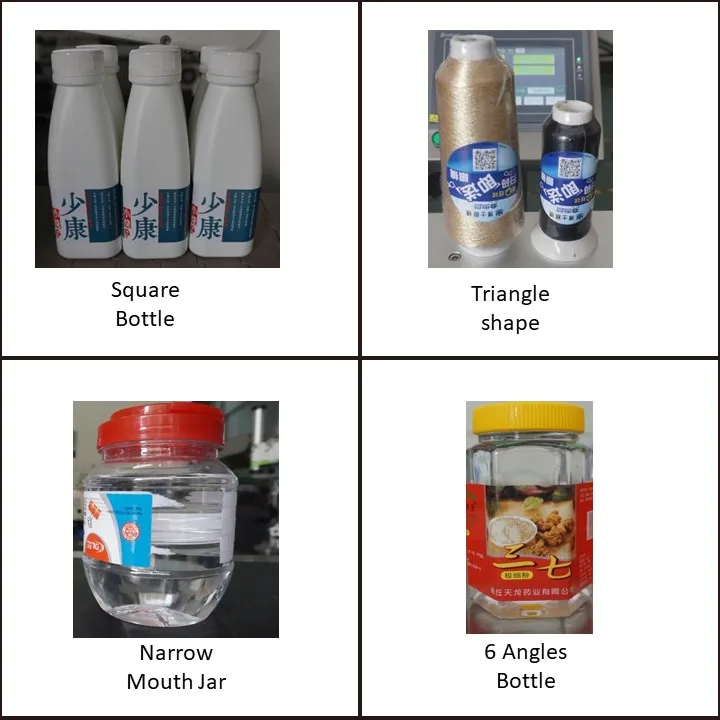

Applicable products: products require labeling on curved surface, Round bottle, Square bottle, Narrow mouth Jar, etc.
Application industries: widely used in cosmetics,food, pharmaceutical, daily chemical, electronics, and other industries.
The following is the standard selection configuration. Other special requirement and function can be customize.
Detail
Unit
Specification
Applicable Product Hight
(mm)
20~200
Applicable Product Width
(mm)
20 ~150
Applicable Product Thickness
(mm)
2 ~100
Applicable outer diameter of label roll:
(mm)
280±5
Applicable inner diameter of label roll
(mm):
76±1
Labeling precision
(mm)
± 0.5
Labeling speed
(pcs / min)
15 ~ 35
Weight
(Kg)
about 4
Frequency
(HZ)
50
Voltage
(V)
220
Power
(W)
145 W
Dimensions (L × W × H):
(mm)
850*410*720

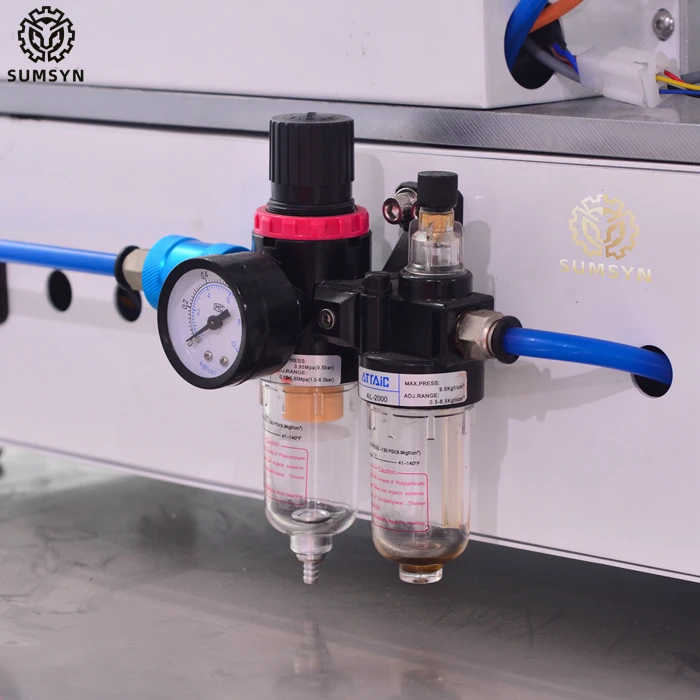

Air pressure
(Mpa)
0.4~0.6
Detail
- No air bubbles, improving productivity
- High precision labeling.precise label peeling; the motor drives the curved surface motion. The product positioning is accuracy;
- Wide range of application. Multi-specification flat bottles and labels can be freely adjusted. It is easy to switch products labeling;
-Labeling sides, Able to labeling both single side labeling, wrap around or multi sides labeling.

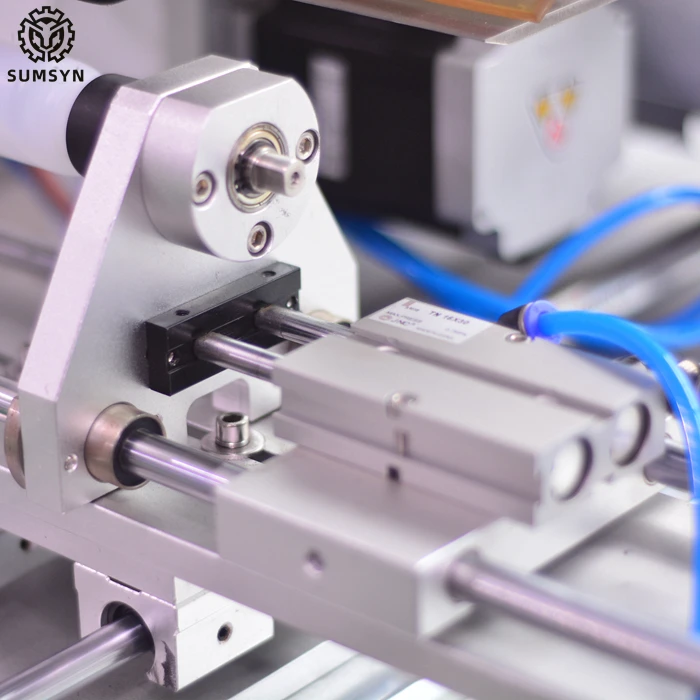

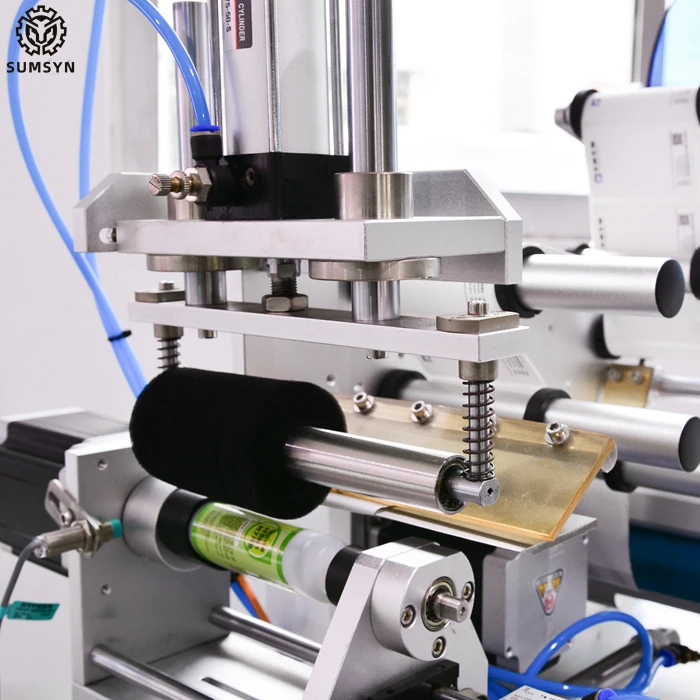

- Easy to operate. Using air cylinder to push labeling platform moving up and down, automatic positioning air cylinder, the process only need operator help putting product;

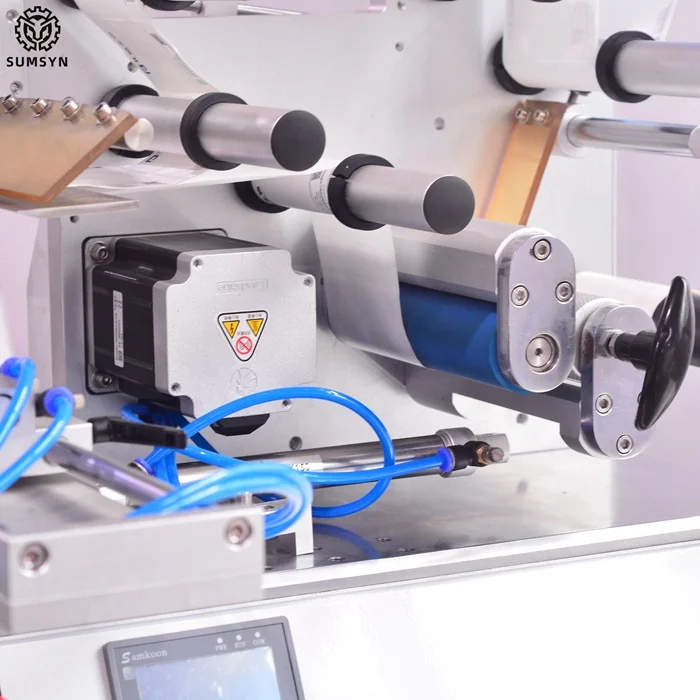

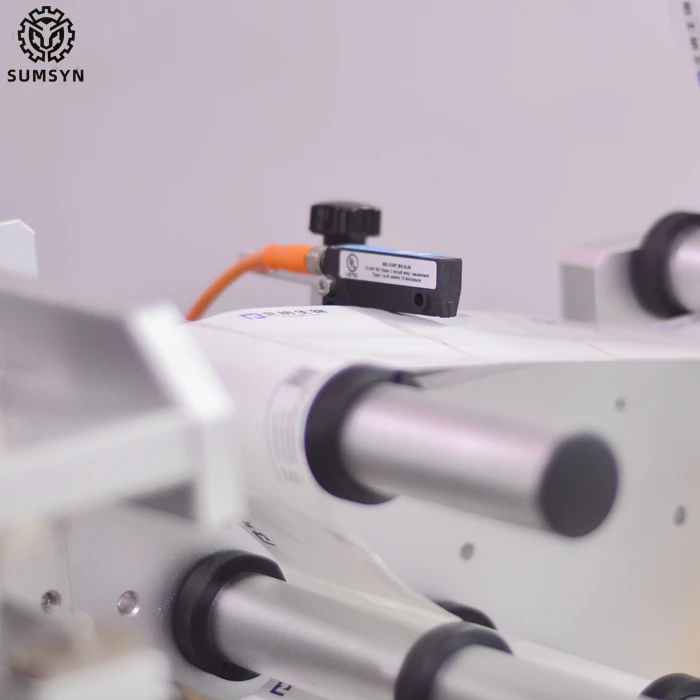

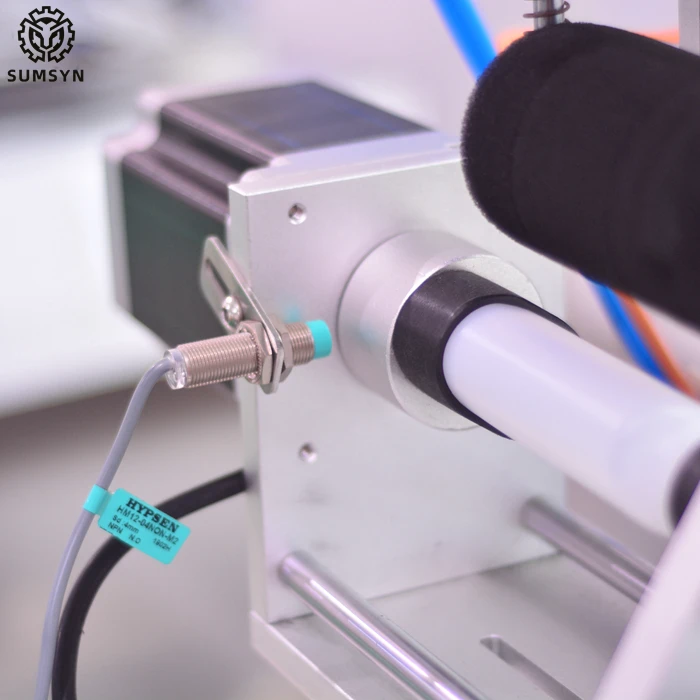

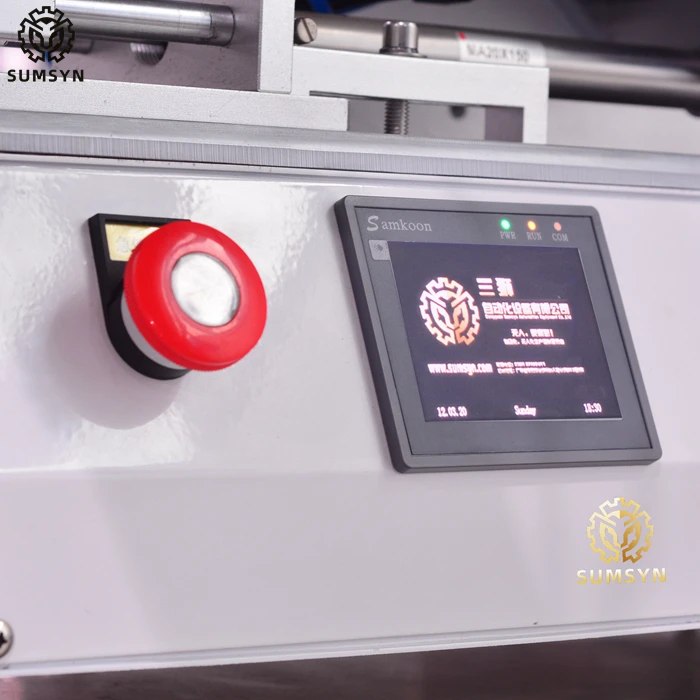

- High stability. Use of electronic control system composed of PLC + sub-dividing stepper motor + Italian label detecting electric eye. Available long-time continuous operation;
